NOTE: This User Instruction Manual contains important information, including
safety & installation points, which will enable you to get the most out of
your appliance. Please keep it in a safe place so that it is easily available
for future reference, for you or any person not familiar with the operation of
the appliance.
Wine Coolers
USER MANUAL
CCVB 15 UK
CCVB 30 UK
CCVB 60D UK
EN UK Ver.1/2016

Advertisement

Table of Contents
loading

Related Manuals for Candy CCVB 15 UK

Summary of Contents for Candy CCVB 15 UK

  • Page 1 Wine Coolers USER MANUAL CCVB 15 UK CCVB 30 UK CCVB 60D UK NOTE: This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference, for you or any person not familiar with the operation of the appliance.

  • Page 2: Table Of Contents

    --CONTENTS-- 01 SAFETY INFORMATION 03 SCRAPPING OLD APPLIANCES Conformity Energy Saving Service 04 DESCRIPTION OF APPLIANCE Product Features Control Panel Interior light The Wine Cooler shelves 07 USING YOUR WINE COOLER Before Switching On During First Use Turning The Appliance On And Off Unlocking The Control Panel The Interior Light Setting The Temperature Range...

  • Page 3: Safety Information

    Thank you for purchasing this product. Before using your Wine Coolers, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as: --the kitchen area for personnel in shops, offices and other working environments --on farms, by clientele of hotels, motels and other environments of a...
  • Page 4 ● Do not damage the plug and/or the power cord; this could cause electrical shocks or fires. ● It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire. ● Do not use mechanical devices or other equipment to hasten the defrosting process.

  • Page 5: Scrapping Old Appliances

    SCRAPPING OLD APPLIANCES This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

  • Page 6: Service

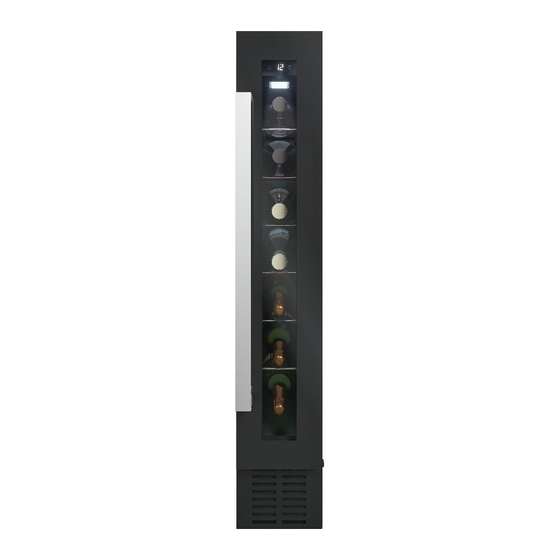

    If you require a service call then please contact the Customer Care Department DESCRIPTION OF APPLIANCE Product Features CCVB 15 UK: Single Zone--7 Bottles A. Control Panel B. Glass Door C. Handle D. Beech Shelves E.

  • Page 7: Control Panel

    D. Beech Shelves E. Front Vent F. Adjustable Foot Control Panel Single Zone ： CCVB 15 UK, CCVB 30 UK A. Power B. Lighting C. Display Window D. Temp. Plus E. Temp.Minus F. Lock / Unlock G. Function Indicator H. ºC/ºF Switch...

  • Page 8: Interior Light

    Dual Zone ： CCVB 60D UK Upper Zone A. Power B. Lighting D. Temp. Plus E. Temp.Minus Display Window Lock/ G. ºC/ºF Function Function Lower Zone Display Window J. K. Zone Select Switch Unlock Indicator 1 Indicator 2 Interior light Note: This LED light has a long life time.

  • Page 9: Using Your Wine Cooler

    USING YOUR WINE COOLER Before Switching On o Make sure that it has been installed by a suitably qualified person, as per the information contained in the installation instructions. o After delivery, wait for eight hours before connecting the appliance to your mains supply.

  • Page 10: Turning The Appliance On And Off

    Turning The Appliance On And Off CCVB 15 UK, CCVB 30 UK, CCVB 60D UK o When the Wine Cooler is connected to the power outlet it will turn on automatically. o Press and hold the power button for 10 seconds to turn the appliance on and off.

  • Page 11: Setting The Temperature

    CCVB 15 UK, CCVB 30 UK o The default range of Single Zone is E: 5-22 ºC (41-72 ºF). Display Temp. Range (Single Zone) 5 - 22 °C (41 ºF-72ºF) E (Default) 2 - 20 °C (36 ºF-68ºF) 10 - 19 °C (50 ºF-66ºF) 0 - 20 °C (36 ºF-68ºF)

  • Page 12: Changing Between Fahrenheit And Celsius

    Changing Between Fahrenheit And Celsius o You can select whether the temperature display shows Celsius or Fahrenheit. CCVB 15 UK, CCVB 30 UK o To alter what the temperature display is showing, press the Celsius and Fahrenheit switch. This will change the temperature display for both cooling zones.

  • Page 13: Silent Mode

    Silent Mode CCVB 15 UK, CCVB 30 UK, CCVB 60D UK o The appliance is with Silent Mode, which will slow down the fans speed when the inside temperature reaches the temperature set. o The Silent Mode is set as "On" by default, to turn off it, when the control panel is under locked condition, press and hold the light mark for 3 seconds, the icon ºC or ºF will stay on to indicate the...

  • Page 14: Loading The Wine Cooler

    As many bottles may differ in size and dimensions, the actual number of bottles you are able to store may vary. The maximum storage number is based on standard 0.75 litre Bordeaux style wine bottles. CCVB 15 UK 750ml Bordeau 305mm Φ76.20mm...

  • Page 15: Storing Your Wines

    CCVB 60D UK Upper Shelf Bottom Shelf 750ml Bordeau Φ76.20mm 305mm Storing Your Wines The chart below indicates the ideal storage temperatures for different types of wine: Temperature Temperature Type of wine (Celsius) (Fahrenheit) Red wine (*) 15.5 – 18.5°C 59.9 –...

  • Page 16: Wine Storage Problems

    o If wine is kept at too low a temperature, this can result in the development of harmful deposits. A humidity of 70% is ideal for keeping corks from shrinking. o After a bottle of wine has been opened, the wine comes into contact with air.
  • Page 17 stained label. It can happen if the bottle has been allowed to get too warm. The wine may still be drinkable, if the leakage was recent; however, you should be aware that if the wine cools down again, contraction can cause more air to be sucked into the bottle and result in further deterioration.

  • Page 18: Cleaning And Maintenance

    CLEANING AND MAINTENANCE WARNING: PLEASE ENSURE THAT YOUR APPLIANCE IS DISCONNECTED FROM Y O U R M A I N S S U P P L Y B E F O R E ATTEMPTING TO CLEAN IT. o Do not clean the appliance by pouring water onto it or spraying water over it.

  • Page 19: Removing The Shelves For Cleaning

    Before removing a Shelf from the appliance, it is necessary to remove all the bottles on the Shelf. CCVB 15 UK, CCVB 30 UK o Move the shelf to the position where the notch of the wooden shelf is directly under the plastic stopper and lift the wooden shelf.

  • Page 20: Moving Your Wine Cooler

    o You should be careful to make sure that wine bottles do not touch the rear wall of the appliance, as this can interrupt the automatic defrosting process and deflect water into the base of your Wine Cooler. Moving Your Wine Cooler If you need to move your Wine Cooler to another location you should follow the steps outlined below.

  • Page 21: Installation

    INSTALLATION MPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found on the front left edge of the inside of the Wine Cooler.

  • Page 22: Positioning

    Positioning o It is advisable that your appliance is only installed in a location where the ambient temperature of the room, corresponds with the climate classification that is stated on the rating plate of your appliance. Your appliance may not function correctly if the ambient temperature falls outside of the following ranges.

  • Page 23: Built-In Installation

    Built-In Installation CCVB 15 UK • Height Adjustable: 863-883mm CCVB 30 UK • Height Adjustable: 863-883mm .21.
  • Page 24 A decorative plinth can be fitted to the front of the base vent as long as the cut out shown in the diagram below is made in the plinth. This cut out is required whether the vent is removed or not. CCVB 15 UK A. Cut-out Area 82mm 100mm .22.

  • Page 25: Adjusting The Height And Levelling Off Your Wine Cabinet

    491mm Adjusting the height and levelling off your wine cabinet CCVB 15 UK, CCVB 30 UK, CCVB 60D UK o The appliance is equipped with adjustable feet, so that the height may be adjusted to level the cabinet on uneven floor surfaces.

  • Page 26: Installing The Handle

    IMPORTANT: If the appliance is not level, then the door and door seal may be affected. IMPORTANT: Do not move the appliance when the feet are adjusted high. Installing The Handle Gasket Handle Washer Handle Screws o Remove the door gasket on the inside of the door to expose the two screw holes.
  • Page 27 CCVB 15 UK, CCVB 30 UK,CCVB 60D UK o Open the glass door and remove the two screws from Pivot Hinge under the right bottom corner of the glass door. Pivot Hinge o Be careful to support the glass Screws door with both hands to prevent it dropping after removing the screws.
  • Page 28 o Pull out the 6 Plastic Caps at the front left corner of the cabinet. And move them all to the right side. Plastic Caps o Take the left top hinge and left lower hinge from the plastic bag that contained this manual then install them in the designated positions on the left side of the cabinet.
  • Page 29 o Turn the glass door around 180° and reinstall it. o Insert the Pivot Hinge into the Left Lower Hinge hole of the door. o Install the door to the left hinge side by tightening the Support Rod with the 2 screws. Pivot Hinge Screws .27.
  • Page 30 IMPORTANT: Check that the door opens and shuts correctly, without fouling, after you have completed the door reversal process. After the door has been reversed, you should check the door seal of the Wine Coolers. The seal should not be creased or crushed; otherwise there will be a gap between it and the inside of the door.

  • Page 31: Troubleshooting

    TROUBLESHOOTING IMPORTANT: If your Wine Cooler appears not to be operating properly, before contacting the Customer Care Department, please refer to the checklist below. PROBLEM POSSIBLE CAUSE Not plugged in. The Wine Cooler does not operate The appliance is turned off. The circuit breaker tripped or a blown fuse.
  • Page 32 DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. Please note that if an engineer is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.

  • Page 33: Technical Data

    TECHNICAL DATA Candy Manufacturer 2 – Refrigeration-cellar, Cellar and Wine storage Product Category appliances CCVB 15 UK CCVB 30 UK Model Number CCVB 60D UK Energy Efficiency Class (1) Annual Energy 236kWh 190kWh 252kWh Consumption (2) Storage Volume of Fridge Compartment...
