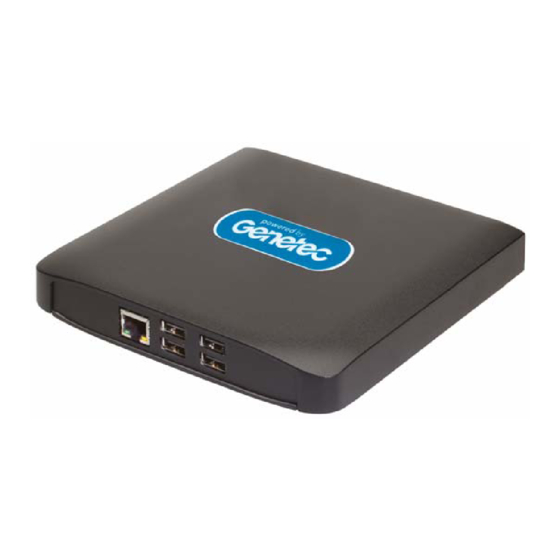

Genetec SV-16 v2 Quick Start Quide

Network security appliance
Hide thumbs
Table of Contents

Advertisement

Quick Links

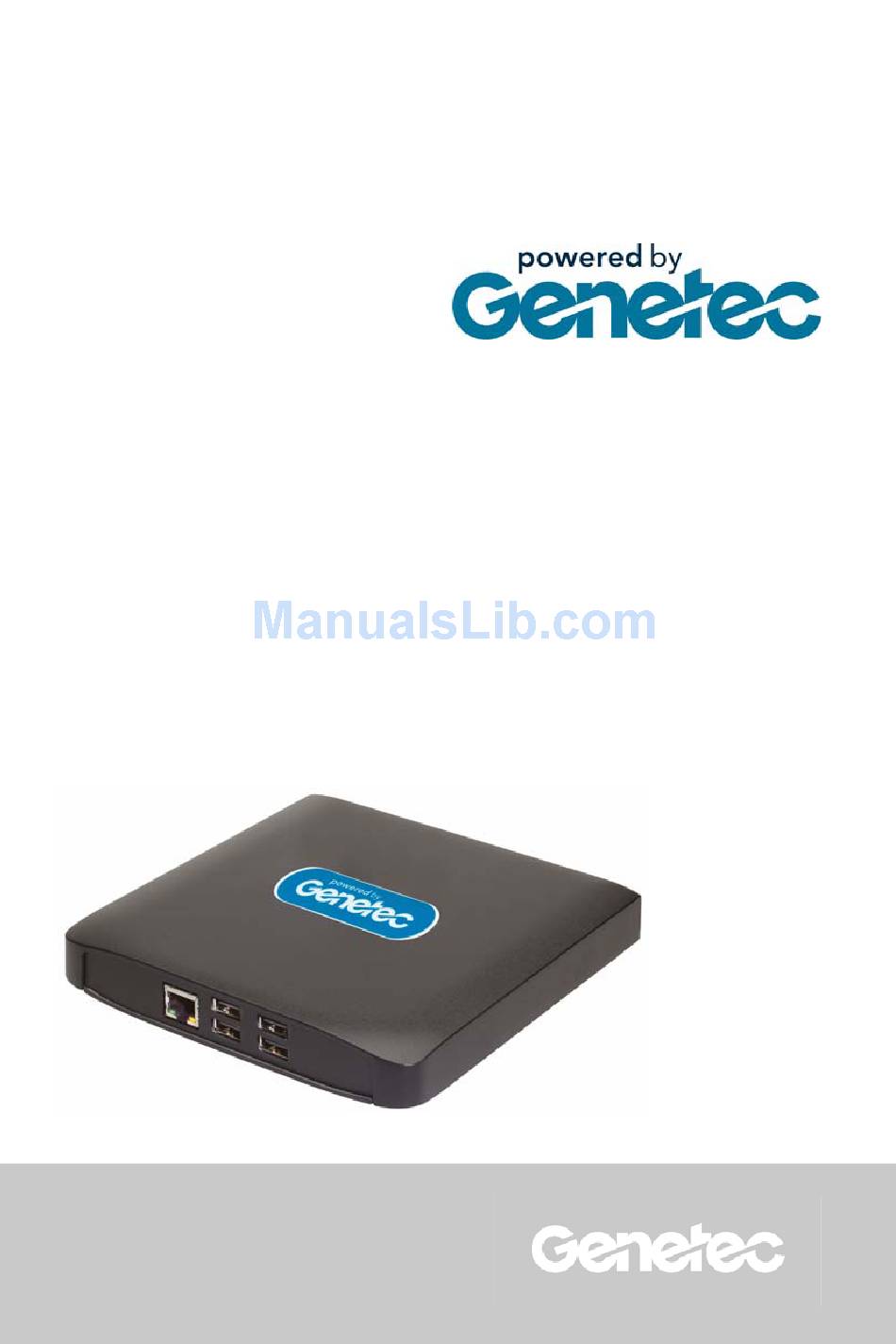

SV-16 v2
Network Security Appliance
Quick Start Guide
This document explains how to set up the SV-16 v2
for use with Omnicast and Security Center
Click
here
for the most recent version of this document.
REV. 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SV-16 v2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Genetec SV-16 v2

Summary of Contents for Genetec SV-16 v2

  • Page 1 SV-16 v2 Network Security Appliance Quick Start Guide This document explains how to set up the SV-16 v2 for use with Omnicast and Security Center Click here for the most recent version of this document. REV. 2...
  • Page 2 In no event shall Genetec Inc. be liable to any person or entity with respect to any loss or damage that is incidental to or consequential upon the instructions found in this document or the computer software and hardware products described herein.

  • Page 3: Product Documentation

    SV-16 v2 Quick Start Guide Product documentation The product documentation is found in the following location: • The latest version of Genetec Technical Assistance Portal (GTAP). the documentation is available from GTAP. Note, you’ll need a username and password to log on to GTAP.

  • Page 4: Technical Support

    GTAP Forum. The Forum is an easy to use message board that allows clients and Genetec staff to communicate with each other and discuss a variety of topics, ranging from technical questions to technology tips. You can log in or sign up at https://gtapforum.genetec.com...

  • Page 5: Table Of Contents

    SV-16 v2 Quick Start Guide Contents Introduction . What is the SV-16v2 . Supported video configurations Supported access control configurations . Supported video and access control configurations About software licenses About SV-16v2 Hardware What is included in the SV-16v2 kit .

  • Page 6: Introduction

    SV-16 v2 Quick Start Guide Introduction Introduction This section provides an overview of the SV-16 v2. For information about SV-16 v2 image version, please see SV-16 v2 Release Notes available on GTAP. What is the SV-16 v2 The SV-16 v2 is a compact-sized network security appliance that includes Genetec security software, and Windows Embedded Standard 7.

  • Page 7: Supported Access Control Configurations

    Introduction Requirements: • To run the SV-16 v2 at full capacity, you’ll need to turn off software motion detection. Use unit based motion detection instead. • The IP cameras or encoders must be connected to the SV-16 v2 through an IP network using a network switch.
  • Page 8 SV-16 v2 Quick Start Guide Introduction Item Supported with Security Supported with Center Omnicast Camera sequences HTML maps Plan manager (requires an additional server) Alarm management Zone Monitoring and I/O Linking Email support Macros Health Monitoring People Counting Antipassback Database reporting...

  • Page 9: About Sv-16V2 Hardware

    SV-16 v2 Quick Start Guide About SV-16 v2 Hardware About SV-16 v2 Hardware This section describes the hardware components of the SV-16 v2. What is included in the SV-16 v2 kit The SV-16 v2 kit contains the following: • SV-16 v2 appliance Security Center and Omnicast, Windows Embedded Standard 7 64- ...

  • Page 10: Hardware Components

    SV-16 v2 Quick Start Guide About SV-16 v2 Hardware Hardware components Hardware specifications AMD G-T40N dual core 1GHz Chipset AMD A55E Controller Hub 4 GB Storage One of the following: • 160 GB SATA hard disk with 120 GB of archiving space.

  • Page 11: Front Panel Connections

    SV-16 v2 Quick Start Guide About SV-16 v2 Hardware Front panel connections Eth1 4 x USB2 ports Back panel connections S/PDIF line-out On/Off Display port HDMI Eth2 R232 S/PDIF line-in WLAN 2 x USB2 ports 2 x USB3 ports 12V DC...

  • Page 12: Before You Install

    • Clear space in front of the SV-16 v2. The power button on the SV-16 v2 is very sensitive. To prevent the SV-16 v2 from accidentally turning off, make sure nothing is touching (or too close) to the power button.

  • Page 13: Getting Started

    Select software product You can only run one software product at a time. Once the SV-16 v2 starts, you must activate Security Center or Omnicast applications from the Genetec Product Selector, depending on your license. Until you select a software product, the Product Selector automatically opens every time you turn on the SV-16v2.
  • Page 14 SV-16 v2 Quick Start Guide Getting started NOTE You can also change the language of Security Center or Start > Genetec product > Tools > Language Omnicast, by clicking Tool. Genetec Product Selector In the that is open on your computer, click...

  • Page 15: Activate License

    SV-16 v2 Quick Start Guide Getting started Activate license This section explains how to activate your Security Center and Omnicast license using an Internet connection. If you do not have Internet access, you can activate your license manually. • Security Center license Web activation on page 10 •...

  • Page 16: Omnicast License Web Activation

    SV-16 v2 Quick Start Guide Getting started Omnicast license Web activation This section explains how to activate your Omnicast license using Web activation. Server Admin Open Server Admin by clicking the icon in the Win- dows taskbar. admin , and click Log on.

  • Page 17: Manual License Activation

    (open with a text editor), or browse for the License.lic Open file, and click Activate Click You can now use Security Center on your SV-16 v2. For more information about using Security Center, see Product documentation on page iii. EN.800.003-V2.11(2)

  • Page 18: Installing Security Center Client Applications On A Remote Computer

    It is best practice to run Security Desk and Config Tool on a different com- puter. You can copy the Full folder located in C:\SC5 on the SV-16 v2 to a remote computer, and then install Security Center Client.

  • Page 19: Product Warranty

    The following items are not covered by the Genetec Standard Hardware Warranty: • Any equipment not furnished by Genetec which is attached to or used in conjunction with a product. • A product which is used with any ancillary equipment that is not fur- nished by Genetec.

  • Page 20: About Product Repairs And Returns

    How do I return the product? If a replacement unit is required, you must complete the RMA form pro- vided by Genetec Technical Assistance before being issued an RMA num- ber. Once you are given a number, you can then return the defective unit.

  • Page 21: Find The Image Version

    SV-16 v2 Quick Start Guide About product repairs and returns Find the image version Logon to the SV-16 v2. Start > Control Open the System properties window by navigating to Panel > System System > Model The platform version is located under...
  • Page 22 - This device must accept any interference received, including interference that may cause undesired operation. Any changes or modification to the product not expressly approved by Genetec could void the user’s authority to operate this device. This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules.
