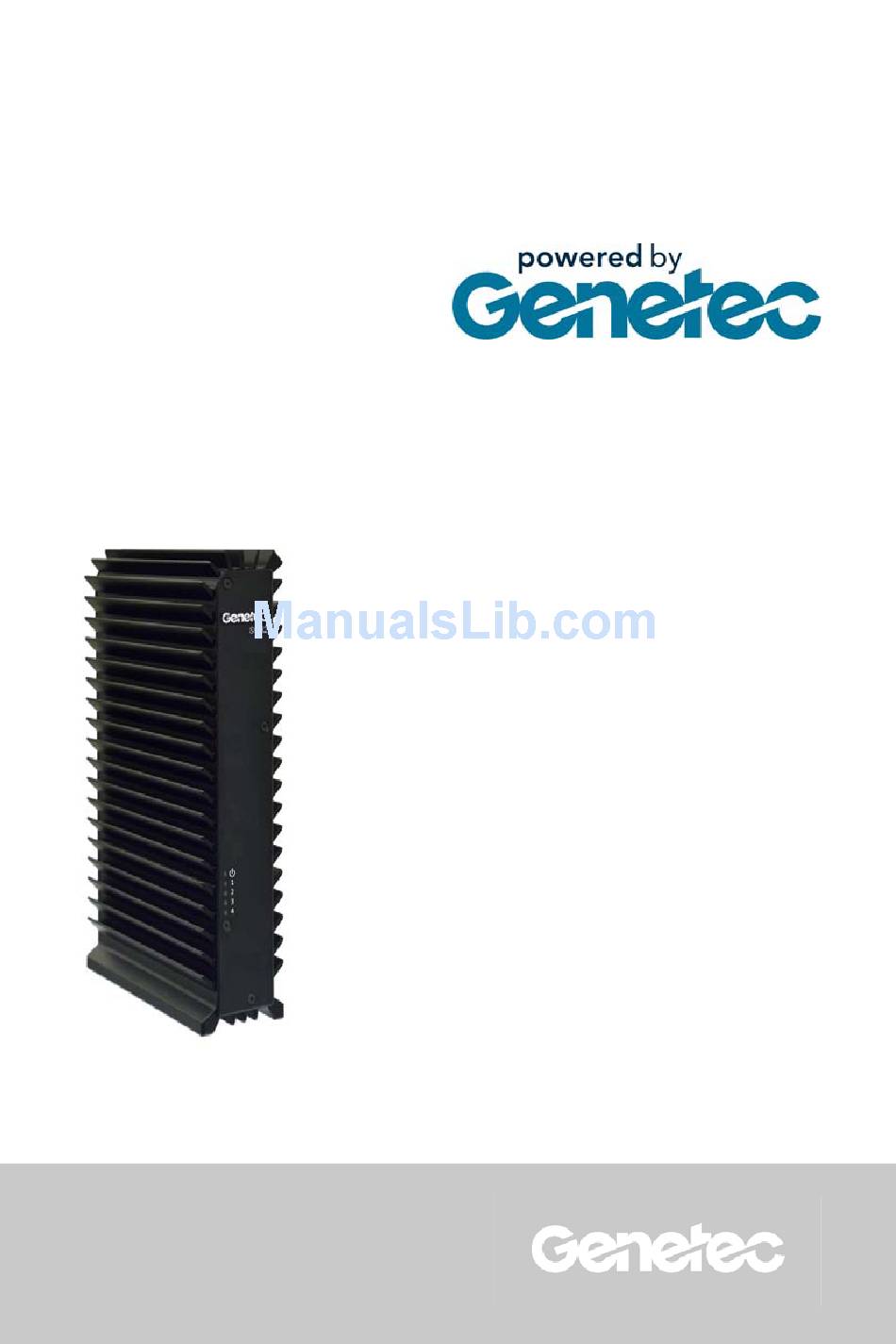

SV-32
Network Security Appliance
Quick Start Guide
This document explains how to set up the SV-32
for use with Security Center
Click
here
for the most recent version of this document.
6
REV. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SV-32 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Genetec SV-32

Summary of Contents for Genetec SV-32

  • Page 1 SV-32 Network Security Appliance Quick Start Guide This document explains how to set up the SV-32 for use with Security Center Click here for the most recent version of this document. REV. 1...
  • Page 2 In no event shall Genetec Inc. be liable to any person or entity with respect to any loss or damage that is incidental to or consequential upon the instructions found in this document or the computer software and hardware products described herein.

  • Page 3: Product Documentation

    SV-32 Network Security Appliance Quick Start Guide Product documentation The product documentation is found in the following location: • The latest version of Genetec Technical Assistance Portal (GTAP). the documentation is available from GTAP. Note, you’ll need a username and password to log on to GTAP.

  • Page 4: Technical Support

    GTAP Forum. The Forum is an easy to use message board that allows clients and Genetec staff to communicate with each other and discuss a variety of topics, ranging from technical questions to technology tips. You can log in or sign up at https://gtapforum.genetec.com...

  • Page 5: Table Of Contents

    SV-32 Network Security Appliance Quick Start Guide Contents Introduction . What is the SV-32. About SV-32 Hardware . What is included in the SV-32 kit . Hardware components Front view Back panel connections Before you install. Keep product packaging .

  • Page 6: Introduction

    SV-32 Network Security Appliance Quick Start Guide Introduction Introduction This section provides an overview of the SV-32. For information about SV-32 image version, please see SV-32 Release Notes available on the GTAP Documents page, at https://gtap.genetec.com. What is the SV-32 The SV-32 is a compact-sized network security appliance that comes pre-installed with Genetec’s Security Center and Windows Embedded Standard 7.

  • Page 7: About Sv-32 Hardware

    SV-32 Network Security Appliance Quick Start Guide About SV-32 Hardware About SV-32 Hardware This section describes what is included in the SV-32 kit, and the hardware components of the SV-32. What is included in the SV-32 kit The SV-32 kit contains the following: •...

  • Page 8: Hardware Components

    SV-32 Network Security Appliance Quick Start Guide About SV-32 Hardware Hardware components Hardware specifications Intel Core i7-3555LE 64 bit dual core 2.5GHz Intel 7 Series System Controller Hub QM77 Chipset 8GB DDR3 Memory Storage Internal: • 2TB or 4TB Storage Options; 2.5" SATA hard drives •...

  • Page 9: Front View

    SV-32 Network Security Appliance Quick Start Guide About SV-32 Hardware Front view All-metal fanless case Power and drive activity LEDs EN.804.003-V6(1)

  • Page 10: Back Panel Connections

    SV-32 Network Security Appliance Quick Start Guide About SV-32 Hardware Back panel connections Power button (auto-reboot) Audio S/PDIF 7.1 in Audio S/PDIF 7.1 out 2x port USB 3.0 Mini serial (RS-232) 2x port USB 2.0 12VDC power eSATA port HDMI port...

  • Page 11: Before You Install

    • Provide adequate ventilation. The SV-32 does not have a fan. Heat dispersion is managed by the aluminum enclosure. If you are using multiple SV-32 units, do not stack them on top of one CAUTION another. • To prevent the SV-32 from accidentally Clear space behind the SV-32.

  • Page 12: Getting Started

    (Optional) Connect your speakers to the S/PDIF line-out jack. Plug your Ethernet cable into either of the available Ethernet ports. Insert the DC plug into the 12V DC input jack on the SV-32 and turn it clock- wise until the plug is secured.

  • Page 13: Logging On

     Logging on The first time you start the SV-32, you are automatically logged in as the Operator user and the SV Control Panel and SV-32 setup wizard will open to guide you through the initial setup of your system.

  • Page 14: Product Warranty

    What is not covered The following items are not covered by the Genetec Standard Hardware Warranty: • Any equipment not furnished by Genetec which is attached to or used in conjunction with a product. • A product which is used with any ancillary equipment that is not furnished by Genetec.

  • Page 15: About Product Repairs And Returns

    Genetec Technical Assistance before being issued an RMA number. Once you are given a number, you can then return the defective unit. The customer is responsible for all return shipping charges, and Genetec will pay the shipping charges to send the repaired product back to the customer.
  • Page 16 - This device must accept any interference received, including interference that may cause undesired operation. Any changes or modification to the product not expressly approved by Genetec could void the user’s authority to operate this device. This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules.
