Summary of Contents for Deltaco Wireless LCD NVR COMBO

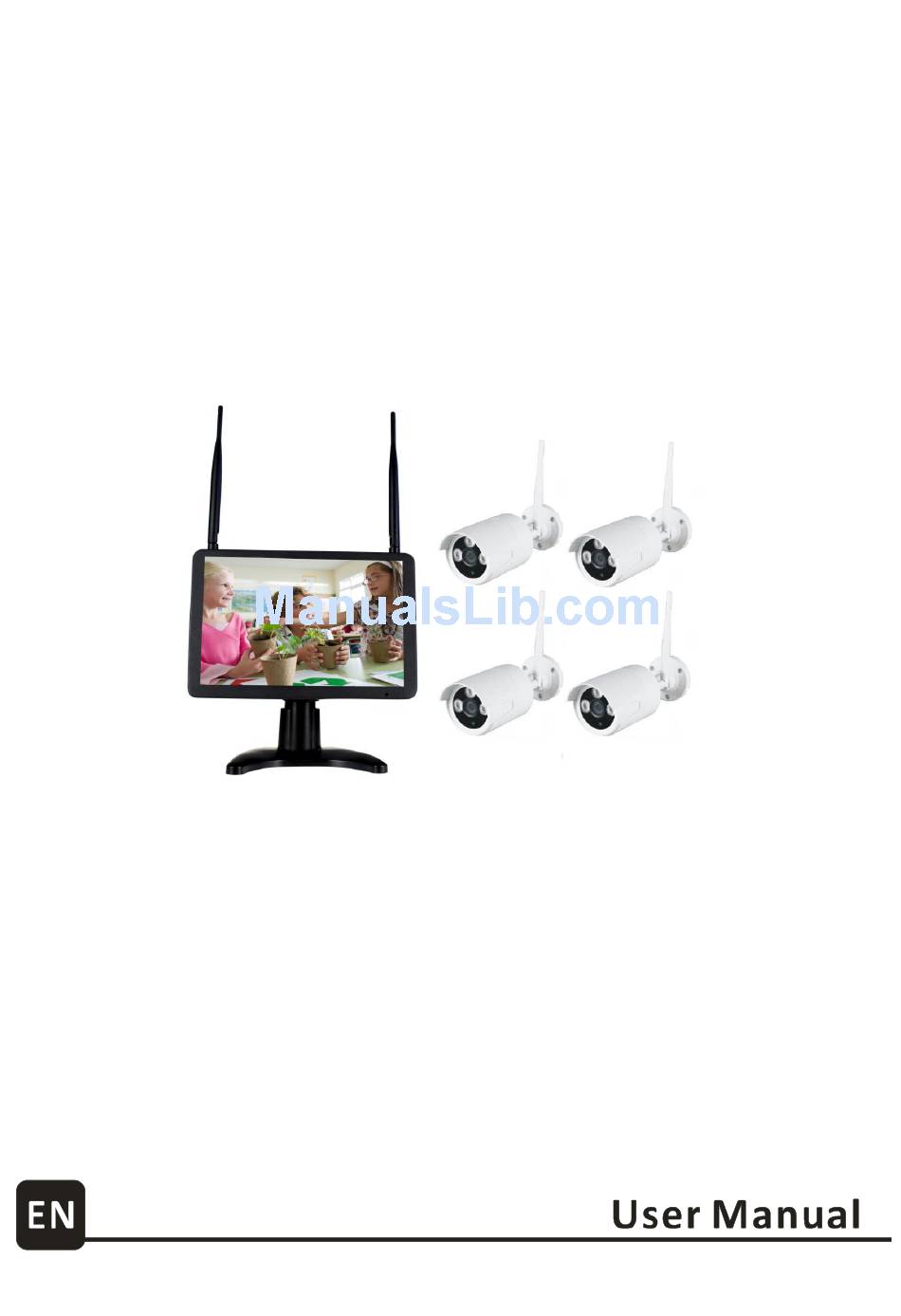

- Page 1 Wireless LCD NVR COMBO...
-
Page 2: Safety Cautions
Wireless LCD NVR Combo User manual Overview 1A Statement Sincerely thanks for purchasing our products, please contact us if any problem or requirement. This manual is for Wireless LCD network video recorder combo. This user manual may contain incorrect place in technology, place not matching with product function or operation, or printing mistake. - Page 3 Wireless LCD NVR Combo User manual Appearance Inde Name Function AUTO key Adjusts the screen display automatically. MENU key Activates and exits the On Screen Display.(Monitor) ← key Moves the OSD menu or decreases the selected item value. → key Moves the OSD menu or increases the selected item value.
-
Page 4: System Diagram
Wireless LCD NVR Combo User manual System diagram ① Plug in the included USB mouse to this connector. ② Connect the output of the supplied 12V power adapter into the power socket on the NVR. ③ Plug the power adapter into the wall socket. -
Page 5: Hard Disk Installation
Wireless LCD NVR Combo User manual Hard disk installation Notice that the HDD had been used need supplier recommend,and need make suer already cut off the power. Install Steps: 1.Remove the screw of the dvr 2.Connect the HDD bracket 3.Connect the HDD cable and power line 4.Assmble the screw,andfix the HDD in the bottom of NVR... -
Page 6: Software Operation
Wireless LCD NVR Combo User manual ISmView ISmView After installing App on your mobile device, just locate the App and tap the icon to run. The App will load and take you directly to Login screen. Software operation 8A Add camera to NVR The included cameras in the kits have been paired with NVR at the factory, no need execute this operation. -
Page 7: Video Playback
Wireless LCD NVR Combo User manual 8B Video playback Step: Click the mouse right button on the main interface ->Video playback ->choose channel NO. ->choose record mode ->in Search time, input the beginning time and end time ->click search, recording will come out ,drag time bar ->click... - Page 8 Wireless LCD NVR Combo User manual 8E Generate P2P ID Note: The precondition to generate P2P ID is that make sure the NVR is connected with internet, and IP address is available. Step : Click the mouse right button on the main interface->System setup->Network setup.
- Page 9 Wireless LCD NVR Combo User manual 8F Access in LAN Step 1: Click the mouse right button on the main interface-> System setup ->Network setup ->check videorecorder IP address. Step 2:Access by computer in the same LAN ,input NVR’s IP address and prot( If prot is 80, no need to input)in IE prowser or any other browser.Then it will access LAN log in webpage,input user name and password,click login.
-
Page 10: Add Device
Wireless LCD NVR Combo User manual 8H Mobile application (iSmView) ■Add device Step 1: Log in iSmView application Step 2: Click “+”icon.Add device by ID Step 2: Enter device edit page. You can edit device name. Pay attention to correct selection of channel number Step 3: Input video recorder log in information Step 4: Added successfully .it will show below page... - Page 11 Wireless LCD NVR Combo User manual ■Function Step 1: It will connect channel 4video by default,click “+”to add more channel Step 2: Click this icon to edit video recor log in in formation Step 3: Add device group Step 4: Capture/Rerord/Stream Step 5: Video Playback.
-
Page 12: Troubleshooting
Wireless LCD NVR Combo User manual ■Troubleshooting Q1: How to register a new account? A1: Were registered with account button on the "login" screen, click to enter the "registration" interface, registered accounts need to fill in a valid email, at the same time easy to see the cloud will send an email to the email to activate.The user can choose not to activate the account, this will not affect the use of the easy media cloud, but... -
Page 13: Specifications
Wireless LCD NVR Combo User manual Specifications Wireless NVR Specification Screen 10.1inch LED LCD,1280*800 Display device Viewing angle Horizontal: 170deg. Vertical : 170deg. AV(audio/video)input Network Video 4CH IP cameras 1ch，resolution：1024x768，1366x768， AV(audio/video) output HDMI output 1440x900,1920x1080p Video Resolution D1/720P AV CODEC...
