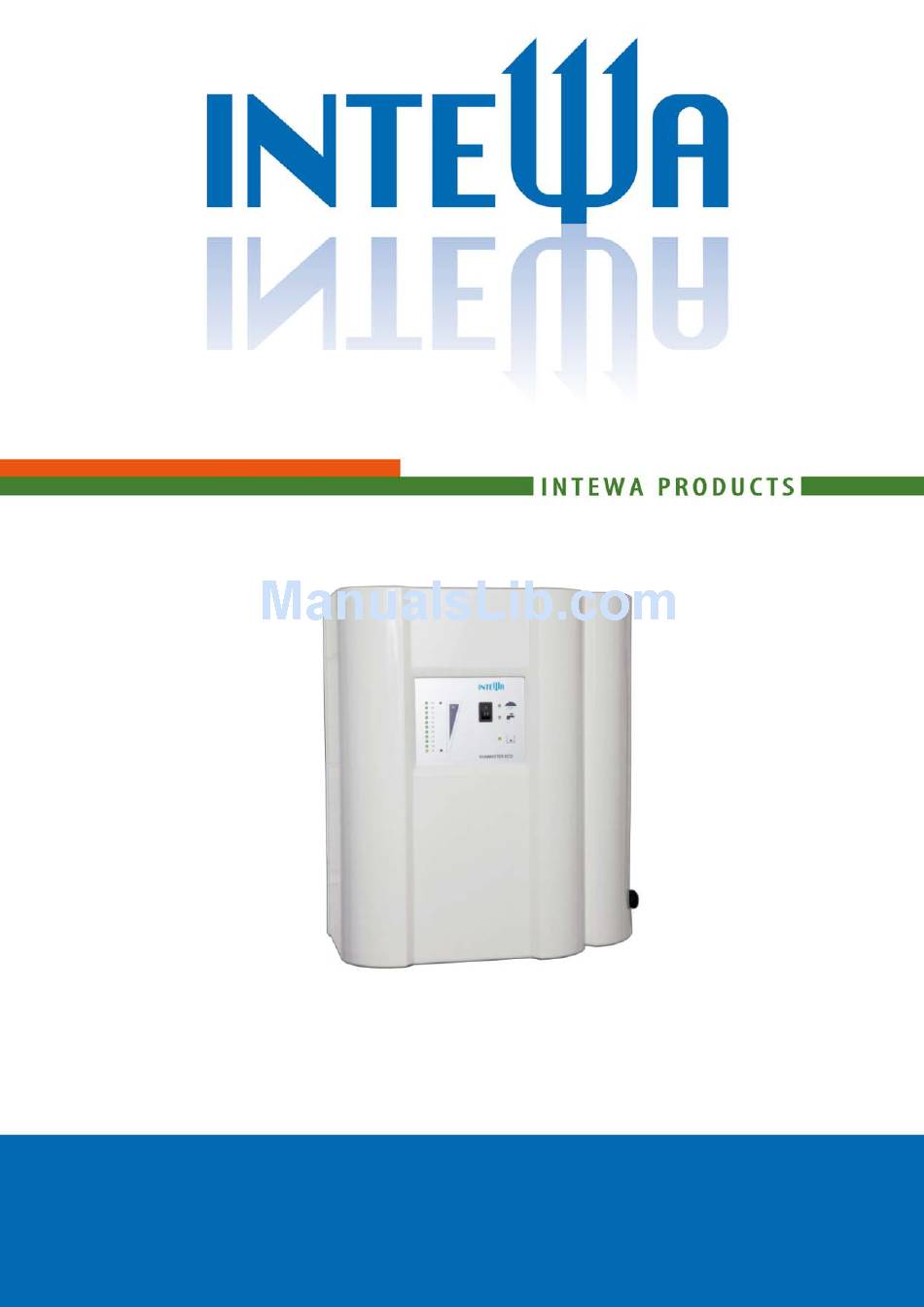

- Page 1 RAINMASTER Eco Installation and user manual WATER, WE ´RE IN OUR ELEMENT www.intewa.com ...
-
Page 2: Table Of Contents
Table of contents Introduction and scope of application .................... 2 Modes of operation ............................. 3 Safety instructions .......................... 4 Scope of delivery .......................... 5 Technical Data .......................... 6 Device overview and dimensions ......................... 8 4.2. Dimensioning of the intake line ......................... 9 ... -
Page 3: Introduction And Scope Of Application
1. Introduction and scope of application Congratulations on purchasing your RAINMASTER Eco (RM Eco). The RM Eco is specially designed for rainwater and greywater harvesting in single family dwellings. Optimised for the water requirements of small families, and using diaphragm pump technology, the RM Eco is the first rainwater module to offer up to 70 % lower power consumption when compared to conventional rainwater modules. ... -
Page 4: Modes Of Operation
1.1 Modes of operation Automatic mode In Automatic mode, the diaphragm pump carries rainwater from the tank into the home and onto respective applications (e.g. toilets etc.). If the tank is empty, this is then detected by the float switch in the tank which instructs the electronic 3/2‐way motorised ball valve to change to the mains water mode. The suction line is then blocked and the required mains water is taken from the built‐in supplemental supply ... -
Page 5: Safety Instructions
2. Safety instructions The live components have to be installed only by a qualified electrician. In case of failure of the electronic device, the product has to be repaired by a qualified electrician before being operated again. There is a risk of electric shock! The outlet circuit used for the device has to be secured through a circuit breaker protected (16 A in several countries). If unavailable, an FI switch with maximum operating current of 30 mA has to be connected. These installation and operating guidelines have to be read carefully before installing the product. The instructions mentioned have to be followed strictly. Modifications to the product are not permitted, otherwise the warranty becomes void. The following points have to be strictly observed during the installation and operation: Check the product before installation for any visible defects. If defects are present, then the product must not be installed. Damaged products can be dangerous. Installations at the fresh water pipeline system have to be only performed by a qualified installation firm. A floor drain has to be provided near the installation site, which can collect inadvertent water discharge (such as with pump defect, pipe breakage etc.) and prevent water damage inside the building. The brickwork behind the water‐carrying system must be protected from water (such as with water‐resistant paint). Make sure that the existing emergency overflows are connected and adequately sized. Remove the mains plug if you will be away for more than 24 hours. Lock the fresh water line at the inlet of the device if you will be away for more than 24 hours All products must be regularly inspected to maintain proper condition. The minimum inspection ... -
Page 6: Scope Of Delivery
3. Scope of delivery RAINMASTER Eco module wall mounting material and installation and operating manual standard accessory A standard accessory B standard accessory C (mains water connection): (pressure line set): (float switch): ... -
Page 7: Technical Data
4. Technical Data RM Eco 10 RM Eco 14 Dimensions (H x W x D): 398 x 353 x 200 mm / 398 x 353 x 200 mm / Weight: 8 kg 9 kg Switchable power supply input: 110‐230 V AC / 50‐60 Hz 110‐230 V AC / 50‐60 Hz Switchable power supply output: 24 V DC +‐ 5% 24 V DC +‐ 5% Basic controller input: 22‐28 V DC 22‐28 V DC Power intake: 90 W 130 W Max. operating pressure: 3,5 bar / 50 psi 3,5 bar / 50 psi Max. Volume flow rate: 10 l/min / 2.64gpm 14 l/min / 3.7 gpm Intake height (self‐priming): see intake diagram see intake diagram Pump start‐up pressure: approx. 2.4 bar / 34 psi approx. 2.4 bar / 34 psi Noise level: approx. 48 dbA ... - Page 8 Performance curve of the intake of RM Eco 10 and RM Eco 14 ...
-
Page 9: Device Overview And Dimensions
4.1 Device overview and dimensions Top view 1. Diaphragm pump 2. Pressure switch 3. Line fitting 4. Switchable power supply 5. 3/2‐way motorised ball valve, intake connector (3/4” male) Bottom view 6. Supplemental supply container with overflow connector DN50 (Ø55mm male) 7. Place holder for fill status indicator RM Eco‐FS (optional) 8. Basic controller 9. Stopcock for mains water (1/2” female) ... -
Page 10: Dimensioning Of The Intake Line
4.2. Dimensioning of the intake line In practice, the pump automatically starts intake due to decrease in pressure (pipe friction, intake level) only in a certain range. In this operating range, it evacuates the air from the pump independent of the suction ... -
Page 11: Standards, Directives, Tests
2. Emergency overflow 3. Max. possible water level 4. Air gap = secure separation of mains water and processed water Mains water supplemental supply device, Type AB as per DIN EN 1717 The power is supplied via a TÜV GS‐certified switchable power supply. All components of the RM Eco are run on 24 V DC low voltage technology. The above mentioned device corresponds with the basic safety and health requirements of the EC directives for machines. Any modification of the device not coordinated by INTEWA will void the warranty. This equipment specifically fulfills the requirements of the following EU directives: EC directives for machines (89/392/EWG) in accordance with 91/368/EWG EC Low voltage directives (73/23/EWG) EG Directives for electromagnetic compatibility (89/336/EWG) in accordance with 93/31/EWG The conformity of the equipment with the above mentioned directives is confirmed by the CE symbol. Applied harmonized EU standards: EN 60335‐1: 1194/A1/A11/A12/A13/A14, EN 60335‐2‐41: 1996 Applied standards and technical specifications: ... -
Page 12: Overview Of Components
5. Overview of components The RM Eco has a modular design. Each component can be separately changed. 5.1 Components of basic controller Fill level sensor technology (see optional accessory RM Eco‐FS) - 3 = +15 V ( brown) - 2 = Signal (black) - 1 = GND ( grey) Float switch - 2 (blue) - 1 (brown) Pressure switch (no polarity) ... -
Page 13: Components Of Diaphragm Pump
5.2 Components of diaphragm pump 5.2.1 Membranpumpe 1. Supply cable (red/black 2. Suction connection (union nut/hose 3. Pressure connection (fix) 4. Non‐return‐valve 5. O‐ring seal 6. Pressure switch with fastener Pump for Rainmaster Eco 10 1. Supply cable 2. Slide lock 3. Line fitting 4. O‐ring seal 5. Pressure switch 6. Fastener for pressure switch ... - Page 14 ...
-
Page 15: Fan
5.2.2 Fan The fan cools the pump by a uniform air flow. If no continuous operation is provided, the fan can be disconnected electronically. This saves about 6W power. Nevertheless, if the pump is operating continuously (without fan) with high back pressure and the pump is getting too hot, the internal pump temperature sensor ... -
Page 16: Components Of The Supplemental Supply Container
5.3 Components of the supplemental supply container The floating valve keeps the water level constant in the supplemental supply container. The maximum water level should be approx. 2 cm below the overflow rim when the floating valve is closed (backside of the container). The water level can be adjusted by twisting the black lifting body. 1. Lid The floating valve incorporates a protective sieve. ... -
Page 17: Components Of The Pressure Line Set
5.5 Components of the pressure line set The pressure line set contains an expansion tank, which is necessary to ensure the silent operation of the system. A primary pressure of 2.0 bar is preloaded at manufacture. The expansion tank ensures that the vibration created by the operation of the pump is not transmitted through the piping system. Procedure for pressure control / maintenance of the primary pressure: 1.) Disconnect the mains power to the RM Eco. 2.) Close the pressure shut‐off valve. 3.) Open the vent cock for draining the system pressure to 0 bar. 4.) Check the air pressure in the expansion tank with an air pump (with pressure gauge). You can use a bicycle pump or car tyre pump. ... -
Page 18: Installation Instructions For Rainmaster Eco
6. Installation instructions for RAINMASTER Eco The foam and polystyrene parts 1‐3 are part of the transport safety and must be removed before installing the RM‐Eco. 6.1 Wall mounting The RM Eco is mounted on the wall using the mounting material provided. The lid, bottom and lateral distances indicated should be adhered to when mounting to provide clear maintenance access. >400 mm >200 mm 275 mm 260 mm Ø 8 mm Ø 8 mm The RM Eco is fixed horizontally with of Ø8 mm raw plugs and screws. An additional hole is also drilled 260 mm top and right of ... -
Page 19: Connection To The Mains Water Line
In order to avoid vibrations, the RM Eco must be fixed with all four screws. 6.2 Connection to the mains water line The connection to the mains water line is done with the provided flexible hose with stopcock. Note: The flexible hose must not be mounted with tension, since the internal float valve is pressed against the inner wall from here. All provided flexible hoses have gland screws with flat seals. The rubber seals must be present. Additional sealing material must not be used at gland nuts! Screw the gland screw into the container connection and carefully tighten with a 30 inch fixed spanner. Screw the gland screw on the other end of the flexible pipe into the stopcock mounted in the main water line. ... -
Page 20: Installation On The Intake Side
4. Protective conduit pipe 5. Floating intake 6.3.1 Installation of a protective conduit pipe The intake line must be installed in a (e.g. DN100) protective conduit pipe in order to ensure all intake lines and pipes can be accessed freely at any time. In order to avoid water accumulating in the conduit, it must be installed with > 1 % slope back towards the tank. In general, all lines carried in the protective pipe should pass through a wall bush (for example INTEWA MD100 Article number: 61 00 50), at the house. Through this bush, the intake pipe and the float switch cable are routed and sealed by a pressed rubber plate. This prevents water from outside entering the basement/garage/utility room. The wall bush must be mounted as per instructions so that the intake line is never squeezed (contraction of cross section!). ... -
Page 21: Layout Of The Intake Line
6.3.2 Layout of the intake line Only an internally reinforced flexible (resistant against vacuum) hose can be used as the intake line. This means we can use a floating intake in the tank. The internal diameter of the intake line must be at least Ø 13 mm. The INTEWA intake hose (HORIZON ½", Article No. 61 00 16) is designed for this requirement. In order to avoid potential leaks at connection points, it is strongly recommended that the intake hose (from the intake filter in the tank all the way to the RM Eco unit) should be one piece – containing no joins. Warning instructions: The internal diameter of the intake hose must be at least D=13 mm in order to obtain full volume flow. No water filter may be used in the intake line, since the gaskets are not designed for underpressure. The underpressure for intakes ... -
Page 22: Intake Line Connection
6.3.3 Intake line connection The intake line is routed through the wall into the house, and connected to the RM Eco without tension. The gland screw is to be tightened to the RM Eco connector only by hand. As the intake hose should not exert any force on the coupling to the unit, the pipe should be securely fastened to the wall with separate pipe clamps. 6.3.4 Installation of the floating intake For best water quality, we recommend the intake line in the tank is installed as a floating intake. The accessory product SAUGSAGF ½" (Article No. 21 01 33) meets this requirement. The rainwater is drawn from just below the water surface where the water is the cleanest. The integrated non‐... - Page 23 The expansion tank is fixed to the wall with the pipe clamps provided. The vent cock is equipped with a gasket ring so that it can be screwed directly into the T piece without additional gasket. The pressure shut‐off valve, incorporating the pressure gauge, is then connected into the line by screwing the flat sealing gland screw into the expansion tank T‐piece. ...
-
Page 24: Connecting The Emergency Overflow
6.5 Connecting the emergency overflow The RM Eco has an emergency overflow line (DN 50) which must be connected to the waste drainage system of the building. The drainage line must be of a size to accommodate a maximum volume flow rate of 20 l/min. The position of the backwater level must be taken into consideration while connecting to a drainage system, in order to prevent backflow of drainage water from the open sewer line (design according to the ... -
Page 25: Installation And Adjustment Of The Float Switch
6.6 Installation and adjustment of the float switch 1. Float switch cabel 2. Wall bush 3. Conduit pipe (Incline > 1%) 4. Floating intake line 5. Counter weight 6. Float switch 7. Fixing angle The switch cable is led to the RM Eco via a protective float conduit pipe. The fixing point for the float switch cable is installed in an accessible area of the tank opening so that it is ... -
Page 26: Start Up And Use
7. Start up and use 7.1 Start‐up in mains water mode 1. Check that all lines are connected. Select maintenance mode = Switch position II. Open the mains water line stopcock so that the supplemental supply container is filled with water. 2. Close the pressure shut‐off valve. 3. Open the air vent (hold a bucket of water under the air vent) and start the pump by plugging in the mains power. ... -
Page 27: Start-Up In Rainwater Mode
7.2 Start‐up in rainwater mode The rainwater mode can only operate if there is sufficient water in the rainwater cistern. The tank display does not light up then. 1.) Select automatic mode = Switch position I 2.) Close the pressure shut‐off valve. 3.) Open the air vent (hold a bucket of water under the air vent) and start the pump by plugging in the mains power. The motorised ball valve will move into the “rainwater“ intake position. Let the water run from the air vent into the water bucket until there is no more sign of bubbles (a clear stream), so that all the air is removed from the suction line. 4.) Close the air vent. 5.) Open the pressure shut‐off valve and release the air from the (house) line (e.g. by pressing the toilet flush several times). Close the pressure shut off valve (house line). The pump will automatically switch off when the maximum system pressure is reached. ... -
Page 28: Modes Of Operation And Display
7.3 Modes of operation and display 7.3.1 Automatic mode (Switch position I ) Automatic mode is the normal operating mode, and is selected by Switch position I. This is indicated by the upper LED. In this mode, the unit automatically switches from rain water to mains water, if the float switch detects the rainwater tank is empty. Two operating modes can be used according to the two positions of the float switch, both of which are indicated by the lower LED: Rainwater mode, if this light is OFF it indicates that the Rainwater Tank is full Automatic mode „Rainwater mode“ ... -
Page 29: Trouble Shooting In Case Of Problems
8. Trouble shooting in case of problems Description of error Cause Solution The pump is not starting and The pump has shut down after all LEDs are flashing running Non Stop (exceed of 2 operating hours) due to: a) a) Anti‐dry running protection ‐ Check the functioning and position ‐ Air in intake line, as float of the float switch (see switch has not registered an chapter 6.3.4). After this restart empty tank and did not switch ‐ S eal connection points and the to mains water mode intake line and restart ‐ A ir in intake line because of a ... -
Page 30: Maintenance
Description of error Cause Solution Pump clocks and the green The power consumption of the LED light flashes ON/OFF pump is too high (protection regularly switching of the power supply is activated), because a) Change pressure switch a) the pressure switch is (see chapter 5.2) defective (pressure > 6 bar/90psi) b) Change pump b) Pumping motor is blocked Pump does not attain the a) Air in the system a) Evacuate air from the line system maximum pressure of 3 Bar (see chapter 7.2) ... -
Page 31: Spare Parts
10. Spare parts Figure no. Description of article Order name (see page 5) Diaphragm pump RM Eco 10, inclusive pressure switch [1]+[2] RM ECO P10 Diaphragm pump RM Eco 14, inclusive pressure switch [1]+[2] RM ECO P14 Pressure switch [2] RM ECO PD Line fitting set (Intake side / Pressure side) [3] RM ECO TS Switching power supply 24 VDC, 4 A for RM Eco 10 [4] RM ECO N10 Switching power supply 24 VDC, 5,6 A for RM Eco 14 [4] RM ECO N14 3/2‐way ball valve [5] RM ECO KH Supplemental supply container [6] RM ECO B Floating valve for supplemental supply container [3] s. p. 11 RM ECO NSP Basic controller [8] RM ECO BPL ... -
Page 32: Guarantee
The warranty does not cover any damage due to improper use, wear and tear, or intervention by third parties. The warranty does not cover any defects which may only minutely affect the value or usability of the device. 13. Contact / Device number For customers in Germany: For any queries, ordering of spare parts, as well as in case of service, kindly contact INTEWA GmbH directly, quoting your product‘s model and identification numbers and the purchase invoice details, at: INTEWA GmbH Jülicher Straße 336 52070 Aachen Tel.: 0049‐241‐96605‐0 Fax: 0049‐241‐96605‐10 Email: info@intewa.de ... - Page 33 © INTEWA GmbH Version: 1.4a ...
