Mi Home
™
User Manual

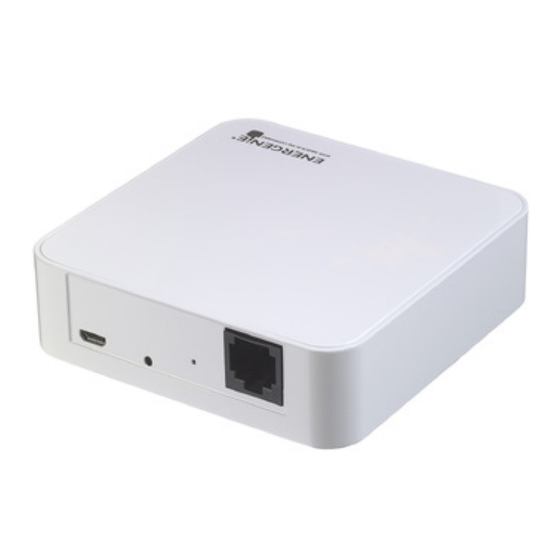

Energenie MiHome Gateway
The Gateway provides the communications
between all your MiHome devices and
the internet
Out of the box
1.
Gateway
2.
PSU adapter
3.
MicroUSB cable
4.
Ethernet patch cable
1
3
2
4
Visit mihome4u.co.uk
Scan this QR code with your smartphone QR
app to take you directly there.
Quick Start
IF YOU DO NOT WANT TO READ THE FULL
MANUAL
1. Connect your Gateway to your home router by
plugging one end of the ethernet cable into the
socket on the Gateway and the other end into
one of your router's free ethernet sockets.
2. Plug the PSU into an adjacent free mains wall
socket and switch on.
3. Plug the microUSB cable into the Gateway
and the PSU.
4. The Gateway should now be powered and
connect automatically via your router to the
internet. This is indicated by the light on the
front illuminating orange then steady green. It
may take up to 20 seconds for this to happen.
The light will also blip briefly red as message
traffic is being exchanged.
4. Manage your Gateway and MiHome devices
using one of the methods as follows:
Using a Smartphone App
(iPhone/Android)
1. Download the MiHome smartphone app from
the appropriate store (i.e Apple Store/Play
Store) and install and then open it.
2. Follow the on-screen instructions that will
take you through the Gateway set-up process.
Using a Browser and Internet Server
1. Go to the server by selecting the web address
mihome4u.co.uk in your chosen browser. Here
you can create an account.
2. Then go to Manage Devices and register your
Gateway device using the 10 digit key code on
the back of your Gateway.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Energenie MiHome Gateway
Summary of Contents for Energenie MiHome Gateway
-
Page 1: Quick Start
Quick Start User Manual IF YOU DO NOT WANT TO READ THE FULL MANUAL Energenie MiHome Gateway The Gateway provides the communications 1. Connect your Gateway to your home router by between all your MiHome devices and plugging one end of the ethernet cable into the... -
Page 2: Remote Control
MiHome Heating (eTRV) Pair with your MiHome Gateway Once installed the device must be paired with Quick Start Guide your MiHome Gateway device which you should have already successfully installed. Remove your existing TRV head Step 1 You will need to select the eTRV device to be •... - Page 3 Setting up the App with Nest MiHome Login 1. Sign into the Mi|Home app using your Mi|Home account credentials. If you do not already have a Mi|Home account you can create an account by pressing the “create new account” button Linking Nest 2.
-
Page 4: Setting Temperature
Unlinking Nest 3. To unlink a Nest device, first select the options menu in the top left hand corner. A list will appear. The last option is “Unlink from Nest” Setting Temperature 4. You will be able to change the temperature on your Nest Thermostat from your Mi|Home app by selecting your Nest Thermostat from the dashboard. - Page 5 TRV Follows Nest 6. You can enable one of your TRVs to follow your Nest Thermostat. By following the Nest Thermostat, the TRV will replicate and maintain the same target temperature as the Nest Thermostat. To do this, select your desired TRV from the dashboard.
-
Page 6: Set Timers
Set Timers 9. To set a timer for a TRV, the TRV should not be following a Nest thermostat. To do this, select your desired TRV from the dashboard. Select programmes, You will need to define the temperature, times and days Extras 10. - Page 7 Mi Home ™ Q. How do I update my Gateway with the latest version of firmware? A. Mandatory firmware updates to the Gateway are done automatically from the Mi|Home server. These will include fixes and other required features. Optional updates are Q.
