ULISESevo
™
SPECIAL NEEDS STROLLER
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULISESEVO and is the answer not in the manual?

Questions and answers

Related Manuals for AkcesMED ULISESEVO

Summary of Contents for AkcesMED ULISESEVO

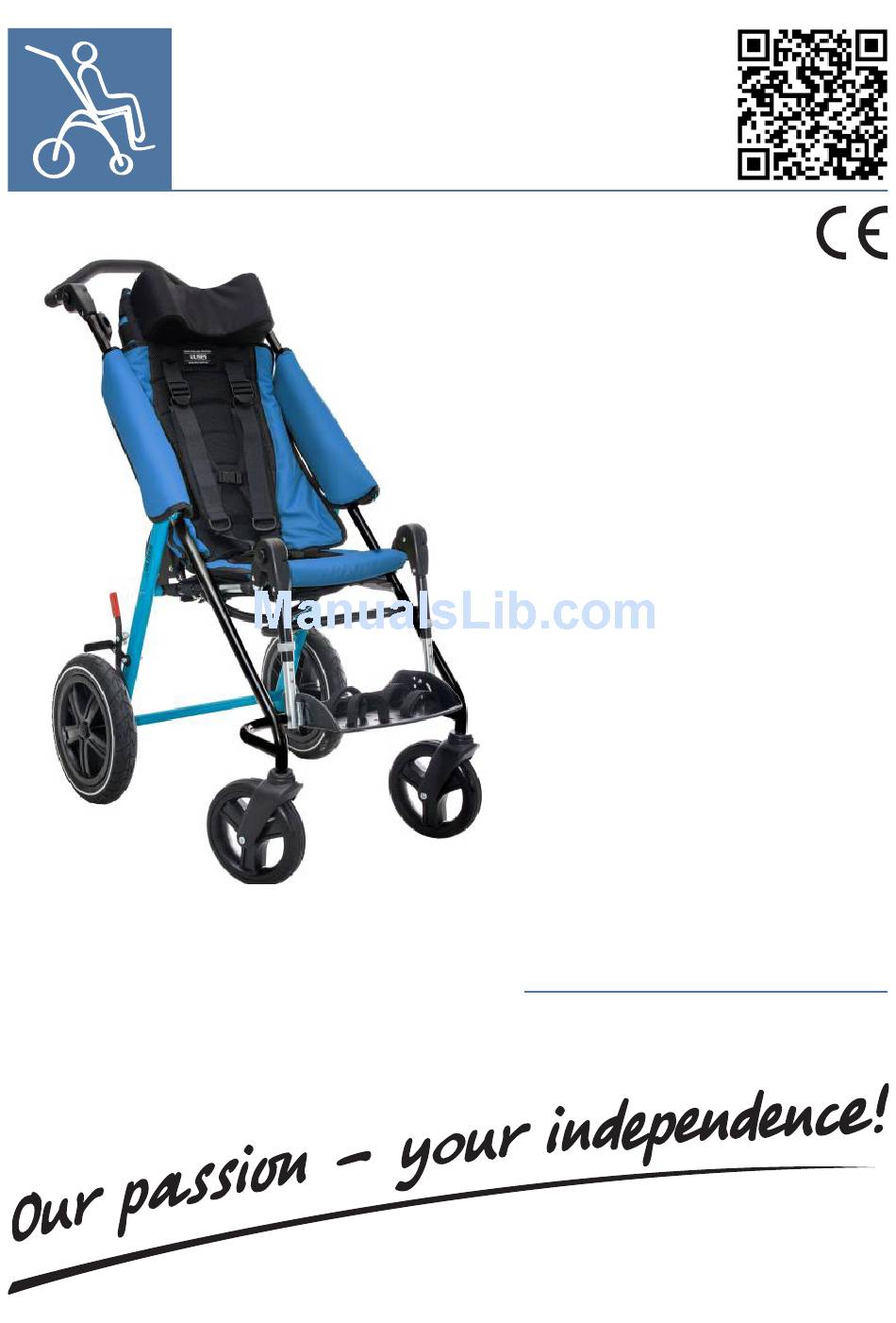

  • Page 1 ULISESevo ™ SPECIAL NEEDS STROLLER USER MANUAL...
  • Page 2 5 903240 632312 CAUTION! Manufacturer takes responsibility for proper usage of the device only when the product was purchased from qualified Akces-Med employee or at specialized medical store! CAUTION! AKCES-MED Ltd. reserve the right to introduce technical and trading changes in the content of the instruction without warning.

  • Page 3: Table Of Contents

    ULISESevo CONTENTS The purpose of user manual ................6 2. Indications for use....................6 3. General characteristics of stroller................7 3.1. Standard equipment...................7 3.2. Additional equipment.................8 4. Size table.......................12 5. Detailed description how to operate stroller ............13 5.1 Floding the stroller..................13 5.2 Unfloding the stroller .................14 5.3 Footrest......................15...
  • Page 4 ULISESevo 6.11 High rigid trunk support................29 6.12 Low latteral support Low latteral support with seat narrowing cushion 6 cm Low latteral support with seat narrowing cushion 10 cm ....30 6.13 H vest, 4-points safet vest..............31 6.14 6-points safety vest.................33 6.15 Umbrella....................35 6.16 Stolik......................35...
  • Page 5 ULISESevo INTRODUCTION ULISES EVO™ is a perfect stroller designed for daily rehabilitation of children and youth with locomotor dysfunctions. It is particularly useful for patients requiring additional stabilization. The stroller has adjustable seat depth and backrest tilt angle which greatly facilitates its functionality.
  • Page 6 ULISESevo THE PURPOSE OF USER The present user manual contains basic information which is essential for proper usage, preparation, maintenance, cleaning and guarantee conditions regarding ULISES EVO™ stroller. User manual should be kept in easily accessible place. It is designed for people who look after disabled children, and for both doctors as well as physiotherapists who operate the device.

  • Page 7: General Characteristics Of Stroller

    ULISESevo GENERAL CHARACTERISTICS OF STROLLER 3.1 Standard equipment 1. Adjustable push handle. 2. Headrest. 3. 5-point belts. 4. Side covers. 5. Backrest with tilt angle adjustment. 6. Upholstery with the system regulating the tension of seat and backrest upholstery. 7. Seat with depth adjustment.

  • Page 8: Additional Equipment

    ULISESevo 3.2. Additional equipment ULE_001 ULE_002 ULE_003 Aid for moving patients AM-P LED Lights Soft cover for tray ULE_013 ULE_101 ULE_107 Thigh abduction belt Pelvic belt Safety rail ULE_113 ULE_114 ULE_115 Calf belt Trunk stabilizing belt H vest ULE_121 ULE_124...

  • Page 9: High Rigid Trunk Support

    ULISESevo ULE_130 ULE_131 ULE_132 4-points safety vest Firm headrest made of foam Elastico headrest ULE_134 ULE_136 ULE_137 Narrowing pads (set) 6 cm Thighs belt Narrowing pads (set) 10 cm ULE_147 ULE_148 ULE_149 Low latteral support with seat narrowing cushion 6cm...
  • Page 10 ULISESevo ULE_409 ULE_411 ULE_410 Mosquito net Cup holder Headrest cotton cover ULE_413 ULE_415 ULE_412 Elastico cushion seat Elastico cushion backrest Wheels cover (4 pcs) ULE_419 ULE_421 ULE_433 Seat cushion (pommel shape) Seat cushion (thighs shape) Lifting bar ULE_435 ULE_502 ULE_503...
  • Page 11 ULISESevo ULE_507 ULE_509 ULE_701 ULE_707 Rear inflatable wheel Front inflatable wheel Organizer bag Oxygen tank holder ULE_704 ULE_705 ULE_706 ULE_711 ULE_712 Rear PU wheel Rear inflatable wheel, silver Rear PU wheel, silver metallized Front PU wheel metallized Front PU wheel, silver metallized www.akces-med.com...

  • Page 12: Size Table

    ULISESevo SIZE TABLE Symbol Measurement Size Size Size Size Unit Size [cm] Seat width Seat depth [cm] 29-37 35-45 35-45 22-29 29-37 [cm] Backrest height (without backrest extension) [cm] 77-90 Backrest height (with backrest extension) 61-70 69-80 69-80 77-90 [cm]...

  • Page 13: Folding The Stroller

    ULISESevo DETAILED DESCRIPTION HOW TO USE STROLLER 5.1. Folding the stroller To fold the stroller, you should: STEP 1. Fold the footplate (fig.1, 2). fig.1 fig.2 STEP 2. Change the position of the footplate so that, to be placed in one line with the stroller seat (fig.3) (Footrest...

  • Page 14: Unfolding The Stroller

    ULISESevo STEP 4. In order to make stroller folding easier, it is recommended to take off the side covers. fig.6 STEP 5. Afterwards, pull the folding mechanism (fig.7) and push the backrest forward until it stops (fig.8-10). fig.7 fig.9 fig.10 fig.8...

  • Page 15: Footrest

    ULISESevo fig.11 fig.12 CAUTION! Make sure whether the stroller has been properly unfolded and the folding mechanism is totally locked. STEP 2. Afterwards, set the desired angle of backrest and footrest, unfold the footrest, put the side covers. 5.3. Footrest 5.3.1 To adjust the footrest height , you should:...

  • Page 16: Wheels

    ULISESevo 5.3.2. In order to adjust the footrest tilt angle, you should simultaneously press the buttons placed on the side of the footrest, set the desired position, and then release the buttons. fig.15 fig.16 5.3.2. The footrest comes standard with 2-point belts stabilizing the feet.

  • Page 17: The Push Handle

    ULISESevo 5.5. The push handle 5.5.1. In order to adjust the push handle tilt angle, press the two buttons located at the o u t e r s i d e o f t h e p u s h h a n d l e simultaneously (fig.19) and then set the...

  • Page 18: Seat

    ULISESevo 5.7. Backrest extension 5.7.1. In order to adjust the backrest extension height, you should: STEP 1. Using the Allen wrench, loosen the screws located at the back of the backrest (fig.23). STEP 2. Set the desired height of the backrest extension.

  • Page 19: Points Belts

    ULISESevo Maximum depth setting of the seat is indicated by the retaining pins coming into holes located at the both side of the seat frame. To decrease the seat depth, after reaching its maximum position, push the retaining pins inside the frame.
  • Page 20 ULISESevo STEP 4. In order to attach the 5-point belts to the seat, interlace the belt through the plastic holder located at the cushion Properly attached belts were shown in the picture (fig.31). fig.31 CAUTION! The belt should be interlaced through the plastic holder three times! Assembly diagram below.

  • Page 21: Additional Equipment

    ULISESevo ADDITIONAL EQUIPMENT 6.1. Safety rail ULE_013 In order to mount the safety rail, you should: STEP 1. Place the safety rail hooks on the stroller frame, as indicated in the picture 32. fig.38 fig.32 STEP 2. Set the safety rail at the desired position. To do that, you need to release the latch so that the pin jumped into the frame hole.
  • Page 22 ULISESevo STEP 3. Attach the belt to the black holder placed next to the backrest (pic. 37). STEP 4. Slide the end of the belt into the plastic strap adjuster (pic. 38-39). fig.37 fig.38 fig.39 STEP 5. Then, attach the plastic strap adjuster (the one that you previously detached in STEP 1) to the belt (pic.

  • Page 23: Trunk Stabilizing Belt

    ULISESevo STEP 7. Finally, slide again the end of the belt into the plastic strap adjusters fig.43 fig.44 6.3. Trunk stabilizing belt ULE_113 In order to mount the trunk stabilizing belt, you should: STEP 1. Put the straps into the holes placed in the backrest upholstery (pic 45- 46).
  • Page 24 ULISESevo STEP 2. Pass the side straps through the stroller frame (pic.49), and then slide them into the plastic strap adjuster (pic.50-51). Repeat on the other side of the stroller. fig.49 fig.50 fig.51 STEP 3. Afterwards, pass the remaining strap with buckle (1) as indicated in the pictures below (pic.

  • Page 25: Calf Belt

    ULISESevo STEP 4. To fasten the trunk stabilizing belt, slide the strap (1) into the other strap buckle (2), and then fasten it by use of Velcro (pic. 55,56). Depending of the width of the trunk, you can use shorter (2) or longer strap (3) with buckle (pic 55).

  • Page 26: Loins Support

    ULISESevo 6.6. Loins support ULE_124 In order to mount the Loins support, you should: STEP 1. Put the Loins support on the backrest and interlace the straps through the holes in the upholstery (pic. 60, 61). fig.60 fig.61 STEP 2. Fasten the belts behind the backrest (pic. 62, 63).

  • Page 27: Abduction Block

    ULISESevo STEP 2. Choose the appropriate length of the belt and cut it along the designated place (pic. 65, 66). fig.65 fig.66 STEP 3. Fasten the ends of the belt using Velcro fastener (pic. 67). The belt should be mounted to the stroller around the backrest (pic. 68).

  • Page 28: Thigh Belt

    ULISESevo fig.71 fig.70 6.9. Thigh belt ULE_136 In order to mount the thigh belt, you should: STEP 1. Put the belt on the stroller and fasten it under the seat using Velcro. fig.72 fig.73 6.10. Narrowing pads (set) 6 cm...
  • Page 29 ULISESevo 6.11. High rigid trunk support ULE_148 In order to mount the supports, you should: STEP 1. Slide the support between the frame and the seat. Then, press the upper hook of the support down (pic. 76). STEP 2. Press the other hook in the designated place and secure with Velcro strap (pic.

  • Page 30: Low Latteral Support

    ULISESevo 6.12. Low latteral support ULE_153 Low latteral support with seat narrowing cushion 6cm ULE_149 Low latteral support with seat narrowing cushion 10 ULE_150 In order to mount the supports, you should: STEP 1. Slide the support between the frame and the seat (pic. 80).
  • Page 31 ULISESevo 6.13. H Vest ULE_114 4-points safety vest ULE_130 In order to attach the vests to the stroller, you should: STEP 1. Detach two bottom straps and the plastic strap adjusters (pic. 84). Then, interlace the remaining strap through the black holder placed next to the backrest (pic.
  • Page 32 ULISESevo STEP 3. Slide the strap into the remaining plastic strap adjusters (the ones you previously detached in STEP 1, pic 89). STEP 4. Slide the strap into the snap buckle in the bottom part of the vest (pic 84, 85).

  • Page 33: Points Safety Vest

    ULISESevo Properly attached H vests and 4 point vest. fig.91 fig.90 fig.35 fig.35 6.14. 6-point safety vest ULE_125 To attach the vests, you should: STEP 1. Follow the H vest and 4 point safety vest instruction (see page 32-33, STEP 1-5).
  • Page 34 ULISESevo Properly attached 6-point safety vest. fig.96 fig.35 The 6-point safety vest has a wide range of adjustments that allows you to easily fit it to the patient (pic. 97-102). fig.97 fig.35 fig.98 fig.35 fig.99 fig.35 fig.100 fig.101 fig.102 fig.35 fig.35...

  • Page 35: Umbrella

    ULISESevo ULE_402 6.15. Umbrella In order to attach the umbrella to the stroller, you should: STEP 1. Loosen the clamp and attach it to the stroller frame (pic. 103). STEP 2. Tighten the knob (pic. 104). STEP 3. Set the desired position of the umbrella using the button (pic. 105).

  • Page 36: Canopy

    ULISESevo STEP 2. Afterwards, put the tray handles onto the frame and press them (pic. 109, 110). fig.109 fig.110 fig.44 fig.35 fig.45 fig.35 STEP 3. In order to adjust the tray depth, loose the knob and set the desired depth.

  • Page 37: Cup Holder

    ULISESevo STEP 2. The canopy is equipped with the case which can be attached to the rear of the backrest by use of Velcro straps (pic. 115, 116). fig.31 fig.115 fig.116 ULE_411 6.18. Cup holder In order to attach the cup holder to the stroller, you should: STEP 1.

  • Page 38: Elastico Cushion Seat

    ULISESevo 6.19. ULE_412 Elastico cushion seat ULE_419 Seat cushion (thighs shape) ULE_421 Seat cushion (pommel shape) In order to attach the cushion to the seat, you should: STEP 1. Put the cushion on the stroller and fasten the straps under the seat using Velcro (pic.

  • Page 39: Bags

    ULISESevo STEP 2. Install the conversion kit in the footplate holes (pic. 124, 125). fig.125 fig.31 fig.124 STEP 3. Set the tilt angle of the footrest while tightening M8 bolt (pic. 126, 127). fig.127 fig.31 fig.126 ULE_502 6.21. DeLux Bag...

  • Page 40: Under Seat Basket

    ULISESevo 6.22. ULE_505 Under seat basket Under seat basket can be mounted to the chassis frame by use of latches (pic. 132-135). fig.31 fig.132 fig.133 fig.31 fig.134 fig.135 www.akces-med.com +48 17 864 04 70 produkcja@akces-med.com...

  • Page 41: The Use Of Stroller

    ULISESevo THE USE OF STROLLER CAUTION! ULISES EVO™ stroller has to be used with compliance to guidelines included in this user manual. Remember to use the product only with someone who is trained and knowledgeable. Do not forget to prepare both product as well as patient before using ULISES EVO™...

  • Page 42: How To Use Stroller

    ULISESevo 7.2. How to use stroller 1. Before use it is necessary to: · Unfold the device; · Place the device on even ground; · Make sure that all parts are serviceable, correctly mounted and stable; · Block brakes; ·...

  • Page 43: Safety Rules

    ULISESevo SAFETY RULES CAUTION! ULISESevo™ stroller has to be used in compliance with guidelines in this user manual. It is highly important to consult either doctor or physiotherapist in order to make right decision concerning the choice of stroller and its size. It is also essential to familiarize with the guidelines described in user manual before using the device.
  • Page 44 ULISESevo 2. It is forbidden to use stroller for different purposes that it is intended to. 3. It is forbidden to use stroller when it is damaged or any part is missing. 4. It is forbidden to leave the patient unattended.
  • Page 45 ULISESevo CAUTION! It is forbidden to place the patient in the device while being in car, bus or train. CAUTION! The product contains small parts which children may swallow. CAUTION! It is forbidden to make any changes concerning stroller 's structure due to the fact that it is dangerous and it results in loosing warranty.

  • Page 46: Maintenance And Cleaning

    ULISESevo MAINTENANCE AND CLEANING Stroller should be kept clean and used in compliance with the manufacturer's recommendations. The device should be kept in clean, dry and ventilated room. Maintenance as well as cleaning have to be performed at least once a month. Regular cleaning and maintenance of stroller are indispensable to maintain its correct functionality as well as safety.
  • Page 47 ULISESevo CAUTION! Remember that upholstery has to be always dry before using! Before using it is necessary to: · clean wheels; · check if base as well as wheels are correctly mounted; check if brake stops turning wheel · make sure that all wooden parts e.g. tray don't have splinters ·...
  • Page 48 ORTHOPAEDIC DEVICES MANUFACTURER Akces-MED Sp. z o.o. Jasionka 955B 36-002 Jasionka tel. (17) 864 04 77 www.akces-med.com e-mail: export@akces-med.com Authorised Dealer Date of issue: 02.02.2015 The last update: 20.02.2017...
