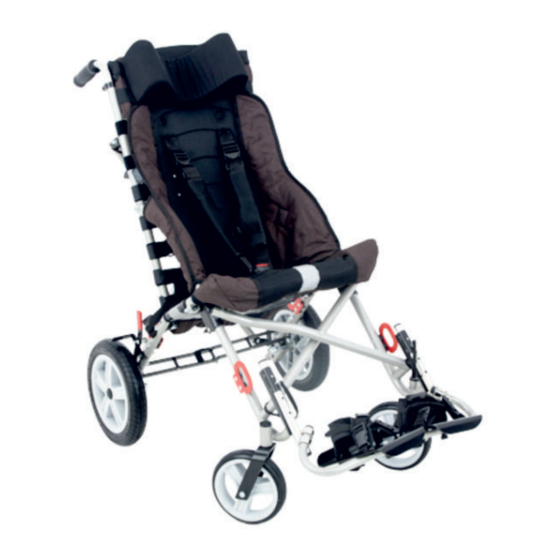

AkcesMED OMBRELO User Manual

Special needs stroller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OMBRELO
™
SPECIAL NEEDS STROLLER
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OMBRELO and is the answer not in the manual?

Questions and answers

Related Manuals for AkcesMED OMBRELO

Summary of Contents for AkcesMED OMBRELO

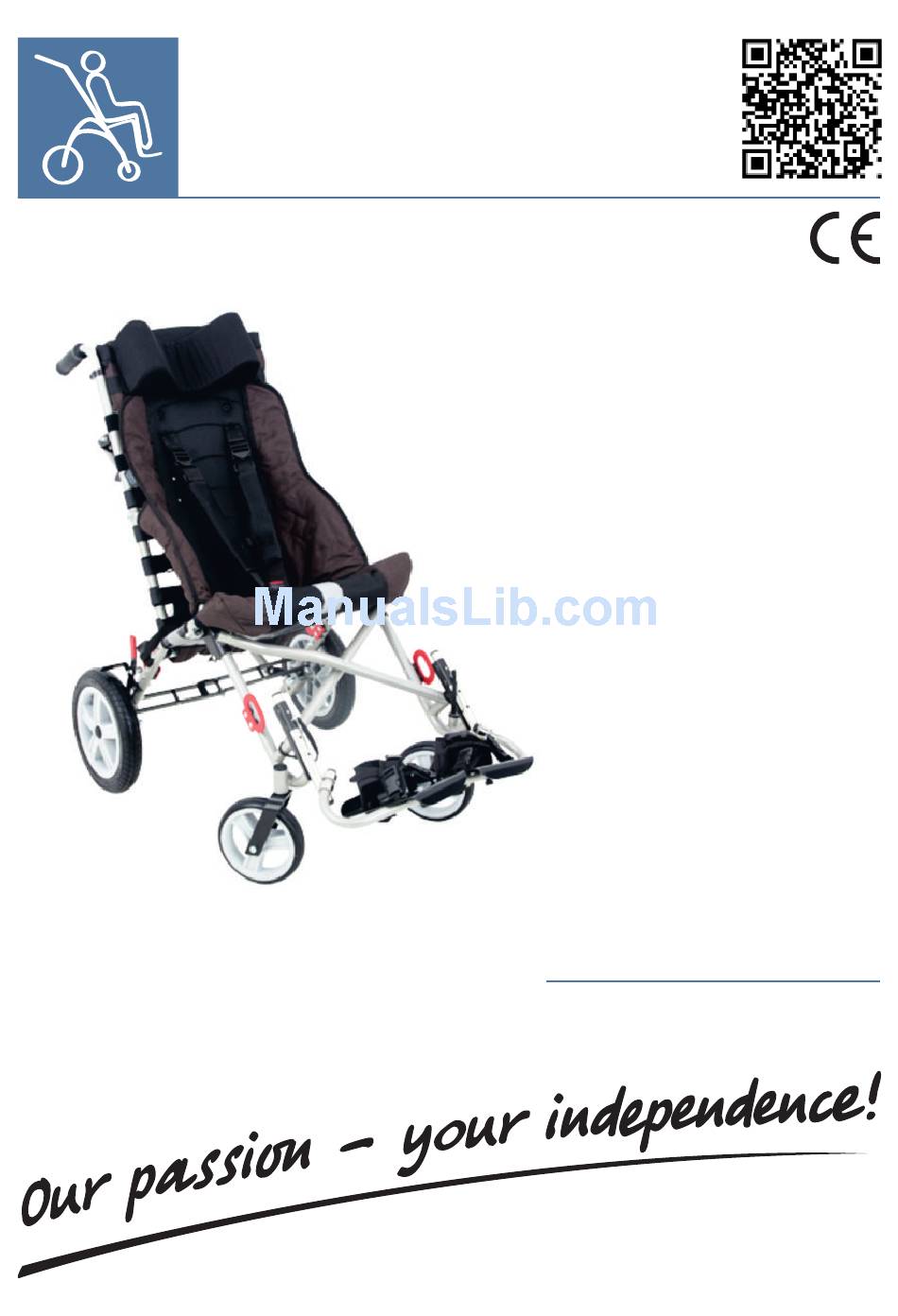

  • Page 1 OMBRELO ™ SPECIAL NEEDS STROLLER USER MANUAL...
  • Page 2 5 903240 632312 CAUTION! Manufacturer takes responsibility for proper usage of the device only when the product was purchased from qualified Akces-Med employee or at specialized medical store! CAUTION! AKCES-MED Ltd. reserve the right to introduce technical and trading changes in the content of the instruction without warning.

  • Page 3: Table Of Contents

    OMBRELO CONTENTS 1. The purpose of use manual....................6 2. Indications for use......................6 3. General characteristics of stroller...................7 3.1. Standard equipment....................7 3.2. Additional equipment....................9 4. Size table..........................13 5. Detailed description how to assemble stroller..............14 6. Detailed description how to use stroller...............14 6.1.
  • Page 4 OMBRELO 7.11 OMO_121 Head-neck support ................36 7.12 OMO_115 Calf belt....................37 7.13 OMO_508 Saddle bags ..................37 7.14 OMO_403 Tray......................38 7.15 OMO_412 Elastico seat cushion................39 7.16 OMO_413 Elastico backrest cushion ..............39 7.17 OMO_124 Loins support..................41 7.18 OMO_507 Oxygen tank holder ....
  • Page 5 OMBRELO INTRODUCTION OMBRELO™ rehabilitation stroller is designed for daily rehabilitation for people who have locomotor deficits. Its solid design perfectly stabilizes as well as secures while using the product. A vast array of adjustments makes it possible to adjust equipment to the patient, and, moreover it has a beneficial impact on patient's comfort.

  • Page 6: The Purpose Of Use Manual

    The present user manual contains basic information which is essential for proper usage, preparation, maintenance, cleaning and guarantee conditions regarding OMBRELO™ stroller User manual should be kept in easily accessible place. It is designed for people who look after disabled children, and for both doctors as well as physiotherapists who operate the device.

  • Page 7: General Characteristics Of Stroller

    OMBRELO GENERAL CHARACTERISTICS OF STROLLER 3.1 Standard equipment 1. Frame which can be folded in umbrella shape 2. Front PU swivel wheels made of fiberglass material 3. Rear wheels made of fiberglass material; wheels are equipped with inflatable TT tyres.
  • Page 8 OMBRELO UPPER STRUT LOWER STRUT FOOTPLATE footplate pipe footplate runner bolt fastening footer plate footer pipe www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 9: Additional Equipment

    OMBRELO 3.2. Additional equipment OMO_001 OMO_002 OMO_003 Soft cover for tray Aid for moving patients AM-P LED Lights OMO_012 OMO_101 OMO_107 Thigh abduction belts Qstraint Lap Belt Pelvic belt OMO_113 OMO_114 OMO_115 OMO_113 Trunk stabilizing belt OMO_114 H Harness _115 Calf belt...
  • Page 10 OMBRELO OMO_130 OMO_130 ULE_126 ULE_126 OMO_132 OMO_132 OMO_133 OMO_133 Elastico headrest Firm headrest made of foam 4 points safety vest OMO_135 ULE_126 OMO_136 OMO_133 OMO_136 Thighs belt BodyMap cushion OMO_035 Boczne peloty Side seat supports OMO_135 OMO_130 OMO_130 ULE_126 ULE_126...
  • Page 11 OMBRELO OMO_130 OMO_411 ULE_126 ULE_126 OMO_133 OMO_412 OMO_132 OMO_415 OMO_133 OMO_413 Elastico cushion backrest Elastico cushion seat Cup holder OMO_414 OMO_130 ULE_126 ULE_126 OMO_132 OMO_415 OMO_133 OMO_416 Wheels cover (4 pcs) Summer footmuff Tray Plexiglas OMO_035 Boczne peloty OMO_417 OMO_130...
  • Page 12 OMBRELO ULE_505 ULE_506 ULE_507 Oxygen tank holder Under seat storage basket Travel bag standard ULE_508 OMO_622 ULE_126 OMO_601 ULE_126 Saddle bags Kid-sit Buggypod IO Kid-sit Buggypod PERLE OMO_602 OMO_130 ULE_126 ULE_126 OMO_604 OMO_130 ULE_126 ULE_126 OMO_605 ULE_126 Mounting set 70...

  • Page 13: Size Table

    OMBRELO SIZE TABLE Size 2 Size 1 Size 3 Size 4 Size 5 Symbol Pomiar Unit Seat width [cm] Seat depth [cm] 21-26 28-36 29-40 31-40 34-41 Backrest height [cm] Backrest height (with headrest) [cm] 43-64 46-72 46-72 53-76 54-80...

  • Page 14: Detailed Description How To Assemble Stroller

    OMBRELO DESCRIPTION HOW TO ASSEMBLE STROLLER Remember that stroller needs to be assembled. Manufacturer cannot assemble this stroller due to transportation issues In order to use the stroller please follow these steps: STEP 1. Assemble head support (10) (look point 6.5, page 22);...
  • Page 15 Check our website www.akces-med.com where you can find animation which shows how OMBRELO stroller should be folded. It is necessary to fasten the stroller with the aid of belts while transporting. Belts are really important because they prevent stroller from automatic unfolding.

  • Page 16: Unfolding

    OMBRELO CAUTION! Please be careful while both folding and unfolding the stroller. Use caution so as not to press fingers between stroller frame. 6.2. Unfolding In order to unfold stroller it is necessary to follow these steps: STEP 1. Unfasten clamp which prevents from automatic unfolding (fig.8);...

  • Page 17: Wheels, Brake

    OMBRELO fig.10 fig.11 CAUTION! Remember to make sure that all struts which prevent from automatic folding are situated in correct places! 6.3.Wheels, Brake Stroller is equipped with blockage for each rear wheel 6.3.1. In order to activate brake it is necessary to pull red lever which is situated at the back of wheel (fig.12)

  • Page 18: Footplate

    OMBRELO 6.3.2. Wheels are unlocked by pulling red levers forwards (fig.13). 6.3.3. It is possible to increase the pressure of brake lever on wheel. For this activity it is necessary to regulate nut with the aid of spanner (fig.14). fig.13 fig.14...
  • Page 19 OMBRELO 6.4.2 In order to fold footplates it is necessary to follow the rules in point 6.1, step 2. się za pomocą klamer znajdujących się na paskach (fot. 14 i 15). 6.4.3 In order to unfold footplate it is necessary to follow the rules in point 6.2, step 4.
  • Page 20 OMBRELO STEP 2. Remove footplate pipe, fix it on footer runner the other way around (in a way that fastening is situated on the top) and secure it with the aid of bolt at chosen height (fig.19). STEP 3. Mount footers by pressing the button situated at footer pipe. Next, place footer in fastening on footplate pipe.
  • Page 21 OMBRELO 6.4.5. It is possible to adjust footer plate. So as to make adjustments it is necessary to unscrew screws situated under footer. Next, change the position of footer plate and tighten screws (fig.23). fig.23 6.4.6. Footplate is equipped with belts which stabilize feet. Stabilizing belts are fastened criss-crossed (fig.24, fig.25) or around ankle (fig.26)

  • Page 22: Head Support

    OMBRELO 6.5. Head support (10) 6.5.1. In order to mount head support it is necessary to insert its frames into backrest pipes. Backrest pipes are situated at the back of backrest (fig.27). fig.27 6.5.2. The height of head support is regulated with the aid of rubber washers situated on frame (fig.

  • Page 23: Headrest

    OMBRELO 6.6. Headrest (6) Headrest can be mounted either on backrest or head support. 6.1. In order to mount headrest on backrest it is necessary to remove head support, unlace binding from the back and remove headrest (fig.31). Headrest can be mounted on backrest...

  • Page 24: Points Belts

    OMBRELO fig.34 STEP 3. Take out seat frame and insert it into proper holes (fig. 35); It is really important to make sure that seat frame is inserted evenly in stroller frame fig.35 STEP 4. Unfold stroller and press lower strut down. Next, move upper strut until stroller is unfolded look point 6.2, step 2, 3, page 16).
  • Page 25 OMBRELO STEP 2. To secure the belts at the lower part of the backrest, insert the belts through the triangular holder located on the stroller's frame (fig.37) and then insert the ends of the belts into the regulator (fig.38). fig.37 fig.38...
  • Page 26 OMBRELO 6.8.2. Follow these steps in order to fasten 5 points belts: STEP 1. Connect belt fasteners (fig.40); STEP 2. Insert belts' fastenings into clamp that is mounted by the seat (fig.41) fig.40 Fot.27 fig.41 6.8.3. It is possible to adjust the height of belts fastenings from backrest.

  • Page 27: Upholstery

    OMBRELO OMBRELO 6.8.4. It is possible to dismantle 5 points belts. It is necessary to unscrew knobs from the back of backrest and remove belts from clamps and from grip which is placed on seat upholstery. CAUTION! Each time before using 5-point belts, you should...

  • Page 28: Additional Equipment

    OMBRELO ADDITIONAL EQUIPMENT Sun umbrella OMO_402 So as to mount sunshade it is necessary to loosen clip and place it on handle's frame. Next, adjust proper position and tighten knob (fig.46). The adjustment of sunshade can be regulated with the aid of button which is situated next to clip (fig.47).

  • Page 29: Omo_505 Basket Under Seat

    OMBRELO Basket under seat OMO_505 OMO_505 Basket is mounted on frame under seat with the aid of belts with buttons (fig.49). It is recommended to mount basket above TransFix ™ g rips . fig.48 fig.39 fig.49 fig.39 7.3. Lady’s bag OMO_503 Men’s bag...

  • Page 30: Omo_128 Abduction Block

    OMBRELO Abduction block OMO_128 Follow these steps in order to mount abduction block: STEP 1. Dismantle 5 points belts from standard equipment (look point 6.8.4, page 27) ; STEP 2. Insert abduction block's batten into handle which is situated on seat upholstery (fig.55).

  • Page 31: Omo_405 Folding Canopy

    OMBRELO Folding canopy OMO_405 Follow these steps so as to mount canopy without side supporting panels: STEP 1. Holes from canopy's upholstery should overlay with handle (fig.58) STEP 2.Place canopy catches on stroller's fig.39 fig.58 frame (fig.59,60) fig.59 fig.39 fig.60 STEP 3.

  • Page 32: Omo_420 Folding Canopy With Side Covers

    OMBRELO fig.39 fig.62 fig.39 fig.63 Folding canopy with side covers OMO_420 Canopy with side supporting panels is mounted in the same way as canopy without side supporting panels. Concerning canopy with supporting panels, it is necessary to mount these panels by means of clips. Clips should be placed on stroller's frame at the back wheel (fig.

  • Page 33: Omo_411 Cup Holder

    OMBRELO There is a possibility to roll exterior panels so as to have airy netting on sides. STEP 1. Unfasten catch situated at the bottom of netting so as to do that (fig.67). fig.39 fig.67 STEP 2. Next, roll exterior panel (fig. 68).

  • Page 34: Omo_408 Rain Cover

    OMBRELO fig.39 fig.73 fig.39 fig.74 OMO_408 Rain cover Rain cover can be put on stroller only if canopy is mounted (it concerns canopy either with or without side supporting panels). Follow these steps so as to mount rain cover: STEP 1. Holes in cover should overlay with handle (fig.75).

  • Page 35: Omo_113 Trunk Stabilizing Belt

    OMBRELO Trunk stabilizing belt 7.10. OMO_113 So as to mount trunk stabilizing belt on stroller it is necessary to: STEP 1. Insert straps into holes in backrest upholstery (fig. 79,80). It is possible to adjust the height of trunk belt by inserting straps into proper holes in upholstery.

  • Page 36: Omo_121 Head-Neck Support

    OMBRELO longer belt shorter belt fig.83 STEP 3. Trunk belt is closed only when strap is inserted into handle and fastened with the aid of Velcro tapes (fig.84). fig.84 fig.85 7.11. Head-neck support OMO_121 Headrest is ideal for patients with falling head.

  • Page 37: Omo_115 Calf Belt

    OMBRELO 7.12. Calf belt OMO_115 Calf belt is mounted on footrest above footers (fig.87). Fasten belts with Velcro tapes so as to mount calf belt. Remember to fasten them in a way that they also cover footrest's runner (fig.88, fig.89). Moreover,...

  • Page 38: Omo_403 Tray

    OMBRELO 7.14. Tray OMO_403 Please follow these steps so as to mount tray: STEP 1. Place catches on elements that are situated on stroller's backrest (fig.93,94) fig.93 fig.94 STEP 2. Raise backrest's upholstery and at the same time put tray's handles on backrest and press (fig.

  • Page 39: Omo_412 Elastico Seat Cushion

    OMBRELO 7.15 Elastico seat cushion OMO_412 Please follow these steps so as to mount Elastico seat cushion: STEP 1. Place cushion on stroller's seat STEP 2. Thread belts that fasten cushion through seat's frame (fig.99,100) and fasten Velcro tapes that are situated under stroller's seat (fig.101).
  • Page 40 OMBRELO STEP 1. Put each of the three rectangular shaped cushion onto the backrest and then insert their straps into holes in the upholstery (fig. 103, 104). fig.103 fig.104 STEP 2. Afterwards, fasten the straps behind the stroller's backrest by use of Velcro.

  • Page 41: Omo_124 Loins Support

    OMBRELO Afterwards, insert the headrest's laces into holes and tie them behind it (fig.109). fig.109 7.17 Loins support OMO_124 Please follow these steps so as to mount loins support: STEP 1. Place pelotte on stroller's backrest and thread belts that fasten loins support through holes in backrest's upholstery (fig.

  • Page 42: Omo_507 Oxygen Tank Holder

    OMBRELO 7.18 OMO_507 Oxygen tank holder In order to mount oxygen tank holder it is necessary to: STEP 1. Take out two belts from buckles that are situated at cover. STEP 2. Take out adjuster no.2 and buckle from belt. It is important to leave adjuster no.1 on the belt (fig.114,115).

  • Page 43: Omo_114 / Omo_130 H Harness / 4-Points Safety Vest

    OMBRELO STEP 7. It is possible to fasten cover with oxygen tank holder (fig.122, 123). The length of belts can be adjusted if necessary. fig.123 fig.122 7.19. H Harness; OMO_130 4 points safety vest OMO_114 Vests act as trunk stabilizer. They have a wide range of adjustment and HOLD AND PULL™...

  • Page 44: Omo_125 6 Points Safety Vest

    OMBRELO 7.20. 6 points safety vest OMO_125 It acts as trunk stabilizer and has a wide range of adjustment. Additionally it has HOLD AND PULL™ function which allows quick fit to the patient's body. Please follow these steps so as to mount 6 points vest: STEP 1.

  • Page 45: Omo_417 Winter Footmuff

    OMBRELO 7.21. Winter footmuff OMO_417 Please follow these steps so as to mount winter footmuff on stroller: STEP 1. Prepare stroller - take out footrests (do it in opposite way that they were mounted (look point 6.4.1, page 18). STEP 2. Unfasten zip from winter footmuff and unfold it on both seat and stroller's backrest.
  • Page 46 OMBRELO STEP 5. Winter footmuff is equipped with special hole designed for 5 points belts and abduction block. Firstly, unfasten 5 points belts and take out completely two bottom belts (they are a part of 5 points belts). Take them out from triangular fastening that is placed by stroller's frame (fig.137).
  • Page 47 OMBRELO STEP 8. Pull belts so as to make sure that belts are mounted correctly. fig.143 fig.144 fig.35 fig.35 STEP9. Last thing to do is to mount winter footmuff on backrest. Thread belts fastening winter footmuff through holes in upholstery (fig.145,146,147). These belts are situated at the upper part of winter footmuff.

  • Page 48: Omo_416 Summer Footmuff

    OMBRELO 7.22 Summer footmuff OMO_416 Please follow these steps so as to mount summer footmuff: STEP 1. Prepare stroller - take out footrests (do it in opposite way that they were mounted (look point 6.4.1, page 18). STEP 2. Unfasten zip from summer footmuff and unfold it on both seat and stroller's backrest.
  • Page 49 OMBRELO STEP 5. Summer footmuff is equipped with special hole designed for 5 points belts and abduction block. Firstly, unfasten 5 points belts and take out completely two bottom belts (they are a part of 5 points belts). Take them out from triangular fastening that is placed by stroller's frame (fig.154).
  • Page 50 OMBRELO STEP 8. Pull belts so as to make sure that belts are mounted correctly. STEP 9. Last thing to do is to mount summer footmuff on backrest. Thread belts fastening winter footmuff through holes in upholstery (fig.160-164). These belts are situated at the upper part of summer footmuff.

  • Page 51: Omo_135 Side Seat Supports

    OMBRELO 7.23. Side seat supports OMO_135 Please follow these rules so as to mount side rigid pelottes: STEP 1. Place upholstery on pelottes. Remember to take markings into account: upholstery with label 'right' should be placed on right pelotte and upholstery with Side with protective foam fig.166...

  • Page 52: Omo_421 / Omo_419 Seat Cushion (Thighs Shape) / (Pommel Shape)

    OMBRELO OMBRELO 7.24. Seat cushion (thighs shape) OMO_421 7.25. Seat cushion (pommel shape) OMO_419 To attach the cushions follow the Elastico seat cushion installation instruction OMO_412 (look point 7.16, page 39). The installation of 5 point belts was presented in section 6.8.1 (look point 6.8.1, page 24).
  • Page 53 OMBRELO OMBRELO fig.173 fig.174 fig.35 fig.35 STEP 2. Attach the belt to the black holder placed next to the backrest fig.175 fig.176 fig.35 fig.35 STEP 3. Slide the end of the belt into the plastic strap adjuster fig.177 fig.178 fig.35 fig.35...
  • Page 54 OMBRELO OMBRELO STEP 4. Then, attach the plastic strap adjuster (the one that you previously detached in STEP 1) to the belt fig.179 fig.180 fig.35 fig.35 STEP 5. Slide the end of the belt into the snap buckle fig.181 fig.182 fig.35...
  • Page 55 OMBRELO OMBRELO ADDUCTION FUNCTION fig.185 fig.186 fig.35 fig.35 ABDUCTION FUCTION fig.187 fig.188 fig.35 fig.35 fig.189 fig.35 www.akces-med.com +48 17 864 04 77 export@akces-med.com...

  • Page 56: Omo_433 Lifting Bar

    OMBRELO OMBRELO 7.26. Lifting bar OMO_433 Set needed to assemble the lifting bar: 1. Nut 2. Small flat washer ( small underlie) 3. Large flat washer ( large underlie) 4. Sleeve 5. Screw 6. Foot support ( footplates) 7. Hex key 8 (allen wrench) - NOT included in the set 8.
  • Page 57 OMBRELO OMBRELO STEP 3. In the opening (from the wheels side) insert the screw (5) fig.194 fig.195 fig.35 fig.35 STEP 4. Next, the following must be placed on the screw in the order below (on the inner side of the stroller) : large washer (3), small washer (2), nut (1).

  • Page 58: Omo_126 Trunk Belt

    OMBRELO OMBRELO 7.27. Trunk belt OMO_126 The trunk belt can be easily cut to any length. In order to do that, you should: STEP 1. Unfasten the belt from the back (fig.201). fig.201 STEP 2. Choose the appropriate length of the belt and cut it along the designated place (fig.202, 203).

  • Page 59: The Use Of Stroller

    Remember to use the product only with someone who is trained and knowledgeable. Do not forget to prepare both product as well as patient before using OMBRELO™ stroller! 8.1. Preparation of the patient Before using the product, it is essential to make sure that: ·...

  • Page 60: How To Use Stroller

    OMBRELO 8.2. How to use stroller 1. Before use it is necessary to: · Unfold the device; · Place the device on even ground; · Make sure that all parts are serviceable, correctly mounted and stable; · Block brakes; ·...

  • Page 61: Safety Rules

    OMBRELO SAFETY RULES CAUTION! OMBRELO™ stroller has to be used in compliance with guidelines in this user manual. It is highly important to consult either doctor or physiotherapist in order to make right decision concerning the choice of stroller and its size. It is also essential to familiarize with the guidelines described in user manual before using the device.
  • Page 62 OMBRELO 2. It is forbidden to use stroller for different purposes that it is intended to. 3. It is forbidden to use stroller when it is damaged or any part is missing. 4. It is forbidden to leave the patient unattended.
  • Page 63 OMBRELO CAUTION! It is forbidden to place the patient in the device while being in car, bus or train. CAUTION! The product contains small parts which children may swallow. CAUTION! It is forbidden to make any changes concerning stroller 's structure due to the fact that it is dangerous and it results in loosing warranty.

  • Page 64: Maintenance And Cleaning

    OMBRELO MAINTENANCE AND CLEANING Stroller should be kept clean and used in compliance with the manufacturer's recommendations. The device should be kept in clean, dry and ventilated room. Maintenance as well as cleaning have to be performed at least once a month. Regular cleaning and maintenance of stroller are indispensable to maintain its correct functionality as well as safety.
  • Page 65 OMBRELO CAUTION! Remember that upholstery has to be always dry before using! Before using it is necessary to: · clean wheels; · check if base as well as wheels are correctly mounted; check if brake stops turning wheel · make sure that all wooden parts e.g. tray don't have splinters ·...
  • Page 68 ORTHOPAEDIC DEVICES MANUFACTURER Akces-MED Sp. z o.o. Jasionka 955B 36-002 Jasionka tel. (17) 864 04 77 www.akces-med.com e-mail: export@akces-med.com Authorised Dealer Date of issue: 25.11.2013 The last update: 17.02.2017...
