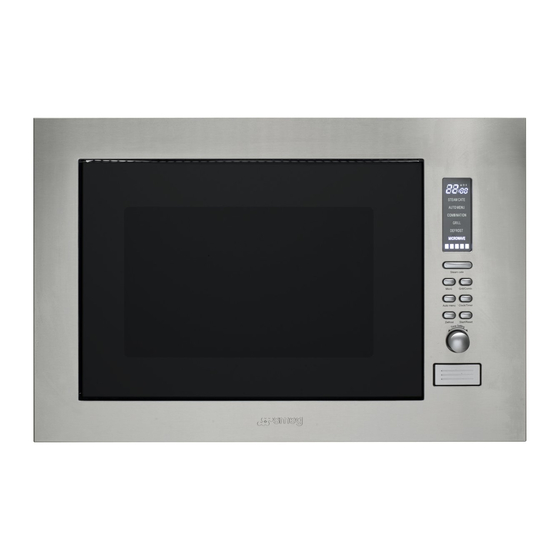

25 Litre Built-in Microwave oven Instruction Manual SBIM30X-1 Read the Instructions carefully and Keep for Future Reference Steam cate Micro Grill/Combi Auto menu Clock/Timer Defrost Start/Reset... -
Page 2: Important Safety Instructions
Important safety instructions When using electrical appliance basic safety precautions should be followed, including the following: warning: to reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. - Page 3 an eye on the oven due to the possibility of ignition. b.Remove wire twist-ties from paper or plastic bags before placing bag in oven. c.If smoke is observed, switch off or unplug the appli- ance and keep the door closed in order to stifle any flames. d.Do not use the cavity for storage purposes.
- Page 4 suitable for use in microwave oven. 16. Warning: it is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protec- tion against exposure to microwave energy. 17.
- Page 5 22. The accessible surface may be hot during operation. 23. The microwave oven shall not be placed in a cabinet. 24. The door or the outer surface may get hot when the appliance is operating. 25. The temperature of accessible surfaces may be high when the appliance is operating.
- Page 6 circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre. 34. The microwave oven is intended for defrosting, cooking and steaming of food only.
-
Page 7: Specifications
SPECIFICATIONS Power consumption: 220- 240V~50Hz,1400W Output: 900W Grill Heater: 1000W Operating Frequency: 2,450MHz Outside Dimensions: mm(W) X 366mm(D) X 390mm(H) Oven Cavity Dimensions: 330mm(W) X 330mm(D) X 218 mm(H) Oven Capacity: 25 litres Uncrated Weight: Approx. 16.6kg BEFORE YOU CALL FOR SERVICE 1. -
Page 8: Warning! This Appliance Must Be Earthed
INSTALLATION 1. Make sure all the packing materials are removed from 3. This Microwave Oven weighs 1 6.6 kg and must be the inside of the door. placed on a horizontal surface strong enough to support this weight. 2. Inspect the oven after unpacking for any visual 4. -
Page 9: Safety Instructions For General Use
IMPORTANT SAFETY INSTRUCTIONS -WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function) -WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;... - Page 10 removed as in conventional cooking. 5. Do not insert any object into the openings on the outer case. 11. Always test the temperature of cooked food 6. Do not at any time remove parts from the oven such as yourself especially if you are heating or cooking the feet, coupling, screws, etc.
-
Page 11: Display Window
DISPLAY WINDOW Steam cate Steam cate Grill/Combi Micro Micro Grill/Combi Auto menu Clock/Timer Auto menu Clock/Timer Start/Reset Defrost Defrost Start/Reset Time Setting... -
Page 12: Operation Instruction
Operation Instruction 1. Steam function 1),Basic process Firstly putting food into steam Putting Put some water into pan or stailess steel pan,Then Putting food into water plate no less than put the pan on the water plate steam Pan water 300ml. - Page 13 avity Start/Reset Start/Reset Start/Reset 4. Auto weight defrost a) Press the button "D efrost" , "dEF" will be displayed . b) Rotate the knob "Time setting" to set the weight 400 g. c) Press "Start/Reset" food Time Setting Start/Reset...
- Page 14 Menu Weight Rice Vegetable Meat Spaghetti Fish Chicken Touching Times 1000 1200 1000 1400 1600 1800 1000 2000 Table 2 . Grill Press "Grill/Combi”to select such functions: (the longest cooking time is 60 minutes). 85% grill power , display G-1 Example: Cooking food with G-1 for 20 minutes A) Press "Grill/Combi"...
- Page 15 7. Combination Cooking This appliance offers you a choice of two methods of combination cooking. Option 1 : （20% Micro +80%Grill display "C-1". Option2 :（ 80% Micro display "C- 2". 20%Grill), for 30 minutes. a) Press " Grill/Combi" button to select "C-2 . " b) Set cooking time for 30 minutes.
-
Page 17: Installation Method
