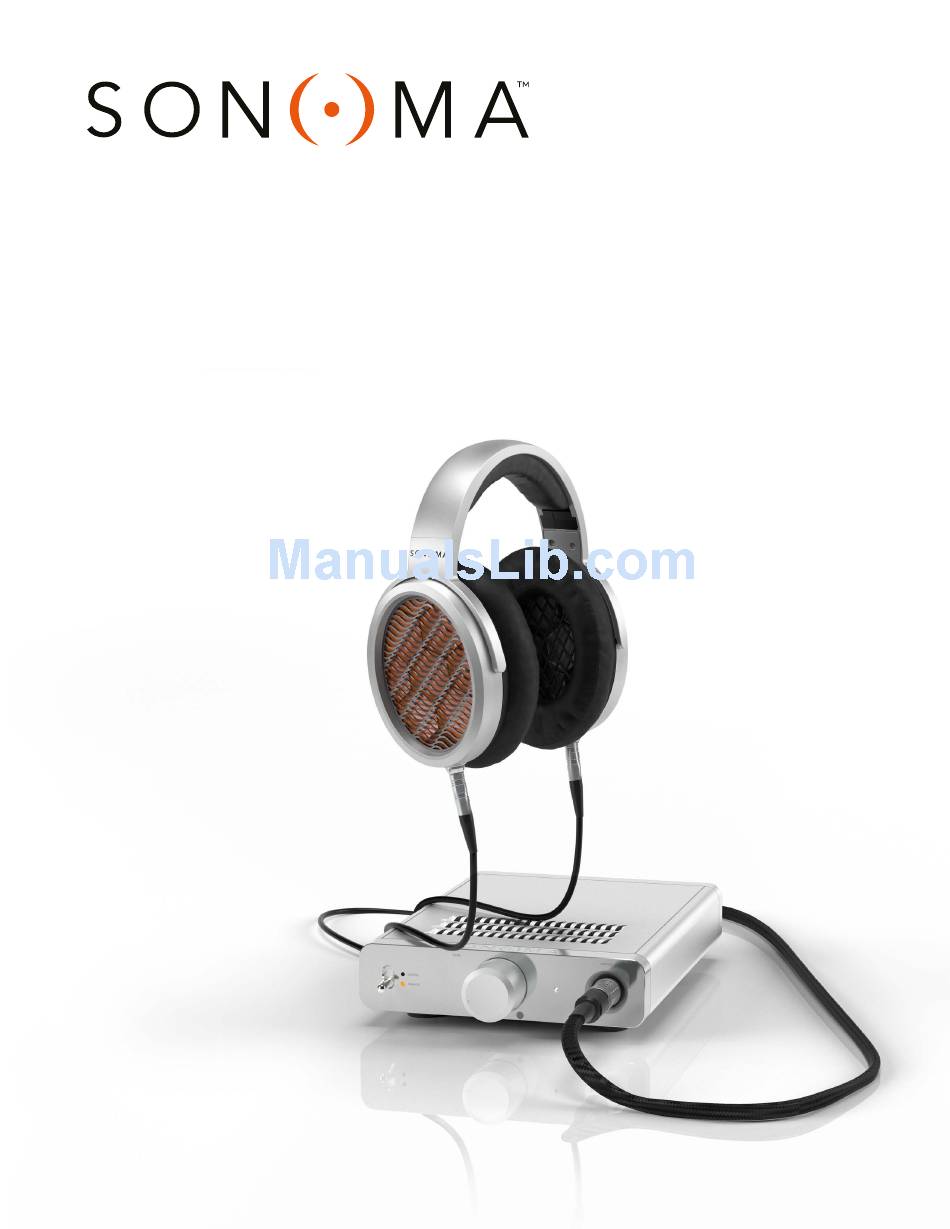

Model One Electrostatic Headphone System USER MANUAL April 2017 Version 1.0 Sonoma Acoustics Inc., 1434 Spruce St., Suite 100, Boulder, CO 80302, USA... -
Page 2: Revision History
Sonoma Acoustics Inc. The Sonoma logo is a registered trademark of Super Audio Center LLC, Colorado, USA and is used under license. REVISION HISTORY... -
Page 3: Table Of Contents
CONTENTS TRANSLATED WARNING AND CAUTION MESSAGES .......................i REGULATORY COMPLIANCE STATEMENTS ..........................vi CHAPTER 1 INTRODUCTION ....................................... 1 Thank You ..............................................1 Safety Information ..........................................2 Liability Waiver ............................................. 2 CHAPTER 2 INSTALLATION ........................................3 System Contents..........................................3 Front Panel Controls ........................................3 Rear Panel Connections/Controls .................................. - Page 4 CHAPTER 4 COMPUTER-BASED AUDIO SET-UP ..............................10 XMOS Driver Installation for Windows Users ............................10 Checking the Firmware Version (Windows Users) ..........................12 Updating the Firmware Version (Windows Users) ..........................12 Checking and Updating the Firmware Version (Macintosh Users) ..................13 Configuring Your Playback Software ................................15 CHAPTER 5 CARE AND MAINTENANCE ...................................
-
Page 5: Translated Warning And Caution Messages
TRANSLATED WARNING AND CAUTION MESSAGES The following caution statements, warning conventions, and warning messages apply to the Sonoma Model One (M1) system and manual. Warning Symbol Hazard Symbol Caution Symbol BEFORE OPERATION PLEASE READ THESE INSTRUCTIONS Warning! Read and follow all warning notices and instructions marked on the product or included in the documentation. - Page 6 Warning! Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Avertissement! N’installez pas l’appareil près d’une source de chaleur telle que des radiateurs, des bouches d’air de chauffage, des fourneaux ou d’autres appareils (amplificateurs compris) qui produisent de la chaleur.
- Page 7 Warning! Since the Mains plug is used as the disconnection for the device, it must remain readily accessible and operable. Avertissement! Puisque la prise principale est utilisée pour débrancher l’appareil, elle doit rester aisément accessible et fonctionnelle. Warnung! Da der Netzstecker als Trennvorrichtung dient, muss er stets zugänglich und funktionsfähig sein.
- Page 8 Betrieb vorgenommen. ¡Advertencia! No abra el chasis. El interior no contiene piezas reparables por el usuario. El abrir el chasis anulará la garantía a menos que se lo haga en un centro de servicio Sonoma Acoustics o en un local autorizado.
- Page 9 è caduto. Aviso! O Sonoma Acoustics M1 não tem partes de manutenção pelo utilizador. Para retirar a energia da unidade, retire o conector de energia, para assegurar a desconexão. Indique toda a manutenção para pessoal de manutenção qualificado.
-
Page 10: Regulatory Compliance Statements
REGULATORY COMPLIANCE STATEMENTS FEDERAL COMMUNICATIONS COMMISSION (FCC) COMPLIANCE NOTICES Class B Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 11 Safety: EN 60065: 2002 + A1: 2006 + A11: 2008 + A2: 2010 + A12: 2011 (GS License) Also Licensed for Standards: IEC 60065: 2001 + A1: 2005 + A2: 2010, (CB Scheme Report/Certificate) UL60065: 2003 R7.13 (NRTL License), CAN/CSA-C22.2 No.60065-03 +A1: 06 (R2012) + A2: 12 EN 50332-1: 2000, EN 50332-2: 2003 Emissions: EN 55032: 2012, CISPR 22: 2008, EN 61000-3-2: 2014, EN 61000-3-3: 2013...
-
Page 12: Chapter 1 Introduction
Precision-machined aluminum case Custom, fixed-frequency universal power supply unit In developing the Sonoma Model One, our paramount goal was to stay true to the precedent for uncompromised audio quality set by its namesake, the Sonoma Digital Audio Workstation. We value your thoughts so please let us know if you think we have achieved our goal. -
Page 13: Safety Information
If any of the cables show signs of wear or damage, please do NOT use the system until they have been replaced. LIABILITY WAIVER The Sonoma Model One Electrostatic Headphone System has been designed for home use only. Sonoma Acoustics Inc. will not accept liability for any damage or injury arising from improper use/ misuse of this product. INTRODUCTION... -
Page 14: Chapter 2 Installation
INSTALLATION SYSTEM CONTENTS The M1 system comprises two parts, a headphone and an associated energizing amplifier/digital-to- analog converter (DAC). These are packed separately: the amplifier/DAC in the larger of the two packing boxes. The headphone box contains the following items: •... -
Page 15: Rear Panel Connections/Controls
Coaxial S/PDIF input HEADBAND ADJUSTMENT To get the best from your M1 headphones, it is important to ensure that they are correctly adjusted to fit your head, and that they are properly positioned on your head. The headband can be adjusted by means of an inner band that can be lengthened/shortened as needed. -
Page 16: Positioning The Headphones
POSITIONING THE HEADPHONES The headphones should be positioned on your head such that the headband is vertical. When you have the correct adjustment and orientation, you will have a good seal of the ear-cup pad around your ear which is essential for correct bass response. You can check whether you have a good seal by carefully pushing on the ear-cup. -
Page 17: Detaching The Headphone Cable
DETACHING THE HEADPHONE CABLE Should you need to detach the cable for any reason, grasp the barrel of the cable and carefully pull backwards until the cable disconnects. You can then release the barrel and it will return to its usual position. -
Page 18: Assembling And Connecting The Power Supply Unit
Connect the stereo analog output of a portable audio device, for example, to the 3.5 mm stereo input jack. Simply insert the jack until it latches. To remove, carefully pull on the connector (not the cable!). Connect the stereo (L and R) analog outputs of a disc player or the Pre-Outs of an amplifier using two cables fitted with RCA connectors. -
Page 19: Powering The Unit On
Provided all connections have been properly made, the front panel status indicator should glow WHITE. Your Sonoma M1 system is then ready to use. If the amplifier/DAC detects a fault condition, the status indicator will glow RED. In this case, first power the unit OFF and re-check all the connections. -
Page 20: Chapter 3 Operation
DIGITAL INPUT SELECTION The M1 amplifier/DAC unit has been configured to monitor the presence of a valid S/PDIF signal. When detected, the unit switches the digital input to S/PDIF mode. The USB connection is then effectively disconnected, and you will not be able to hear music via this connection while the S/PDIF signal is present. -
Page 21: Computer-Based Audio Set-Up
URL address: www.sonomaacoustics.com/support There locate the support features (manuals, downloads, etc.) for the M1, and click on the link for XMOS USB Driver. This will link to a file of the following type: Sonoma_M1_XMOS_xxxx.exe... - Page 22 Click Finish to complete the installation process. You may also see a further completion message. If so, click Yes, and then power cycle (turn off and then on again) your PC and the M1 system. COMPUTER-BASED AUDIO SET-UP...
-
Page 23: Checking The Firmware Version (Windows Users)
CHECKING THE FIRMWARE VERSION (WINDOWS USERS) As soon as the XMOS Driver has been successfully installed, and your PC and M1 are both powered ON, use File Explorer to navigate to the following folder: C:\Program Files\XMOS\USBAudioStDriver_308E In the folder locate and run the following file: xmosusbaudiost308E_cpl.exe... -
Page 24: Checking And Updating The Firmware Version (Macintosh Users)
Download the Sonoma M1 Updater Application (Sonoma M1 Updater.app) from the Sonoma Acoustics downloads page in the support section at www.sonomaacoustics.com/support. With the Sonoma Model One USB port plugged into your MAC and the Sonoma Model One turned ON, launch the application. - Page 25 You must turn off the amplifier and turn it on again to activate the new firmware! If you want to interrogate the unit to confirm that the new version is installed, you can run the Sonoma M1 Updater application again. COMPUTER-BASED AUDIO SET-UP...
-
Page 26: Configuring Your Playback Software
DSD, it will appear as 176.4 kHz for DSD64 and 352.8 kHz for DSD128 due to the need to use the DoP format for transmission. If you plan to play DSD source files through your M1, you will need to ensure that your playback software is configured for:... -
Page 27: Care And Maintenance
CARE AND MAINTENANCE POWER DOWN Due to the fact that the M1 amplifier/DAC generates high-voltages and also runs warm in use (this is perfectly normal for a Class-A amplifier), it should be powered down when not in use for extended periods or left unattended. -
Page 28: Replacing The Headband Pad
REPLACING THE HEADBAND PAD The headband pad is held in place by the small plastic tabs marked L and R on each side of the headband. To remove one of the tabs, use your thumb to carefully push the sidewall outwards (do this at the thicker part as indicated). -
Page 29: Chapter 6 Troubleshooting
CHAPTER 6 TROUBLESHOOTING If you are encountering problems with using your Sonoma M1 system, it could be the result of something simple. Please consult the following checklist first, and perform only the specific remedy for a particular symptom. If the remedy does not resolve your problem, please contact our Customer Service team (see Page 20) to assist you further. - Page 30 SYMPTOM REMEDY Fit is poor/bass response is weak Check the headband for any deformation by fully retracting (shortening) the metal inner bands. If the junctions at each end of the headband are tight without any large uneven gaps and the arc of the headband is smooth and continuous to each ear cup the inner bands are correct.
-
Page 31: Chapter 7 Customer Service
CHAPTER 7 CUSTOMER SERVICE If the product fails to work for any reason, or you want to purchase replacement parts, please contact our Customer Service team via one of the following methods. Please provide as much detail as you can about the problem and your specific configuration. -
Page 32: Glossary
GLOSSARY Alternating Current Analog-to-Digital Converter ASIO Audio Stream Input/Output Blu-Ray Disc Compact Disc Comité Européen de Normalisation/European Committee for Standardization Computer Numerical Control Depth Digital-to-Analog Converter Direct Current DSD Over PCM Direct Stream Digital Digital Signal Processing/Digital Signal Processor Digital Versatile Disc European Norm/European Standard as developed by CEN Field-Effect Transistor Height... - Page 33 Personal Computer Pulse Code Modulation Polyethylene Radio Corporation of America Return Merchandise Authorization Root Mean Square SACD Super Audio Compact Disc SMPS Switched-mode Power Supply S/PDIF Sony/Philips Digital Interface Format Universal Serial Bus Volt Volt-Ampere Width WASAPI Windows Audio Session Application Programming Interface GLOSSARY...
-
Page 34: Specifications
Effective Diaphragm Area 3570 mm Frequency Response 10 Hz – 60 kHz Output Level Compliant with EN 60065/A12:2011 (EN50332) when driven by M1 amplifier (for all inputs) Ear and Headband Cushions “Cabretta” top-grain, sheepskin leather Input Polarized, 4-pin, self-latching connectors for left and right channels... -
Page 35: Warranty
This includes any superficial damage to the boxes and packaging incurred during shipment. As the Sonoma Model One uses natural leather, variations in texture and color are inherent and natural characteristics of the material. These variations are normal and considered acceptable by Sonoma Acoustics and are not covered by this warranty. - Page 36 WARRANTY TRANSFER: The terms of this warranty can be transferred to a subsequent owner provided the new owner is able to provide proof of original purchase, or the original purchaser has registered the product with Sonoma Acoustics. WARRANTY PERIOD FOR REPAIRS/REPLACEMENTS: All warranty repairs/replacements are guaranteed for 90 days or until the original warranty end date, whichever is longer.
