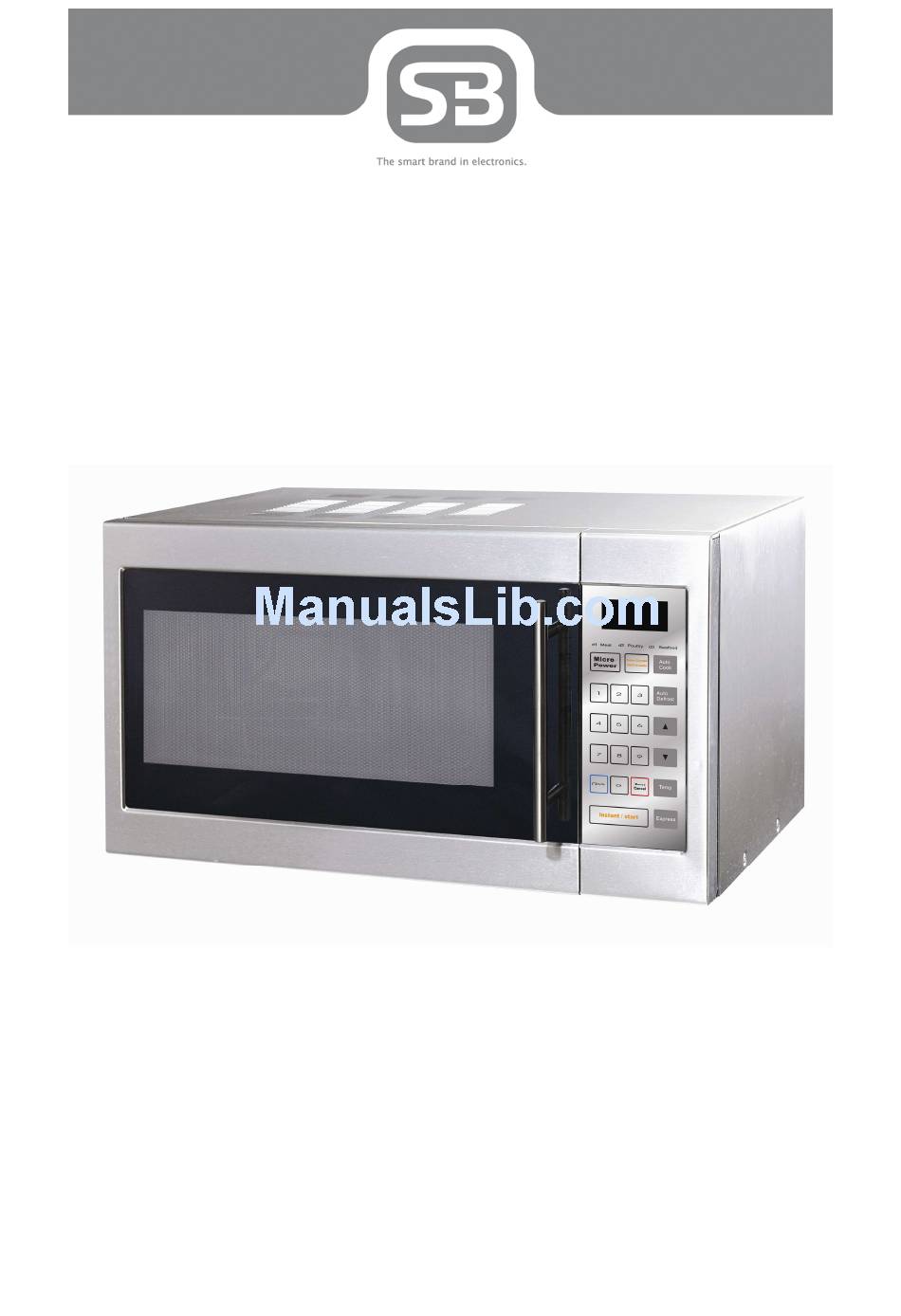

Page 1: Instruction Manual
Instruction manual Microwave Oven 31 Litre SB4664 Please read this booklet carefully before fixing and using, and save it for future reference. -
Page 2: Installation Of Microwave Oven
Installation of microwave oven A microwave is a kind of high frequency electromagnetic wave, which is generally distributed in nature. The existing microwaves are spreading this wave to prevent a collection of this wave together with heating. 1. To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10cm, the side to the wall should be at least 5cm, the free distance above the top surface at least 20 cm. -
Page 3: Important Safeguards
Important safeguards The following basic precautions should always be followed when using electrical appliance: 1. Read all instructions before using. 2. Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall socket is properly grounded. 3. - Page 4 11. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. 12. Only use utensils that are suitable for use in microwave ovens. 13.
-
Page 5: Product Information
Product information Household use Fig. 1 Oven door Waveguide cover Housing LED display Control panel Rotating ring Rotating axis Glass rotating table Oven Space Door interlock Grill Rack Notes: 1. Door interlock ensures the oven can only be activated when the door is properly closed, which would prevent microwave radiation. -
Page 6: Operation Of Control Panel
Operation of control panel... - Page 7 Before cooking The LED will flash 3 times when plugged in power supply. Then it will flash, Prompt you input the cooking menu and time. Pause Cancel At the initial or input stage: press once to cancel input programs and resume initial stage During cooking: press once to stop oven operation, press twice to cancel cooking programs Auto reminder When the preset cooking procedure have finished, the LED Display will show End and three...
- Page 8 recommend 5. to turn the food halfway, after you turn the food. Press Instant/Start button once to continue… Express-function Press this button LED Display will cycle to show 0: 30, 1 :00, 1: 30. This function will allow you to heat a cup of water or beverage conveniently, omitting the steps of setting time.
- Page 9 Notes: 1. Do not use the oven before the glass rotating table is properly installed, otherwise it can not rotate. During preheating the oven, you may remove the glass rotating table. 2. Do not cover the glass rotating table with aluminium foil. It hinders the air circulation and also slows the process.
- Page 10 Note: When grilling, it is not necessary to preheat Warning: In the convection/combi/grill mode, the possibility exists that all parts of the machine are heated. Caution when removing components. Use oven mitts / potholders TO AVOID BURNS!! Auto Defrost Press the Auto Defrost button and the LED display will cycle to show Ad-1 Ad-2 Ad-3. Ad-1 --- for defrosting meat, the weight range from 0.1 to 2.0 kg.
- Page 11 Auto cook table Display Category Direction Wash rice or pasta and soak for 30 minutes Place rice or pasta in a deep and large bowl. Refer to the water volume as follow. Rice 100g 200g 300g cover pasta 100g 200g 300g cover Water 180ml 330ml 480ml yes water 300ml 600ml 900ml Rice/Pasta...
- Page 12 Automatic starting (delayed function) If you do not want the menu be started immediately, you can preset the cooking menu and time and the preset menu will be automatically started at your set time. The setting will consist of 2 steps: 1. Setting the current clock; 2. Setting the cooking menu and time. Example: Now it is 12:30 clock, if you hope that the microwave oven will automatically start cooking with 100P microwave power for 9 minutes and 30 seconds at 14:20 Display...
-
Page 13: Microwave Cooking Tips
Microwave cooking tips 1. Arranging food Place thicker areas toward outside of dish and the thinner meat in the centre and spread them evenly. Do not overlap if possible. 2. Cooking time Start cooking with the shorter period of time and extend it according to the actual need. -
Page 14: Cleaning And Maintenance
Cleaning and maintenance The microwave oven has to be cleaned often and possible food residue has to be removed 1. Plug: Disconnect the power supply cord before cleaning. And if possible leave the door open to inactivate the oven during cleaning. 2. - Page 15 Servicing Warning: it is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which involves removal of any cover which gives protection against exposure to microwave energy. Warning: MICROWAVE RADIATION Do not become exposed to radiation from the microwave generator or other parts conducting microwave energy.
-
Page 16: Warranty
Warranty You have 2 years warranty on technical defects after purchase. Not included in warranty: • Other than normal domestic use ( this appliance is for normal domestic use only ) • Causes hot being related directly to the appliance such as; o Damage occurring during transport or because of wrong usage such as dents, scratches, broken parts o Installation errors (such as wrong voltage). -
Page 17: Environment Friendly Disposal
Environment friendly disposal Do not dispose this product as unsorted municipal waste, collection of such waste separately for special treatment is necessary.. Information and support: - www.smartbrandinternational.com - support@smartbrandinternational.com Writing errors and changes reserved...
