DKT Comega IPLoA-MESH-AC-W User Manual

Wifi
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IPLoA-MESH-AC - -W
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPLoA-MESH-AC-W and is the answer not in the manual?

Questions and answers

Related Manuals for DKT Comega IPLoA-MESH-AC-W

Summary of Contents for DKT Comega IPLoA-MESH-AC-W

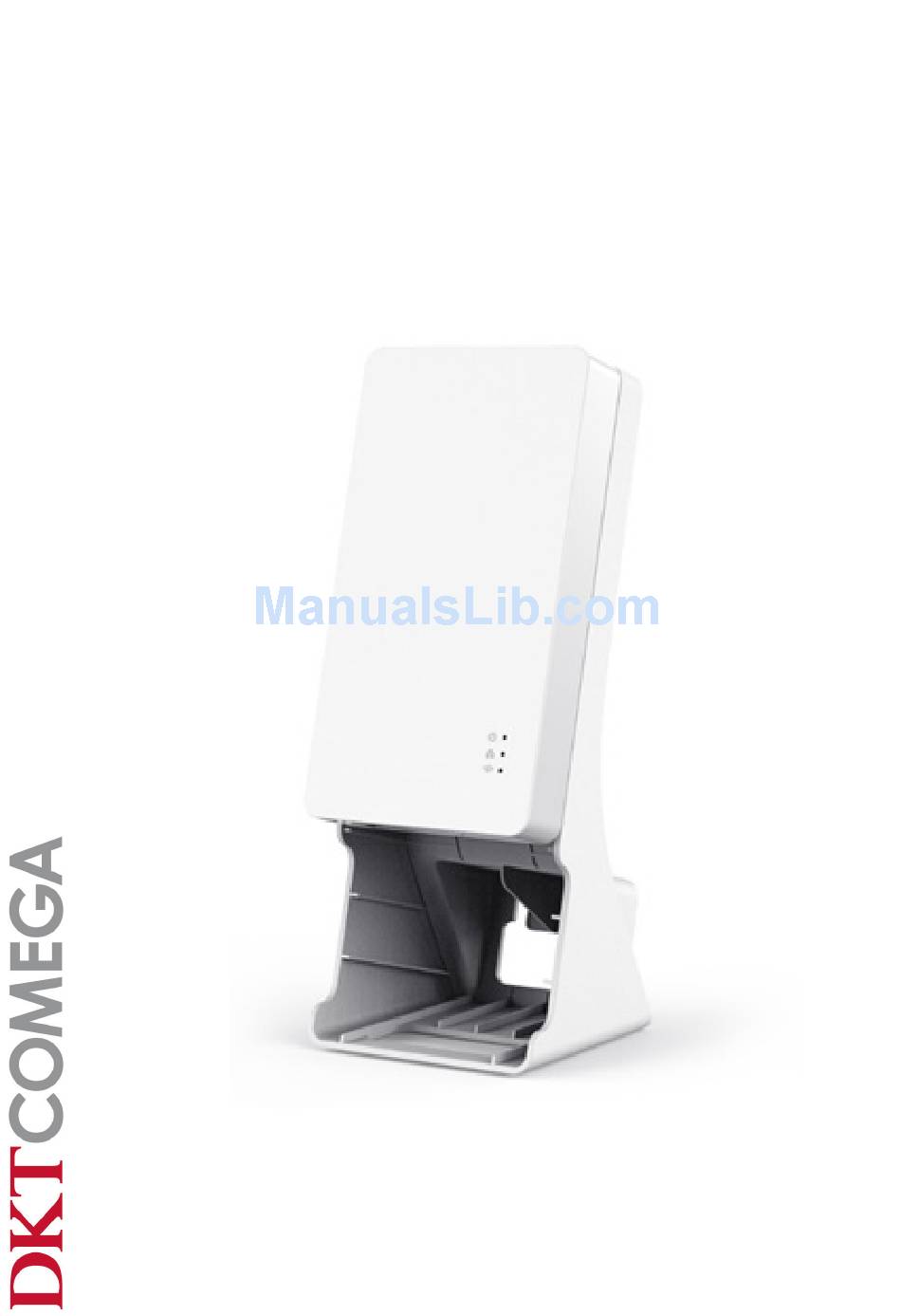

  • Page 1 IPLoA-MESH-AC - -W User Guide...

  • Page 2: Table Of Contents

    Table of Contents Introduction Hardware specification Software feature Interface Mounting Installation of the HomeMesh Network Mesh installation via PDS cable, recommended Mesh installation via Wi-Fi Trouble shooting Page 2 IPLoA-MESH-AC-W_User Guide_2017-06-12 Specifications are subject to change without notice. DKT is not responsible for any typographical errors or wrong.

  • Page 3: Introduction

    Introduction IPLoA-MESH-AC-W, it is one product of the DKT HomeMesh family. It works in bridge mode. After connection to the 3rd residential gateway, it can establish a new home Wi-Fi network. In order to do so you need to first setup the SSID and password via web browser.

  • Page 4: Software Feature

    Software feature Subset Feature Ethernet GE interface MDI/MDIX auto-sensing Wi-Fi 2x2 2.4GHz 802.11b/g/n, 256QAM, up to 400Mbps 2x2 5GHz 802.11a/n/ac, up to 867Mbps 802.11ac MU-MIMO 802.11k/v/r Single AP band steering Multi-AP coordinated steering After boot up, auto-channel selecting Video over wireless Beamforming Multi-Country code Network...

  • Page 5: Interface

    Interface Pairing button: • Pairing/Reset LED: • Power • • Wi-Fi RJ 45 Connector x2: • Input/Output for Ethernet signal (LAN) DC Connector: • Input 5V DC, 2A, USB-C Label: LED: Indication: Power off Green Power on Power Amber blinking Processing Wi-Fi WPS pairing (50% on/off) Green off...

  • Page 6: Mounting

    Mounting IPLoA-MESH-AC-W supports desktop mounting and wall mounting. If you want to use the desktop mounting, please route all the Ethernet/power cables go through the backside hole of the bracket.. Wall mounting Desktop mounting If wall mounting is required then please install two screws on the wall horizontally, distance is 22mm and attach the device onto the screws.

  • Page 7: Installation Of The Homemesh Network

    (recommended) IPLoA-MESH-AC-W Wi-Fi One IPLoA-MESH-AC-W is connected to the 3rd party gateway via Ethernet cable and acts as the HomeMesh controller. Additional IPLoA-MESH-AC-Ws can be connected to the cen- tral IPLoAMESH-AC-W via Wi-Fi or via the PDS. All of these IPLoA-MESH-AC-W build the HomeMesh Wi-Fi network and they share the same SSID and password.

  • Page 8: Mesh Installation Via Pds Cable, Recommended

    PDS cabling (RJ-45) • Coax/MoCA (used for Cable-TV or broadband services) (not applicable to IPLoA-MESH-AC-W model) In this guide we use Ethernet cable between the router and all the IPLoA-MESH-AC-W units. Step 1: Install the first IPLoA-MESH-AC-W The following items should be found in your...
  • Page 9 After connected to the IPLoA-MESH-AC-W, your computer or smartphone will pop up a new brow- ser window. It is the web guide for Wi-Fi configu- ration. If there is no pop-up window then please open your web browser and try to visit any website, you will get the web guide.
  • Page 10 Step 2: Add the second IPLoA-MESH-AC-W Plug in the supplied mains adapter to the second IPLoA-MESH-AC-W Plug in IPLoA-MESH-AC-W to the existing ADSL / Broadband Gatway or your home Router with an Ethernet cable in LAN socket. If the IPLoA-MESH-AC-W can access 3rd party ga- teway or your home router then the LAN LED will be Green slow blinking (95% on/5% off).

  • Page 11: Mesh Installation Via Wi-Fi

    3rd party gateway Cable or Wi-Fi Plug in the supplied mains adapter to IPLoA-MESH- AC-W Plug in IPLoA-MESH-AC-W to the existing ADSL / Broadband Gatway with an Ethernet cable in LAN socket. If the IPLoA-MESH-AC-W can access 3rd party gateway then the LAN LED will be Green slow blinking (95% on/5% off).
  • Page 12 After connected to the IPLoA-MESH-AC-W, your computer or smartphone will pop up a new brow- ser window. It is the web guide for Wi-Fi configu- ration. If there is no pop-up window then please open your web browser and try to visit any website, you will get the web guide.
  • Page 13 IPLoA-MESH-AC-W. pairing button pairing button The second IPLoA-MESH-AC-W will try to connect to the first IPLoA-MESH-AC-W, and the power LED 1 sek 1 sek will be Amber blinking (50% on/off). If the connection is completely set up then the Wi-Fi LED will be Green slow blinking (95% on/5% off).

  • Page 14: Trouble Shooting

    • Wi-Fi LED: Green on If Power LED is off then the hardware is broken, please use one of the other IPLoA-MESH-AC-W as the central controller, connect it to 3rd party gateway via Ethernet cable. If LAN LED is not correct then please check the 3rd party gateway and the Ethernet cable.
