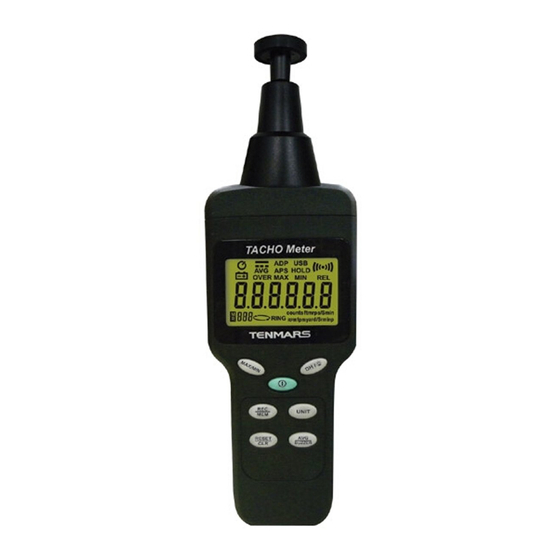

TACHO Meter
TM- 4100 / TM- 4100D
User's
Manual
HB2TM4100001
TENMARS ELECTRONICS CO., LTD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM- 4100D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tenmars TM- 4100D

Summary of Contents for Tenmars TM- 4100D

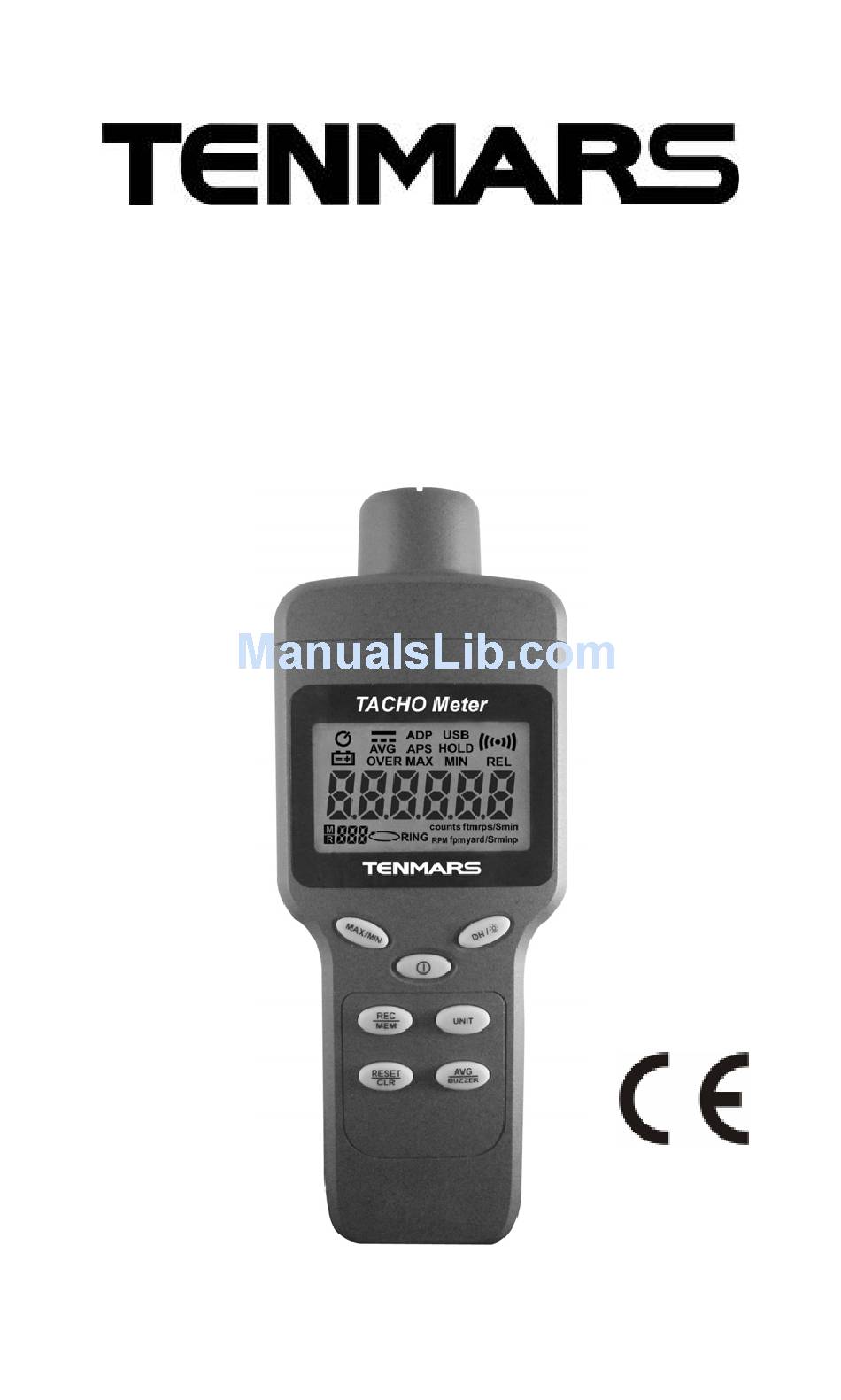

  • Page 1 TACHO Meter TM- 4100 / TM- 4100D User’s Manual HB2TM4100001 TENMARS ELECTRONICS CO., LTD...

  • Page 3: Table Of Contents

    Table of Contents     Foreword ..............2     Features: ..............2     Identifying Parts............4     LCD Description ............5     Specifications ............... 6     Measurement Procedures and Preparation ....10   6.1 Battery Loading: ........... 12  ...

  • Page 4: Foreword

    TM-4100/TM-4100D Foreword Thank you for purchasing this tacho meter. Please, read this user’s manual before you operate it. Features Measurement method: Using red visible spectrum light source and reflective tape or a reflector plate. Reflex indicators : When you receive the reflected signals the RING bright LCD screen locked.
  • Page 5 TM-4100/TM-4100D (tm-4100D memory storing : 20000 data) Connect the USB Cable : The Screen Display ’’USB’’ (Stop the Auto Power Off function). With AC/DC power supply : The Screen Display ‘’ADP” (Stop the Auto Power Off function). Installation of Contact : The Screen Display ”...

  • Page 6: Identifying Parts

    TM-4100/TM-4100D Identifying Parts Speed the Sensor. 11. Battery covers. Liquid-crystal 12. Contact adapter LCD. mounting nut. MAX / MIN 13. Contact adapter. Button. 14. Fixed screws Hold / Backlight 15. Contact type Button. X0.1M Power Button. 16. Contact-type REC/ MEM / shoulder Button.

  • Page 7: Lcd Description

    TM-4100/TM-4100D LCD Description 1. Primary Display. 12. Buzzer symbol 2. Low battery symbol. 13. REL symbol. 3. Auto power off .symbol 14. M – Memory reading symbol 4. AVG symbol 15. R - REC symbol 5. OVER symbol - Contactsymbol. 6.

  • Page 8: Specifications

    TM-4100/TM-4100D Specifications Measurement method : Using red visible spectrum light source and reflective tape or a reflective plate. Display : Liquid-crystal (LCD), 6 digits Range switching: Automatic. Contactless measurement detection range : 50mm to 500mm (1.97" to 19.7") Sampling period : 62.5 ms to 2 s (depending on usage conditions).
  • Page 9 TM-4100/TM-4100D Operating temperature humidity range : 0°C to + 40°C. 25% to 75 % RH. Storage temperatures humidity range : -10°C to +60°C. 0% to 80% RH. Power supply : 9V alkaline battery×1. AC Adapter : 9V(1A) (Option). Maximum rated power : 0.5VA. Compatible jack diameter : 3.5mm.
  • Page 10 TM-4100/TM-4100D Rotational speed measurement: Ranges and measurement range Note 1 : The lowermost digit is fixed at 0 at speeds of 20,000r/min and over. Note 2 : The lowermost digit is fixed at 0 when the averaging setting is off. (1) Rotational speed measurement Contactless Contact...
  • Page 11 TM-4100/TM-4100D 20.00 to 20.00 to 20.00 to 20.00 to 199.99 199.90 199.909 19.90 200.0 to 200.0 to 200.0 to － 1999.9 3999.9 399.0 Count 0 to 999999 Measurem (Input conditions Up to rotational speed ent(count) measurement upper limit) (2)Circumferential speed measurement Contact measurement MODE Range...

  • Page 12: Measurement Procedures And Preparation

    TM-4100/TM-4100D This meter was designed in accordance with EMC Standards in force and its compatibility has been tested in accordance with EN61326-1 (2006). Ac / The pulse output wiring diagram: Measurement Procedures and Preparation Precautions in Measurement of High-Rotation Objects Detection of reflected light uses modulated light is input for a fixed period of time (about 0.2ms) or longer, a single pulse is detected.
  • Page 13 TM-4100/TM-4100D Chapter Measurement Procedures If the reflective tape cannot be attached within this detection range, increase the area of the reflective tape so that the generated pulse is 0.2ms to higher. For measurement of 30,000r/min. or higher, uses the following method:...

  • Page 14: Battery Loading

    TM-4100/TM-4100D For measurement of 30,000 r/min. or higher, use the following. Method : Chapter Measurement Procedures If the reflective tape cannot be attached within this detection range, increase the area of the reflective tape so that the generated pulse is 0.2ms to higher.

  • Page 15: Data Hold /Backlight Button

    TM-4100/TM-4100D 6.3 Data Hold /Backlight Button: Press the “ ”button, LCD display“ ”, Lock reading, and then a“ ” lifting "lock. > > > > Press the “ ” button for more than 2 seconds to turn on or turn off the backlight function Backlight light turns off automatically after 30 seconds.

  • Page 16: Max/Min Button

    TM-4100/TM-4100D 6.5 MAX/MIN Button: Configuration meshed : Repeated input Operation description : Normal value→Maximum value ( lights up) →Minimun value ( lights up) ※ This function is not available during count measurement (the key is disabled). 6.6 RESET/CLR Button: Operation method : key input Operation description : The current value, maximum value, minimum value, count measured...

  • Page 17: Avg And Ring Call On/Off Button

    TM-4100/TM-4100D Notes : The measured value is also cleared when switching measurement modes and changing the averaging setting. 6.7 AVG and Ring call ON/OFF Button： Operation method : key input Operation description: The current value, maximum value, minimum value is reset to zero. Note: The measured value is also cleared when switching measurement modes and changing the...

  • Page 18: Manual Data Memory Storing

    TM-4100/TM-4100D 6.8 Manual Data Memory Storing Push“ ” button, this meter will save the current measured result, and REC with a number 001~200 will appear. Manual data memory Storing: 200 data sets.Over load Indication: “OL”. 6.9 Viewing Data Record Press and hold “ ”...

  • Page 19: Setup Mode

    TM-4100/TM-4100D Setup Mode Press and hold “ ” button first ,and then press“ ” button to enter the Setup Mode set1. Press “ ” button to change the setup function from set1 to set7 mode, LCD will display from set1 to set7.

  • Page 20: St2 Auto Power Off Time Setting

    TM-4100/TM-4100D no longer displays " " symbol. Will be appeared on the LCD display. To reply to automatic shutdown feature, please follow the steps to cancel automatic shutdown st1, LCD screen, select the " " symbol, then click " " button to confirm the test status LCD screen on the "...

  • Page 21: St3 Record Interval Time Setup

    TM-4100/TM-4100D Setting Auto Power Off time from：15 to 99 minutes. Press " " button and enter the settings from the setting mode. The auto power off time default setting is 15 minutes. >>> 7.3 St3 Record Interval Time Setup Entered into the records of each storage interval st3 time setting By the press "...

  • Page 22: St4 Screen Backlight On / Off Setting Note

    TM-4100/TM-4100D cursor to move from hour to minute, then to second for the setup. Press " " button to determine the set of the time, and from the setting mode. 7.4 St4 Screen Backlight ON / OFF Setting Note: After entering st4 screen then click " "...

  • Page 23: St5 Backlight Off Time To Select The Setting

    TM-4100/TM-4100D >>> 7.5 St5 Backlight off Time to Select the Setting After entering st6 screen then click " " switch converted to a 5.00 0.30 1.00 1.30 >> >> >> >> 2.00 2.30 3.00 3.30 4.00 4.30 5.00 >> >> >>...

  • Page 24: St7 Ft. / M Unit Conversion Options

    TM-4100/TM-4100D button to confirm the action. 7.7 St7 ft. / m Unit Conversion Options: Into the ST7 screen displayed on the” "switch " “button for the conversion unit, the screen displays” "Press" "button to confirm the selection unit. Such as to be altered in accordance with the above instructions, and then operate a return to the original unit >>>...

  • Page 25: Battery Replacement

    TM-4100/TM-4100D Battery replacement warring If the symbol “ ” appears on the LCD, please replace the battery immediately Turn off the instrument. Remove the battery cover. Replace the battery. Install the battery cover. ※ Please take out the battery in case of using adapter.

  • Page 26: Safety Information

    TM-4100/TM-4100D 10 Safety Information DANGER In some cases, work in the vicinity of powerful radiation sources can be a risk of your life. Be aware that persons with electronic implants (e.g. cardiac pacemakers) are subject to particular dangers in some cases. Observe the local safety regulations of the facility operation.

  • Page 27: End Of Life

    TM-4100/TM-4100D can arise. All field strength measuring devices have a limited specified frequency range. Fields with spectral components outside of this frequency range are generally incorrectly evaluated and tend to be underrated. Before using field strength measuring devices, you should thus be certain that all field components to be measured lie in the specified frequency range of the measuring device.
  • Page 28 Clamp meter ,Multimeter ,Phase Rotation test, Digital Insulation teste Our products of high quality are selling well all over the world TENMARS ELECTRONICS CO., LTD 6F, 586, RUI GUANG ROAD, NEIHU, TAIPEI 114, TAIWAN. E-mail : service@tenmars.com Http : //www.tenmars.com...
