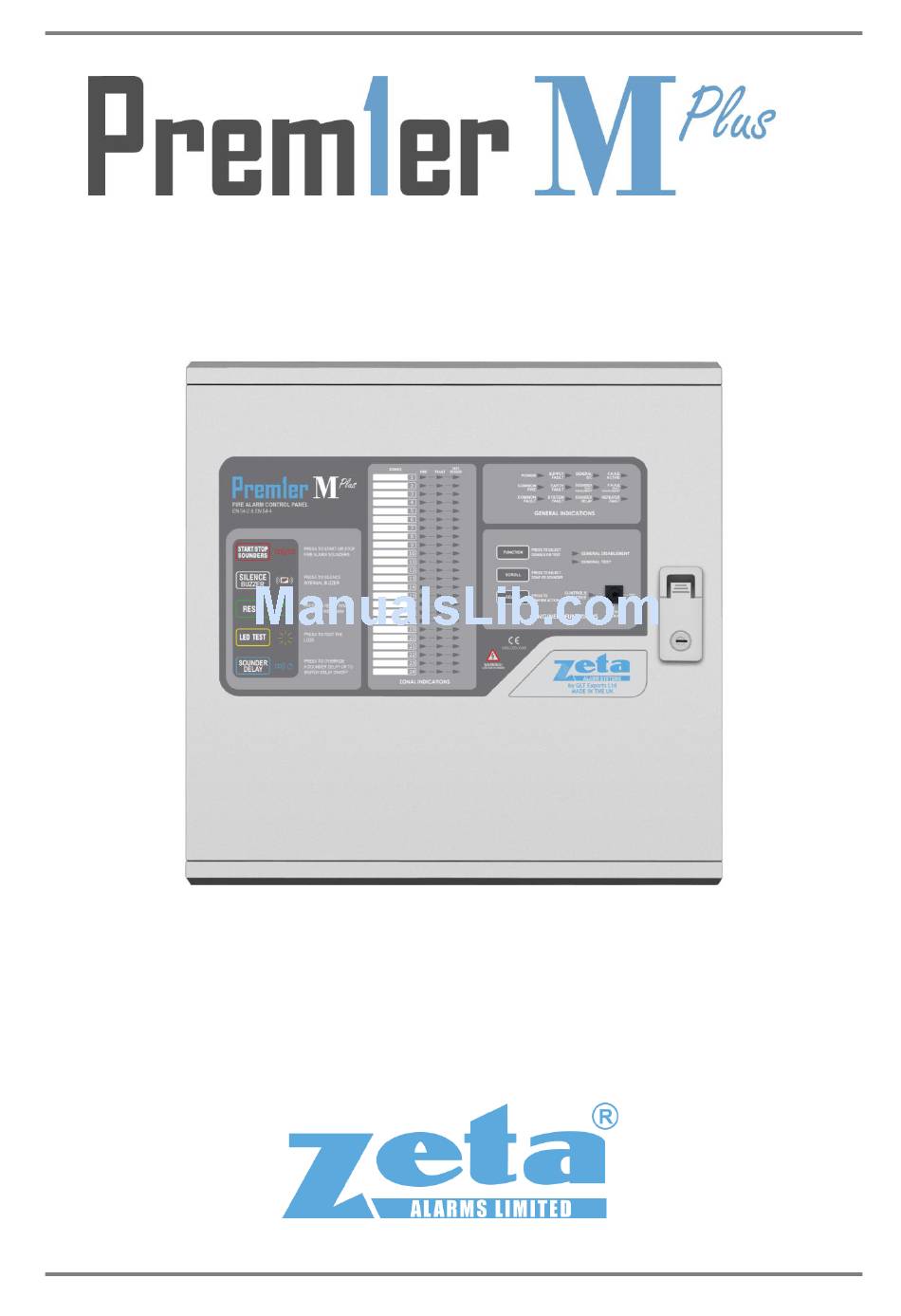

- Page 1 PREMIER M PLUS USER MANUAL & MAINTENANCE GUIDE 8-24 ZONE CONVENTIONAL FIRE ALARM PANEL USER MANUAL & MAINTENANCE GUIDE Approved Document No: GLT.MAN-112 Issue: 2.3 Author: NRPJ Date: 25/5/2017...
-
Page 2: What To Do If The Fire Alarm Panel Shows An Alarm (Red Led)
PREMIER M PLUS USER MANUAL & MAINTENANCE GUIDE What to do if the Fire Alarm Panel shows an Alarm (Red LED) Write down which LEDs are lit (either in the log book, or on a piece of paper for transferring to the log book later) Follow the building procedures for fire alarm activation. -
Page 3: Table Of Contents
4.3 SUMMARY OF LED COMBINATIONS AND THEIR MEANING ..........6 4.4 CHECKING THE PANELS INDICATION LEDS ................ 6 5.1 HOW THE PREMIER M PLUS INDICATES AN ALARM ............7 5.2 TO TURN OFF THE ALARM SOUNDERS ................7 5.3 A SECOND ALARM SIGNAL FROM A NEW DETECTION ZONE ..........7 5.4 TURNING ON THE ALARM SOUNDERS FROM THE FACP (I.E. -
Page 4: Fire Alarm Control Panel Safety Issues
This product has been manufactured in conformance with the requirements of all applicable EU Council Directives. The Declaration of Conformance for this product is located at the following Address: Zeta Alarms Limited, 72-78 Morfa Road, Hafod, Swansea, SA1 2EN, United Kingdom 2. THE PURPOSE OF A FIRE ALARM SYSTEM A Fire Alarm System is used to provide an early warning of a fire, so that the property can be evacuated and the fire extinguished if it can be safely tackled, or the local fire brigade called, according to the company evacuation procedure. -
Page 5: User Responsibilities & Maintainence Of The Fire Alarm System, Including The Facp & Its Integral Pse
Ensure any changes to the system are recorded with updated drawings, operating instructions etc. (47.2.i) 10. Ensure that there are spare parts (especially Call point elements) held on site (47.2.j.1&2) With the PREMIER M PLUS Range of Fire Alarm Panels, we recommend the following tests are carried out: - Daily Inspection ... -
Page 6: Panel Indications & Controls
PREMIER M PLUS USER MANUAL & MAINTENANCE GUIDE 4. PANEL INDICATIONS & CONTROLS Two levels of control are available to the User(s) of this Fire Alarm Panel. 4.1 GENERAL CONTROLS When the Panel is in its Normal state, the indicator lights on the front of the enclosure give a comprehensive overview of the System’s current status. -
Page 7: Summary Of Led Combinations And Their Meaning
PREMIER M PLUS USER MANUAL & MAINTENANCE GUIDE 4.3 SUMMARY OF LED COMBINATIONS AND THEIR MEANING Use the table below to determine the condition of the panel. LEDs LIT LED CONDITION PANEL STATUS POWER STEADY GREEN The panel is supplied with power, and has no faults / fires (System Normal) -
Page 8: How The Premier M Plus Indicates An Alarm
5.1 HOW THE PREMIER M PLUS INDICATES AN ALARM When the PREMIER M PLUS Fire Alarm Panel is set into alarm by a Detector or Manual Call Point located in a zone that is not already in alarm it will: - ... - Page 9 PREMIER M PLUS USER MANUAL & MAINTENANCE GUIDE Check the cause of the alarm activation. If the cause of the alarm was an activated call point, reset it (if resettable type), or fit a new glass element (if glass type). If the cause of the alarm was by detector activation (e.g. cooking smoke), the smoke will have to be cleared from the room before the panel can be reset.
-
Page 10: The Fault Condition
PREMIER M PLUS USER MANUAL & MAINTENANCE GUIDE 6. THE FAULT CONDITION 6.1 DIFFERENT TYPES OF FAULT The fire alarm monitors itself, and any equipment connected to it, for any faults that can occur. If a fault occurs, the Panel responds by activating its Internal buzzer and lighting the General Fault light and any other Fault light(s) relevant to the particular fault. -
Page 11: What To Do If A Fault Condition Occurs
On the PREMIER M PLUS panel, the fault indications (except system fault) are non latching. That is, when the fault has been cleared, the fault indication will turn off. When all faults have been cleared, the panel will return to its quiescent (normal) condition. -
Page 12: Disablements
PREMIER M PLUS USER MANUAL & MAINTENANCE GUIDE 7. DISABLEMENTS 7.1 REASONS FOR DISABLING CERTAIN PARTS OF A FIRE ALARM SYSTEM. Certain parts of this Fire Alarm Panel can be temporarily disabled (i.e. switched off) to suit prevailing conditions. For example, if there is a risk of a False Alarm in a zone, for example, an area full of dust because of building work, it is possible for the user to disable that zone during the risk period and then enable it again afterwards. -
Page 13: Using Sounder Delays
8.2 SOUNDER DELAY SETTING On the PREMIER M PLUS panel, the sounder delay is global. That is, all zones will be delayed by the same amount. If a delay is used, it will have been set by the installer to between 1 minute and 9 minutes. The user can toggle the delay on or off be enabling controls and pressing Sounder Delay button. - Page 14 PREMIER M PLUS USER MANUAL & MAINTENANCE GUIDE User Manual Modification History ***Do Not Print this Page when creating PDF Of the manual*** ISSUE DATE CHANGES 10/11/2010 Version Before addition of modification History 23/7/2012 Drawings changed to Grey Facia Text Formatting altered...
