Specification
Trade Name
HCP-27D
Power Supply
220-240V~
Power Consumption
190W
Power Frequency
50-60Hz
Rated Time
30 minutes
Kneading Speed
6 levels, from minimum 15 times/minute to maximum 40 times/minute
Tapping Speed
4 levels, from minimum 300 times/minute to maximum 650 times/minute
Roller Width
3 levels, narrow, medium and wide
Vertical Speed
One full cycle (top to bottom and top again) in approx. 20 seconds
Massage Range
About 64 cm (in partial roller massage about 15 cm)
Pre-Set Programs
Healthcare Programs: 8 types (with automatic Shiatsu Point Locator function)
Manual Selection
20 types (some include automatic Shiatsu Point Locator function)
Vibrating Function
2 types: Foot and Back
Air Massage
Air pressure about 32kPa
Auto Timer
Approx. 15 minutes (Healthcare Programs vary in duration)
Footrest Adjustment Range
Approx. 29 minutes (with automatic Foot Slide adjustment function)
Reclining Angle
Approx. 120˚ -170˚ from floor level continuous motion (Automatic reclining)
Approx. 80 x 131 (203) x 112 (88) cm
Dimensions of Chair Body
Numbers in ( ) represent dimensions when fully reclined and with footrest flat
Weight
Approx. 105 kg (Chair body: approx. 83 kg, Footrest: approx. 22 kg)
Remote Control Stand, Power Cord, L shape Wrench, Foot Shiatsu Mat, Buffer Pad (Thicker)
Accessories
Alpha Techno GmbH
Ernst-Bauer-Str.1
97941 Tauberbischofsheim
Germany
TEL: 09341/9285-0
FAX: 09341/9285-28
Email: info@alpha-techno.com
Developed by FAMILY CO., LTD.
Toggles between 2 levels of intensity for each location
Distributor:
M-5790511

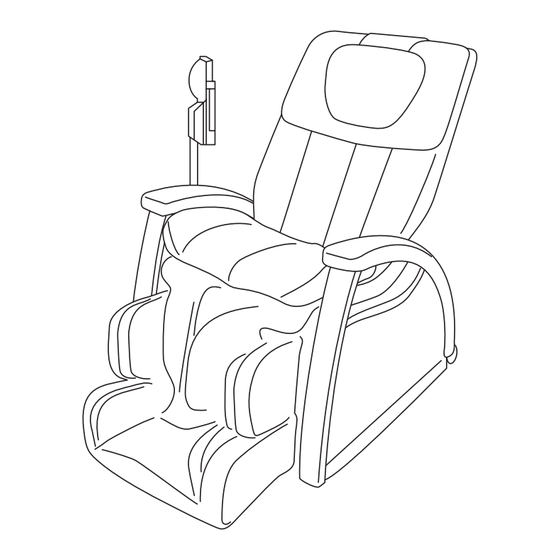

Thank you for purchasing the HCP-27D.
We hope the HCP-27D will be a valued partner
in your daily health maintenance for many years to come.
Please read this Operating Manual before use.
Keep this manual nearby so that you can refer to it anytime.
CONTENTS
.....................1
...........................4
.........5
.............................9
....................12
.................................14
...15
............17
...............21
........24
.......................25
nTroubleshooting
........................................27
nFAQ
nCare & Storage
........................28
...29
...............30
...............Backcover
nSpecification
Advertisement
Table of Contents
Related Manuals for Family inada HCP-27D
Summary of Contents for Family inada HCP-27D
-
Page 1: Table Of Contents
Alpha Techno GmbH Distributor: ....Backcover nSpecification Ernst-Bauer-Str.1 97941 Tauberbischofsheim Germany TEL: 09341/9285-0 FAX: 09341/9285-28 Email: info@alpha-techno.com Developed by FAMILY CO., LTD. Please read this Operating Manual before use. Keep this manual nearby so that you can refer to it anytime. M-5790511... -
Page 2: Nsafety Precautions
Safety Precautions Be sure that you have read these SAFETY PRECAUTIONS thoroughly before using your HCP-27D for the first time. The Operat- Safety Precautions: Before Using ing Manual contains important information about how to use the chair safely and correctly, avoiding possible damage to property or injury to persons using the chair and others. -
Page 3: Nmain Features
Safety Precautions Main Features Safety Precautions: While Using The Chair Caution Main Features l In an emergency, or if there is any sudden malfunction, push the STOP button on the remote con- trol to make the chair stop immediately. Massaging Functions with Rich Variation Adjusts easily to the most comfortable position... -
Page 4: Ncomponents & Description
Components & Description Chair Reclining Seat Back Head Rest Remote Control Reclining Safety Rollers Mechanism Remote Control Stand Storage roller position is inside the upper part of the seat back. Main POWER Back Pad Switch Armrest Power Connector Seat Control Box Calf Unit Foot rest Foot Unit... - Page 5 Components & Description REMOTE CONTROL REMOTE CONTROL DISPLAY POWER Button Turns the remote control power ON and OFF. Displays information about the massage action, time remaining, and speed and intensity settings, Pushing the POWER button while the chair is activated causes the rollers to return to starting using both text and symbols.
-
Page 6: Nbefore Using
Before Using Installing Remote Control Stand l This product is shipped with the reclining seat back in its fully reclined position. Be sure to raise the seat back to fully upright position. Align the guide at the bottom of the re- l Do not expose the chair to sudden bursts of heat. -
Page 7: Nadjusting Position
Before Using Adjusting Position Checking Seat Cover How To Sit Make sure the footrest is down. When the chair is off, the rollers are normally drawn back into the left and Lift up the back pad as shown in the diagram to make sure that there are right sides of the upper part of the seat back (Storage Position). -
Page 8: Nafter Use
Adjusting Position After Use Foot Slide Automatic Adjusting Function l Make sure to turn the POWER switch to OFF after every use and to unplug the chair from Foot Slide Sensors the wall outlet. The Foot Slide Adjusting Function uses sensors located in the ankle area of the Foot →Accident or injury could result if children or pets try to play with the chair. -
Page 9: Nmassage Programs & Selection
Massage Programs & Selection Recommended to the person who has Fullbody Relief low energy or is easy to get tired. (15 minutes approx.) Focused massage on the neck and Stiff Shoulders shoulders. (13 minutes approx.) Choose from this newly pre-programmed menu of mas- sages designed to meet specific wellness goals with a simple touch. -
Page 10: Nmanual Selection Mode
Manual Selection Mode Description of Manual Selection Mode You can combine massaging actions of your choice among menues from (1) to (4). A circle in the adjustment column means that particular adjustment can be made in the course of that massage action. Cannot adjust roller width if you combine massaging action for which roller width adjustment is not avail- able and Roller or Back Vibration. - Page 11 Manual Selection Mode How To Adjust Each How To Operate Manual Selection Mode Toggling between FORWARD and BACKWARD direction Press POWER button. Action Display Description Flip open panel on remote control to show Forward Manual Selection buttons. Kneading, Human Touch, Kneading & Intensity Buttons Tapping: Buttons toggle among If no selection is made within five minutes,...
-
Page 12: Nhealthcare Programs
Healthcare Programs Remote Control Healthcare Program Massages 8 courses are available aiming at soothing or health improvement. Choose from this newly pre-programmed massage menu by simply pressing one of the Healthcare Pro- gram buttons. SHOULDER POSITION POWER Button ADJUSTMENT Adjusting Massage Actions In Healthcare Program Massages Button Adjusting Air Massage Pressure PERSONAL MEMORY... -
Page 13: Npersonal Memory Feature
Healthcare Programs Personal Memory Feature Allows you to save the air pressure settings for each air massage component of the Healthcare How To Operate Healthcare Program Programs and Manual Selection massages. Default air pressure settings for 1 - 4 is MEDIUM. Air Pressure Adjustment and Personal Memory buttons are activated when the remote control POWER is on. - Page 14 Troubleshooting Repairs or disassembly may not be performed by anyone other than an authorized serviceperson. If there is still a problem after trying the solutions given in this troubleshooting guide, stop using the chair immediately so as to prevent accident or injury and unplug the chair Massage action stops in the middle.
- Page 15 Care & Storage Storage The panel on the remote control came off. Can it be reattached? After wiping off any dust or dirt, store your chair in a place that is relatively dry. If you are not going to use the chair for some time, put a cover on it that will protect it from dust and dirt. The panel on the remote control is designed to release if the panel is being over-used.
-
Page 16: Ncustomer Service And Warranty
Regular Maintenance Customer Service And Warranty Regular Maintenance Will Preserve the Life of Your Chair 1. Warranty Are you experiencing any of these symptoms? A warranty card is provided with each chair at purchase. Please read the contents carefully and keep it in a safe place. (You will need the card to facilitate warranty re- pairs.) Sometimes the chair does not start when POWER is turned on.
