- Page 1 Operating instructions Type TEKA–LMD 508 TEKA Absaug- und Entsorgungs- technologie GmbH Industriestraße 13 D-46342 Velen Postfach 1137 D-46334 Velen Tel.: +49 (0) 2863 9282-0 Fax: +49 (0) 2863 9282-72 E-Mail: sales@teka.eu www.teka.eu...
-
Page 2: Table Of Contents
Contents Diagram/description of the components ....................3 Preface..............................4 Function of the TEKA-LMD 508 ......................5 Safety instructions ..........................5 Commissioning ............................ 6 Attaching the extractor fittings ...................... 6 Electrical connection of the unit ....................7 Operation of the system........................8 Maintenance ............................ -
Page 3: Diagram/Description Of The Components

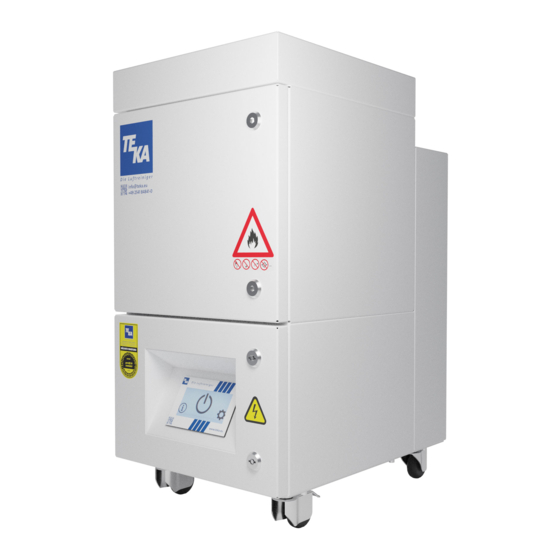

1 Diagram/description of the components Pos.1 Control panel Pos.11 Locking screw for the lifting mechanism Pos.2 Instrument cover Pos.13 Prefilter mat Pos.3 Filter housing Pos.14 Particle filter Pos.4 Filter door Pos.15 Activated-carbon cassette Pos.5 Ventilator housing Pos.16 Air intake fittings Pos.6 Ventilator door Pos.17... -
Page 4: Preface
Preface One sector of extraction equipment has become very significant in recent years. The filtering of extracted pollutants and the recycling of filtered air to the working area. This is a surely a sign that the environmental consciousness of each one of us has altered very strongly in favour of our environment. -
Page 5: Function Of The Teka-Lmd 508
The filtered air is then sucked in by the turbines and returned to the air in the environment through the exhaust mesh on the sound absorption module. The LMD 508 filter unit can be connected to an external filter monitoring through the Harting or Sub-D 9-pin socket (Pos.21) (available as an option). -
Page 6: Commissioning
Do not use the filter unit if one or more of its components are faulty, missing, or damaged. In • any of these cases, please call the TEKA service department on +49 (0)2863 92820, or your local representative. When extracting carcinogenic welding fumes, such as from materials containing nickel or •... -
Page 7: Electrical Connection Of The Unit
5.2 Electrical connection of the unit The LMD is either switched on or controlled at the membrane keyboard or through an external • control (e. g. of the machine to be sucked out) (remote switch automatic. The connection of the remote switch automatic to the LMD is carried out via a nine-pole cable •... -
Page 8: Operation Of The System
Operation of the system Attention: Possibilities of adjustment of the programme, menu navigation ecc of the system you will find in the attached manual of the steering. Maintenance The filtering out of dust particles means that the prefilter (coarse) and the particle filter (fine) become increasingly dirty, and the suction power decreases. -
Page 9: Replacing The Prefilter Matting
Take the prefilter matting (Pos.13) out of the particle filter. • Lay down the new prefilter matting. • Warning: Use only TEKA prefilter matting! Push in the particle filter (Pos.14). • Use the fixing screw (Pos.11) to raise the lifting mechanism (Pos.10), so that the particle filter •... -
Page 10: Replacing The Activated-Carbon Cassette
Connect the filter unit to the mains supply. • 8 Disposal To ensure perfect operation of your TEKA-LMD 508 extractor unit, and proper disposal of the dust that has been extracted, we offer the following services: Help with finding a waste disposal company in your vicinity. -
Page 11: Technical Data
Technical data Warning: (Observe the data on the nameplate!) Filter unit TEKA – LMD 508 Supply voltage Current type Frequency Motor power m³/h Max. airflow volume Max. partial vacuum 21000 Enclosure type IP 54 ISO class Operating voltage Duty cycle... -
Page 12: List Of Spare Parts
10 List of spare parts Designation: Article no. Prefilter matting Pos.13 10033 Particle filter Pos.14 10031 Activated-carbon cassette Pos.15 97054 Activated carbon pouring 100197/507 Turbine 1,2kW with elektronic 200421160 Castor Pos.11 94000882 Castor with brake Pos.12 94000881 Suction hose, length 2,5m, NW45, with air intake 9631925 Suction hose, length 5m, NW45, with air intake 9631950... -
Page 13: Declaration Of Conformity Teka-Lmd 508
This declaration will become void if changes are effected to the suction and filter systems which were not agreed upon in writing by the manufacturer. Authorised representative for technical documentation: TEKA GmbH, Technical department, D- 46342 Velen Velen, the 29th of december 2014 BA_LMD-508_150602_GB.doc...
