Page 1: Installation Manual

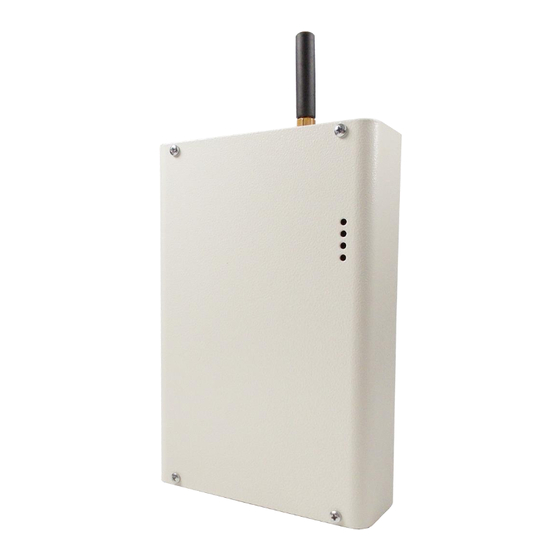

ZEUS4-MC Lite PSTN/GSM/GPRS INTERFACE & SMS GSM ALARM COMMUNICATOR INSTALLATION MANUAL Version Rev.12+: ZEUS4-MC LITE_Manual_2_4 03082015.doc... -
Page 2: Table Of Contents
LEDS ..................................5 CLEAR ALL PROGRAMMED DATA FROM SIM ..................6 CONNECTING DIAGRAM ..........................7 DESCRIPTION OF TERMINAL BLOCKS ......................8 PROGRAMMING OPTIONS ..........................9 ZEUS4-MC LITE PARAMETERS ........................10 10.1 SECURITY LEVEL ................................10 10.2 ALARM SUPPORT ................................11 10.3... - Page 3 ZEUS4-MC Lite INSTALLATION MANUAL 11.23 STATE OF THE OUTPUTS (PORC) ..........................34 11.24 STATE OF THE INPUTS (INS) ............................34 11.25 RECEIVE SYSTEM STATUS (PSYS) ..........................34 SYSTEM COMMANDS ............................35 12.1 FACTORY DEFAULT COMMAND (SDCLR) ........................ 35 12.2 GSM MODULE RESTART (MRES) ..........................35 12.3...
- Page 4 Table 20: IT, AR and IB parameters example ........................18 Table 21: Alarm SMS formatting ............................. 18 Table 22: ZEUS4-MC LITE DTMF commands ....................... 19 Table 23: Credit checking parameters ..........................20 Table 24: Credit checking parameters example ........................ 20 Table 25: Set-up parameters .............................
-
Page 5: For Your Safety
ZEUS4-MC Lite INSTALLATION MANUAL FOR YOUR SAFETY Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. SWITCH ON SAFELY Do not switch the unit on when use of wireless phone is prohibited or when it may cause interference or danger. -
Page 6: Introduction
ZEUS4-MC LITE can be used as a backup for standard PSTN telephone line in the event of failure or as a replacement for standard telephone line when it is not possible to set it up. ZEUS4-MC LITE acts as normal PSTN telephone line when communicating with Central Monitoring Station through Contact ID protocol, but it uses GSM network. -
Page 7: Features And Applications
ZEUS4-MC Lite INSTALLATION MANUAL FEATURES AND APPLICATIONS Features: Built-in 4 band GSM module Full transparent event reporting through Contact ID protocol Contact ID protocol built-in Standard telephone line backup Telephone line simulator 2 alarm inputs ... -
Page 8: Start Up
Insert SIM card to be used for ZEUS4-MC LITE in your personal mobile phone. IMPORTANT ERASE THE PIN CODE! Insert SIM card into SIM holder on the ZEUS4-MC LITE device. The unit must be switched OFF when you insert the SIM! Connect the antenna to antenna connector. -
Page 9: Leds
ZEUS4-MC Lite INSTALLATION MANUAL LEDs Blue LED (LED1) – Indicates the level of the GSM signal from 1 to 5 LED flashes (1 is weak signal, 5 is excellent signal) Red LED (LED2) When LED 2 is ON the unit has a problem with a GSM network connection or the GSM part of the unit is out of order. -
Page 10: Clear All Programmed Data From Sim
INSTALLATION MANUAL CLEAR ALL PROGRAMMED DATA FROM SIM This is highly recommended when a SIM card you are going to use for the ZEUS4-MC LITE is not new and it already has some data stored in the phone book memory. -
Page 11: Connecting Diagram
ZEUS4-MC Lite INSTALLATION MANUAL CONNECTING DIAGRAM Micro SIM in newer versions Figure 1: Connection diagram... -
Page 12: Description Of Terminal Blocks
MC LITE just reroutes data from Ta/Tb to La/Lb. In case that standard line is not present on La/Lb block, or GSM priority function is active, ZEUS4-MC LITE is used to transfer data (via GSM module). The data path switch in case in standard line failure is done automatically. -
Page 13: Programming Options
PROGRAMMING OPTIONS ZEUS4-MC LITE device supports different types of programming: To program ZEUS4-MC LITE parameters put the SIM card into your personal GSM phone. Add programming parameters in SIM Card “Phone Book”. You can program ZEUS4-MC LITE remotely by SMS command. -
Page 14: Zeus4-Mc Lite Parameters
TN4 can enter into programming and remote control unit of the ZEUS4-MC LITE. NOTE When the SL level is 0, an access to the ZEUS4-MC LITE is possible from any phone! Before any SL number is programmed the ZEUS4-MC LITE can accept ALL IMPORTANT CALLS. -
Page 15: Alarm Support
Comment Input 1 control Input 2 control Table 3: IN parameters Example: Direct programming on the SIM card ZEUS4-MC LITE PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description Alarm activated by connecting to GND Alarm activated by disconnecting GND or +12V Table 4: IN parameters example ... -
Page 16: Table 5: Id Parameters
Default ID filter is 0.5 seconds – input 1 Default ID filter is 0.5 seconds – input 2 Table 5: ID parameters Example: Direct programming on the SIM card ZEUS4-MC LITE PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description... -
Page 17: Table 9: Tn Parameters
ZEUS4-MC LITE is done via SMS messages or VOICE call. ZEUS4-MC LITE sends an alarm beep, an alarm SMS message or both. If the corresponding name ends with the letter “V” only alarm beep is sent and if the name ends with the letter “M” only SMS message is sent. -
Page 18: Table 11: Ln Parameters
10.2.6 MAIN and BATT parameter ZEUS4-MC LITE can send an SMS message in case of the main power failure. SMS message is sent to user. You can also program how long the unit can stay without power before sending this message. -
Page 19: Table 13: Main, Batt Parameters
10.2.7 OS parameters ZEUS4-MC LITE device has 2 open collector outputs and each of them can be programmed in a different way: as a bi-stable or mono-stable (pulse) output. The programming time is in seconds. Typical connection for the output:... -
Page 20: Table 15: Os Parameters
Control for the 1 output Control for the 2 output Table 15: OS parameters Example: Direct programming on the SIM card ZEUS4-MC LITE PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description Bistable toggle mode Monostable pulse mode ( 14s pusle ) Table 16: OS parameters example ... -
Page 21: Table 18: Od Parameters Example
ZEUS4-MC Lite INSTALLATION MANUAL ZEUS4-MC LITE PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description Alarm on IN1 trigger output 1 No direct connection between input2 and output GSM network failure on output 2 System tamper on output 4 Table 18: OD parameters example ... -
Page 22: Table 20: It, Ar And Ib Parameters Example
;#0USER LOCATION=0;#1INPUT 1=1;#2INPUT 2=2; 10.2.11 DTMF REMOTE COMMANDS When ZEUS4-MC LITE enters VOICE call in alarm report function user has the option to control device via DTMF command. By default this DTMF control is limited to canceling the ongoing and... -
Page 23: Prepaid Card Credit And Validity Information
Table 22: ZEUS4-MC LITE DTMF commands 10.3 PREPAID CARD CREDIT AND VALIDITY INFORMATION ZEUS4-MC LITE can be used with prepaid SIM cards and its limitations. To be able to overcome this limitation of the prepaid SIM cards, ZEUS4-MC LITE offers the possibility of automatic checking mechanism for credit and time expiration. -
Page 24: Table 23: Credit Checking Parameters
String for parsing replay message from CC2 number CTIM String for parsing replay message from CC3 number Table 23: Credit checking parameters Example: Direct programming on the SIM card ZEUS4-MC LITE PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description *448# Si.mobil... -
Page 25: Set-Up Parameters
TSTT parameter TSTT parameter is used to define reference point for sending test message. If this parameter is set than after restart of the ZEUS4-MC LITE first test SMS will be send out at time defined with TSTT parameter. Parameter value is defined in hours. - Page 26 More information about national MCC/MNC codes can be acquired at: http://en.wikipedia.org/wiki/Mobile_Network_Code 10.4.7 AUD parameter AUD parameter enables you to change between different audio modes on ZEUS4-MC LITE device. AUD = 0 - Optimized for “voice data” transfer AUD = 1 - Optimized for plain audio call 10.4.8...
- Page 27 5 - German 6 - Spanish 10.4.14 LED parameter LED parameter enables you to turn indication LEDs on ZEUS4-MC LITE ON or OFF (0 – led OFF, 1 – led ON) 10.4.15 BIDI parameter BIDI is a special parameter used to change multiple settings in one step. Used for special purposes.
-
Page 28: Table 25: Set-Up Parameters
INSTALLATION MANUAL 10.4.18 REG parameter REG parameter is used to define time out (in seconds) for how long may ZEUS4-MC LITE drop out of registration before GSM module will be restarted. This is a very useful function in unstable GSM networks. -
Page 29: Table 26: Set-Up Parameters Example
Speaker sound level 24 hours periodic test SMS TSTT First SMS will be send out at 12.00 GSM module will be restarted if ZEUS4-MC LITE is 60s out of the GSM registration. Table 26: Set-up parameters example Remote programming by SMS ;CRE=2;HTN=0;MNF=29340;LNG=1;MIC1=15;SPK=8;... -
Page 30: Contact Id Event Reporting
ZEUS4-MC Lite INSTALLATION MANUAL 10.5 CONTACT ID EVENT REPORTING ZEUS4-MC LITE is capable to send all of its events in Contact ID form to CMS. Next parameters are used to support this function. 10.5.1 CID parameter CID parameter is used to enable/disable this function. -
Page 31: Table 28: Cid Parameters Example
ZEUS4-MC Lite INSTALLATION MANUAL Example: Direct programming on the SIM card ZEUS4-MC LITE PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description CID reporting enabled CID incoming volume level TN11 042340880 Primary telephone number Table 28: CID parameters example ... -
Page 32: Event Log Parameters
ZEUS4-MC Lite INSTALLATION MANUAL 10.6 EVENT LOG PARAMETERS ZEUS4-MC LITE has a small set of parameters to manage log memory. 10.6.1 LOGN parameter LOGN parameter is used to define the number of log events that will be send out in case of ;PLOG;... -
Page 33: Line Interface Configuration
10.7.4 OPR parameter OPR parameter is used if you use ZEUS4-MC LITE as a part of PABX system and you need to place additional number before the number to call out. OPR value is set to this additional number and the ZEUS4-MC LITE will automatically cut off this number before making a call. -
Page 34: Table 31: Line Interface Parameters
GSM priority input Remove call out number in PABX network Control of DTMF support Table 31: Line interface parameters Example: Direct programming on the SIM card ZEUS4-MC LITE PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description CID reporting enabled... -
Page 35: Print-Out Of The Parameters
ZEUS4-MC Lite INSTALLATION MANUAL 11 PRINT-OUT OF THE PARAMETERS 11.1 RECEIVE ALL PARAMETERS (PALL) By sending this command to ZEUS4-MC LITE you receive messages with all parameters that are currently programmed in the unit: ;PALL; 11.2 RECEIVE LINE INTERFACE CONFIGURATION (PMC) By sending this command to ZEUS4-MC LITE you receive SMS message with line interface configuration like LAN, OPR …:... -
Page 36: Receive Delay Before Dial Value (Pdd)
(CREF, CTIM and CVODA): ;PCREF; 11.11 RECEIVE CREDIT STATUS FOR CC1 (PCC1) By sending this command to ZEUS4-MC LITE you receive SMS message with current credit status and SMS received from the GSM provider: ;PCC1;... -
Page 37: Receive Credit Status For Cc3 (Pcc3)
ZEUS4-MC Lite INSTALLATION MANUAL 11.13 RECEIVE CREDIT STATUS FOR CC3 (PCC3) By sending this command to ZEUS4-MC LITE you receive SMS message with current credit status and SMS received from the GSM provider: ;PCC3; 11.14 RECEIVE ACCESS TELEPHONE NUMBERS (PSL) -
Page 38: State Of The Credit For The Prepaid Card
ZEUS4-MC Lite INSTALLATION MANUAL 11.20 STATE OF THE CREDIT FOR THE PREPAID CARD By sending this command to ZEUS4-MC LITE you receive SMS message with Credit amount on your prepaid SIM card: ;PCCX; Where X is the number of programmed prepaid card provider. -
Page 39: System Commands
ZEUS4-MC Lite INSTALLATION MANUAL 12 SYSTEM COMMANDS Next system commands are used to help the user to control the operation of ZEUS4-MC LITE device. 12.1 FACTORY DEFAULT COMMAND (SDCLR) SDCLR command is used to delete all parameters and SMS on SIM card. After delete process is completed the system will be restarted. -
Page 40: Checking And Changing System Status (On/Off)
INSTALLATION MANUAL 13 CHECKING AND CHANGING SYSTEM STATUS (ON/OFF) 13.1 CHECKING SYSTEM STATUS BY SMS COMMAND By sending this command to ZEUS4-MC LITE you receive SMS message with state of the system: ;SYS; Return SMS can be: ;SYS= ON;... -
Page 41: Checking The Input Status
14 CHECKING THE INPUT STATUS User can check input status with the use of SMS command 14.1 CHECKING INPUT STATUS BY SMS COMMAND By sending this command to ZEUS4-MC LITE you receive SMS message with all Input status: ;INS; Return SMS message is: ... -
Page 42: Checking And Changing Outputs
15 CHECKING AND CHANGING OUTPUTS User can manage outputs with the use of SMS command 15.1 CHECKING OUTPUT STATUS BY SMS COMMAND By sending this command to ZEUS4-MC LITE you receive SMS message with all Output status: ;PORC; Return SMS message is: ... -
Page 43: Changing Parameters Using The Sms Command
;+TN1=+38640713470;IN1=1;IN2=1;OS1=15;ID1=120;LN1=1;CRE=4; Send SMS message to ZEUS4-MC LITE telephone number and in a few seconds you receive SMS message from ZEUS4-MC LITE. The sentence of the SMS must be the same as the one you have sent to ZEUS4-MC LITE before. -
Page 44: Configuration Examples
With these configuration alarm notification will be send to TN1 (voice and SMS), TN2 (only SMS) and TN3 (only voice). 17.2 CID EVENT REPORTING This example represents how to enable CID function for ZEUS4-MC LITE event reporting. The data will be sending to 1 CMS. ;CID=1;CIN=15;COUT=12;TN11=042340880;... -
Page 45: Gprs-Tcp/Ip Connection - Basics
CLIENT side of the connection. On the receiving side (CMS) you can use your own GPRS- TCP/IP server or you can use provided server application (for example Kronos.NET). The ZEUS4-MC LITE is used as simple control panel which is using for event reporting GPRS- TCP/IP connection. -
Page 46: Gprs-Tcp/Ip Configuration
ZEUS4-MC Lite INSTALLATION MANUAL 19 GPRS-TCP/IP CONFIGURATION To start the GPRS-TCP/IP connection user must set just a few parameters. They are described below. 19.1 IPEN This parameter is used to enable GPRS-TCP/IP connection. Possible values: 0 – GPRS-TCP/IP connection is disabled 1 –... -
Page 47: Ipadd1
This is a primary IP address of the GPRS-TCP/IP server. Initially the ZEUS4-MC LITE will connect to primary IP address. If the connection fails the ZEUS4-MC LITE will try to connect to the IP address number 2. If the connection to IP address number 2 is not successful the ZEUS4-MC LITE will try to reconnect to IP address number 1 after 1 min time out. -
Page 48: Ipmod
ZEUS4-MC Lite INSTALLATION MANUAL 19.11 IPMOD This parameter is used to define connection mode. Device supports two possible modes of connection. First mode is used to connect to the server only when is needed (when reporting events) this is a preferred mode, because it limits the traffic load on the server side. Second mode is used when “all the time”... -
Page 49: Gprs-Tcp/Ip Connection
ZEUS4-MC Lite INSTALLATION MANUAL 20 GPRS-TCP/IP CONNECTION To start GPRS-TCP/IP connection for the first time the user must first send SMS with the GPRS- TCP/IP parameters (check 19.GPRS-TCP/IP CONFIGURATION). The user can send all parameters in one SMS message (Do not exceed 160 characters!). -
Page 50: Ip Management
ZEUS4-MC Lite INSTALLATION MANUAL 20.1 IP MANAGEMENT With the IP support the user can manage ZEUS4-MC LITE devices from the server side (programming and status polling). There are 2 possible ways to conduct this procedure 1. If permanent connection is enabled (IPMOD=1) then the user can manage the ZEUS S- LITE-GPRS devices directly from the server with no prior needed action to conduct. -
Page 51: Gprs-Tcp/Ip Example
This example is used to show how to define the parameters for sending events to the demo server available for evaluating the ZEUS4-MC LITE functionality. All events generated on the ZEUS4-MC LITE device and all events generated on control panel connected to the ZEUS4-MC LITE device will be sending to the receiving server. -
Page 52: Technical Specification
ZEUS4-MC Lite INSTALLATION MANUAL 22 TECHNICAL SPECIFICATION Description Value Power Supply 13,8 - 14,5V DC Battery backup (optional) 12V/1,2Ah Current consumption - peak Current consumption - transmitting mode 250mA Current consumption - idle mode 90mA QUAD band GSM module 850/900/1800/1900 MHz 105 ×... -
Page 53: Default Settings On Zeus4-Mc Lite
ZEUS4-MC Lite INSTALLATION MANUAL 23 DEFAULT SETTINGS ON ZEUS4-MC LITE ZEUS4-MC LITE PROGRAMMING TABLE Name Default Value Short Description PSTN local area prefix Empty CLI function control GSM priority Empty Exit number from PABX Enable DTMF in MC mode Telephone number 1... - Page 54 ZEUS4-MC Lite INSTALLATION MANUAL ZEUS4-MC LITE PROGRAMMING TABLE Name Default Value Short Description Empty Check credit, TIM Italy Empty Check credit, Vodafone Italy Number of dialing attempts Empty Tel. number of ZEUS4 device Hidden telephone number SIM card time validity...
-
Page 55: Table 33: Zeus4-Mc Lite Default Settings
ZEUS4-MC Lite INSTALLATION MANUAL ZEUS4-MC LITE PROGRAMMING TABLE Name Default Value Short Description IPPR Connection protocol for event reporting IPMOD Connection mode IPCRE Number of resending attempts in case of sending errors Table 37: ZEUS4-MC LITE default settings. -
Page 56: Contacts
ZEUS4-MC Lite INSTALLATION MANUAL 24 CONTACTS MARS COMMERCE d.o.o. MIRKA VADNOVA 19 SI-4000 KRANJ SLOVENIA TEL: +386 4 280 74 00 E-MAIL: info@mars-commerce.si WEB SITE: www.mars-commerce.com SALES E-MAIL: sales@mars-commerce.com...
