Page 1: User Manual

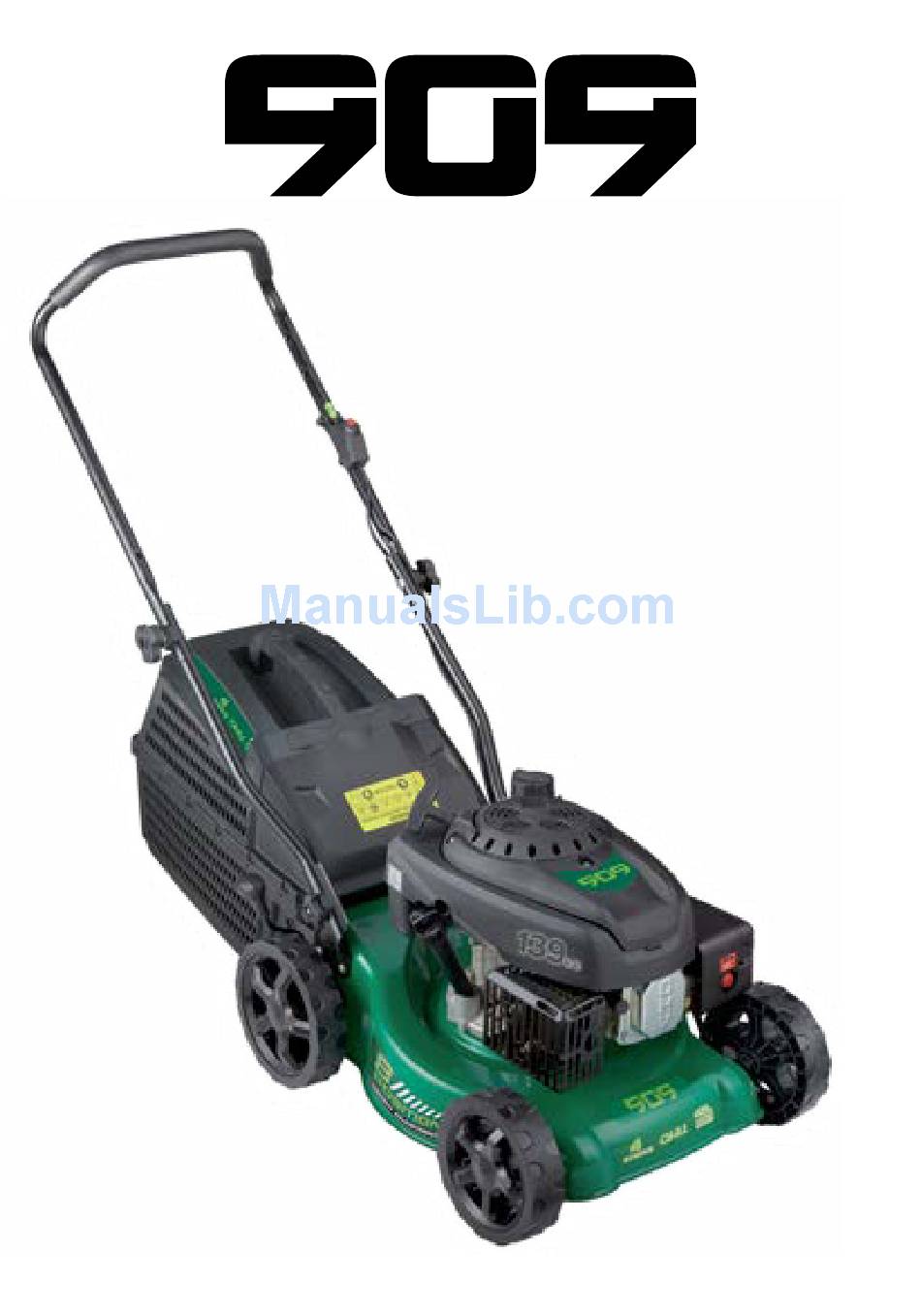

User Manual 50620 139CC 4 STROKE PETROL LAWN MOWER www.909.com Read all safety warnings and all instructions thoroughly before operating this product. -
Page 2: Table Of Contents
Contents Pack contents /parts Description of Symbols General safety instructions Safety rules for Petrol Lawn Mowers Parts List Assembly / Attaching the Handles Assembly of the 45L Hard Catcher Attaching the 45L Hard Catcher Cutting Height Adjustment Adding and Checking the oil Fuelling Starting the Engine Speed Control... -
Page 3: Pack Contents /Parts
Pack contents / parts Description of symbols The rating plate on your lawn mower may show symbols. These represent important information about the product or instructions on its use. Conforms to relevant standards for electrical safety Congratulations on the purchase of your909 139cc 4 Stroke and electromagnetic compatibility. - Page 4 General safety warnings • Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. • Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
-
Page 5: Safety Rules For Petrol Lawn Mowers
General safety warnings – Add fuel before starting the engine. Never remove the cap of the fuel tank or add fuel while the engine is running or when the engine is hot. – If fuel is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until the fuel has evaporated and the vapour dispersed. - Page 6 • Stop the blade if the lawn mower has to be tilted for transportation • This machine is to be used exclusively for cutting natural grass. when crossing surfaces other than grass, and when transporting the Never use the mower for other purposes. Any other utilization can lawn mower to and from the area to be mowed.
- Page 7 Operation Safety Instructions WARNING: Fuel is highly flammable. WARNING: Stop the engine and unplug the spark plug before any • Store fuel in a cool place in a container specifically designed for the repairs or maintenance operations. purpose. In general, plastic containers are unsuitable. •...
-
Page 8: Parts List
25. Front wheel/s (x2) 26. Bar blade 27. Blade bolt 28. Spark plug spanner AFTER SALES SUPPORT AFTER SALES SUPPORT e-mail: info@909.com 1800 909 909 1800 909 909 e-mail: info@909.com MODEL: №. 50620 (toll free) (toll free) MODEL: №. 50620... -
Page 9: Assembly / Attaching The Handles
(Fig G) LOOSEN TIGHTEN AFTER SALES SUPPORT AFTER SALES SUPPORT e-mail: info@909.com 1800 909 909 1800 909 909 e-mail: info@909.com MODEL: №. 50620 (toll free) (toll free) MODEL: №. 50620... -
Page 10: Attaching The 45L Hard Catcher
Then readjust if necessary. AFTER SALES SUPPORT AFTER SALES SUPPORT e-mail: info@909.com 1800 909 909 1800 909 909 e-mail: info@909.com MODEL: №. 50620 (toll free) (toll free) MODEL: №. 50620... -
Page 11: Adding And Checking The Oil
WARNING: Never attempt to refuel the engine while it is running TIGHTEN or still warm, allow it to cool before fuelling. AFTER SALES SUPPORT AFTER SALES SUPPORT e-mail: info@909.com 1800 909 909 1800 909 909 e-mail: info@909.com MODEL: №. 50620 (toll free) (toll free) MODEL: №. 50620... -
Page 12: Starting The Engine
Continue to pull the recoil starter (16) and after a number of pulls the engine “O” = OFF will start. AFTER SALES SUPPORT AFTER SALES SUPPORT e-mail: info@909.com 1800 909 909 1800 909 909 e-mail: info@909.com MODEL: №. 50620 (toll free) (toll free) MODEL: №. 50620... -
Page 13: Mowing Advice
This could include, but not restricted to, times of operation, location of operation, or work place operation. AFTER SALES SUPPORT AFTER SALES SUPPORT e-mail: info@909.com 1800 909 909 1800 909 909 e-mail: info@909.com MODEL: №. 50620 (toll free) (toll free) MODEL: №. 50620... -
Page 14: Maintenance
Replacement blades are available for purchase from 7. Add 600ml of SAE 10W/30 oil through the top oil www.extrabattery.com.au or by calling 1800 909 909. filler cap / dipstick (17). Clean up any spilt oil. NOTE: Always check the oil drain plug (18) is not... -
Page 15: Spark Plug Maintenance
Replacement spark plugs are available from purchase from lawn Replacement air filters are available from www.extrabattery.com.au mower or small engine repair shops. or by calling Customer Service on 1800 909 909. AFTER SALES SUPPORT AFTER SALES SUPPORT e-mail: info@909.com... -
Page 16: Transporting And Storage
National Service Agents for repair. Drain the fuel tank (14) and carburettor. You can find our most updated listing by visiting 909.com, and clicking on the It is recommended to remove the spark plug cap during transportation and Service Agent link. -
Page 17: Warranty
Do not throw it in the trash or pour it into the earth. AFTER SALES SUPPORT AFTER SALES SUPPORT e-mail: info@909.com 1800 909 909 1800 909 909 e-mail: info@909.com MODEL: №. 50620 (toll free) (toll free) MODEL: №. 50620... -
Page 18: Troubleshooting
Noise label rating: 69dBA (taken at 7.5 metres) You must wear ear protection at all times. For all other issues, please contact Customer Service on 1800 909 909 or email info@909.com Product Dimensions: 123cm x 51cm x 102cm +/- tolerances (L x W x H) - Page 19 P: 1800 909 909 E: info@909.com W: www.909.com...
