3.4

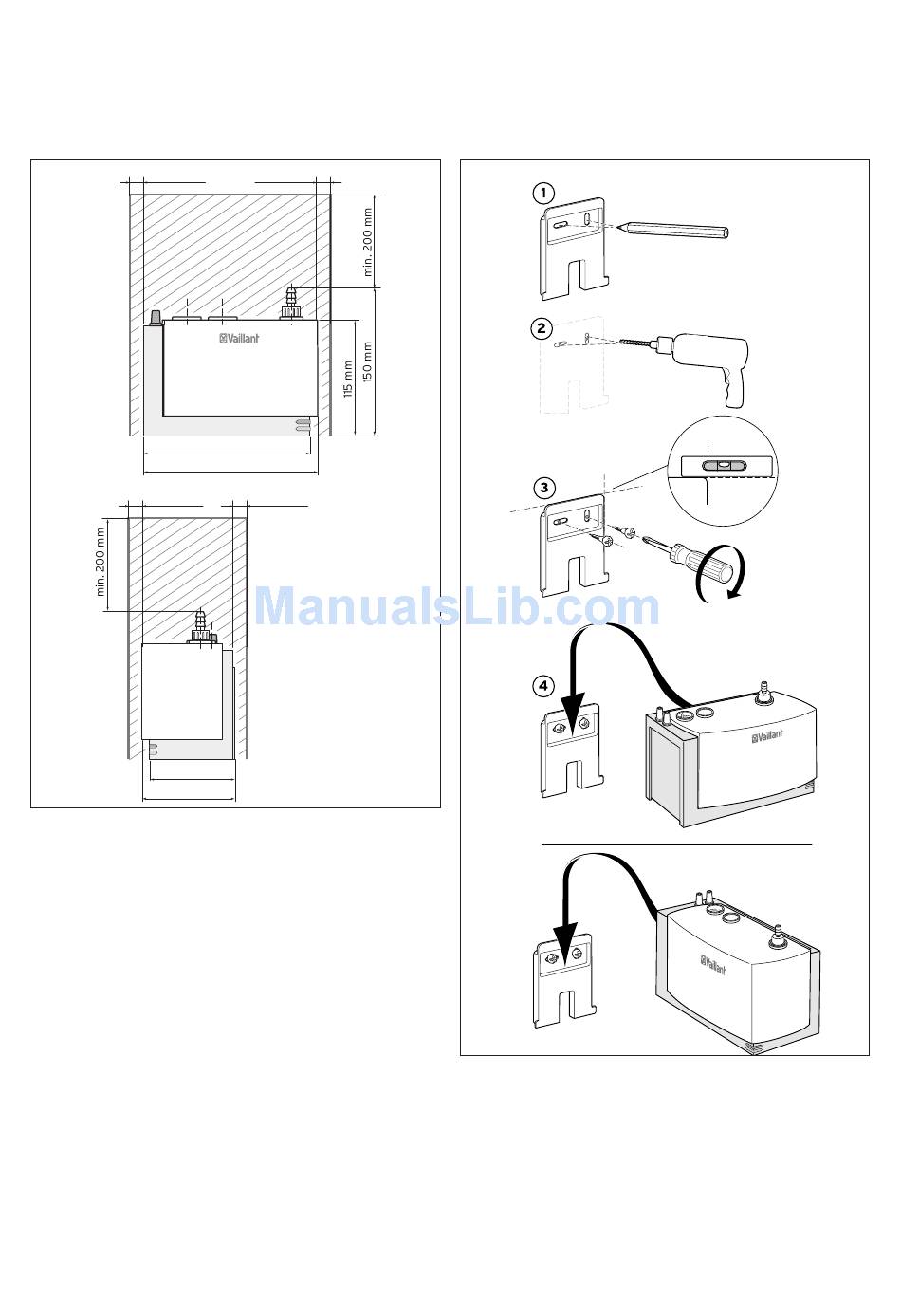

Dimensions and installation clearances

min. 5 mm
min. 5 mm
90 mm
100 mm
3.2 Dimensions and installation clearances
> During installation, adhere to the appropriate dimensions
and installation clearances.
ecoLEVEL installation and maintenance instructions 0020029316_01
min. 5 mm
165 mm
175 mm
min. 5 mm
3.5

Installing the wall bracket

3.3 Installing the wall bracket
> Push the pre-assembled wall bracket downwards out of
the casing for the condensed water pump.
> Install the wall bracket in a suitable position underneath
the condensate drain point of the boiler.
The wall bracket must be installed horizontally. Use a
spirit level.
Installation 3
A
B
7
