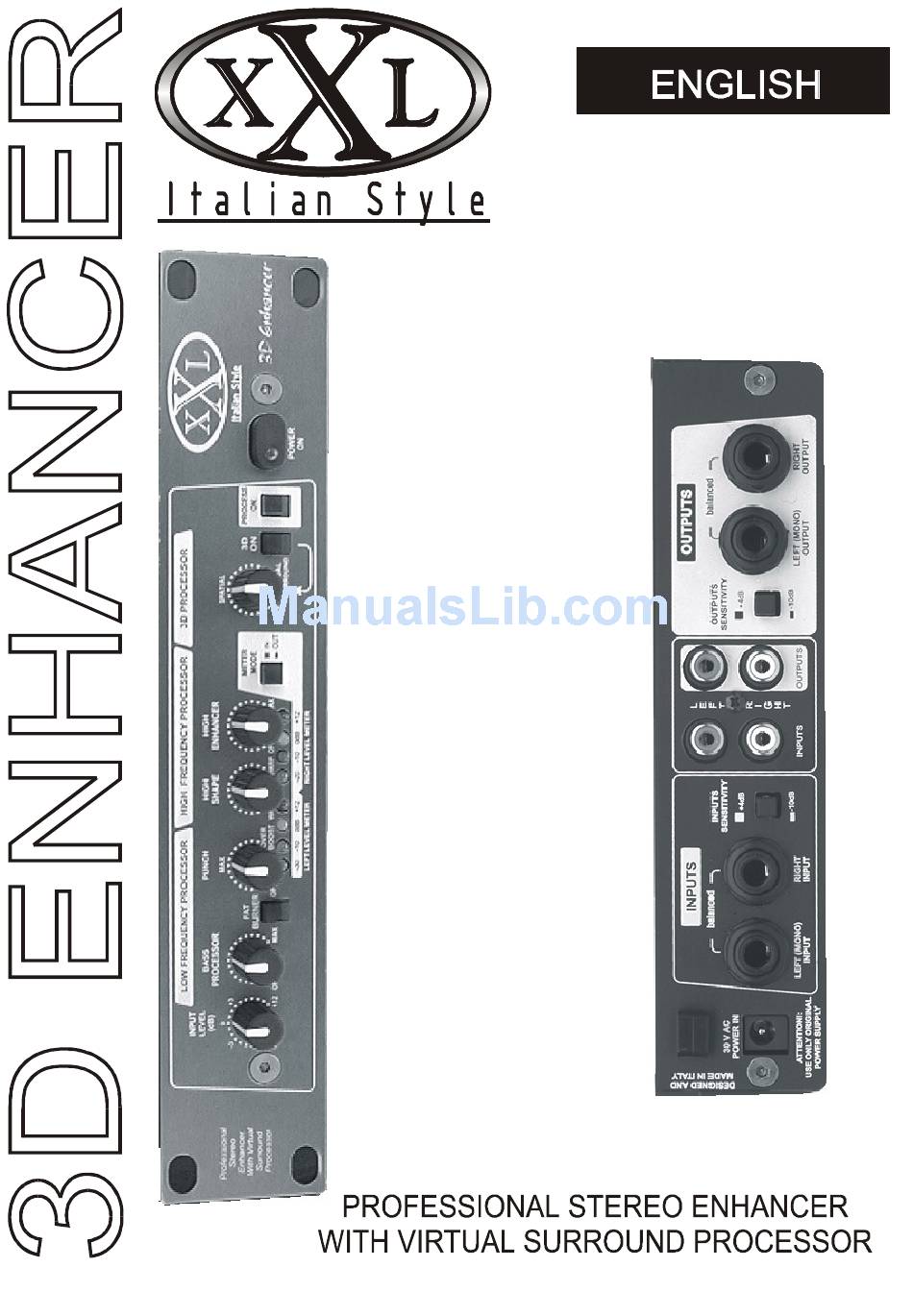

  • Page 1 USER’S MANUAL...

  • Page 2: Safety Instructions

    5. Objects have fallen, or liquid has been spilled into the unit. Servicing: The user should not attempt to service the unit beyond what is described in the Operating Instructions. All other servicing should be referred to qualified and authorized service personnel. 2 – 3D ENHANCER USER’S MANUAL...
  • Page 3 PROFESSIONAL STEREO ENHANCER WITH VIRTUAL SURROUND PROCESSOR  Stereo Professional Enhancer with Virtual Surround in XXL Half Rack Frame  Fantastic audio quality even with extremely high volume levels  Gives your music extra sparkle and makes instruments or mixes stand out.

  • Page 4: Table Of Contents

    10 5.3 Live Situation p. 10 5.4 Hi-fi, Video and DJs applications p. 11 Fig. 5.1 Studio Playback application p. 12 Fig. 5.2 Live/Studio Channel/Master Insert Wiring p. 12 6. TECHNICAL SPECIFICATIONS p. 13 4 – 3D ENHANCER USER’S MANUAL...

  • Page 5: Introduction

    The unit can be used wherever professional sound improvement is required. The XXL 3D ENHANCER is the no-compromise answer when the situation demands a no-compromise solution. 1.1 High Technology...

  • Page 6: The Fat Burner Switch

    1.8 The 3D PROCESSOR The 3D PROCESSOR is the heart of the 3D Enhancer, it features a knob control that allow to chose the amount of desired process and a switch that inserts or bypasses the 3D PROCESSOR.

  • Page 7: The Process On Switch

    INSTALLATION 3.1 Packaging XXL carefully pack in the factory all its units and the packaging was designed to protect the unit from rough handling. Nevertheless, we recommend that you carefully examine the packaging and its contents for any signs of physical damage, which may have occurred in transit.

  • Page 8: Fig. 3.1: Different Connector Types And Wiring

    Sleeve = Ground / Shield Ground / Shield Cable Clamp Cable Clamp Tip = signal Tip = signal Sleeve = ground RCA CONNECTOR Sleeve = ground (Shield) WIRING Fig. 3.1: Different Connector Types and Wiring 8 – 3D ENHANCER USER’S MANUAL...

  • Page 9: Controls

    9) This switch allows inserting or to by-pass the 3D Processor 10)The PROCESS ON is the general switch of the 3D Enhancer. When is pushed down the processor is on. When it is pushed out the unit is by-passed.

  • Page 10: Fig. 4.2 Back Panel Connections

    DJ mixers or the recorder inputs. 7) It is the OUTPUT SENSITIVITY switch, it allows to select form –10dBV to +4dBu 8) LEFT OUTPUT 1/4 “ Balanced jack 9) RIGHT OUTPUT 1/4 “ Balanced jack 10 – 3D ENHANCER USER’S MANUAL...

  • Page 11: Applications

    In this case, insert the 3D Enhancer directly after the master output of the mixer into the recording path of the master or multi-track machine. It is also possible to patch the 3D Enhancer as an auxiliary effect, not as an insert module.

  • Page 12: Hi-Fi, Video And Djs Applications

    5.4 Hi-fi, Video, and DJs applications. Of course, the 3D Enhancer can also find applications in the fields of hi-fi and video. The unit is simply placed between the signal source (cassette recorder, tuner, VCR etc.) and the power amplifier thanks also to the RCA connectors. We recommend using the “tape monitor”...

  • Page 13: Fig. 5.1 Studio Playback Application

    CH1 INPUT CH2 INPUT CH1 INSERT CH2 INSERT Fig.5.1 Studio playback application L MASTER INSERT R MASTER INSERT CHANNEL INSERT Fig.5.2 Live /Studio Channel/Master insert wiring 13 – 3D ENHANCER USER’S MANUAL...

  • Page 14: Technical Specifications

    General Export Model ~ 100-120 V AC, ~ 200-240 V AC, 50-60 Hz Power consumption 10 Watts PHYSICAL Dimension HALF RACK STANDARD 240mm x 44 mm x 110 mm Net weight about 1 kg Shipping weight about 2 kgs 14 – 3D ENHANCER USER’S MANUAL...
  • Page 15 NOTES: 15 – 3D ENHANCER USER’S MANUAL...
  • Page 16 In-depth - please refer to www.xxlinside.com/in-depth for any further info you may need. Servicing - please refer to your MyAudio Dealer for your country rules about servicing. ©XXLinside 2009 - All rights reserved. Any not-approved copy and use, even partial, of this instruction manual and its texts, it's forbidden.
