  • Page 1 USER’S MANUAL...

  • Page 2: Safety Instructions

    5. Objects have fallen, or liquid has been spilled into the unit. Servicing: The user should not attempt to service the unit beyond what is described in the Operating Instructions. All other servicing should be referred to qualified and authorized service personnel. 1 - POWER STATION USER’S MANUAL...
  • Page 3 POWER STATION PROFESSIONAL FOUR CHANNELS HIGH POWER HEADPHONES AMPLIFIER Four totally independent stereo high-power amplifiers in XXL Half Rack Frame Fantastic audio quality even with extremely high volume levels Four Aux inputs provide up to four stereo independent mixes Double level control for each channel for separate Main In and Aux in control...

  • Page 4: Table Of Contents

    5.2 Using the MAIN IN input p. 10 Fig.5.1 Studio playback application p. 11 Fig.5.2 Live /Studio monitor System p. 11 5.3 MONO MAIN function p. 12 5.4 Connecting more headphones p. 12 6. TECHNICAL SPECIFICATIONS p. 13 3 - POWER STATION USER’S MANUAL...

  • Page 5: Introduction

    The choice of having the external power supply ensure professional features with minimum noise, and allow you to drive the power station also with an external optional battery pack to use the unit also without the presence of main power...

  • Page 6: The Mono Switch

    It is also possible to fit the POWER STATION into one standard rack unit of space (1 3/4") using the optional RK100 rack adapter that you can buy from your Dealer.

  • Page 7: Audio Connections

    3.4 Audio connections The MAIN and the AUX inputs on the POWER STATION are fully balanced. If possible, connect the unit to other devices in a balanced configuration to allow for maximum interference immunity. Please ensure that only qualified persons install and operate the POWER STATION.

  • Page 8: Fig. 3.2: Headphones Connector

    Headphones stereo 1/4” connector Tip = Left Ring = Right Sleeve = Ground / Shield Ring Sleeve Cable Clamp Fig. 3.2: Headphones connector 7 - POWER STATION USER’S MANUAL...

  • Page 9: Controls

    12) The CH4 AUX IN control adjusts the level of the input signal inserted via the rear panel CH4 AUX INPUT connectors on the CH4 amplifier. 13) The POWER ON switch is the main power switch and allow you to switch on /off the device. 8 - POWER STATION USER’S MANUAL...

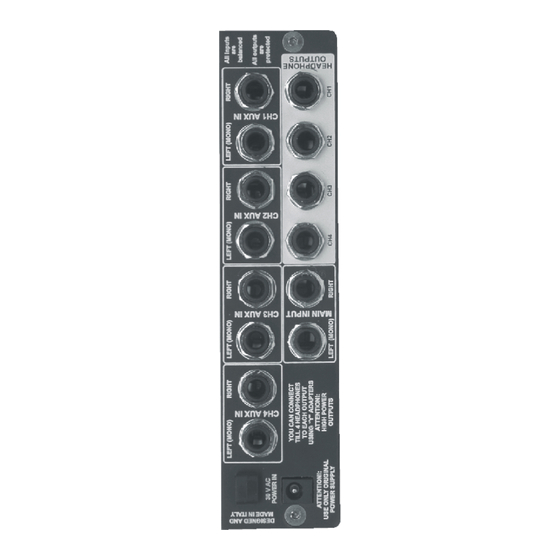

  • Page 10: Fig. 4.2 Back Panel Connections

    15) HEADPHONE OUT 2. Use to connect your Stereo Headphone device using a 1/4" standard phone jack. 16) HEADPHONE OUT 1. Use to connect your Stereo Headphone device using a 1/4" standard phone jack. 9 - POWER STATION USER’S MANUAL...

  • Page 11: Applications

    5. APPLICATIONS In the XXL POWER STATION it is possible to use the Main input or the Channel AUX input to drive each channel. It is also possible to use both of them together in order to mix two different signals (for example a monitor mix with a click) and to feed with this mix your own headphone amplifier.

  • Page 12: Fig.5.1 Studio Playback Application

    DIRECT OUT/AUX OUT Fig.5.1 Studio playback application OUT 1 OUT 2 OUT 3 OUT 4 H.PHONE OUT CH1 H.PHONE OUT CH2 H.PHONE OUT CH3 Fig.5.2 Live /Studio monitor System 11 - POWER STATION USER’S MANUAL...

  • Page 13: Mono Main Function

    5.3 MONO MAIN function. Each channel of the POWER STATION has a MONO MAIN switch that allow, when pressed, to have a mono signal in both left and right output of each channel also if there are connected two different sources to the left and right input jacks of the MAIN IN. In this way, for example, is possible to add directly a mono audio signal to a mono click signal leaving free the AUX IN input of all the channels.

  • Page 14: Technical Specifications

    Mono switches channel MAIN IN to mono POWER SUPPLY External dedicated power supply Battery pack (optional) PHYSICAL Dimension 44 mm X 240 mm X 120 mm Net weight approx. 1 kg Shipping weight approx. 1.5 kg 13 - POWER STATION USER’S MANUAL...
  • Page 15 NOTES: 14 - POWER STATION USER’S MANUAL...
  • Page 16 In-depth - please refer to www.xxlinside.com/in-depth for any further info you may need. Servicing - please refer to your MyAudio Dealer for your country rules about servicing. ©XXLinside 2009 - All rights reserved. Any not-approved copy and use, even partial, of this instruction manual and its texts, it's forbidden.
