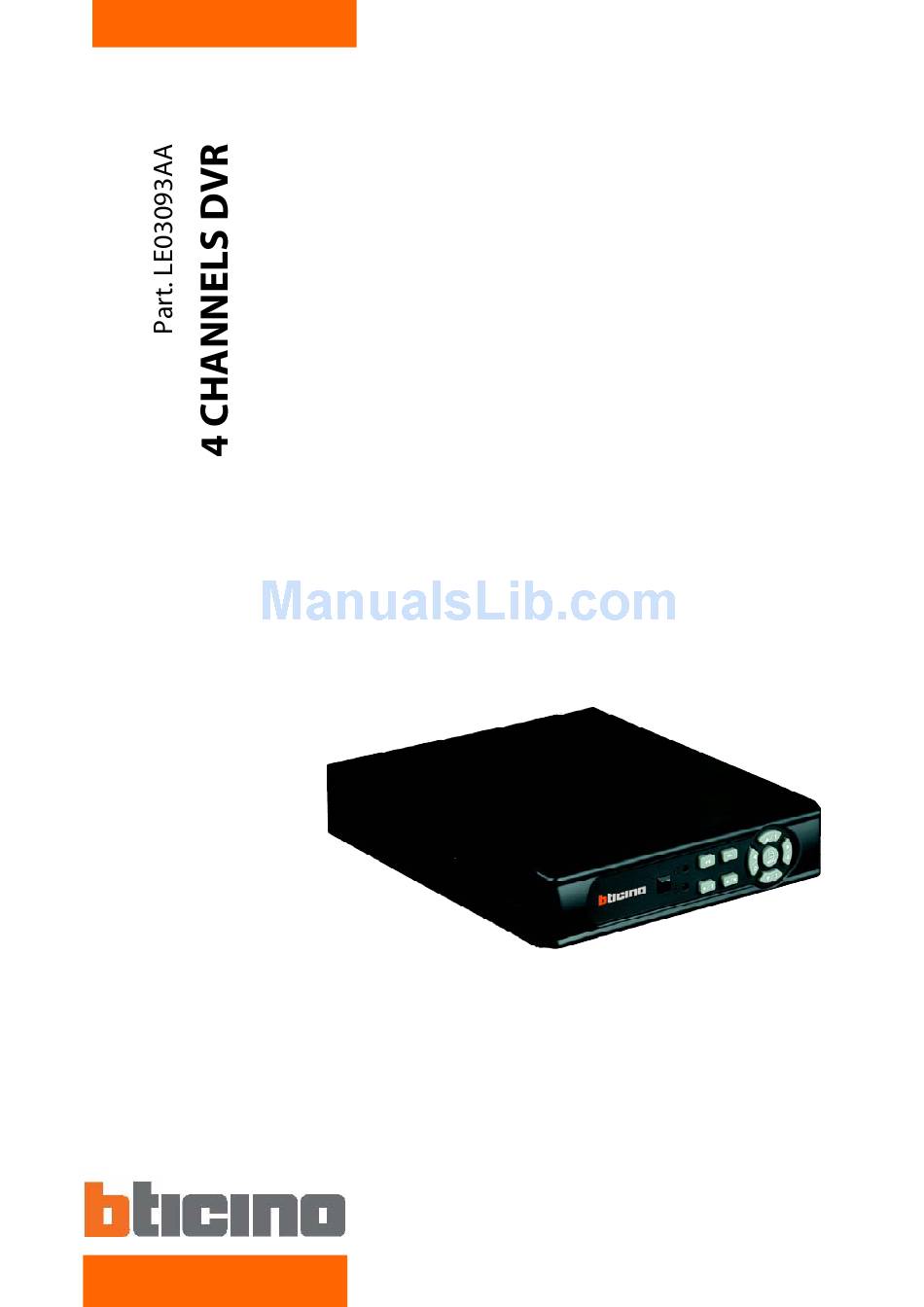

Bticino LE03093AA Instruction Manual

4 channels dvr
Hide thumbs
Table of Contents

Advertisement

Quick Links

391504
Instructions manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LE03093AA and is the answer not in the manual?

Questions and answers

Related Manuals for Bticino LE03093AA

Summary of Contents for Bticino LE03093AA

  • Page 1 391504 Instructions manual...

  • Page 2: Table Of Contents

    391504 Contents FEATURES ...................................... 3 PACKING LIST ....................................4 NAME and FUNCTION of EACH PART............................ 5 3.1 Front Panel ....................................5 3.2 Rear Panel....................................6 4. INSTALLATION ...................................... 7 4.1 System Configuration ................................. 7 OPERATING PROCEDURE................................8 5.1 System configuration ................................8 5.2 Monitoring Mode .................................

  • Page 3: Features

    1. FEATURES • Video system auto detection Auto detects video input (PAL) and supports combine use of color and b/w cameras. • Supports high quality digital video recording Adopts M-JPEG compression technology (PAL: 50 IPS). • Video Size Video Resolution •...

  • Page 4: Packing List

    391504 2. PACKING LIST Check to make sure all of the items shown below are included in your product package. If something is missing, contact your dealer as soon as possible. Item Description Item Picture DC 12V/ 2.5A Power Adapter Input: AC 100~240V Output: DC 12V/ 2.5A Power Cord...

  • Page 5: Name And Function Of Each Part

    3. NAME and FUNCTION of EACH PART 3.1 Front panel : Record LED indicator : Rewind button : Fast forward button/ Enter Selection : Left direction button / CH 2 screen display : Up direction button / CH 1 screen display : Right direction button / CH 4 screen display : Enter / Exit Menu : Down direction button / CH 3 screen display...

  • Page 6: Rear Panel

    391504 Rear panel （1） DC 12V [Power Input terminal]: power socket. （2） Video Input [VIDEO IN]: Connect to cameras. （3） Video Output [VIDEO OUT]: Connect to the monitor. （4） Audio Input [AUDIO IN] : RCA input port for an audio signal （5）...

  • Page 7: Installation

    4. INSTALLATION 4.1 System configuration Please setup the connection by following the illustration shown below: Connect camera, monitor and power to enter monitoring mode. To backup images, connect the USB storage device. The DVR also supports VGA video output.

  • Page 8: Operating Procedure

    391504 5. OPERATING PROCEDURE 5.1 System configuration First, connect one camera to the DVR, and connect its power supply. After power on, DVR will auto-detect its peripherals (self-testing, auto detects the hard disk, etc.). The system will detect the video input and judge whether the video system is PAL. When video input is unable to be detected (VIDEO LOSS), the system will send out an alarm (it will not affect the actual recording, but when all (1CH-4CH) video images disappears, the DVR will stop recording).

  • Page 9: Record Mode

    5.3 Record Mode Icon Description CH2 : Black screen indicates display and record function switched OFF. CH3 : Blue screen indicates video-loss. Symbol [M] indicates manual recording. Symbol [S] indicates schedule recording. When both manual and schedule recording has been enabled, manual recording will be the first priority to be displayed.

  • Page 10: Playback Mode

    391504 5.4 Playback Mode 》button to enter “Time Search” display. Press Play《 》button to enter Time Setup mode. After time setup has been completed, press Press Fast Forward《 《 MENU 》button to return to Time Search display and press Play《 》button again to playback the selected time.

  • Page 11: System Setup

    6. SYSTEM SETUP 6.1 Menu Setup (1) MAIN MENU: Item subject (First menu layer does not have a subject). (2) Menu Layer Indication: The device consists of four menu layers. ■ ：First Menu Layer (Main Menu) ■■ ：Second Menu Layer ■■■...
  • Page 12 391504 (3) Menu Operation and Setup 《▲》 《▼》 Press button to move the cursor 《 》 《►》 Press button enter the sub menu. 《 MENU 》 Press button. Under second or third menu layer, the system will return to the previous menu layer (second layer to first layer or third layer to second layer) and auto updates the modified data.

  • Page 13: Camera Setup

    6.2 Camera Setup [Camera Setup] is situated on the second menu layer. Under this selection user may setup the following function: Channel, Display & Record, Brightness, Contrast, Hue and Saturation. 《▲》 《▼》 Press button to move up and down the menu item. 《...

  • Page 14: Record Setup

    391504 6.3 Record Setup [Record Setup] is situated on the second menu layer. Under this selection user may setup the following function: Record Frame, Record Quality, Event Record Duration, and Record Schedule. 《▲》 《▼》 Press button to move up and down the menu item. 《...

  • Page 15: Record Frame

    ■■■ 6.3.1 Record Frame 《▲》 《▼》 Press button to move up and down the menu item. 《 》,《 》 《►》 Press button to make changes. 》 Press《MENU button to exit “Record Schedule Setup” selection. Maximum frames for all 4 channels are 50 (PAL) frames.
  • Page 16 391504 Recordable Days Quality : SUPERFINE FINE TOTAL FRAMES (FPS) HDD Size : 320 Go - Resolution : 640 x 272.

  • Page 17: Record Schedule

    6.3.2 Record Schedule ■■■ ▼》 《▲》 Press and《 button to move up and down the menu item. 《 》 《 》 Press button to make changes. Press 《MENU 》 button to exit “Record Schedule Setup” selection. Color Bar Description [Grey] : Indicates no record will be made for this time period. [Orange] : Indicates recording is made for this time period.

  • Page 18: Motion Detection Setup

    391504 6.4 Motion detection setup [Motion Detection Setup] is situated on the second menu layer. Under this selection user may setup the following function: Channel, Sensitivity and Motion Area. 《▲》 《▼》 Press button to move up and down the menu item. 《...

  • Page 19: Motion Area

    ■■■ 6.4.1 Motion Area 《▲》 《▼》 Press button to move up and down the menu item. 《 》 Press button to setup the starting point of the motion area. 《▲》 《▼》 Press to select the range of motion detection area. 《...

  • Page 20: Screen Setup

    391504 ■■ 6.5 Screen Setup [Screen Setup] is situated on the second menu layer. Under this selection user may setup the following function: Border and Auto Switching. 《▲》 《▼》 Press button to move up and down the menu item. 《 》...

  • Page 21: Video Adjustment

    ■■■ 6.5.1 Video Adjustment 《▲》 《▼》 《 》 《►》 Press button to adjust the screen. 《 》 Press MENU button to exit “Video Adjustment” selection.

  • Page 22: Audio Setup

    391504 ■■ 6.6 Audio Setup [Audio] is situated on the second menu layer. Under this selection user may setup the following function: Record, Mute, Input Volume and Output Volume. 《▲》 《▼》 《 》 Press button to move up and down the menu item. 》or 《...

  • Page 23: System Setup

    ■■ 6.7 System Setup [System Setup] is situated on the second menu layer. Under this menu user may setup the following function: Hard Disk Setup, Password Setup, Time Set, Event List, Loss Alarm, Motion Alarm, Alarm Duration and F/W Upgrade. 《▲》...

  • Page 24: Hard Disk

    391504 ■■ 6.7.1 Hard Disk [Hard Drive Setup] is situated on the third menu layer. Under this menu layer user may setup to overwrite or format the hard disk. 《▲》 《▼》 Press button to move up and down the menu item. 《...
  • Page 25 When the hard disk is full and overwrite function is set to No, the following display appears:...

  • Page 26: Format Hdd

    391504 ■■■■ 6.7.1.1 Format HDD 《▲》 《▼》 《 》 《►》 Press button to move to the desired password number. 《 》 Press button enter password（must be 6 digits）. 《▲》/《▼》/《 》/《►》 After entering 6 digits password, use button to move the cursor to “Enter” 《...
  • Page 27 Fig 1 Fig 2...
  • Page 28 391504 Fig 3...

  • Page 29: Password Setup

    ■■■ 6.7.2 Format HDD [Password Setup] is situated on the third menu layer. Under this selection user may setup the following function: Password Change, Menu Password and Record Password. 《▲》 《▼》 Press button to move up and down the menu item. 《...

  • Page 30: Password Change

    391504 6.7.2.1 Password change ■■■■ 《▲》 《▼》 《 》 《►》 Press button to move to the desired password number. 《 》 Press button and enter password（must be 6 digits）. 《▲》/《▼》/《 》/《►》 After entering 6 digits password, use button to move the cursor to “Enter”. 《...
  • Page 31 Fig 4 Fig 5...
  • Page 32 391504 Fig 6 Fig 7...

  • Page 33: Time Set

    6.7.3 Time set ■■■■ [Time Set] is situated on the third menu layer. Under this selection user may setup the following function: Time Zone, Time Set, Daylight Saving Time and Apply. 《▲》 《▼》 Press button to move up and down the menu item. 《...

  • Page 34: Event List

    391504 6.7. 4 Event list ■■■ 《▲》 《▼》 《 》 《►》 Press button to move to the desired event item or use button to move to the previous or next event list page. 《 》 Press button to playback event. 《...

  • Page 35: Exit

    6.8 Exit ■■ [Exit] is situated on the second menu layer. Under this selection user may setup the following function: Exit & Save Changes, Exit & Discard Changes and Load Setup Default. 《▲》 《▼》 Press button to move up and down the menu item. 《...

  • Page 36: Backup Via Usb Memory Stick

    391504 6.9 Backup via USB Memory Stick In order to save the video data with USB memory stick, you should first stop record and enter playback mode, as shown below (Fig 13). Press 《MENU 》button to setup the start and end time period of recorded video data that you want to save on the USB memory stick.
  • Page 37 Fig 16 Fig 17...
  • Page 38 391504 Fig 18...

  • Page 39: Remote Control (Option)

    7. REMOTE CONTROL Remote Control ID Button Name Description 1 CHECK ID Remote Control ID Rewind Fast Forward/ Enter Selection MENU Enter / Exit Menu Up direction button / CH 1 screen display Down direction button / CH 3 screen display Left direction button / CH 2 screen display Right direction button/ Enter Selection/ CH 4 screen display...

  • Page 40: Hdd Player Software Description

    391504 8. HDD Player Software Description In the CD, there is “Vx4CViewer” Software. It is to be used to see on your PC the videos you downloaded from the DVR. System Requirement OS (Operating System) Windows XP. Hardware Requirement CPU 2.8GHz or higher. RAM 1GMByte or higher.

  • Page 41: Player Guide

    8.2 Player Guide After the software installation has been completed, open-up Vx4CViewer. Move the cursor to [Player] and then left click to enter Player user operating interface, as show below: Player Panel Description Press this button to enter player Press this button to enter player window Not available Open file.

  • Page 42: Open-Up Player File

    391504 8.2.1 Open-Up Player File Press [Open] button to open-up file, a folder appears and you may select a file from the folder to playback.

  • Page 43: Player Control

    8.2.2. Player Control Player Main Display Playback Control Button Snapshot and Channel Switching Button Chanel Display: Show channel name of the current playback file. Use right-click menu to Enable/ Disable the function. Playback Status: Current playback speed and related time information. Playback Control Button: Control buttons to proceed file Playback, Pause and FastForward.

  • Page 44: Player Setup

    391504 8.2.3. Player Setup Right click on the Player window, player drop down menu appears (corresponding configuration setup can be done). Player: Switch to Player window. NetViewer: Switch to NetViewer remote connection window. Open File: Open-up a file. Open Disk: Open-up a disk. Export: Save the file as AVI format (this function is only effective when playback is faused).
  • Page 45 Capture: Use this function to capture a certain part of the file and save it into a separate file. Application method: First move to the stating point that you wish to retrieve. In the player drop down menu, click item “Capture → Mark In” and then move to the ending point, click item “Capture →...
  • Page 46 391504 Player Options Setup Always on top: Setup window display to always be on top. Use DirectDraw: Enable DirectDraw to accelerate image processing functions (Your operating system and graphic hardware must support DirectDraw). Show channel title: Display channel title setup. Repeat playback: Repeat playback function setup.

  • Page 47: Specification

    SPECIFICATION Format Compression MJPEG Video Input 4 CH, BNC Output 1 CH BNC Resolution 720x576 (PAL) Display Frame Rate Max. 100 IPS Division Single, Quad Resolution 640x272 (PAL) Frame Rate Max. 50 IPS Recording Quality High / Normal / Low Mode Manual / Schedule / Motion Detection Basic Storage...
