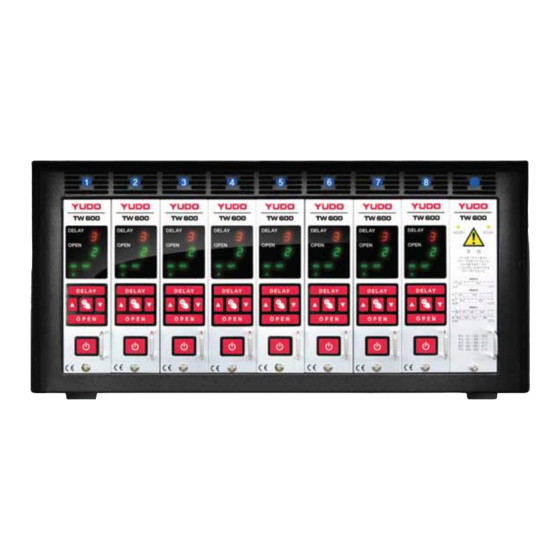

TW 600
SEQUENCE INJECTION TIMER
User Manual
English
MODEL : TW 600
Advertisement
Table of Contents
Related Manuals for Yudo TW 600
Summary of Contents for Yudo TW 600
- Page 1 TW 600 www.yudo.com SEQUENCE INJECTION TIMER User Manual English MODEL : TW 600 HEAD OFFICE & FACTORY 169-4, Gujang-Ri, Paltan-Myun, Hwasung-City, Gyeonggi-Do, 445-915 Korea Tel : + 82 31 350 2530 (Overseas Sales Team) Fax : + 82 31 354 7446 E-Mail : yudo@yudohot.com...
- Page 2 Thank you for using YUDO product. TW 600 TW 600 Please be noted of this manual to avoid problems by any misuse, before you use YUDO product. User Manual User Manual You can contact YUDO Headquarter or regional sales office for technical advice.
-
Page 3: Power Supply
User Manual 3. TW 600 Parts name 1. Uses YUDO Sequence Injection System is to provide a means of controlling the mould DELAY The time until gate is started to be opened filling sequence when Valve Gate Hot Runner System. The sequence after receiving injection signal. - Page 4 TW 600 TW 600 TW 600 TW 600 User Manual User Manual User Manual User Manual (2) Open time adjustment 4. Fucntion ① Press Open key to make value change, then use ▲ UP and ▼ DOWN key. 1) Main power input - operation ②...
-
Page 5: Mode Operation
3) MODE C In MODE C, Users can carry out MODE B operation twice successively. YUDO Sequence Timer( TW 600 ) has 3 types of MODE. Ex1 ) Injection time : 20 seconds. The user can adjust Gate open/close/delay time for the optimal injection The first Del. - Page 6 TW 600 TW 600 TW 600 TW 600 User Manual User Manual User Manual User Manual 6. Sequence system application 7. Connector position and Assembly 1) MODE A application 1) Connector is installed to Solenoid Block Assembly in mold. (1) In case of short shot on product Open Gate 1 first to enlarge filling area, then Open Gate 2 later to fill up well.
- Page 7 TW 600 TW 600 TW 600 TW 600 User Manual User Manual User Manual User Manual 8. Sequence Timer Connection M E M O M E M O Solenoid Valve control Signal SEQUENCE INJECTION TIMER SEQUENCE INJECTION TIMER...
-
Page 8: Global Network
