Smart Switch Toilet Controller Set-Up Instructions
Model: SMF-001

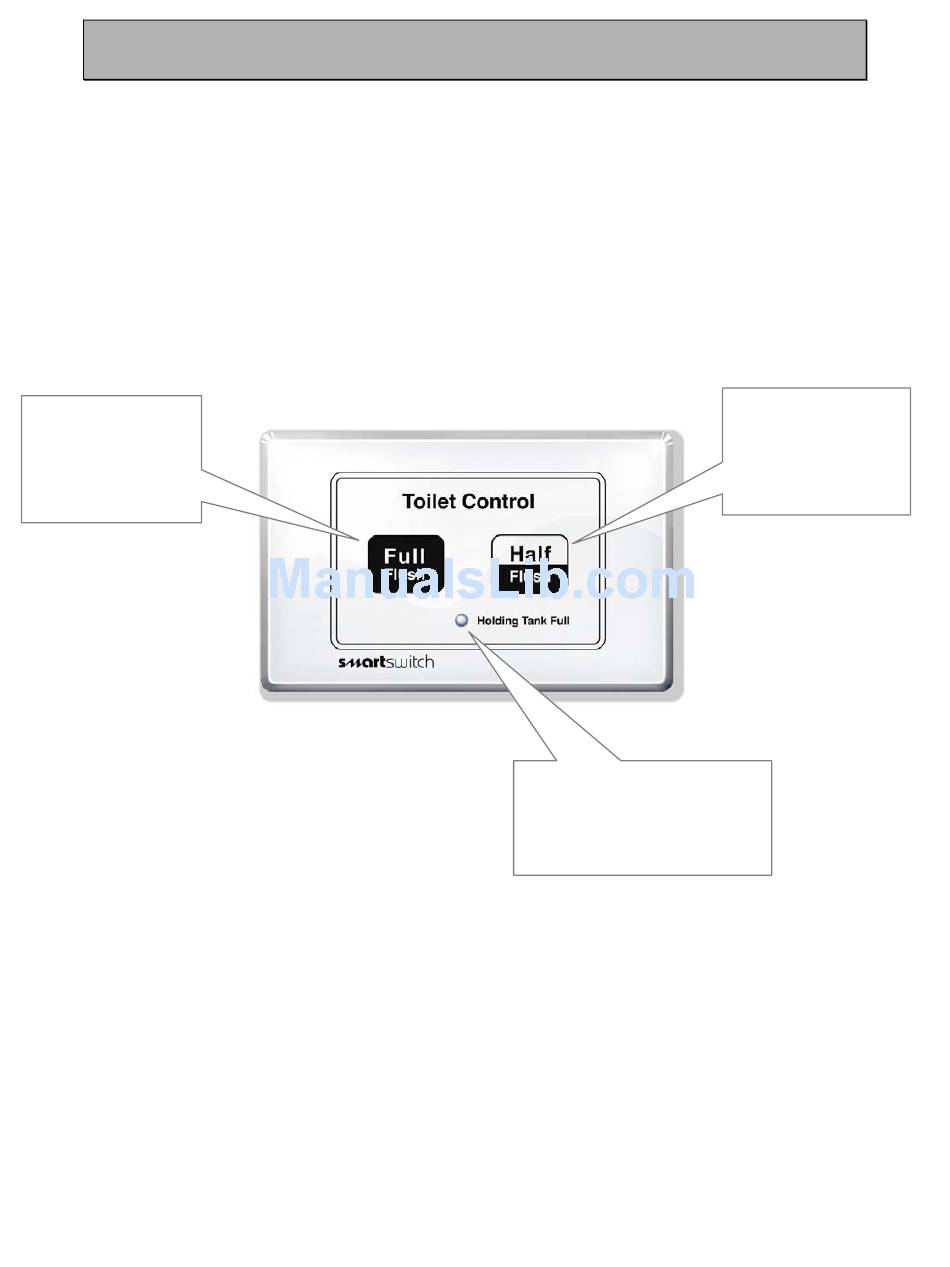

The unique Smart Switch Programmable Toilet Controller was designed for all electric marine toilets with
a single motor/pump flushing system. The stylish control panel provides fully automatic programmed
flushing when either button is pressed. The Half Flush provides a water/holding tank save mode. This
device will turn it's own power on and off there-for drawing no power when not in use.
When pressed the
system will activate
a complete flush
cycle automatically.
This Product has been Factory Preset and will operate without making
Should you wish to alter these settings please follow proceeding
If the tank system is
connected this light will turn
on when the Holding Tank is
full and disable any further
flush cycles.
any further adjustments.
instructions.
When pressed the
system will activate
a half flush cycle
automatically.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Smart Switch SMF-001
Summary of Contents for Smart Switch SMF-001
- Page 1 Smart Switch Toilet Controller Set-Up Instructions Model: SMF-001 The unique Smart Switch Programmable Toilet Controller was designed for all electric marine toilets with a single motor/pump flushing system. The stylish control panel provides fully automatic programmed flushing when either button is pressed. The Half Flush provides a water/holding tank save mode. This device will turn it’s own power on and off there-for drawing no power when not in use.
- Page 2 Programming: Programmable Time Options: Both Full & Half flush cycles are programmable from 1 to 240 seconds. Factory Default: Full Flush = 10 seconds Half Flush = 6 seconds We recommend using Full Flush when flushing solids and Half Flush when flushing liquids. Advisory Warning 1.5 litres per flush is the recommended minimum Full Flush setting for discharge lines of less than 6 feet.
- Page 3 Wiring Fuse Battery FIG 1 Discharge Pump Over Current Protection Control Knob Anti Clock Wise = Less Current Eg. More sensitive to cut-off Holding Tank Switch Toilet Control Connections Neg = Negative Discharge Motor Neg = Negative Battery Pos = Positive Battery 12-30 Volts DC. Pos = Positive Discharge Motor Holding Tank Switch Output Holding Tank Switch Input...
- Page 4 Operating Instructions Full Flush: Pressing this button will activate the system for the programmed time. Half Flush: Pressing this button will activate the system for the programmed time. Holding Tank Full: (Optional) If the vessel is fitted with a Holding Tank Full Sensor Switch, it can be wired to the controller as per diagram FIG 1 –...
- Page 5 Fitting Instructions “ Warning ” This device should be fuse protected and mounted in a dry area, as close to the Toilet as is practical. DO NOT cover the ventilation slot on the top of this device. If the keyboard is mounted in an area where it may experience moisture or wetting, please ensure that a bead of silicon is placed around the keyboard to waterproof it.
