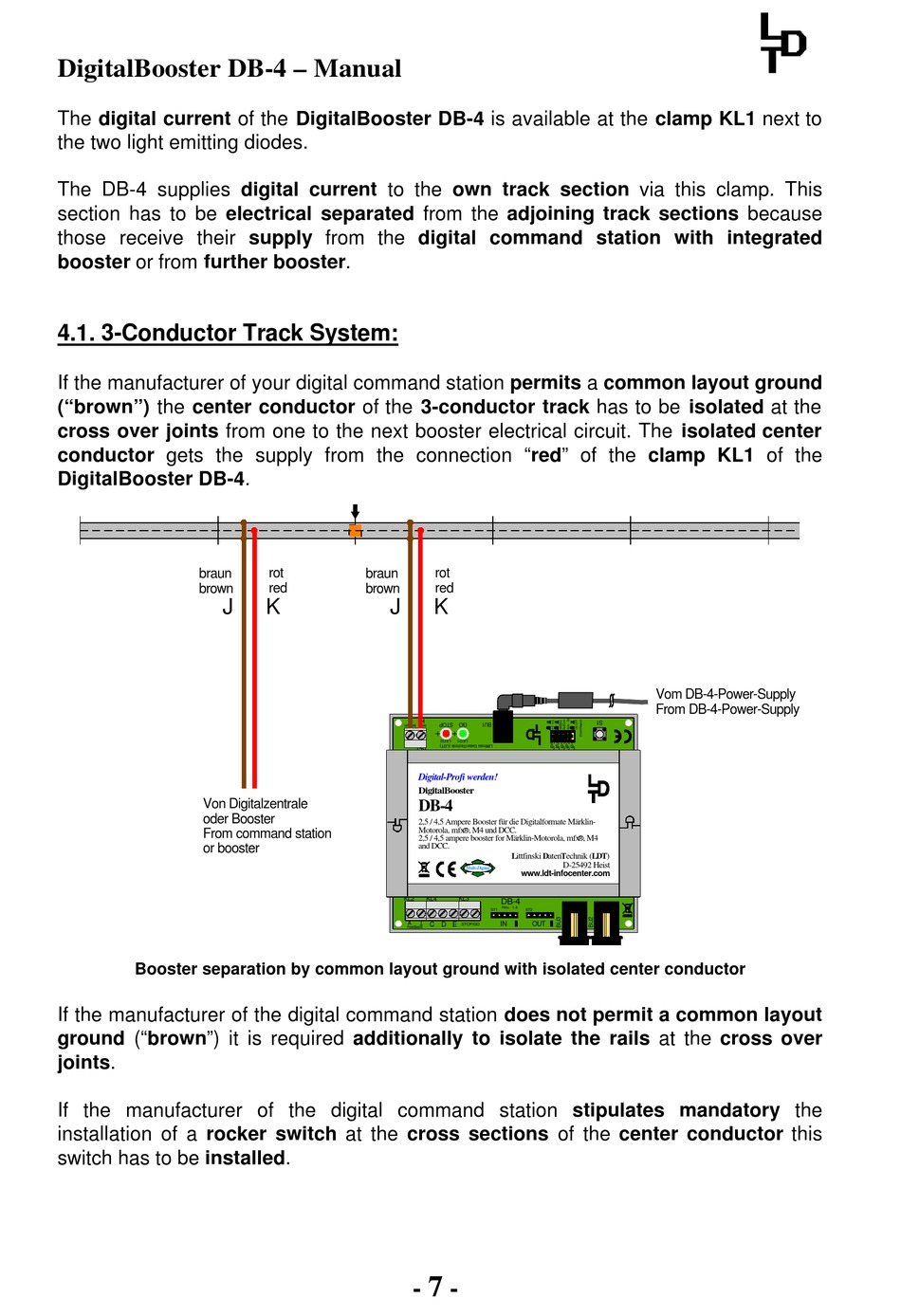

DigitalBooster DB-4 – Manual
The digital current of the DigitalBooster DB-4 is available at the clamp KL1 next to
the two light emitting diodes.
The DB-4 supplies digital current to the own track section via this clamp. This
section has to be electrical separated from the adjoining track sections because
those receive their supply from the digital command station with integrated
booster or from further booster.

4.1. 3-Conductor Track System:

If the manufacturer of your digital command station permits a common layout ground
("brown") the center conductor of the 3-conductor track has to be isolated at the
cross over joints from one to the next booster electrical circuit. The isolated center
conductor gets the supply from the connection "red" of the clamp KL1 of the
DigitalBooster DB-4.
braun
brown
J
Von Digitalzentrale
oder Booster
From command station
or booster
Booster separation by common layout ground with isolated center conductor
If the manufacturer of the digital command station does not permit a common layout
ground ("brown") it is required additionally to isolate the rails at the cross over
joints.
If the manufacturer of the digital command station stipulates mandatory the
installation of a rocker switch at the cross sections of the center conductor this
switch has to be installed.
È
rot
braun
red brown
K J
Digital-Profi werden!
DigitalBooster
DB-4
2,5 / 4,5 Ampere Booster für die Digitalformate Märklin-
Motorola, mfx
2,5 / 4,5 ampere booster for Märklin-Motorola, mfx
and DCC.
KL2 KL4
A C D E
Feedback
7
-
rot
red
K
® , M4 und DCC.
® , M4
Littfinski DatenTechnik (LDT)
D-25492 Heist
Multi-Digital
www.ldt-infocenter.com
KL3
DB-4
Rev. 1.4
ST1 ST2
IN OUT
STOP/GO
-
Vom DB-4-Power-Supply
From DB-4-Power-Supply
