LDT DigitalBooster DB-4-G Manual

Littfinski DatenTechnik (LDT)
•
Bühler electronic GmbH
DigitalBooster DB-4
The DigitalBooster DB-4 is a short-circuit protected
Power-Amplifier (Booster) for digital Model Railway
Layouts from the Digital-Professional-Series!
The DB-4 amplifies the digital formats of Märklin-

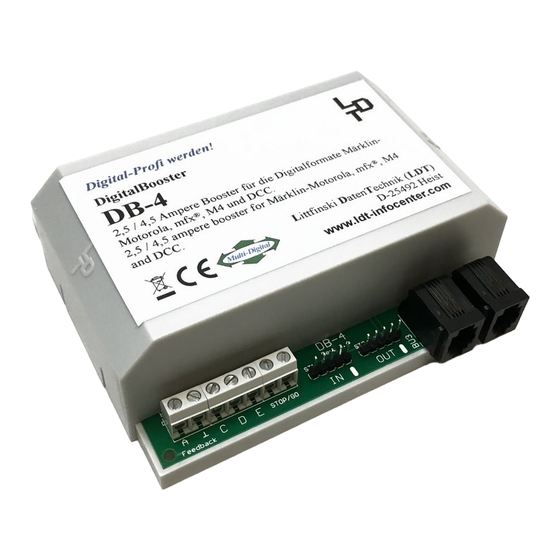

>> finished module in a case <<
Digital-Profi werden!
DigitalBooster
DB-4
2,5 / 4,5 Ampere Booster für die Digitalformate Märklin-
Motorola, mfx®, M4 und DCC.
2,5 / 4,5 ampere booster for Märklin-Motorola, mfx®, M4
and DCC.
Multi-Digital
KL2 KL4 KL3
ST1
A
C D E
STOP/GO
Feedback
This product is not a toy! Not suitable for children under 14 years. Improper use will imply danger or injuries due to
sharp edges and tips! Please store this instruction carefully.
Multi-Digital
•
Ulmenstraße 43 15370 Fredersdorf / Germany
Manual
Motorola, mfx
DB-4-G
Part-No.:
Littfinski DatenTechnik (LDT)
www.ldt-infocenter.com
DB-4
Rev. 1.4
ST2
IN OUT
CE Part-No.:
1370365
•
Tel.: +49 (0) 33439 / 867-0
®
, M4 and DCC.
080073
The DigitalBooster DB-4 provides a
maximum digital current of 2.5 or 4.5
Ampere and amplifies the digital
formats of Märklin-Motorola, mfx
and DCC.
The DB-4 can operate with several
digital command stations by using the
5-poles booster bus, the CDE booster
bus or the Roco-booster bus.
The DigitalBooster DB-4 receives the
power supply not from a classical
model railway transformer but from
the switched mode mains power
supply DB-4 PowerSupply. On this
unit is the stabilized digital track
voltage adjustable between 15 and 24
Volt, suitable for all track gauges.
®
, M4
