- Page 1 MobiPrint MPT7BT Portable Dot Matrix Printer User’s Manual （VER1.2）...
-
Page 2: Table Of Contents
Content ..............................5 NOTICE ............................5 Notice of Safety ............................5 Notice of Using ............................5 Notice of Storing ......................6 Chapter 1 Appearance and Model No..........................6 1.1 Outer Appearance ............................7 1.2 Model No......................7 Chapter 2 Characteristic Specification .........................7 2.1 Printing Specification ..........................8... -
Page 3: Notice
NOTICE Please read this manual carefully before using the printer! Notice of Safety Be sure to use the specified battery and power supply provided by our company. Otherwise it may cause fire, explosion or damage printer, meanwhile, the battery also may be damaged. Don’t put battery into the fire, don’t disassemble or heat the battery, don’t be short circuit, it may cause fire, explosion or damage printer, meanwhile, the battery also may be damaged. -
Page 4: Chapter 1 Appearance And Model No

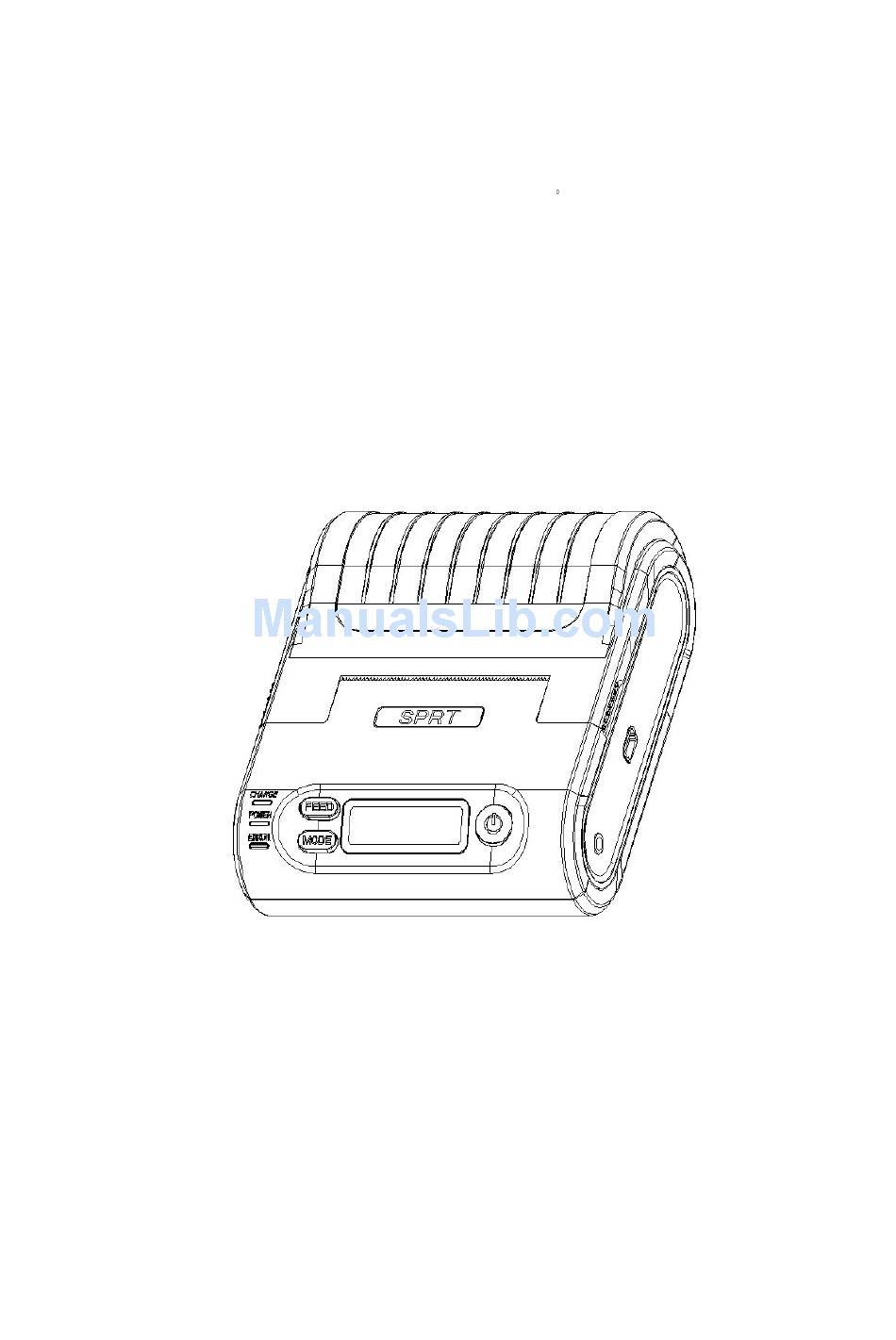

Chapter 1 Appearance and Model No. 1.1 Outer Appearance [CHARGE]: Battery Charging Indicator [ERROR]: Error Indicator [FEED]: Feed Button [MODE]: Mode Button... -
Page 5: Model No
1.2 Model No. SP-T7 Support USB Interface SP-T7BT Support USB and Bluetooth Interface SP-T7RF Support USB and RF Interface Chapter 2 Characteristic Specification 2.1 Printing Specification Printing Method Dot matrix Printing Speed 80mm/s Print Resolution 5 点/mm（127dpi） Effective Printing Width 48mm；... -
Page 6: Other Specification
EAN-13,EAN-8,UPC-A,UPC-E,CODE39,CODE93,CODE128 Barcodes CODABAR,INTERLEAVED25 Emulation ESC/POS Driver Windows 98 / 2000 / NT / XP / VISTA/Win7/windows Mobile /windows CE Sensor Paper End Sensor Interface SP-T7-BT:USB,Bluetooth;SP-T7U:USB Power Adaptor 9V DC/2A Battery Power 7.4V DC, 1.5A rechargeable Li-ion battery Battery duration 120m continuous printing Physical Weight 260g(excluding roll paper) -
Page 7: Chapter 3 Operation Method
pre-printing black mark manual). ● Paper End Detection: when paper is out, the ERROR Indicator will constant on lighting, The buzzer rings when it is printing, and it will stop printing. ● Printing Control Command: ESC/POS compatible command set (refer to<T7 Printer Developer Manual >). ●... -
Page 8: Paper Roll Installation
3.1.2 Paper Roll Installation 1. Hold both sides of the paper case cover, and open it. 2. Pay attention to use paper that effective printing side is outside in the printing paper face when you enchase the new paper roll. 3. -
Page 9: Basic Function Usage
3.2Basic function usage 3.2.1 Switch On Press【POWER】button, the power indicator is on, about 1 second later you will hear ‘one low one high ’prompt tone. The printer will turn into work mode when loosen the 【POWER】 button. The LCD screen show operating parameters of printer 3.2.2 Switch Off Under status of switch on ,the printer will send out the prompt tone of ‘one low one high ’... -
Page 10: Self-Test
Under the normal work status, press 【FEED】 button, the paper feeding begins, and stop when loosen 【FEED】 button. When the printer works in black mark mode, press【FEED】 button, the printer begins to feed paper and stops over the position of black mark. If the paper is not the black mark paper, the printer stops automatically after feeds paper for 30cm.Being out of paper，insert paper into paper port ，the printer stops automatically after feeds paper for 10 cm... -
Page 11: Printer Parameters Setting
Quit hexadecimal printing :The way to quit hexadecimal printing mode is switch off the printer or press the 【FEED】 button for three times. The printer will also print the presentation which shows that the printer have quitted hexadecimal printing mode. 3.2.6 Printer Parameters Setting This function may set some simple printing parameters. -
Page 12: Printer Parameters Setting
50HZ, then plug the power charging plug to the power socket of the printer, so the power charging begins. During the course of power charging, the charging indicator 【CHARGE】 goes red, and【CHARGE】turns to blue when the charging is full. It takes about 4 hours to charge up the battery. -
Page 13: Function Of Bluetooth Address Binding
standard. Power class is CLASS 2, effective communication distance is 10meters. The Bluetooth of the printer belongs to the slave device. The initial name of the printer is T7 Printer, the initial password is ‘1234’; users can change the printer name and password by using<T7 Setting Tools>... -
Page 14: Radio Frequency Connection
the first device and can’t connect with others. So in this case, if the printer needs to connect with other devices, user can delete the remembered address or set the mode is not binding. No binding: in this case, the printer can be searched or paired by other devices. So when the printer needs to connect with a fixed device, it would be better to bind address. - Page 15 Light flashing: printer is on, Bluetooth is with connection status 【CHARGE】indicator Blue light constant on: charging is completed; Red light constant on: in charging; Blue and red lights on: there are some mistakes, please check whether the battery should be good contact or not, and the temperature is normal or not.
-
Page 16: Lcd Indicator
Temperature Connection of temperature detection detection circuit circuit connection error There is also a buzzer to indicate various status of the printer. The meanings are as below: One low one high: power on; One high one low: power off; Circulation continuous two lows: printer at mistakes status Indicator 3.6 LCD Turn on the printer，it will show ”... - Page 17 icon for usb interface and it means USB interface is usable . ②icon for wireless interface，when it shows “ ”，it means RF is usable. ， when it shows ,it means blueteeth works.If it show nothing ,it means wireless interface is useless.。 Notice ：blueteeth and RF interface can not be used together .
- Page 18 ⑥icons for battery .icons as following show the battery at different stage . ， ， .when the power is low ,it will show .In each situation ,it will shows when it connected to power. ⑦it shows the printer situation through character. When printer is not connected to anything ,it show the USB mode.
-
Page 19: Command Programming Manual
After settings ,press both button【FEED】and button 【MODE】. Save the settings and enter the normal situation,or it cannot be saved . For more detailed setting methods ,you can find in the appendix. Chapter 4 Other Information 4.1 Command Programming Manual <T7Technical Manual> is a technical manual for engineer to develop printer utility, and users can claim our company for it. - Page 20 Printing Position: As the picture above, the black mark should be printed on the right or left edge of the side of words. Width range: width≥7mm Height range: 4mm≤height≤6mm Reflectivity of infrared ray : <10% (infrared ray reflectivity of other parts of the black mark paper is>65%) HPS: it is the distance between edges of black mark and loading position.
-
Page 21: Appendix
APPENDIX Appendix is the usage of setting printer parameter: this method is shown by picture. FEED] means to hold down [FEED] button,[MODE] means to hold down [MODE] button；after settings，press both [MODE] and [FEED] button，you can save the settings. Set introduction： MODE MODE MODE... - Page 22 FEED FEED FEED 20mins 5mins Never 30mins FEED Direction ： FEED Opposite Normal FEED Back light set ： FEED FEED RF Ad： FEED FEED FEED Forth Second Third First FEED FEED FEED FEED FEED Seventh Sixth Fifth Eight Note ：RF AD SET The setting is as following：...
