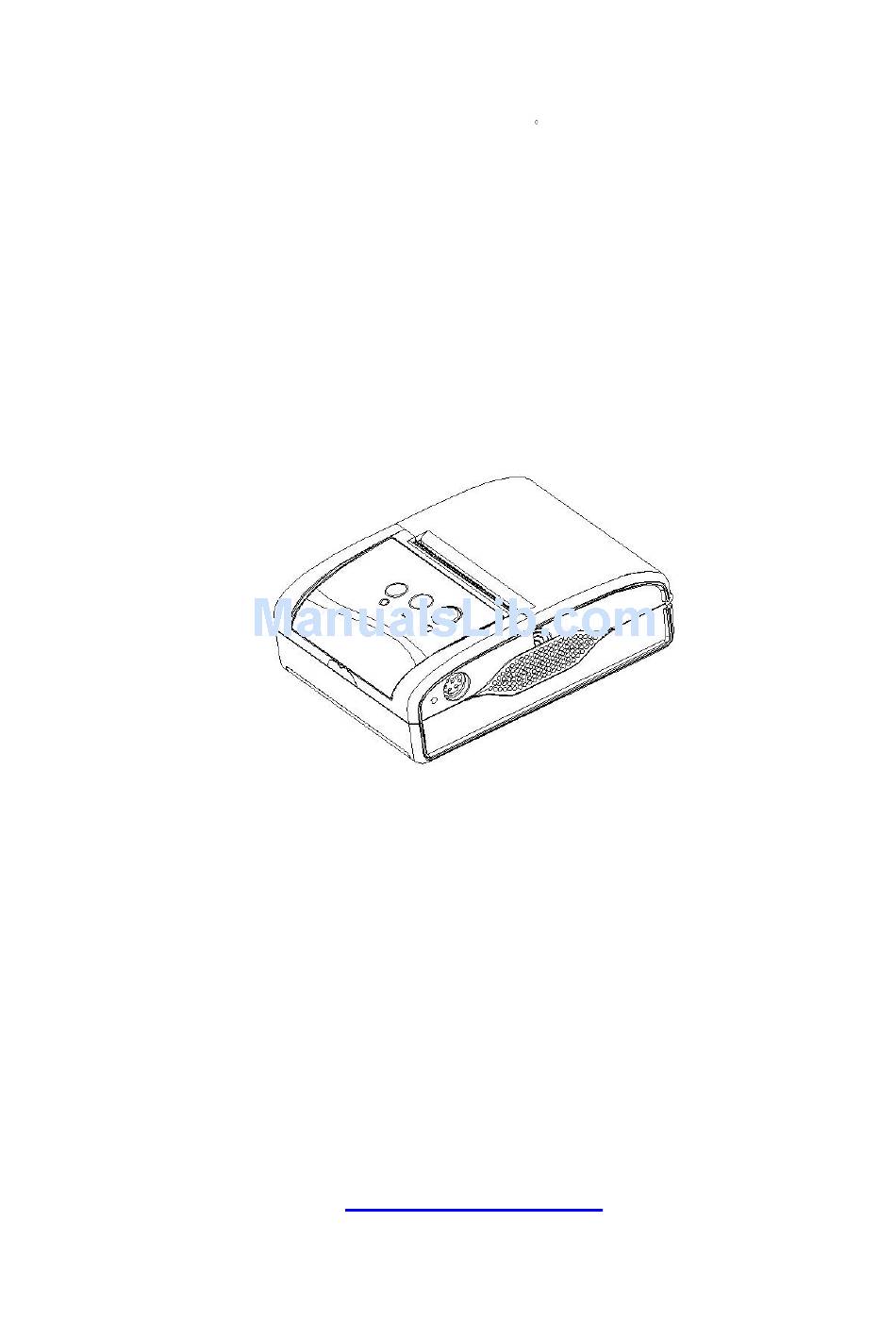

  • Page 1 MobiPrint MP­ T3 Portable Micro Printer User’s Manual www.mobilator.eu...

  • Page 2: Table Of Contents

    Content Operating Precautions··············································································3 Notes on Safety························································································ 3 Notes on Using·························································································3 Notes on Handling··················································································· 4 Chapter 1 Outer Appearance and Model··············································4 1.1 Outer Appearance······························································· 4 1.2 Model Classification···························································5 Chapter 2 General Specifications ······················································· 5 2.1 Printing Specifications························································5 2.2 Physical Specifications·······················································5 2.3 Environmental Conditions··················································6 2.4 Other Specifications···························································...

  • Page 3: Operating Precautions

    Mobilator.eu Operating Precautions This section presents important information intended to ensure safe and effective use of the printer. Please read the following carefully. Notes on Safety Be sure to use the specified battery and power source provided by our company. Connection to an improper power source may cause fire, explosion or damage to the printer.

  • Page 4: Notes On Handling

    Too high （45℃） or too low （5℃） temperature and too high (85％)or too low (20％) relative humidity both effect the print quality. The print paper in poor quality or stored for too long time also may reduce the print quality even damage the printer. In the black mark detecting mode, the printer requires that the ready-print black mark is accordant with the black mark printing rules (details please refer to Chapter 5), otherwise the black mark can not be detected correctly.

  • Page 5: Model Classification

    1.2 Model Classification SP-RMTⅢ* * A----Paper case cover is in arc shape, the diameter for paper roll is 40mm. B----Paper case cover is flat, the diameter for paper roll is 30mm. Ra---Raw_Infrared, RS-232 serial interface Ir----IrDA(IrCOMM), RS-232 serial interface BT---Bluetooth, RS-232 serial interface Blank-Only RS-232 serial interface Chapter 2 General Specifications 2.1 Printing Specifications...

  • Page 6: Environmental Conditions

    ● Paper roll diameter: ≤40mm ● Interface: Bluetooth(only for TⅢBT model), IrCOMM (only for T Ⅲ Ir model), Raw-Ir (9600bps ～ 115200bps) (only for T Ⅲ Ra model), RS232 serial (1200bps～115200bps) 2.3 Environmental Conditions ● Operation temperature: 5～45℃ Relative humidity: 20%～85% ●...

  • Page 7: Paper Installation

    3.1.2 Paper Installation 3.1.3 Buckle Installation ７...

  • Page 8: Operation Specifications

    3.2 Operation Specifications 3.2.1 Printer On The printer is powered on by pressing the power button; the power indicator is on with green color whenever the printer is on. Notice: when the batter is almost exhausted, the power indicator blinks with red color, in this case, you must charge the battery by using the adaptor.

  • Page 9: Printer Setting

    off power after the buzzer rings 3 times. In this case, you must charge the battery by using the adaptor. Charging battery method: The TⅢ uses a Lithium rechargeable battery pack. Before first use, the battery pack should be charged for at least 4 hours. To prevent electrical damage to the printer and/or battery pack, please use approved AC/DC adapter only.

  • Page 10: Bluetooth

    50 centimeter away from the printer’s infrared port. Make sure the two ports are in front of each other with an angle of not more than 30° on the four side. 3.4.3 Bluetooth Connection PDA, Laptop and other communication devices with Bluetooth can drive T Ⅲ...

  • Page 11: Chapter 4 Printing Control Commands

    following explains these indications: One LOW one HIGH: power on One HIGH one LOW: power off Two HIGH: printer out of paper Four HIGH: high temperature error Three LOW: low battery Chapter 4 Printing Control Commands TⅢ printer adopts ESC/POS compatible commands, the following table is the printing commands.
  • Page 12 4.3.6 ESC SP n Set line character spacing 4.3.7 ESC L nL nH Set left margin Bit-image printing commands 4.4.1 ESC * Select bit-image mode 4.4.2 FS P n Print downloaded bit-image Bar code printing commands 4.5.1 GS K n [d] NULL Print bar code 4.5.2 GS H n...
  • Page 13 [Notice]: • After use this command to awaken the printer, it needs at least 20 milliseconds to send data to printer, otherwise printer may print wrong data. • If printer is not in standby mode when received this command, the command would be ignored.

  • Page 14: [Format]: Ascii Esc

    Hexadecimal Decimal [Description]: The command functions the same as LF. [Notice]: Sets the print starting position to the beginning of the line. 4.1.6 ESC J n [Name]: Print and feed paper [Format]: ASCII ESC Hexadecimal Decimal [Description]: Feed paper for n vertical dot spacing. [Range]: 0 ≤...
  • Page 15 [Name]: Select print mode [Format]: ASCII Hexadecimal 1B 21 n Decimal 33 n [Description]: Select print mode(s) using n as follows: Bit Value Description Undefined Undefined － Undefined － Undefined － Cancel double height mode Select double height mode Cancel double width mode Select double width mode Cancel up-line mode Select up-line mode...
  • Page 16 [Description]: The characters and graphics would be printed in n times to normal width after this command set, the value of n should be within 1 to 8, default n=2. 4.2.3 ESC V n [Name]: Enlarge height [Format]: ASCII ESC V n Hexadecimal 1B 56 n Decimal 27 86 n...
  • Page 17 up-line all characters including space when up-line selected. [Reference]：ESC ! 4.2.7 ESC i n [Name]: Select/cancel white/black inverted print [Format]: ASCII Hexadecimal 1B Decimal 105 n [Description]: If n=1, select white/black inverted print; n=0, cancel white/black inverted print. 4.2.8 ESC c n [Name]: Select/cancel upside-down print [Format]: ASCII Hexadecimal 1B...
  • Page 18 Hexadecimal 1B 44 n1 n2 n3… 00 Decimal 27 68 n1 n2 n3… 0 [Description]: Sets horizontal tab positions. [Notice]: • n specifies the column number for setting a horizontal tab position from beginning of the line. • k indicates the total number of horizontal tab positions to be set. •...
  • Page 19 • Any setting that exceeds the printable area is ignored. • The print starting position moves from the current position to [ N × horizontal motion unit] 4.3.4 ESC 2 [Name]: Select default line spacing [Format]: ASCII Hexadecimal 1B Decimal [Description]: Set the current character line spacing as the default one: 6 dot spacing.

  • Page 20: Hexadecimal 1B

    [Default]: n = 0 4.3.7 GS L Nl nH [Name]： Set left margin [Format]： ASCII nL nH Hexadecimal 1D 4C nL nH Decimal 76 nL nH [Range]：0 ≤ nL ≤ 255 , 0 ≤ nH ≤ 255 [Description]：The position set by this command is absolute position, Set n horizontal dot spacing as the character’s left spacing, nL nH are n’s LSB and MSB, N=nL + nH ×...
  • Page 21 • The n1 and n2 indicate the number of dots of the bit image in the horizontal direction. The number of dots is calculated by n1 + n2 × 256. • If the bit-image data input exceeds the number of dots to be printed on a line, the excess data is ignored.
  • Page 22 double-strike, underline, character size, or white/black reverse printing). • If the downloaded bit-image to be printed exceeds the printable area, the excess data is not printed. • Please use the software tool that we provide to download the bit-image. 4.5 Bar Code Printing Commands 4.5.1 GS k [Name]：...

  • Page 23: Decimal 27

    Hexadecimal 1D 77 Decimal 29 119 [Description]: Set the horizontal size of the bar code that about to print. n=1~4, when n=1,2,3,4, the size of narrow bar is 1，2，3，4; and the one of broad bar is 3，5，7，9. Default n=3. 4.6 User-defined Character Commands 4.6.1 ESC % n [Name]: Select/cancel user-defined character set [Format]: ASCII...

  • Page 24: [Reference]: Esc

    • x specify the vertical byte number, when define the characters of font A, x≤12; when define the characters of font B, x≤8 • k=c2-c1+1 [Notice] • The code range of defined character: from <20>H to <7E>H. • Can define the continuous codes for several characters. When only one character is needed, c1 = c2.

  • Page 25: Chapter 5 Other Information

    [Default]: n = 0. 4.8 Setting Commands 4.8.1 ESC # [Name]: Baud rate setting [Format]: ASCII ESC # n Hexadecimal 23 n Decimal 35 n [Description]: This command is used to set baud rate, (when n=0, the baud rate is 9600), (when n=1, it is 19200), (when n=2, it is 57600), (when n=3, it is 115200), default=0.
  • Page 26 Reflectivity to infrared ray: <10% (the reflectivity of the other parts of the paper black mark width to infrared ray >65%) HPS: 4.5mm≤Hps≤6.5mm ２６...
