Besides general functions of the recorder, MOSS-DC2 Dash Cam has three new main features:
(1)
Built-in double lens can be used to take two images at front and inside of the car at the same
time;
(2)
Newly added GPS module can record the whole driving track. Using random specialized
software, you can see the video at computer, at the same time connect Google map through the
Internet. Driving track shows on the map and you can trace the running route of the vehicle.
(3) Built-in gravity sensor G-Sensor can record the gravity sensing information. Using random
specialized software, you can see the video at computer, at the same time read the gravity sensing
data to trace accident and abnormal circumstance occurred in the running process.
In order to maximize the performance of the recorder, please read this instruction manual carefully
before use (This machine and accessories for the design and specifications are subject to change
without prior notice).
MOSS-DC2 Dash Cam DVR
1 of 10

Advertisement

loading
Need help?

Need help?

Do you have a question about the MOSS-DC2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Movin' On GPS MOSS-DC2

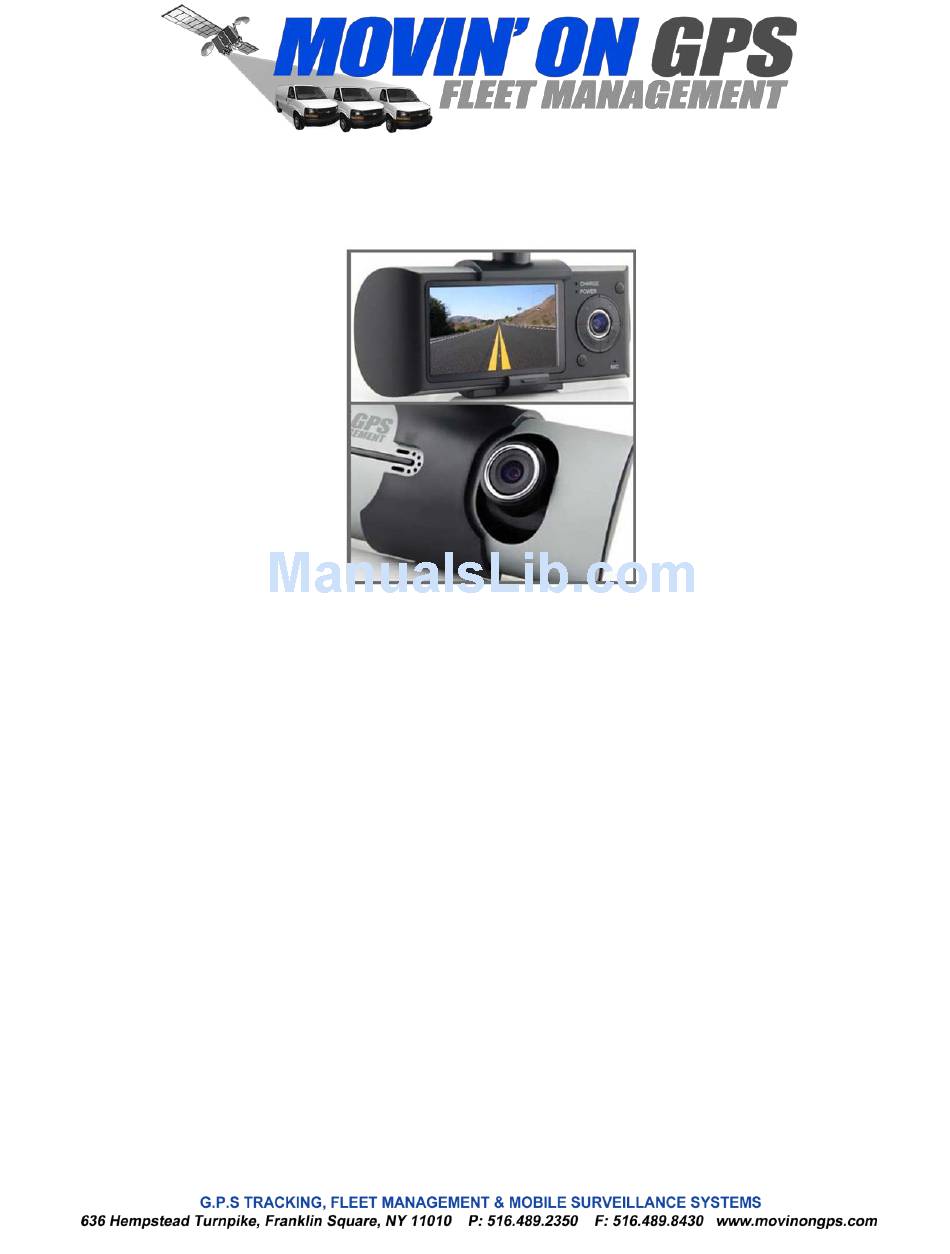

  • Page 1 MOSS-DC2 Dash Cam DVR Besides general functions of the recorder, MOSS-DC2 Dash Cam has three new main features: Built-in double lens can be used to take two images at front and inside of the car at the same time; Newly added GPS module can record the whole driving track. Using random specialized software, you can see the video at computer, at the same time connect Google map through the Internet.
  • Page 2 Playing. In standby Model, short press to start recording, press again to stop recording. Functions of MOSS-DC2 Dash Cam Button when The Device Is Recording: Power Button: short press as a shortcut button to switch CH1 Only / CH2 Only / CH1 & CH2, This can also be set in the “Record Mode”...
  • Page 3 Product Structure: 3 of 10...
  • Page 4 Battery Charging There are two methods for battery charging: 1. Using USB line to connect the machine with the computer for charging; 2. Using accessory vehicle-mounted power source for charging. In the whole process of charging, charging indicator lights up in red. When the charging is finished, indicator automatically extinguishes.
  • Page 5: Change Operating Mode

    Adjust the positions of the lens › The front lens of this machine can be turned 20 degrees up and down in order to better meet the recorder fixed position and get better shooting. Turn on and turn off Turn on: press power supply once for a relative long time until red ON indicator lights up. Turn off: press power supply once more time for a relative long time until red ON indicator extinguish.
  • Page 6 Video mode: double lens /front lens /back lens; Time setting: press left and right keys for time adjustment; press OK key to confirm and exit; Formatting: press the OK key to enter and select Yes/No; Video format: NTSC/PAL setting; Voice: On/Off; Recording: On/Off;...
  • Page 7 Use card reader to read video information on the TF card (Card Read Is Included) In TF card disk under “my computer”, the user can see the files: Click Select your language: 7 of 10...
  • Page 8 Open the player to play video documents. Click to open the player. Select TF Card disk path, then click the “Open" to load and automatically play the document in the card. Clicking the ActiveX can control playing state: from left to right can realize: slow turning / stop / play (pause) / fast turning.
  • Page 9 Gravity sensor: Click , watch the video on the computer, at the same time read and display the gravity sensing data, trace accident and abnormal circumstance occurred during the driving process. 12. Other operations: Click respectively from left to right, and following operations can be realized: repair film / unlock protection / choose to display size.
  • Page 10: Specifications

    Specifications  Sensor: 2 CMOS Sensor  Dual Camera Lens (Front/Rear)  Viewing angle: Rear Camera 120 Degrees, Front-Facing Camera 140 Degrees  Display: 2.7" TFT LCD panel  Audio: Support recording and playback  RTC: Install system clock inside ...
