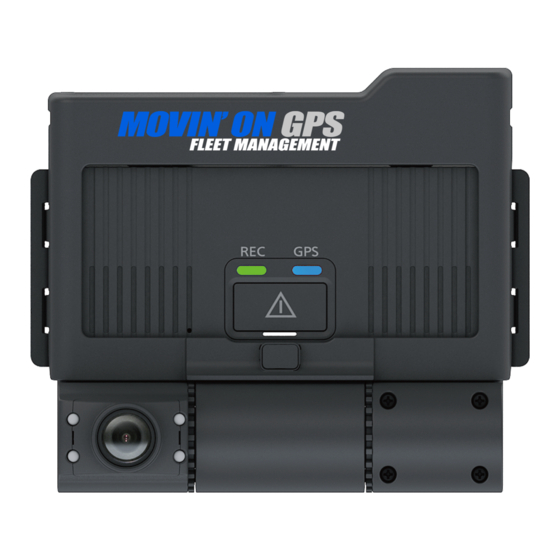

Movin' On GPS MOSS DC3 User Manual

3-ch drivecam for the professionals
Hide thumbs

Advertisement

Quick Links

Download this manual
3-Ch Drivecam for the Professionals
MOSS DC3

Advertisement

loading
Need help?

Need help?

Do you have a question about the MOSS DC3 and is the answer not in the manual?

Questions and answers

Related Manuals for Movin' On GPS MOSS DC3

Summary of Contents for Movin' On GPS MOSS DC3

  • Page 1 3-Ch Drivecam for the Professionals MOSS DC3...
  • Page 2 MOSS DC3 GPS Receiver Cable Noise shield cable GPS Cradle GNSS Worldwide GPS receiver Double-sided Adhesive Tape Thermostable 3M tape InCabin View Camera Operation LED Lamp UL94-V0 PC Material Forward Facing Camera Fire-Protection level High definition 6 classes lens [ Outside Vehicle View ]...
  • Page 3 Specifications Category Descriptions Remarks Coretex-A8 (800MHz) processor Linux ARM 1st-Front 1.3 MEGA Pixels HD CMOS Sensor 1280 x 720p (HD) 2nd-InCabin 1.3 MEGA Pixels HD CMOS Sensor 1280 x 720p (HD) Camera 3rd-Rear NTSC Analog D1 composite (D1 720 x 480p), Optional camera Camera Angle 114.39(H), 61.98(V), 134.4(D)

  • Page 4: Package Contents

    Assembled parts: 180g Warranty Period 1 year after purchase Market defect rate Under 0.25% UL Standard UL94-V0 Certificate RoHs, CE, FCC MOSS DC3 Package Contents / Main Device GPS Cradle Tamper-proof Case Hexagonal Screw Hexagonal L-Wrench User Guide Rear Camera (optional)

  • Page 5: Optional Accessories

    - UL Approved Rear view camera. - MOSS DC3 drive recorder is able to use 3 Channel recording with additional rear camera use. - Camera cable length is around 22 meters for HD truck. - IP67 grade, 170(d) wide angle, IR camera - Back-gear signal output - Able to connect with rear view camera currently used in vehicle.

  • Page 6: Cycle Recording

    Key Features / MOSS DC3 Automatic Motion-Detected Recording Automatic Emergency Recording When an impact is detected by the embedded G-sensor, the The vehicle is safely managed by detecting motion when scenes from 15 seconds before the accident till 15 seconds parked and recording the surrounding situation.
  • Page 7 MOSS DC3 is designed for 100% darkness environment recor- MOSS DC3 is designed for all types of windshields via ding of InCabin area for the safety of the driver. MOSS DC3 has rotatable camera modules Front/InCain’s camera modules wide and clear angle IR recording in the darkness.
  • Page 8 High Temperature performance UL94-V0 Anti-Fire base material MOSS DC3 is designed for operating performance in High MOSS DC3 is designed case & PCB by fire retardant material Temperature environments. The product has passed based on UL94-V0 for Fire-protection. temperature tests between -20°C to +85°C while operating for 96 hours.

  • Page 9: Key Features

    Key Features / MOSS DC3 Tamperproof housing plate 3. Lock up to All micro SDHC card slots 1. Joint Tamperproof case with 2. Lock up to All cables Special shape screw connection & angles of Cameras Uni-body angle cradle for all type Vehicles...
  • Page 10 MOSS DC3 Overall Solution / Overall Solution / MOSS DC3 20M External Camera Tamperproof Kit Management Video-out Monitor Emergency Event Button External GPS Antenna 1TB SSD/HDD (coming 2016)
  • Page 11 FMS Solution / MOSS DC3 FMS Cloud Account Provide (2016) Co-location Server DB 4G/LTE modem 802.11/a/b/g/n Wi-Fi modem 20M External Camera Wi-Fi Direct USE Video-out Monitor 802.11/a/b/g Wi-Fi OBDII SOS Foot Switch External GPS Antenna 1TB HDD (2016)
