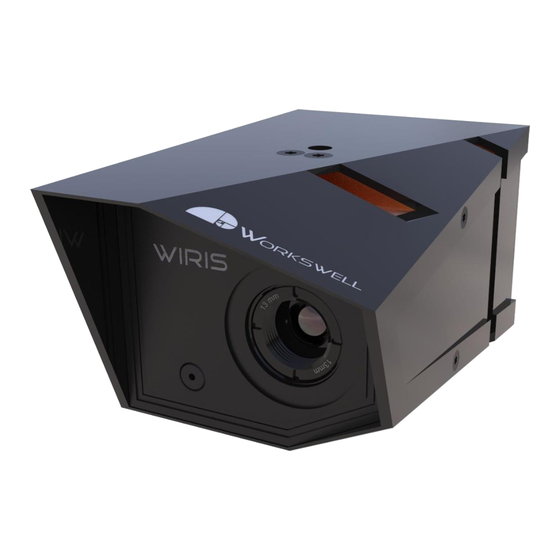

User Manual
FW version: 1.2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wiris and is the answer not in the manual?

Questions and answers

Related Manuals for WORKSWELL Wiris

Summary of Contents for WORKSWELL Wiris

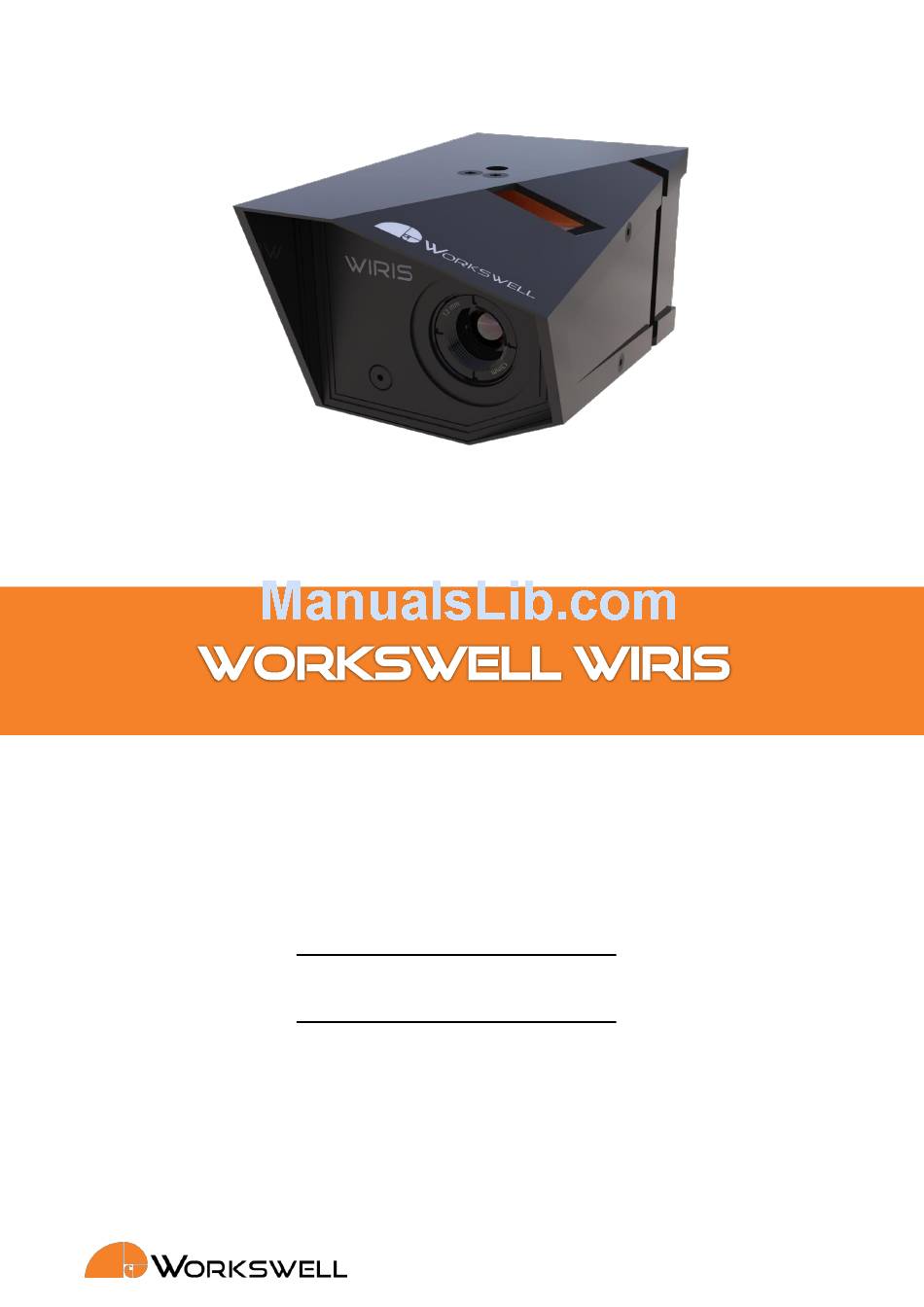

  • Page 1 User Manual FW version: 1.2.0...
  • Page 2 (security) modes, which can be combined with a visible spectrum camera. Workswell WIRIS is designed in order to allow controlling all its functions during a flight. The system has eight digital inputs, which are fully compatible with standard RC receivers. Two inputs serve as navigation buttons in the menu, the rest are shortcuts for the selected functions (image capturing, video recording, palette switching, zoom, …).
  • Page 3 Workswell s.r.o. will, at its option, repair or replace any such defective product free of charge if, upon inspection, it proves to be defective in material or workmanship and provided that it is returned to Workswell within the said twelve-month period.

  • Page 4: Table Of Contents

    Digital Inputs ..............................15 System appearance ............................17 System Menu (Settings) ........................... 20 USB flash disk menu ............................33 Data transfer ..............................34 Firmware update ............................. 36 Workswell CorePlayer ............................. 38 Environment Conditions ..........................39 Infrared camera behaviour ..........................40 Maintanance ..............................41...

  • Page 5: Warnings And Cautions

    Do not use the Workswell WIRIS system in temperatures more than +50°C (+122°F). High temperatures can cause damage to the camera.  Do not use the Workswell WIRIS system in temperatures less than -15°C (+5°F). Low temperatures can cause damage to the camera. ...

  • Page 6: Package Content

    Package Content Package Inside the Workswell WIRIS package you will find following items: Content  WIRIS head with chosen lens  Calibration certificate  USB Flash drive 32 GB  HDMI cable  Power supply cable  Servo cable (2x) ...

  • Page 7: User Information

    Updates The primary aim of Workswell s.r.o. company is to supply their products in a way to meet the current needs of its users and at the same time to remove all the weaknesses that were found in their use as soon as possible.

  • Page 8: Help And Faq

    While looking for a solution of any technical problem we recommend following Instructions these steps:  try to find an answer by searching this User Manual  contact your dealer,  search Workswell s.r.o. website at http://www.drone-thermal- camera.com,  send an email to support@workswell.eu Revision 1.0 EN, 22.2.2016 Phone numbers...

  • Page 9: System Assembly

    15 seconds. Revision 1.0 EN, 22.2.2016 Phone numbers E-mail and Web Headquarters All pictures are only for illustration. +420 725 877 063 info@workswell.eu Reg. No.: 29048575 Libocka 653/51b Real values may vary. +420 725 955 464 www.workswell.eu VAT No. CZ29048575...
  • Page 10 Connecting the The Workswell WIRIS system is equipped with a standard HDMI video output. It can be system to a connected to any wireless video link or a display with HDMI input that supports wireless video resolution of 1024 x 600 pixels. It is recommended to use a display with 16:9 aspect link or display ratio.
  • Page 11 Zoom + Zoom - Connecting the The Workswell WIRIS system can be powered through a 7-28 V DC connector on the power supply back panel. The back panel DC connector is compatible with a 5.5 mm/OD (outer diameter) and 2.5 mm/ID (inner diameter) plug, where the inner contact is +7-28V V DC and the shell is GND.
  • Page 12 Infinity focus is recommended for most of the applications. Revision 1.0 EN, 22.2.2016 Phone numbers E-mail and Web Headquarters All pictures are only for illustration. +420 725 877 063 info@workswell.eu Reg. No.: 29048575 Libocka 653/51b Real values may vary. +420 725 955 464 www.workswell.eu VAT No. CZ29048575...
  • Page 13 Mounting the The Workswell WIRIS system can be mounted to a drone using the 1/4-20 UNC thread system (on bottom or top side). Revision 1.0 EN, 22.2.2016 Phone numbers E-mail and Web Headquarters All pictures are only for illustration. +420 725 877 063 info@workswell.eu...
  • Page 14 The Workswell WIRIS system is equipped with GPS/MAVLINK interface. Compatible MAVLINK GPS can be connected directly or via device that supports Mavlink. As for the physical layer, the Workswell WIRIS system is designed for operating voltage of 5 V, although it is tolerant to 3.3 V. GPS:...

  • Page 15: Digital Inputs

    Digital Inputs General The Workswell WIRIS system is equipped with 8 digital inputs. These inputs allow Description the user to control the system remotely via standard RC system or control unit of the UAV. First 2 digital inputs are fixed and serve as a navigation in system menu. These 2 inputs work in so called PWM mode, which means, that PWM input from standard RC receiver is expected.
  • Page 16 Trigger mode If digital input is in trigger mode, the function is activated on every falling edge or connecting to the GND. This can be used for controlling the Workswell WIRIS system directly from UAV control unit. Note: Do not use higher voltage than 5 V.

  • Page 17: System Appearance

    System appearance General The Workswell WIRIS system will start in few seconds after pressing the on/off Description button. Once the system is loaded, following screen will appear. This screen consists of the following parts. Main camera window MAIN CAMERA WINDOW shows live stream from the selected camera (infrared or visible spectrum).
  • Page 18 Revision 1.0 EN, 22.2.2016 Phone numbers E-mail and Web Headquarters All pictures are only for illustration. +420 725 877 063 info@workswell.eu Reg. No.: 29048575 Libocka 653/51b Real values may vary. +420 725 955 464 www.workswell.eu VAT No. CZ29048575...
  • Page 19 Revision 1.0 EN, 22.2.2016 Phone numbers E-mail and Web Headquarters All pictures are only for illustration. +420 725 877 063 info@workswell.eu Reg. No.: 29048575 Libocka 653/51b Real values may vary. +420 725 955 464 www.workswell.eu VAT No. CZ29048575...

  • Page 20: System Menu (Settings)

    System Menu (Settings) General The Workswell WIRIS system offers a huge amount of options and customization. description All the configuration can be done using the SYSTEM MENU. SYSTEM MENU can be opened by moving the joystick to right side (if connected as recommended) or by clicking ENTER button (if standard USB keyboard connected).
  • Page 21 Cancel. Revision 1.0 EN, 22.2.2016 Phone numbers E-mail and Web Headquarters All pictures are only for illustration. +420 725 877 063 info@workswell.eu Reg. No.: 29048575 Libocka 653/51b Real values may vary. +420 725 955 464 www.workswell.eu VAT No. CZ29048575...
  • Page 22 Advanced menu is available. Revision 1.0 EN, 22.2.2016 Phone numbers E-mail and Web Headquarters All pictures are only for illustration. +420 725 877 063 info@workswell.eu Reg. No.: 29048575 Libocka 653/51b Real values may vary. +420 725 955 464 www.workswell.eu VAT No. CZ29048575...
  • Page 23 Isotherms settings – BELOW Revision 1.0 EN, 22.2.2016 Phone numbers E-mail and Web Headquarters All pictures are only for illustration. +420 725 877 063 info@workswell.eu Reg. No.: 29048575 Libocka 653/51b Real values may vary. +420 725 955 464 www.workswell.eu VAT No. CZ29048575...
  • Page 24 Above & Below mode. Revision 1.0 EN, 22.2.2016 Phone numbers E-mail and Web Headquarters All pictures are only for illustration. +420 725 877 063 info@workswell.eu Reg. No.: 29048575 Libocka 653/51b Real values may vary. +420 725 955 464 www.workswell.eu VAT No. CZ29048575...
  • Page 25 Displays temperature of the crosses Revision 1.0 EN, 22.2.2016 Phone numbers E-mail and Web Headquarters All pictures are only for illustration. +420 725 877 063 info@workswell.eu Reg. No.: 29048575 Libocka 653/51b Real values may vary. +420 725 955 464 www.workswell.eu VAT No. CZ29048575...
  • Page 26 Emissivity, temp. range, reflected, atmospheric temperature Revision 1.0 EN, 22.2.2016 Phone numbers E-mail and Web Headquarters All pictures are only for illustration. +420 725 877 063 info@workswell.eu Reg. No.: 29048575 Libocka 653/51b Real values may vary. +420 725 955 464 www.workswell.eu VAT No. CZ29048575...
  • Page 27 Measurement menu Revision 1.0 EN, 22.2.2016 Phone numbers E-mail and Web Headquarters All pictures are only for illustration. +420 725 877 063 info@workswell.eu Reg. No.: 29048575 Libocka 653/51b Real values may vary. +420 725 955 464 www.workswell.eu VAT No. CZ29048575...
  • Page 28 CELSIUS, FAHRENHEIT or KELVIN Revision 1.0 EN, 22.2.2016 Phone numbers E-mail and Web Headquarters All pictures are only for illustration. +420 725 877 063 info@workswell.eu Reg. No.: 29048575 Libocka 653/51b Real values may vary. +420 725 955 464 www.workswell.eu VAT No. CZ29048575...
  • Page 29 CAPTURE function is activated. It also allows the user to set periodic capturing. Save image menu SAVE IMAGES menu consists of following items: RADIOMETRIC RAW JPEG Includes temperature data (Workswell CorePlayer compatible) NON-RADIOMETRIC Standard JPEG without temperature information DIGITAL CAMERA Visible spectrum camera image Revision 1.0 EN, 22.2.2016...
  • Page 30 Opacity of isotherms Revision 1.0 EN, 22.2.2016 Phone numbers E-mail and Web Headquarters All pictures are only for illustration. +420 725 877 063 info@workswell.eu Reg. No.: 29048575 Libocka 653/51b Real values may vary. +420 725 955 464 www.workswell.eu VAT No. CZ29048575...
  • Page 31 System Revision 1.0 EN, 22.2.2016 Phone numbers E-mail and Web Headquarters All pictures are only for illustration. +420 725 877 063 info@workswell.eu Reg. No.: 29048575 Libocka 653/51b Real values may vary. +420 725 955 464 www.workswell.eu VAT No. CZ29048575 Prague, Czech Republic...
  • Page 32 Formats internal memory (all data will be lost) SET DEFAULT SETTINGS Sets the system to factory settings About ABOUT category displays information about system (such as firmware version) and information about Workswell s.r.o. company. Revision 1.0 EN, 22.2.2016 Phone numbers E-mail and Web Headquarters All pictures are only for illustration.

  • Page 33: Usb Flash Disk Menu

    Formats USB flash disk. All data on the disk will be lost. Revision 1.0 EN, 22.2.2016 Phone numbers E-mail and Web Headquarters All pictures are only for illustration. +420 725 877 063 info@workswell.eu Reg. No.: 29048575 Libocka 653/51b Real values may vary. +420 725 955 464 www.workswell.eu VAT No. CZ29048575...

  • Page 34: Data Transfer

    In order to download these data from Workswell WIRIS system, supplied USB flash disk has to be connected to USB port of Workswell WIRIS system. Once the USB flash disk is connected, the USB FLASH DISK MENU appears.
  • Page 35 Once the COPY or MOVE option is selected, the user is asked to choose which folders should be copied or moved. Folder is created on every start of Workswell WIRIS system. Folders to be copied The copy/move process starts when the user clicks COPY SELECTED.

  • Page 36: Firmware Update

    Firmware update General Workswell WIRIS system is supplied with the latest firmware. As time goes on, Instructions newer firmware will appear in order to bring the user new functions, improve the old ones or fixing bugs. For this purpose, the system allows the user update the firmware using USB flash disk.
  • Page 37 Update key The user should upload the update key to the Workswell firmware update website upload within 24 hours. The update file may not be generated if older update key is used. Update key upload – website form Firmware If there is update file available on a USB flash disk, the user is offered to update update process the firmware.

  • Page 38: Workswell Coreplayer

    The Workswell WIRIS system can capture radiometric images and record Instructions radiometric video compatible with Workswell CorePlayer (supplied with Workswell WIRIS system). Workswell CorePlayer offers the user a huge amount of functions for editing and processing radiometric images and videos. Workswell CorePlayer is available at www.workswell.eu/CorePlayer...

  • Page 39: Environment Conditions

    -30°C to +60°C range Humidity 5-95%, noncondensing Maximum irradiance 100W/cm If you use the product in conflict with these conditions, damage to the Workswell WIRIS system can occur. Revision 1.0 EN, 22.2.2016 Phone numbers E-mail and Web Headquarters All pictures are only for illustration.

  • Page 40: Infrared Camera Behaviour

    The sensor starts warming-up automatically when the user turns Workswell WIRIS system on. The infrared camera is usually ready in less than 5 minutes. During the warm-up process the accuracy of the measured temperature data is lower and various defects can appear in the thermal image.

  • Page 41: Maintanance

    Maintanance Cleaning the Liquids: WIRIS head and Use one of these liquids:  cables Warm water  A weak detergent solution Equipment: A soft cloth Procedure: 1) Soak the cloth in the liquid. 2) Twist the cloth to remove excess liquid.
  • Page 42 Adam Švestka, MSc., MBA Libocka 653/51b Meziricska 100 Mobile: +420 725 955 464 160 00, Prague 6 756 61, Roznov p. R. E-mail: adam.svestka@workswell.cz Czech Republic Czech Republic Company contact details Univerzitni 1 Mobile: +420 725 877 063 010 08, Zilina E-mail: info@workswell.eu...
