REPLACEMENT AND ADJUSTMENT OF THE NEEDLE THREADER PLATE

If the hook of the threader plate is damaged, change and adjust the part as follows:
TO CHANGE THE THREADER PLATE:
TO REMOVE:

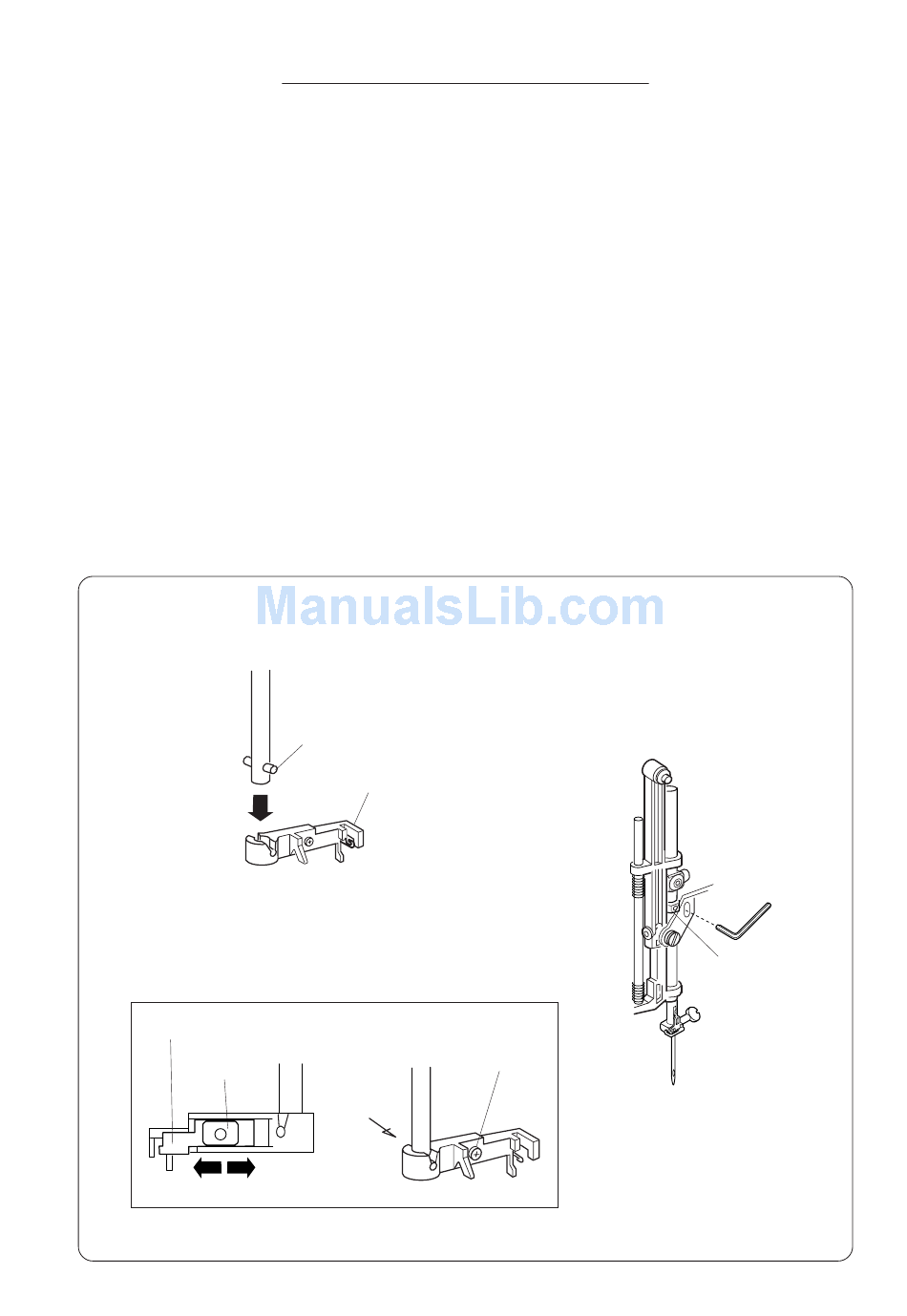

1. Push down the needle threader knob and pull the threader plate supporter (A) down to remove it (see
FIG 1).
2. To install the needle threader plate, line the groove up with the pin (B) and push it up to snap fit.
TO ADJUST THE THREADER PLATE POSITION:
1. If the hook on the threader plate touches the left or right side of the needle hole, loosen setscrew (C) and
adjust the hook position (FIG 2).
2. If the hook on the threader plate touches the top or bottom side of the needle hole, loosen setscrew (D)
and adjust the hook position (FIG.3)
Replacing the needle threader cover
(with the threader plate attached
Adjustment of left or right direction
Threader plate
Nut
MECHANICAL ADJUSTMENT
FIG. 1
Pin (B)
Threader plate
supporter (A)
View from "X"
X
Vertical adjustment
FIG. 2
Setscrew (C)
17
MO200
5200QDC
FIG. 3
Setscrew (D)
