Summary of Contents for Exor eX710
- Page 1 Series Operating Instructions Basic User’s Manual for eX700 Series Touchscreen Products Exor International S.p.A. MANUGENEX7xx Ver. 2.00...
- Page 2 Copyright © 2017 Exor International S.p.A. – Verona, Italy Subject to change without notice The information contained in this document is provided for informational purposes only. While efforts were made to verify the accuracy of the information contained in this documentation, it is provided “as is”...
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction Safety Guide 1 Product Overview 2 Standards and Approvals 3 Technical Specifications 4 Technical Data 4.1 Dimensions 4.2 Installation Environment 4.3 Safety instruction 4.4 Installation Procedure 5 Connections 5.1 Serial Port 5.2 Ethernet Port 5.3 Optional plugin module 6 Power Supply, Grounding and Shielding 7 Battery... -
Page 4: Introduction
The operational guidelines described below is information which relates to the device, installation, tran- sportation, storage, assembly, use and maintenance. This Operating Instruction describes the main features of the Exor operator panels. The Manual refers to the following models: eX705 Operator interface with TFT color 5” widescreen display multitouch projected capacitive touchscreen eX707 Operator interface with TFT color 7”... -
Page 5: Safety Guide
Safety Guide Safety Guide The manual contains safety standards that must be respected for the personal safety and to avoid damage. Indications of attention are divided into three levels of severity: DANGER: indicates a failure to observe safety rules and such failure may cause death or serious injuries. DANGER ATTENTION: indicates a failure to observe safety rules and that deficiency may cause damage. -
Page 6: Product Overview

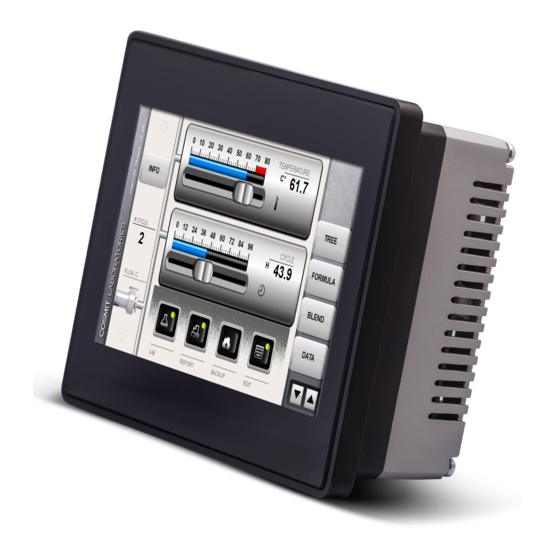

Product Overview 1 Product Overview eX Series 700 HMI products combine state-of-the-art connectivity features and top performance in a great design. Products have been designed as IoT edge devices with the combination of a powerful controller with networking capability (up to 3 Ethernet networks) and outstanding communication options including client/server OPC UA. -
Page 7: Standards And Approvals
Standards and Approvals 2 Standards and Approvals The products have been designed for use in an industrial environment in compliance with the 2014/30/ EU EMC Directive. The products have been designed in compliance with: EN 61000-6-4 CISPR 22 Class A CISPR 16-2-3 EN 61000-6-2 EN 61000-4-2... - Page 8 An example of this plate is shown in the figure below: Note: the eX710 label is used as an example for eX700 Series product model name...
-
Page 9: Technical Specifications
Fuse Automatic Serial Port RS-232, RS-485, RS-422 software configurable Flash 4GB for eX705, eX707, eX710, 8GB for eX715, eX721 512MB for eX705, 1GB for eX707, eX710, 2GB for eX715, eX721 Hardware clock Clock/Calendar with back-up battery Accuracy RTC (at 25°C) <100ppm... - Page 10 10 cycles (50Hz); 12 cycles (60Hz); 70% duration: 25 cycles (50Hz); 30 cycles (60Hz); Phase: 0°-180° Test executed on the 230Vac side of the Exor International S.p.A. Power Supply EN 61000-4-11 Port: DC mains; Level: 0% duration: 10ms 20 spaces by 1s...
-
Page 11: Technical Data
Technical Data 4 Technical Data Model eX705 eX707 Display / Backlight TFT Color / LED TFT Color / LED Colors Resolution 800X480 800X480 Diagonal (inches) 5” widescreen 7” widescreen Dimming Flash SD card slot 512MB RS-232,RS-485, RS-422 RS-232,RS-485, RS-422 Serial Port software configurable software configurable Ethernet port... - Page 12 Technical Data Model eX710 eX715 Display / Backlight TFT Color / LED TFT Color / LED Colors Resolution 1280X800 1366X768 Diagonal (inches) 10.1” widescreen 15.6” widescreen Dimming Flash SD card slot RS-232,RS-485, RS-422 RS-232,RS-485, RS-422 Serial Port software configurable software configurable...
- Page 13 Technical Data Model eX721 Display / Backlight TFT Color / LED Colors Resolution 1920X1080 Diagonal (inches) 21.5” widescreen Dimming Flash SD card slot RS-232,RS-485, RS-422 Serial Port software configurable 2 10/100Mb with integrated Ethernet port switch, 1 10/100/1000Mb 2 Host interface version 2.0 USB port max.
-
Page 14: Dimensions
Technical Data 4.1 Dimensions Cut out MODEL 147mm/5.78” 107mm/4.21” 136mm/5.35” 96mm/3.78” 56mm/2.40” 8mm/0.31” eX705 MANUGENEX7xx Operating Instructions VER 2.00... - Page 15 Technical Data Cut out MODEL 187mm/7.36” 147mm/5.79” 176mm/6.90” 136mm/5.35” 47mm/1.85” 8mm/0.31” eX707 282mm/11.10” 197mm/7.80” 271mm/10.67” 186mm/7.32” 56mm/2.20” 8mm/0.31” eX710 422mm/16.60” 267mm/10.50” 411mm/16.18” 256mm/10.00” 56mm/2.20” 8mm/0.31” eX715 552mm/21.73” 347mm/13.66” 541mm/21.30” 336mm/13.22” 56mm/2.20” 8mm/0.31” eX721 MANUGENEX7xx Operating Instructions VER 2.00...
-
Page 16: Installation Environment
Technical Data 4.2 Installation Environment Avoid prolonged exposition to direct sunlight to avoid the risk of overheating the device. The equipment is not intended for installation in contact with corrosive chemical compounds. Check the resistance of the front panel to a specific compound before installation. Do not use tools of any kind (screwdrivers, etc.) to operate the touch screen of the panel. -
Page 17: Safety Instruction
Technical Data 4.3 Safety instruction For all installation notes, please refer to the Installation Guide provided with the product. 4.4 Installation Procedure Place the fixing brackets contained in the fixing kit as shown in figure CAUTION Tightening torque: 130Ncm or screw each fixing screw until the bezel corner gets in contact with the panel. -
Page 18: Connections
Connections 5 Connections eX705 Fig. 5.1 1. USB Port 2. Power Supply 3. Serial port 4. Ethernet Port 0 (10/100Mb) 5. Ethernet Port 1 (10/100Mb) 6. Expansion slot for Plugin module 7. SD Card Slot MANUGENEX7xx Operating Instructions VER 2.00... - Page 19 Connections eX707, eX710, eX715, eX721 Fig. 5.2 1. USB port 2. Ethernet port 2 (10/100Mb) 3. Ethernet port 1 (10/100Mb) 4. Serial Port 5. Ethernet port 0 (10/100/1000Mb) 6. Power Supply 7. 2x Expansion slot for Plugin module 8. SD Card Slot...
-
Page 20: Serial Port
Connections 5.1 Serial Port The serial port is used to communicate with the PLC or with another type of controller. Different electrical standards are available for the signals in the PLC port connector: RS-232, RS-422, RS-485. The serial port is software programmable. Make sure you select the appropriate interface in the pro- gramming software. -
Page 21: Optional Plugin Module
5.3 Optional plugin module eX Series 700 panels have several optional plugin module, multiple modules configurations are possible. Slot#2 and Slot#4 are available only if plugin module has the “bus extension connector”. Each slot carries three communication channels: • 1 serial interface •... - Page 22 Below you can find relation between modules and max number of modules that can be used into eX series 700 panels, based on their Interface Type: Module Application Max Modules Interface Type Bus Extension connector PLCM01 PLCM01-NE PLCM02 Serial PLCM03 Serial RS232 Serial PLCM04...
-
Page 23: Power Supply, Grounding And Shielding
Power Supply, Grounding and Shielding 6 Power Supply, Grounding and Shielding The power supply terminal block is shown in the figure below. Fig. 6.1 3 conductor 1,5mmq wire size minimum, minimum temperature conductor rating 105°C. Note: Ensure that the power supply has enough power capacity for the operation of the equipment. The unit must always be grounded to earth with 1,5mmq wire size minimum. -
Page 24: Battery
At first installation must be charged for 48 hours. When the battery is fully charged, it ensures a period of 3 months of data back-up at 25°C. Battery Fig. 7.1: eX705 Battery Fig. 7.2: eX707, eX710, eX715, eX721 ATTENTION Dispose of batteries according to local regulations. MANUGENEX7xx Operating Instructions VER 2.00... -
Page 25: Special Instruction For Use
Cleaning Faceplates / Getting Started 8 Special Instruction for Use - Install the HMI device according to the accompanying installation instructions. - Ground the HMI device according to the accompanying installation instructions. - Only qualified personnel may install the HMI device or repair it. - Ensure that the aeration holes are not covered. -
Page 26: System Settings
System Settings 10 System Settings eX Series 700 HMI products have a system settings interface to allow configuration of system options. The user interface of System Settings is based on HTML pages accessible from the HMI screen or remotely using a Web browser Chrome v44 or higher using port 443. To connect enter the address https://IP/machine_config where IP is the IP address of the HMI device. - Page 27 System Settings Activation of Systems Settings in System Mode: Normal operation If JMobile runtime is not running: Press “System Setting” button on the device screen to recall System Settings in User Mode. Select “Restart” -> “Config OS” to reboot in System Mode. If JMobile runtime is running: recall context menu and select “System Settings”.
-
Page 28: Unpacking And Packing Instructions
Unpacking and Packing Instructions Unpacking and Packing Instructions Fig. 11.1: eX705, eX707, eX710 Fig. 11.2: eX715, eX721 to repack the unit, please follow the instructions backwards. MANUGENEX7xx Operating Instructions VER 2.00...
