SEAS 4040 Installation Manual

Line amplifier for 48 outlets; 36/44 db

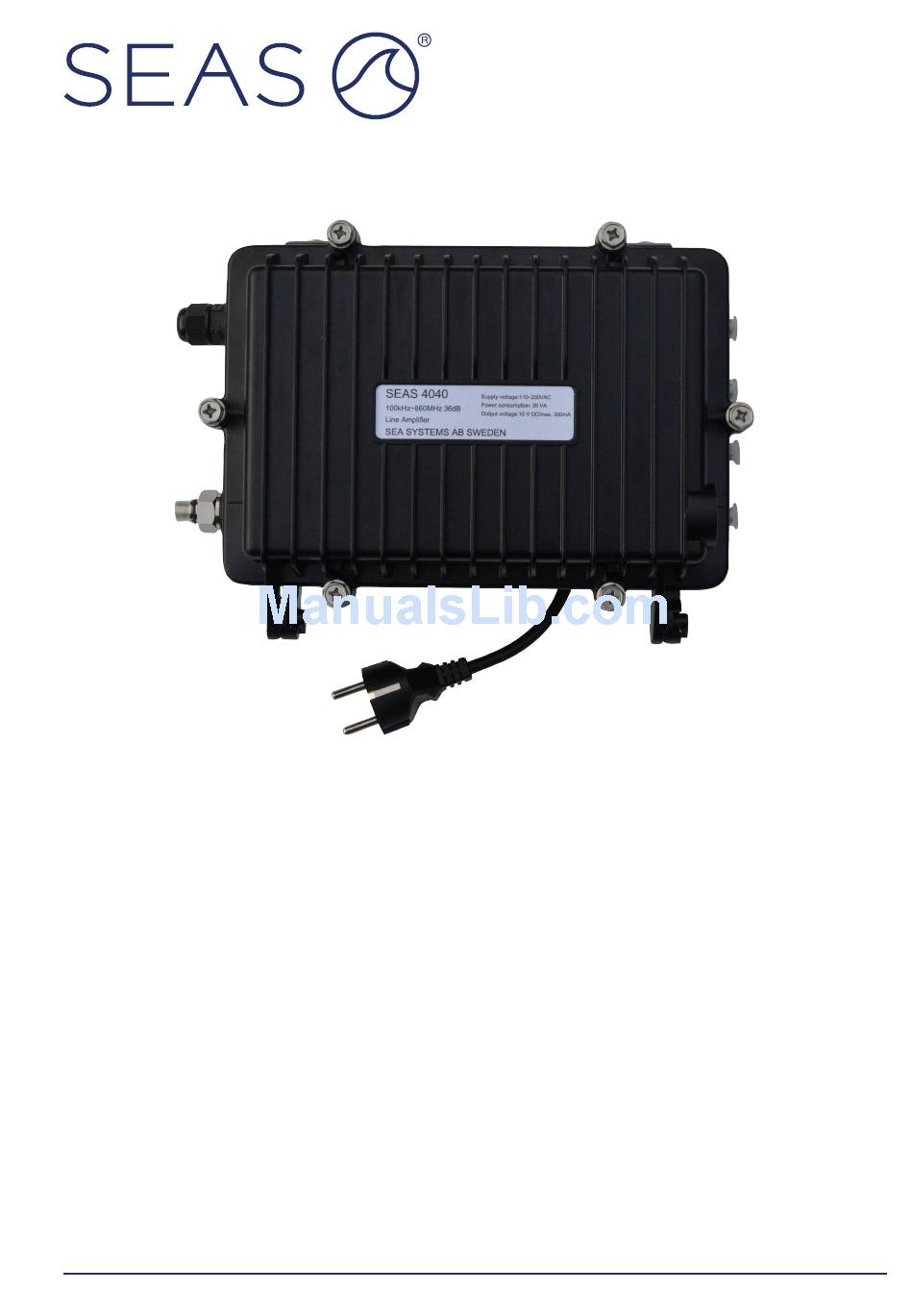

SEAS 4040

Line amplifier for 48 outlets; 36/44 dB

SEAS 4040 for 48 outlets (36/42dB)

Size: (L) 265 x (W) 190 x (H) 110 mm

FEATURES

The SEAS 4040 power supply and amplifier is designed to supply power to an active

antenna as well as amplifying radio and TV signals for distribution in networks. The

amplifier is equipped with automatic level control (ALC) that reduces gain in case of over-

load. The power supply accepts 110 to 230VAC. The unit is designed for indoor use only.

The attenuation of each band can be separately controlled.

Like all other SEAS products, the SEAS 4040 series are designed to meet the special re-

quirements of world-wide marine use.

- 47~860 MHz amplifier, forward gain is 40dB

- Plug-in modules design for easy installation.

- Plug-in ALC modules for wide range operation

- Wall mounting with brackets delivered with amplifier

- 4x outputs (3/8"-32 UNEF F-Female connectors)

SEAS 4040_Inst Manual Rev. 1.0.pdf

- 1/4 -

Sea Systems AB - Terminalgatan 19A - SE 235 39 Vellinge - Sweden

Tel.: +46 40420250 - www.seasystems.se

Table of Contents

Do you have a question about the 4040 and is the answer not in the manual?

Page 1 The power supply accepts 110 to 230VAC. The unit is designed for indoor use only. The attenuation of each band can be separately controlled. Like all other SEAS products, the SEAS 4040 series are designed to meet the special re- quirements of world-wide marine use.
Page 2 SEAS 4040 Line amplifier for 48 outlets; 36/44 dB INSTALLATION MANUAL TECHNICAL SPECIFICATIONS MECHANICAL MEASUREMENTS Metal Housing BLOCK DIAGRAM 100-230 VAC - 2/4 - Sea Systems AB - Terminalgatan 19A - SE 235 39 Vellinge - Sweden Tel.: +46 40420250 - www.seasystems.se...
Page 3: Technical Specification
SEAS 4040 Line amplifier for 48 outlets; 36/44 dB INSTALLATION MANUAL TECHNICAL SPECIFICATION Size (H) 265 x (W) 190 x (D) 110 mm Housing Aluminium Die-casting, Finishing: Black painted Connectors IN: 5/8”-24 NEF F-Female to 3/8”-32 UNEF F-Female Adaptor OUT: F-Female Connector (4 pcs) Weight 3.50 Kg...
Page 4 F-connector stripping approved/qualified installer, and only indoor installation is approved. The power supply in SEAS 4040 is equipped with CE approved power cable as standard. The unit shall be mounted in a well ventilated enviroment. The in and out are normally mounted with F-connectors.The screen of the coaxial cable...
