SEAS 4030
Line amplifier for 32 outlets and 30 dB

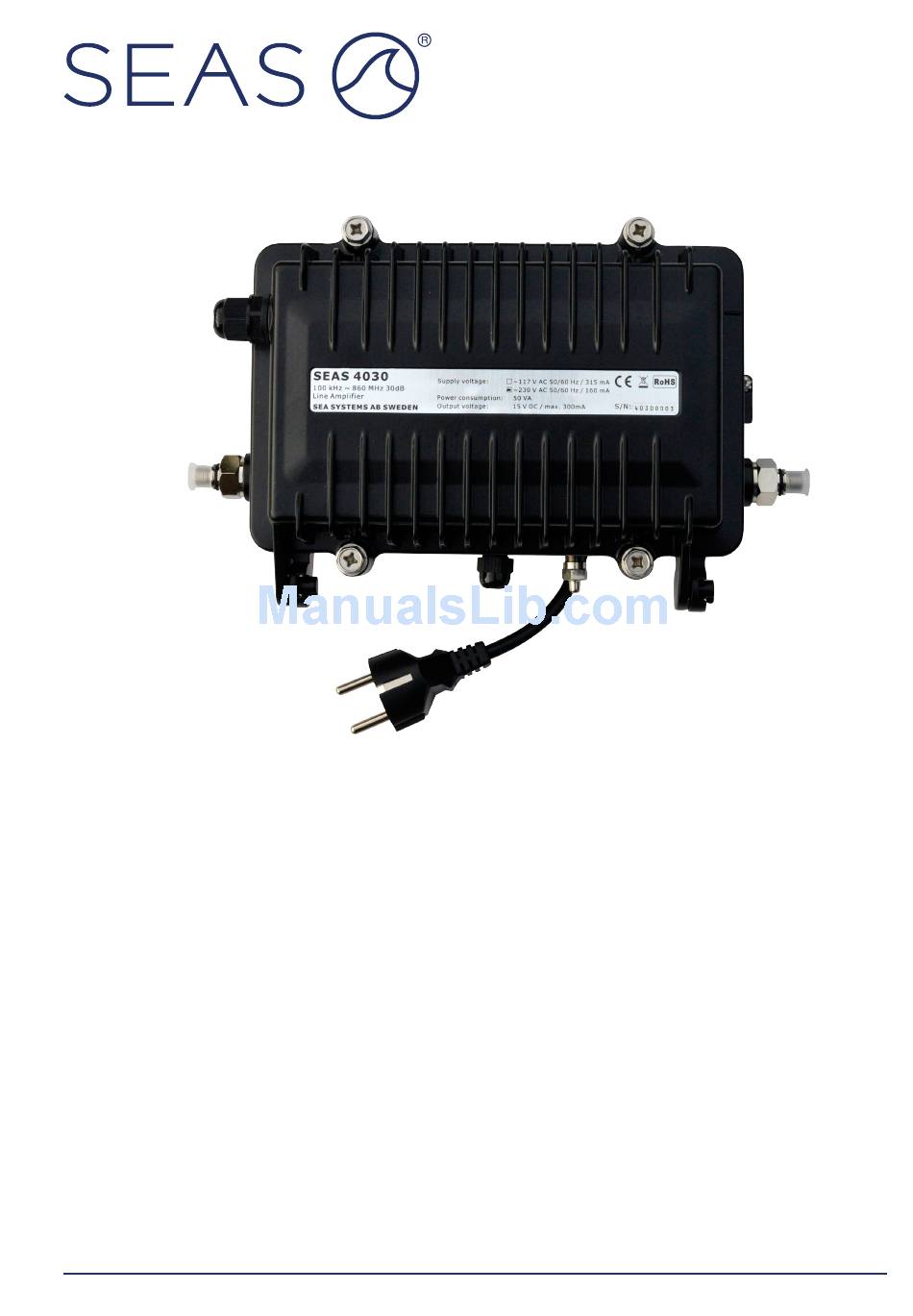

INSTALLATION MANUAL

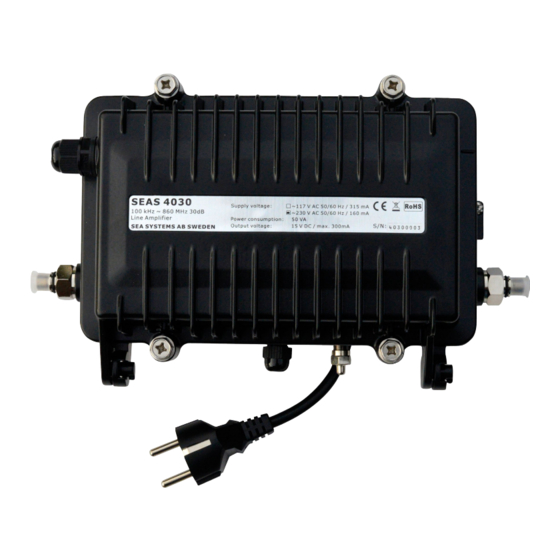

SEAS 4030 for 32 outlets (30dB)
Size: (L) 230 x (W) 165 x (H) 82 mm

FEATURES

The SEAS 4030 power supply and amplifier is designed to amplify radio and TV signals for
distribution in a medium-sized network. SEAS 4030 with an additional RA-18B plug-in mod-
ule can also be used for interactive systems.
The power supply accepts 230VAC. The unit is designed for indoor use only.
Like all other SEAS products, the SEAS 4030 is designed to meet the special requirements
of world-wide marine use. See overleaf for further details of specific applications.
SEAS 4030_Inst Manual Rev. 1.0.pdf
- 1/4 -
Sea Systems AB - Terminalgatan 19A - SE 235 39 Vellinge - Sweden
Tel.: +46 40420250 - www.seasystems.se
