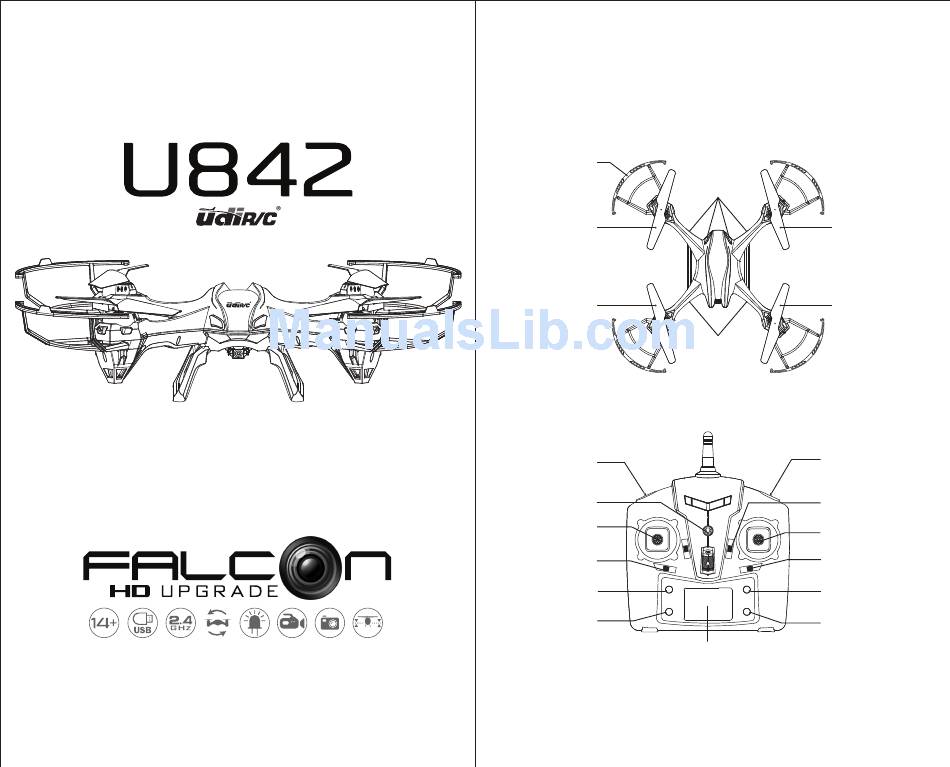

PRODUCT PARTS

1. Quadcopter

Blade Guard

LED Signal Lights

White Blade A

Clockwise

Black Blade B

Counter-clockwise

2. Controller

Left Trigger

(360° Flip Mode on/oﬀ)

Power Indicator

Left Stick

(throttle and rotate)

Trim rotation

Camera Button

(take photo)

Video Button

(recording on/oﬀ)

LCD Screen

White Blade B

Counter-clockwise

Black Blade A

Clockwise

LED

Running Lights

Right Trigger

ignal lights on/oﬀ)

Right Stick

(move left / right and

forward / back)

Trim forward / back

Trim left / right

360° Eversion

(instant ﬂip)

Mode

(1: beginner, 2: expert)

Table of Contents

Summary of Contents for Falcon U842

Page 1 PRODUCT PARTS 1. Quadcopter Blade Guard LED Signal Lights White Blade A White Blade B Clockwise Counter-clockwise Black Blade A Black Blade B Clockwise Counter-clockwise Running Lights 2. Controller Left Trigger Right Trigger (360° Flip Mode on/oﬀ) ignal lights on/oﬀ) Right Stick Power Indicator (move left / right and...
Page 2 PRECAUTIONS 1. The blade guards are removable. To install each blade guard, press the square area at the bottom of the guard against the matching section of the copter. Use the supplied screws to attach each of the 4 guards. 1.This product is only suitable for competent persons age 14+.
Page 3 3. Connect the Battery *Do not expose the charged battery to high temperatures, such as ﬂames or near *For safety, make sure the switch beneath the copter is electronic devices. This may cause damage or explosion. in the OFF position before you electrically connect the *Make sure all batteries are connected in the proper orientation to avoid damage battery cables.
Page 4 3. Move Left / Right 3. Now turn quadcopter ON by ﬂipping the switch underneath the quadcopter to the ON position. After about 3 second the controller will beep “di do di”. Push the RIGHT STICK left to move The lights on the copter will stop ﬂashing. This shows the quadcopter has left, or right to move right.
Page 5: Flight Modes
FLIGHT MODES VIDEO AND CAMERA OPERATION Press the Mode button on lower right of the controller to switch between Flight 1.If a storage card is not already installed, install a micro-SD (also called “TF”) Mode 1 (maximum Gyro-stability) and Mode 2 (3D expert control). The LCD storage card in the camera underneath the quadcopter.
Page 6 Below are spare parts for your selection which you may obtain from your local distributors. 1. Propellers replacement If the props damaged in the ﬂight, you can replace with attached spare props according to below steps. U842-01 U842-02 U842-03 A blades B blades...
