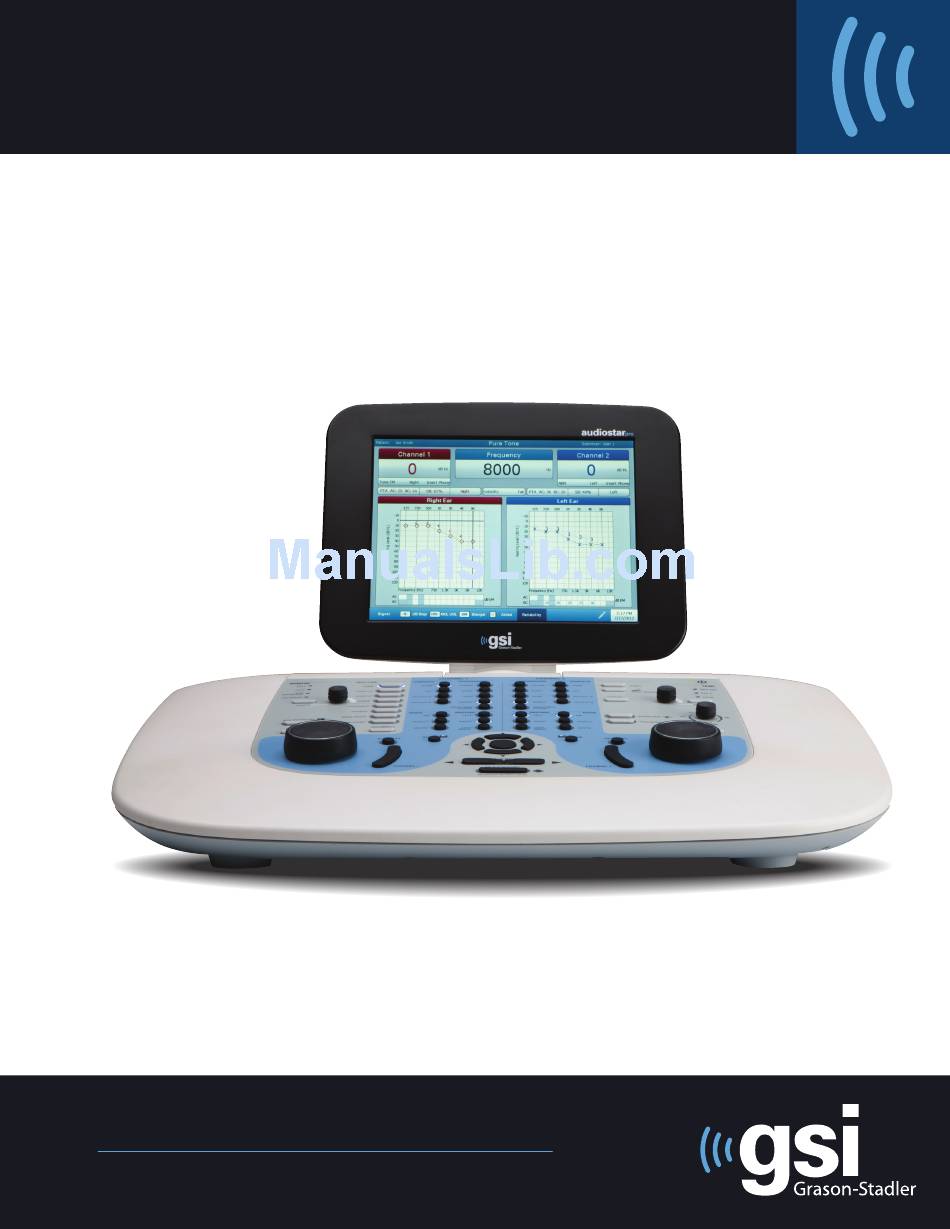

GSI AUDIOSTAR PRO
™

USER MANUAL

Part Number 2012-0100 Rev. A
Setting The Clinical Standard
www.grason-stadler.com
Grason-Stadler, 7625 Golden Triangle Drive, Suite F, Eden Prairie MN 55344
800-700-2282 • 952-278-4402 • fax 952-278-4401 • e-mail info@grason-stadler.com
