Doro CARE User Manual

Doro Care Smoke Detector
User guide
EN
©2016 Doro Care AB. All rights reserved.

Description of functions

Doro Care smoke detector is battery operated with a
built-in radio transmitter adapted for use with Doro Care
Carephones, Gloria+, Grace+, CareIP, CareMobile and
CareIP Mobile.
The smoke detector is easy to install and has an automatic
battery monitoring which will send a low battery message to the
Doro Care Carephone when it's time to replace the battery.

Activation of alarm

In case of smoke the warning signal from the smoke
detector is activated to alert the residents of the danger.
At the same time the built-in radio transmitter activates an
alarm in the Doro Care Carephone to summon help.

Pause function

To avoid any unwanted alarm ex. caused by cooking fumes,
the smoke detector's sensitivity can temporarily be reduced
by a simple push of the combined test / pause button.
The detector returns to normal sensitivity after about 10
minutes.

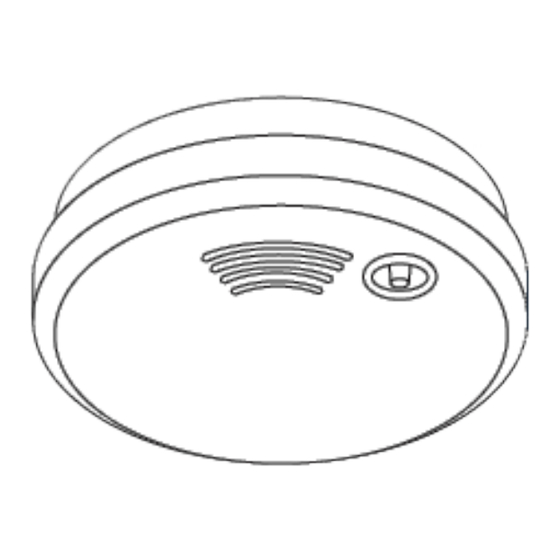

Overview

Test/pause button, control lamp

Location

The detector should be mounted in the ceiling outside the
bedroom or in stairwells. Make sure the smoke alarm sounds in
the bedroom when triggered.
Avoid placement in the kitchen or near the bathroom where
cooking fumes or steam may trigger the alarm.
Ar least 50 cm from wall
At least 15 cm from ceiling

Assembly / Installation

1.
Loosen the mounting plate on the back of the fire detector by
turning it counter-clockwise.
2.
Insert the battery and attach the battery connector.
3.
Activate the radio learning mode in the Carephone / System.
4.
Press and hold in the test / pause button for about 4 seconds
to activate the built-in radio transmitter.
5.
Confirm programming at the receiver unit.
6.
Configure the desired alarm type on the receiver.
7.
Perform a test of the entire alarm chain by holding the test /
pause button for about 4 seconds and wait for the operator
to answer the alarm. Note! Notify the alarm receiving center
manager before starting the test.
8.
Screw the mounting plate to the ceiling and attach the smoke
detector to the mounting plate with a clockwise rotation.

Cleaning

The detector should be vacuumed regularly and always in
association with battery replacement. Exterior cleaning
shall be made with a damp cloth. Solvents shall not be
used.

Battery warning

Around one month before the battery is depleted the
detector starts to emit short beeps with about 30 sec.
intervals and transmits an automatic low battery message
to the Carephone. Then it's time to change the battery.
Always test the smoke detector after battery replacement.
Control lamp
Normal operation 1 flash/min.
In case of alarm Continuous flash
Battery warning 1 flash/min.

Technical data

Detector type: Optical
Dimensions: Ø98 x 42 mm
Power supply: 9 V Alkaline / Lithium
6LR61 / 6LF22 / MN1604
Battery life time: Up to 60/120 months
Radio frequency: 869.2125 MHz
Equipment class:
Class 1 radio equipment

Environment

This product is intended for indoor use in a normal residential
environment
Temperature: Operating temperature +5º to +35ºC
Humidity:
0% to 75% relative humidity
(non-condensed)
Environmental class: 1
Declaration of conformity
Hereby Doro Care AB, declares that the radio equipment type, social alarm, is in
compliance with Directive 1999/5/EC (R&TTE) and 2011/65/EU (RoHS2). The full text
of the EU declaration of conformity is available at the following internet address:
www.doro.com/dofc.
Manual_Doro_Care_Smoke_Detector_869MHz_en_sv_de_nl_es_v1.0
Signal
Silent
Pulsating sound
1 beep/30 sec.
