Summary of Contents for VideoHome XTV2.0

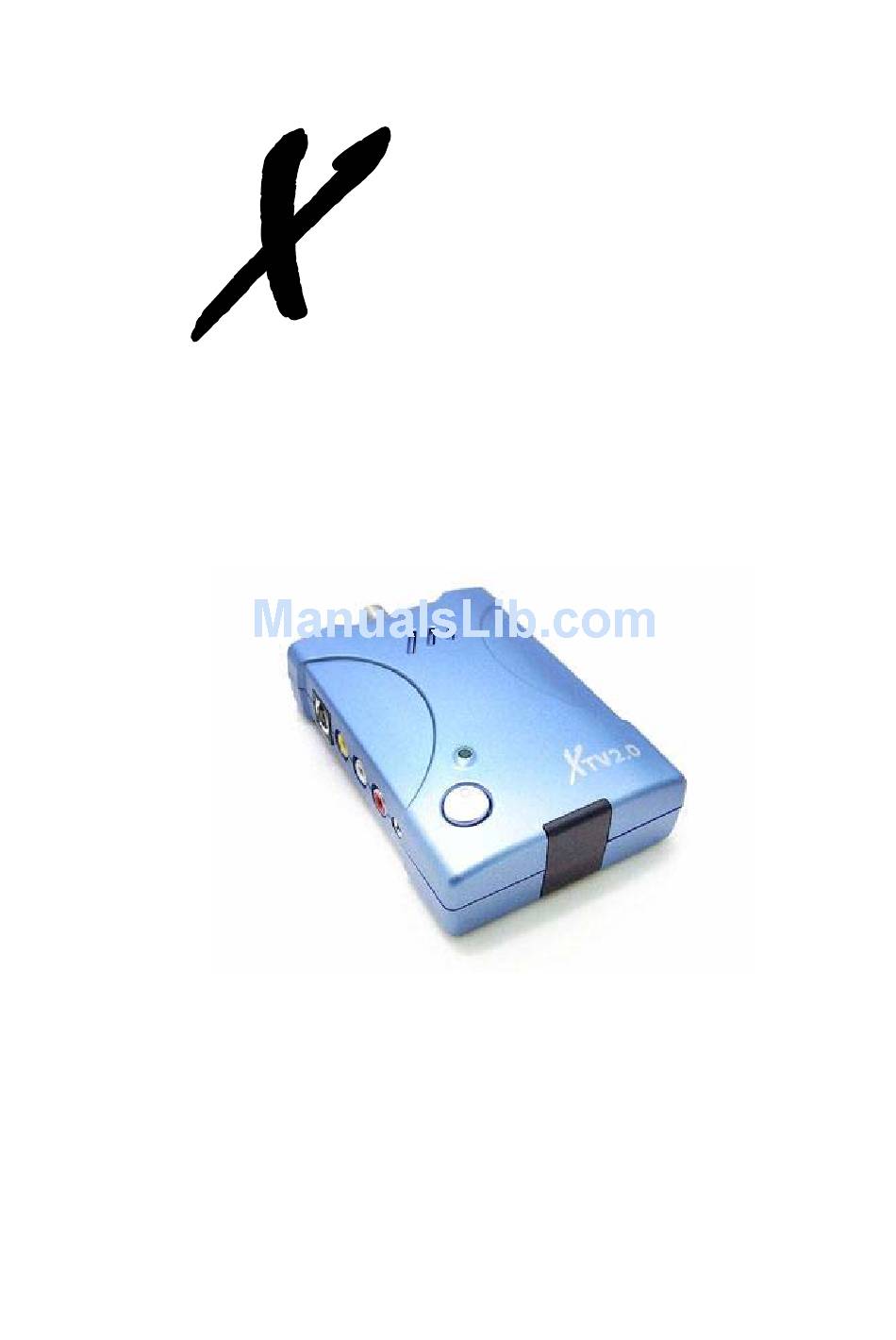

- Page 1 TV2.0 Best solution for USB 2.0 TV box User’s Manual...
- Page 2 _______________________________________________________________________________ FEDERAL COMMUNICATIONS COMMISSION This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules.
-
Page 3: Table Of Contents
Table of Contents Chapter 1. Overview ----------------------------------------------------------- 1.1. Introduction ------------------------------------------------------------------ 1.2. Features ---------------------------------------------------------------------- 1.3. Specifications --------------------------------------------------------------- 1.4. Minimal System Requirements ----------------------------------------- 1.5. Package Contents --------------------------------------------------------- Chapter 2. Installation -------------------------------------------------------- 2.1. Hardware Device Description ------------------------------------------ 2.2. Driver Installation ---------------------------------------------------------- 2.3. Application Software Installation --------------------------------------- 2.4. -
Page 4: Chapter 1. Overview
Chapter 1. Overview 1.1 Introduction Congratulations on your purchase of “XTV2.0”. The “XTV20” bring a home entertainment system and video-editing studio to your PC and Notebook. Using the latest USB2.0 technology, you can now watch and record TV/Video in DVD quality. -
Page 5: Specifications
Chapter 1. Overview - Playback pause function Powerful video editing function include Motion Video Special Effects/ Title Effects/ Picture-in-Picture Effects/ Slow & Fast Motion Video Effects/ background music/ color background/ Transitional Effects Plug-and-play support for quick connection and easy capture 1.3 Specifications TV : 75 ohm coaxial TV Antenna/Cable input Analog video : One S-video and one composite video input port,... -
Page 6: Chapter 2. Installation
Chapter 2. Installation Please make sure your computer has USB2.0 port correctly installed and functioning !! ( We strongly recommend updating your WinXP to SP1 or Win2000 to SP4 or above and updating USB2.0 host driver before installation to make sure computer’s USB2.0 port is correctly functioning ) Steps: (1) Install Driver (2) Install AP software... -
Page 7: Driver Installation
Chapter 2. Installation 2.2. Driver Installation ※ Do not connect XTV to computer USB port before software installation 2.2.1. Please insert "Multimedia Installation Kit" CD into your CD-ROM drive; Run " E:\XTV20\Driver\SETUP.EXE "; (assuming CD-ROM drive in E drive) 2.2.2. InstallShield Wizard, Click "Next" 2.2.3. -
Page 8: Hardware Installation
Chapter 2. Installation 2.4. Hardware Installation 2.4.1. Plug the XTV device into computer’s USB2.0 port; System detect new device and ask “Can Windows connect to Windows Update to search for software ? Please choose “No, not this time”, click ”Next” 2.4.2. - Page 9 Chapter 2. Installation There are XTV2.0 and USB EMP Audio Device show on Device Manager _____________________________________________________________...
-
Page 10: Chapter 3. Operation
Chapter 3. Operation 3.1. Starting : Please click the ”XTV2.0” icon; after executed , you can see screen as below 3.2. Video Window : (a) you can drag and drop to make video scaling (b) you can move the mouse to the video window... -
Page 11: Auto Scan
Chapter 3. Operation 3.4. Auto Scan : Scan all TV Channel you located 3.5. Time Shifting : Click to pause the display, but it will keep recording, when you click “Continue Playback” button, it will playback from the pause time point; and stop by click “Stop”... -
Page 12: Favorite Channel
Chapter 3. Operation (b) Frame Rate : Setup the recording frame rate (c) Video Quality : Recording quality setup (d) Video Bitrate : Setup the recording bit rate 3.10.3. Color : Brightness/Contrast/Hue/Saturation/Sharpness setup 3.10.4. TV Tuner 3.10.4.1. TV System : TV system setup 3.10.4.2. -
Page 13: Chapter 4. Remote Controller
Chapter 4. Remote controller ※ Program on/off : Start or exit the software ※ If you input two digits channel, please do not delay too long, or will change to first digit channel _____________________________________________________________... -
Page 14: Chapter 5. Trouble Shooting
Chapter 5. Trouble Shooting Q1 : Why my system can not detect XTV A1 : (a) Mightbe the other related driver already exist in your system. please go to My Computer->Control Panel->System->Hardware-> Device Manager, make sure your XTV drivers were all installed completely. (see 2.4.9.) if there shows other related driver, please use manual installation to install XTV driver (b) Make sure you enable USB2.0 in motherboard BIOS setup... - Page 15 Chapter 5. Trouble Shooting Q6 : Why I can not hear anything during preview mode? A6 : In WinXP, Audio go through XTV, In Win2000, the audio go through sound card’s Line-in, please check your sound card function. Q7 : How can I get minimum number of dropped frames during video capture ? A7 : The best recording performance depends on your computer system performance, but you can also take some steps as below to improve...
