O P E R A T I N G I N S T R U C T I O N S

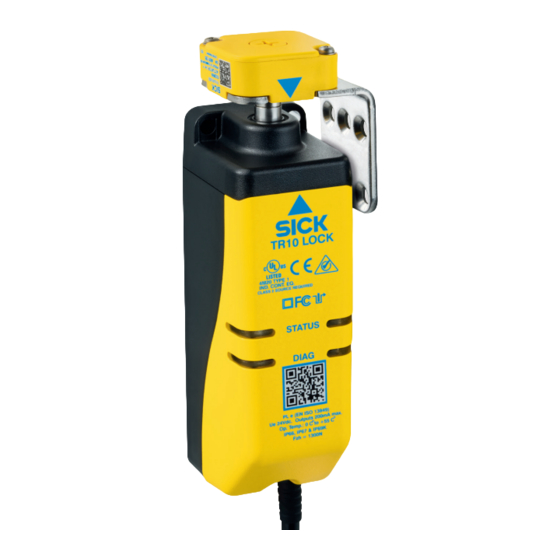

TR10 Lock
Safety locking device

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR10 Lock and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SICK TR10 Lock

Summary of Contents for SICK TR10 Lock

  • Page 1 O P E R A T I N G I N S T R U C T I O N S TR10 Lock Safety locking device...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Safety......................Diagnostic LEDs..................Technical data..................30 Technical data................... 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...
  • Page 4 12.1 Compliance with EU directives..............12.2 FCC and IC radio approval................ O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK Subject to change without notice...

  • Page 5: About This Document

    Instructions to action The arrow denotes instructions to action. 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...
  • Page 6 Visible and invisible beam • A combination of multiple hazards • O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK Subject to change without notice...

  • Page 7: Safety Information

    8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...

  • Page 8: Product Description

    Variant for universally coded actuators All universally coded actuators are accepted. No teach-in is required. O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK...

  • Page 9: Manual Deactivation

    The safety locking device restarts. 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...
  • Page 10 PRODUCT DESCRIPTION < 2,5 Figure 1: Mechanical unlocking mechanism O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK Subject to change without notice...

  • Page 11: Project Planning

    Make sure that replacement actuators are not used for bypassing. Restrict access to actuators. 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...

  • Page 12: Assembly

    If multiple safety locking devices are mounted on the machine, they must be mounted at least 120 mm apart. O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK...

  • Page 13: Integrating Into The Electrical Control

    For variants according to “power to lock” principle 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...
  • Page 14 • OSSD pair switches to the OFF state. O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK Subject to change without notice...
  • Page 15 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...

  • Page 16: Testing Plan

    Determination of the thorough checks must be documented in a traceable manner. O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK...

  • Page 17: Mounting

    The guard locking pin must first pass through the mounting bracket. ° 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...
  • Page 18 Figure 11: Fasten mounting bracket in place with at least 2 M5 screws O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK...
  • Page 19 After mounting, make sure that the safety switch and actuator do not collide when opening or closing. 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...
  • Page 20 O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK Subject to change without notice...

  • Page 21: Electrical Installation

    Table 2: Pin assignment for device connection (male connector, M12, 8-pin, A-coded) 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...

  • Page 22: Device Connection (Flying Lead)

    M12 connection cable, 5-pin  M12 connecting cable, 5-pin  O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK Subject to change without notice...
  • Page 23 Table 4: Pin assignment for cascade connection (male connector, M12, 5-pin, A-coded) 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...
  • Page 24 Table 4: Pin assignment for cascade connection (male connector, M12, 5-pin, A-coded) Applies to the extension cables recommended as accessories. O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK...

  • Page 25: Commissioning

    15 s Table 5: Displaying the teach-in sequences 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...

  • Page 26: Testing

    In the case of the “power to lock” version, an active locking command can be simulated by applying a 24 V DC voltage at the “lock input” contact. O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK...

  • Page 27: Troubleshooting

    Table 6: Fault indicators during teach-in 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...
  • Page 28 Protective device closed and lock activated   Table 8: Fault indicators O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK Subject to change without notice...
  • Page 29 Table 8: Fault indicators 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...

  • Page 30: Technical Data

    3 m or 10 m Table 11: Interfaces O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK Subject to change without notice...
  • Page 31 30 g, 11 ms (IEC 60068-2-27) Table 14: Ambient data 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...

  • Page 32: Response Time

    Every 22 ms  Every 11 s  O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK Subject to change without notice...

  • Page 33: Dimensional Drawings

    Figure 25: Dimensional drawing of actuator with mounting bracket 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...
  • Page 34 145,5 Figure 26: Dimensional drawing of mounting bracket for safety switch O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK Subject to change without notice...

  • Page 35: Ordering Information

    Table 16: Ordering information for TR10 Lock, unique coded 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...

  • Page 36: Accessories

    Table 19: Ordering information for M12 connecting cable, 8-pin (0.25 mm Ambient operating temperature: down to -30 °C with fixed installation. O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK...
  • Page 37 Ambient operating temperature: down to -30 °C with fixed installation. 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...

  • Page 38: Mounting Bracket

    M5 x 10 safety screws for actuator mounting bracket 5334497 O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK Subject to change without notice...

  • Page 39: Annex

    (part number: see the type label entry in the “Ident. no.” field). 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...

  • Page 40: Fcc And Ic Radio Approval

    • si le brouillage est susceptible d’en compromettre le fonctionnement. O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK Subject to change without notice...
  • Page 41 ANNEX 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...
  • Page 42 ANNEX O P E R A T I N G I N S T R U C T I O N S | TR10 Lock 8019972/2016-07-19 | SICK Subject to change without notice...
  • Page 43 ANNEX 8019972/2016-07-19 | SICK O P E R A T I N G I N S T R U C T I O N S | TR10 Lock Subject to change without notice...
  • Page 44 Phone +36 1 371 2680 Phone +386 591 788 49 E-Mail office@sick.hu E-Mail office@sick.si India South Africa Phone +91 22 4033 8333 Phone +27 11 472 3733 Further locations at www.sick.com E-Mail info@sick-india.com E-Mail info@sickautomation.co.za SICK AG | Waldkirch | Germany | www.sick.com...
