CONTRACTOR SERIES SmartSequencer
™
CN-2400S
Instructions

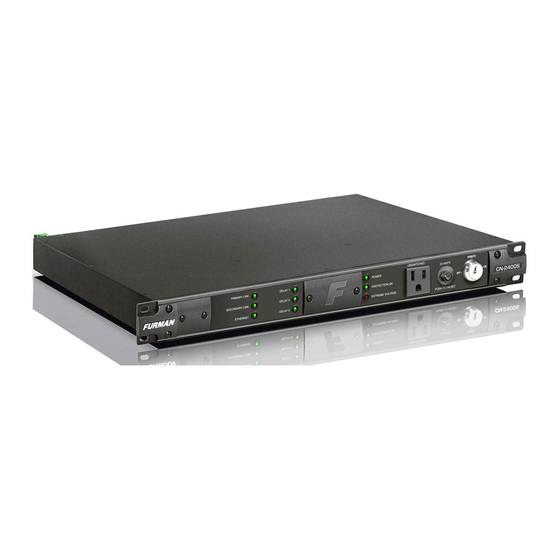

CN-2400S
Contractor Grade Power Management with
SmartSequencing™
Features:
SmartSequencing™ technology allows large complex A/V systems to be
safely power cycled on and off sequentially, with a simple key turn or press
of a button.
Series Multi-Stage Protection (SMP) ensures zero downtime for mission
critical installations by safely eliminating dangerous surges and spikes.
Extreme Voltage Shutdown (EVS) with auto reset safeguards against
operation during catastrophic under and over voltage conditions.
Linear Filtering Technology (LiFT) ensures maximum equipment perfor-
mance by reducing AC noise in a linear fashion across a wide bandwidth.
Remote Access (RS-232) compatibility with programming provides inte-
gration with various control system platforms, including BlueBOLT®.
Security features include a key switch to prevent unauthorized operation
and cover shields to prevent tampering with switch settings.
Forced Off immediate shutdown: for safety and fire ordinance compliance.
Multi-Color LED Indicators for status functions.
9 outlets on 4 banks providing 2400 total Watts of conditioned AC power.
10 ft. Power Cord 12 AWG
15 Year Limited Product Warranty
Advertisement
Table of Contents
Related Manuals for Furman CN-2400S
Summary of Contents for Furman CN-2400S
- Page 1 CONTRACTOR SERIES SmartSequencer ™ CN-2400S Instructions CN-2400S Contractor Grade Power Management with SmartSequencing™ Features: SmartSequencing™ technology allows large complex A/V systems to be safely power cycled on and off sequentially, with a simple key turn or press of a button.
- Page 2 Congratulations and thank you for choosing the Furman CN-2400S. We comprise, without question, the world’s most advanced power condition- assure you that your CN-2400S will provide many years of trouble free ing and transient voltage surge suppression anywhere! And, in regards to operation.
-
Page 3: Table Of Contents
While other designs offer clamping voltages that clamp well above 330 Vpk, Furman’s SMP clamps at 188 Vpk, (133 VAC RMS) even when tested with multiple 6000 Vpk - 3000 Amp surges. This unprecedented level of protection is only available with Furman’s SMP... -
Page 4: Important Safety Instructions
Important Safety Instructions 1. Please read and follow all instructions. If so desired, the CN-2400S can be controlled remotely via an integral RS-232 data-link and command protocol. The remote access feature delivers integration with various control systems. The protocol set 2. -
Page 5: Quick Start Diagrams
EXAMPLE 1 DIAGRAM - SMALL SmartSequencing SET-UP SmartSequencer DIAGRAM 1 SMALL SMARTSEQUENCING SET-UP ™ CLASS 2 WIRING Fire ordinances sometime require immediate shut RS-2 Momentary 24 AWG RECOMMENDED down, no matter how large or small a sound system. CN-1800S Remote Switch SmartSequencing provides the solution. - Page 6 PRIMARY CONTROL AMP RACK CLASS 2 WIRING This upgrade is based upon scenario number 3 in RS-1 Maintained 24 AWG RECOMMENDED the ASD-120 manual. The new example substitutes CN-2400S units at the old miniport locations. ASD-120 Key Switch FORCE OFF STAT REM COMM...
-
Page 7: Smartsequencing™ 101
SmartSequencing™ 101 A Furman SmartSequencing™ chain transmits a message as follows: A Primary Unit communicates to the first Secondary Unit downstream, by sending commands out of its Primary OUT terminals to the Secondary Note: A pair of wires between the Primary OUT terminals of one sequencer and the Secondary IN terminals of a second sequencer is IN terminals of the first Secondary Unit. - Page 8 The Bottom LED, labeled ETHERNET, indicates the status of a remote con- Secondary Link IN. nection. When a number of CN-2400S are connected together via their SmartSequencer link ports, the top two LEDs will illuminate Green and Unit has lost communications through the Primary Link to following occasionally blink as messages are passed between units.
- Page 9 Green sequentially as each stage completes, indicating power DIP switch positions 1, 2, & 3. The time delay, or “dwell time” between is available at the corresponding rear panel bank. If the CN-2400S is consecutive duplexes is the same whether the CN-2400S is sequenc- operating under safe power conditions and no utility fault conditions exist, ing ON or OFF.
- Page 10 DIP 7, it is required to reset the AC power to the unit. Remote Mode Trigger Settings The CN-2400S has one Momentary Mode of operation (DIP 7 ON or UP), which is also compatible with Furman Legacy products. As suggested,...
- Page 11 Extreme Voltage LED will illuminate. The EVS reset the dry contact connection across the REM terminal to the +12V terminal behavior will depend on the setting of DIP Switch 9. If the CN-2400S has initiates an OFF sequence. Disconnecting initiates an ON sequence. If...
- Page 12 EXTREME VOLTAGE PUSH TO RESET power at all times when the CN-2400S is plugged in and operating under normal power conditions. The outlets however, are affected by the EVS feature. The CN-2400S must have its power recycled to clear the state.
-
Page 13: Rear Panel Overview
(90V-130V) and positions 4, 6, and 7 should be in the ON or UP position. The REMOTE the EVS error must be cleared. Note: If the CN-2400S DIP Switch Posi- Barrier strip also provides for an externally mounted LED status indica- tion 9 is ON or UP, the unit should self-reset and clear the state automati- tor using the STAT and GND pins. -
Page 14: Setup And Troubleshooting
Single Unit Set Up 5 can be used for non-Furman RS-232 devices and protocols. Please Basic installation of the CN-2400S is ready to go out of the box. The note that +/- 12VDC power is provided on this interface. The user must default DIP Switch settings should be appropriate for most applications. -
Page 15: Rs-232 Installation And Command Set
LED is valid, please contact Furman Technical Support. Please note the 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off, GND Mode On, adapter is host to the IP Address and not the CN-2400S itself. Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual •...
