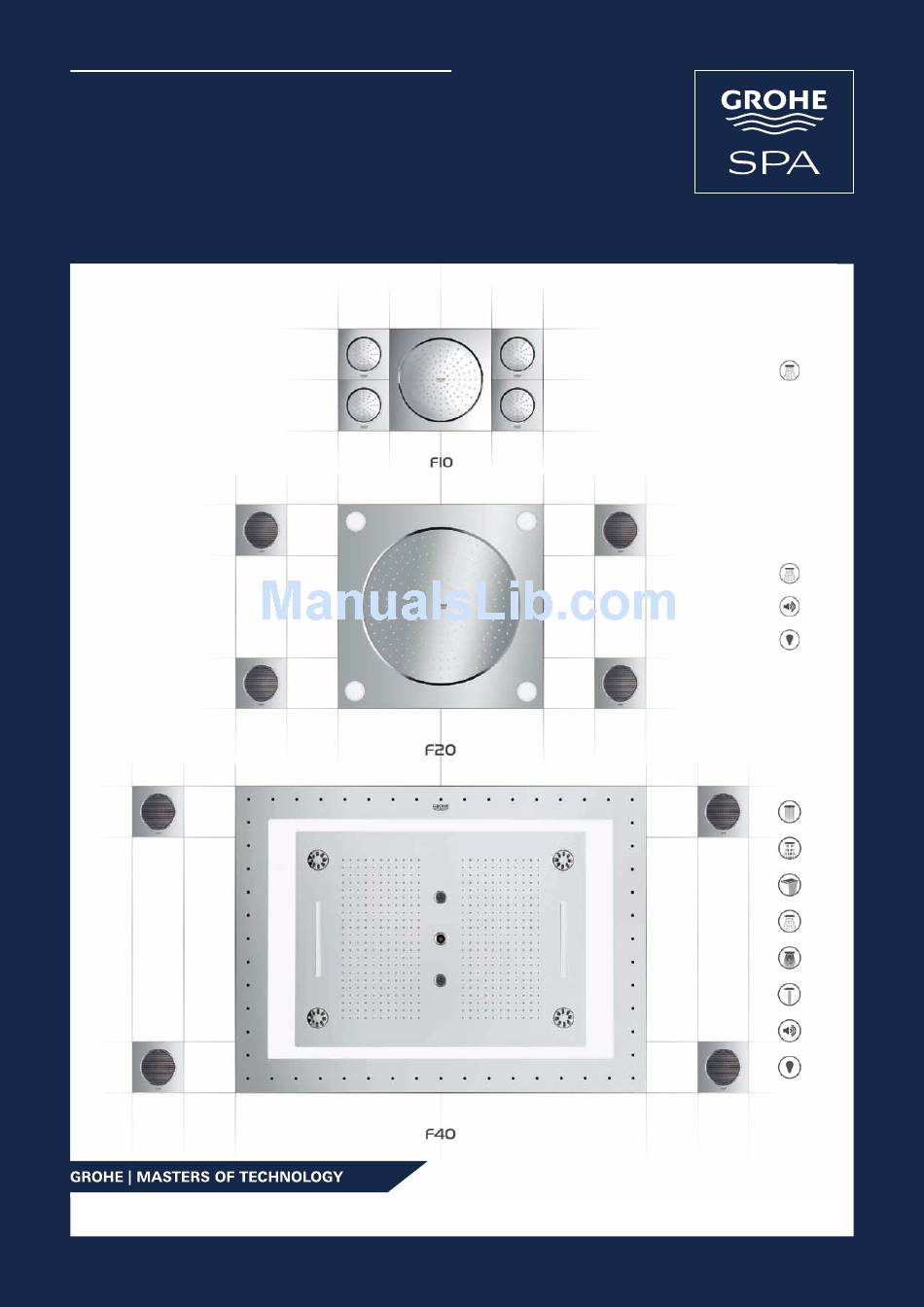

- Page 1 GROHE F-DIGITAL DELUXE PL ANNING & INSTALL ATION GUIDE...
- Page 2 GROHE Tailor-Made Showering CONTENT Important Details Product overview GROHE Shower Configurations Recommended Installation Heights 50 24 SHOWER CONFIGURATION L SHOWER CONFIGURATION M...
- Page 3 SHOWER CONFIGURATION XL grohe.com | Page 3...
- Page 4 With GROHE SPA®, your home sanctuary can be completely tailor-made – from the basin and bathtub, to the head and hand showers and handles, to the thermostats and light, and the sound and steam.
- Page 5 | Page 5...
- Page 7 It is perfect for all your moods. At the touch of a button! With GROHE SPA® F-digital Deluxe you know your home is a sanctuary, complete with a sophisticated oasis of wellbeing you can control with your fingertips.
- Page 8 Consult a qualified electricians. As installing steam generators, electronic products and/or electric cables in wet rooms can be hazardous it is important to use a qualified electrician. All products in the GROHE F-digital Deluxe range must be connected using a dedicated circuit that is secured by an appropriate ground fault circuit interrupter (FI)! Please ensure you use an uninterrupted power supply.
- Page 9 | Page 9...
- Page 10 To avoid the risk of scalding do not use any metal materials for the seats and storage spaces. GROHE recommends the steam generator is installed in a separate room for ease of maintenance, maximum safety and to comply with legal and regulatory requirements.
- Page 11 De-scale the steam generator at regular intervals as instructed (please read the section on ’De-scaling‘ in the TPI of 27 934 000 or 36 362 000. In hard- water areas, where calcium levels exceed 5-dH, GROHE recommends the installation of a filter system to avoid scaling.
- Page 13 GROHE F-DIGITAL DELUXE grohe.com | Page 13...
- Page 14 GROHE F-DIGITAL DELUXE SHOWER LIGHT SOUND 27 865 000 36 359 000 36 360 000 Ceiling Shower F-Series 20" Light Set Sound Set with light, 508 x 508 mm, metal 29 072 000 29 073 000 1 spray pattern: Rain...
- Page 15 1016 mm (width) x 762 mm (height) x 155 mm (depth), metal 6+ sprays: 1 x AquaCurtain, 1 x Pure XL spray, 1 x 2 Drizzle sprays (cold mist spray), 2 x GROHE PureRain spray 400 x 190 mm (separately controlled), 1 x 2 XL Waterfall, 1 x 4 Bokoma Spray® with adjustment angle 20° and combinations 26 376 000 Rainshower®...
- Page 16 GROHE RAINSHOWER® F-SERIES HEAD SHOWERS CEILING SHOWERS 27 939 001 Ceiling shower F-Series 15" Multispray 381 mm (width) x 17 mm (height) x 456 mm (depth) metal 4+ spray patterns: Rain, 2x XL Waterfall, 4x Bokoma Spray and combinations 27 938 001 + 26 042 000 Head shower F-Series 15"...
- Page 17 127 mm x 127 mm, metal 1 spray pattern: Rain 1 spray pattern: Rain 1 spray pattern: Rain 27 285 000 with 9.5 l/min. GROHE EcoJoy SIDE SHOWER 27 815 000 with 7.5 l/min. GROHE EcoJoy 26 061 000 27 251 000 26 259 000 Head shower set F-Series 10"...
- Page 18 GROHE TRIMSETS – GROHTHERM F 34 634 000 28 034 000 Grohtherm F Hand shower Sena Stick THM Complete Kit for F40“ preconfigured 1 spray pattern: Rain consisting of: 28 341 000 2 x THM with 2-way diverter (27 618 000) + 35 500 000 with 9.5 l/min.
- Page 19 27 623 000 + 35 028 000 27 625 000 + 35 031 000 Wall union Single volume control Triple volume control with shower holder + separate concealed body + separate concealed body + separate concealed body grohe.com | Page 19...
- Page 20 PURE FLEXIBILITY SHOWER SOLUTIONS...
- Page 22 MEDIUM SHOWER CONFIGURATION LARGE SHOWER CONFIGURATION...
- Page 23 GROHE F-DIGITAL DELUXE With GROHE’s broad range of Tailor-Made showers, you have endless possibilities to create the shower you want to own, the way it should look and the way you want to shower, whatever your mood. Based on the space you have available, GROHE created inspirational luxury showers with Rainshower®...
- Page 24 CONFIGURATION M If you have enough room to install a small bench you also have the chance to enjoy luxurious steam therapy with the GROHE F-digital Deluxe steam generator. The three Rainshower® F5" side showers on the right side are complemented by the F5"...
- Page 26 GROHE F-DIGITAL DELUXE CONFIGURATION M 36 359 000 36 360 000 Light set Sound set 29 072 000 29 073 000 27 286 000 Rough-in Light set Rough-in Sound set Ceiling shower 20“ 36 397 000 36 362 000 36 371 000 Base unit box Bluetooth 2.0...
- Page 27 Rough-in for triple volume control Rapido T 27 621 000 27 625 000 Universal thermostatic mixer for concealed installation 27 251 000 28 034 000 28 143 000 Side shower 5" Sena Hand shower Relexa Metal shower hose grohe.com | Page 27...
- Page 28 Size of the shower cabin: 1.10 x 0.90 m room height: 2.50 m To comply with local legal regulations GROHE recommends a side room for the steam generator and the base unit box; it should have a free floor drain/siphon. LIGHTWEIGHT WALL CONSTRUCTION...
- Page 29 Loop through from lamp 1 (two ductwork connectors) to lamp 2 (one ductwork connector). Sound modules: Connect Y connector to the Base unit box, split each pair of sound modules and place them opposite to each other in the SPA cabin. grohe.com | Page 29...
- Page 30 GROHE F-DIGITAL DELUXE CONFIGURATION M PIPE INSTALLATION Install concealed boxes for water controls and side showers. Connect the warm and cold water and install pipes for water supply. For installation heights please see table on page 50. Attention: Please do not forget to integrate a vapour barrier!
- Page 31 Please install each module in the concealed boxes and connect them according to the relevant TPIs. For the initial operation of the SPA shower cabin an apple or android device with GROHE SPA® app installed is needed. grohe.com | Page 31...
- Page 32 GROHE F-DIGITAL DELUXE CONFIGURATION L If you have the space, why not build a 160 cm-wide large shower? Use the extra space for a full-width bench on which to enjoy the water, light, sound and steam from F-digital Deluxe together. With two speakers in the shower room and two outside, you can also listen to your music outside the shower.
- Page 34 GROHE F-DIGITAL DELUXE CONFIGURATION L 36 360 000 Sound set 29 069 000 29 073 000 27 865 000 Connection set for Ceiling shower Rough-in Sound set Ceiling shower with light with light 36 397 000 27 934 000 36 371 000 Base unit box Bluetooth 2.0...
- Page 35 Rough-in for triple volume control Rapido T 27 621 000 27 625 000 Universal thermostatic mixer for concealed installation 27 251 000 28 034 000 28 143 000 Side shower 5" Sena Hand shower Relexaflex Metal shower hose grohe.com | Page 35...
- Page 36 1.60 x 1.20 m room height: 2.50 m To comply with local legal regulations GROHE recommends a side room is used for the Steam generator and the base unit box; it should have a free floor drain/siphon. LIGHTWEIGHT WALL CONSTRUCTION...
- Page 37 Loop through from lamp 1 (two ductwork connectors) to lamp 2 (one ductwork connector). Sound modules: Connect Y connector to the Base unit box, split each pair of sound modules and place them opposite to each other in the SPA cabin. grohe.com | Page 37...
- Page 38 GROHE F-DIGITAL DELUXE CONFIGURATION L BARE BRICKWORK Install all other concealed boxes for water controls and side showers. Connect the warm and cold water and install pipes for water supply. For installation heights please see table on page 50. ATTENTION:...
- Page 39 Please install each module in the concealed boxes and connect them according to the relevant TPI. For the initial operation of the SPA shower cabin an apple or android device with GROHE SPA® app installed is needed. grohe.com | Page 39...
- Page 40 GROHE F-DIGITAL DELUXE CONFIGURATION XL For the ultimate in luxurious showering why not super-size your space with the new AquaSymphony Rainshower® shower head. At over a metre wide it offers six spray options to suit your mood, including the astonishing AquaCurtain which embraces you in an overwhelming curtain of water.
- Page 42 GROHE F-DIGITAL DELUXE CONFIGURATION XL 36 360 000 29 073 000 Sound set Rough-in Sound set 26 374 000 26 373 000 36 371 000 Base unit box 4.0 Bluetooth® Rainshower® F-Series 40“ Bluetooth unit F-Series 40" 27 934 000 Steam generator 6.6 kW...
- Page 43 1 x 35 028 000 35 034 000 2 x 35 500 000 Rapido C Rough-in for wall shower union Rapido T Rough-in for single volume control 27 621 000 Universal thermostatic mixer for concealed installation grohe.com | Page 43...
- Page 44 GROHTHERM F WATER CONTROL TRIMS 34 634 000 XL WATERFALL RAIN 1 PURE BOKOMA SPRAY DRIZZLE 1 x 35 500 000 35 031 000 ADDITIONAL CONCEALED BODIES NEEDED: Rapido T Rapido C Universal thermostatic mixer Rough-in for triple volume control...
- Page 45 CURTAIN 1 x 35 034 000 1 x 35 500 000 1 x 35 028 000 Rough-in for wall shower Rapido T Rapido C union 27 621 000 Universal thermostatic mixer Rough-in for single volume control grohe.com | Page 45...
- Page 46 2 x 2.40 m room height: >2.50 m To comply with local legal regulations GROHE recommends a side room is used for the Steam generator and the base unit box; it should have a free floor drain/siphon. Performance of the waste: > 100 l/min...
- Page 47 Connect the warm and cold water and install pipes for water supply. For installation heights please see table on page 50. ATTENTION: Please do not forget to integrate a vapour barrier! View from the right side grohe.com | Page 47...
- Page 48 GROHE F-DIGITAL DELUXE CONFIGURATION XL UTILITY ROOM Overview of the utility room, including steam generator and base unit box. The steam generator has to be placed where it is accessible for maintenance. In addition, a free floor drain/siphon is needed for boiling water after flushing.
- Page 49 Please install each module in the concealed boxes and connect them according to the relevant TPIs. For initial operation of the SPA shower cabin a mobile device with GROHE SPA® app installed is required; it is not included with any GROHE F-digital Deluxe product. grohe.com | Page 49...
- Page 50 INSTALLATION INSTRUCTIONS FOR ACCESSORIES Basin set Recommended height* Mirror 1100 - 1250 mm Shelf 1150 - 1250 mm Glass holder 1150 - 1250 mm Soap dish 950 - 1050 mm Soap dispenser 950 - 1050 mm Towel ring 900 - 1000 mm Towel rail 850 - 950 mm Basin leading edge...
- Page 51 = height of the hip shower h3 = height of the shoulder shower h4 = height of the temperature sensor h5 = height of the head shower barrier free installation height of controller / diverter: 115 cm grohe.com | Page 51...
- Page 52 (603) 2028 4600 tel (65) 6311 3611 tel (84) 4 3556 6639 www.grohe.com/in www.grohe.com/my www.grohe.com/sg or (84) 8 3997 2013 www.grohe.com/vn GROHE Indonesia: tel 62 21 2966 0296 www.grohe.com/id FOR FURTHER INFORMATION PLEASE VISIT OUR WEBSITE WWW.GROHE.COM. GROHE.COM Follow us...
