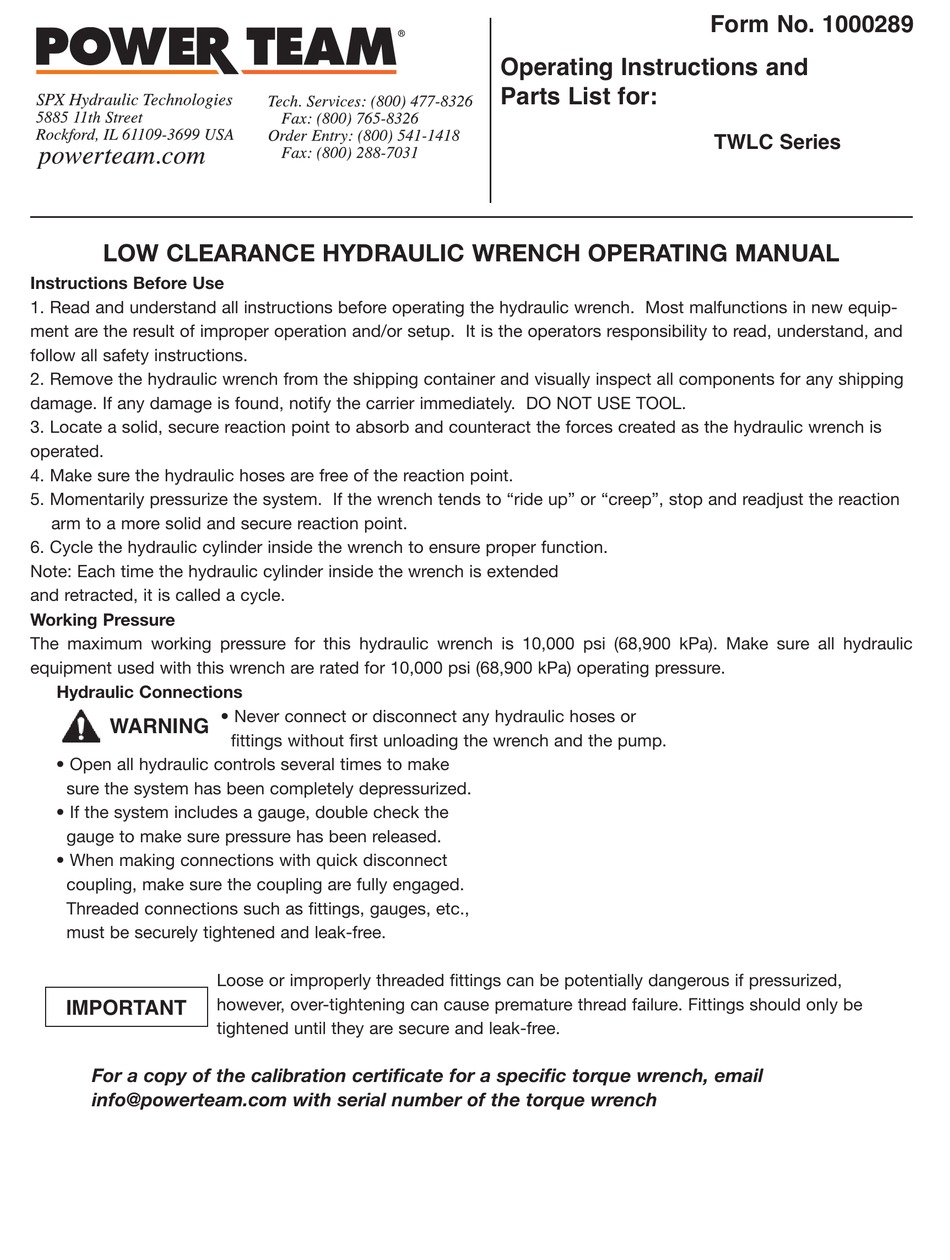

LOW CLEARANCE HYDRAULIC WRENCH OPERATING MANUAL
Instructions Before Use
1. Read and understand all instructions before operating the hydraulic wrench. Most malfunctions in new equip-
ment are the result of improper operation and/or setup. It is the operators responsibility to read, understand, and
follow all safety instructions.
2. Remove the hydraulic wrench from the shipping container and visually inspect all components for any shipping
damage. If any damage is found, notify the carrier immediately. DO NOT USE TOOL.
3. Locate a solid, secure reaction point to absorb and counteract the forces created as the hydraulic wrench is
operated.
4. Make sure the hydraulic hoses are free of the reaction point.
5. Momentarily pressurize the system. If the wrench tends to "ride up" or "creep", stop and readjust the reaction
arm to a more solid and secure reaction point.
6. Cycle the hydraulic cylinder inside the wrench to ensure proper function.
Note: Each time the hydraulic cylinder inside the wrench is extended
and retracted, it is called a cycle.
Working Pressure
The maximum working pressure for this hydraulic wrench is 10,000 psi (68,900 kPa). Make sure all hydraulic
equipment used with this wrench are rated for 10,000 psi (68,900 kPa) operating pressure.
WARNING
Hydraulic Connections
• Open all hydraulic controls several times to make
sure the system has been completely depressurized.
• If the system includes a gauge, double check the
gauge to make sure pressure has been released.
• When making connections with quick disconnect
coupling, make sure the coupling are fully engaged.
Threaded connections such as fittings, gauges, etc.,
must be securely tightened and leak-free.
IMPORTANT
For a copy of the calibration certificate for a specific torque wrench, email
info@powerteam.com with serial number of the torque wrench
• Never connect or disconnect any hydraulic hoses or
fittings without first unloading the wrench and the pump.
Loose or improperly threaded fittings can be potentially dangerous if pressurized,
however, over-tightening can cause premature thread failure. Fittings should only be
tightened until they are secure and leak-free.
Operating Instructions and
Parts List for:
Sheet No.
Rev
Form No. 1000289
TWLC Series
1 of 28
Date: 28 Feb 2008
Advertisement
Table of Contents
Related Manuals for Power Team TWLC Series
Summary of Contents for Power Team TWLC Series
- Page 1 Form No. 1000289 Operating Instructions and Parts List for: TWLC Series LOW CLEARANCE HYDRAULIC WRENCH OPERATING MANUAL Instructions Before Use 1. Read and understand all instructions before operating the hydraulic wrench. Most malfunctions in new equip- ment are the result of improper operation and/or setup. It is the operators responsibility to read, understand, and follow all safety instructions.
- Page 2 Operating Instructions Form No. 1000289 WARNING To help prevent personal injury, This is the safety alert symbol. • Always wear eye protection whenever operating It is used to alert you to potential personal injury haz- hydraulic equipment. ards. Obey all safety messages that follow this sym- bol to avoid possible injury or death •...
-
Page 3: Operation
Operating Instructions Form No. 1000289 SWIVEL MANIFOLD QUICK-CHANGE HEAD HIDRALIC COUPLINGS BODY REACTION PAD HEAD RELEASE PIN OPERATION CAUTION For top performance, frequently inspect wrench, pump, and accessories for visual damage Always follow instructions for proper wrench and pump maintenance. Do not use other equipment to increase the capability (for example, hammering on socket wrench). -
Page 4: Setting Torque
Operating Instructions Form No. 1000289 Safety a) Never exceed the torque wrench maximum working pressure (Advance 689 Bar / 10,000 psi, Retract 69 Bar / 1000 psi) b) Keep hands and fingers clear of the torque wrench head and reaction pad area, before and during operation. Fingers could be inadvertently trapped if care is not taken. - Page 5 Operating Instructions Form No. 1000289 Preparing the Torque Qrench for Use Assembling / Removing the Drive Head Before the TWLC torque wrench can be used the correct drive head for the nut must be fitted to the TWLC body. Note that no special tools or spanners are needed to change the drive head. If a drive head is already assembled, it can be detached by pushing out the head retainer pin, and simply lifting out the body.
- Page 6 Operating Instructions Form No. 1000289 Positioning the Torque Tool onto the Nut The TWLC torque wrench locates directly around the nut, with it’s built-in reaction pad designed to react against an adjacent nut. Fig. 3 below indicates correct positioning of the torque tool (shown in tightening mode). Always ensure that the reaction pad butts firmly against an adjacent nut or secure reaction structure.
-
Page 7: Operating The Torque Wrench
Operating Instructions Form No. 1000289 Operating the Torque Wrench Setting up prior to operation Setting up the equipment only takes a few minutes and some simple checks during set up will aid in the success of the torquing operation. • Obtain the torque value that is to be used for the tightening operation. •... -
Page 8: Loosening Bolts
Operating Instructions Form No. 1000289 Loosening Bolts 1. Connect the torque wrench to the pump unit. Ensure that the couplings are fully screwed together as they are self-sealing and will restrict oil flow if not fully connected. 2. Prior to applying the torque wrench to the application, the pump output pressure must be pre-set to deliver the maximum pressure of 690 Bar (10,000psi). - Page 9 Operating Instructions Form No. 1000289 The following procedure is for use with TWLC torque wrenches and outlines the basic steps in order to carry out the torque tightening of a flanged joint. It is important that personal protective clothing (gloves, footwear, safety hel- met, eye protection) is worn at all times not only by the Operator, but also by any personnel within the work area.
-
Page 10: Maintenance And Servicing
Operating Instructions Form No. 1000289 Maintenance and Servicing Post-Use Maintenance In order to keep the TWLC torque wrench in good working condition, it is recommended that simple post-use main- tenance be carried following each period of use. TWLC Torque wrench 1. - Page 11 Operating Instructions Form No. 1000289 Fault Possible Cause Remedy Cylinder will not advance. 1. Coupling not fully mated 1. Check coupling 2. Cylinder seal leakage 2. Replace seal Cylinder will not retract. 3. Pump unit 3. Check pump unit 4. Faulty coupling 4.
- Page 12 Parts List Form No. 1000289 TWLC2...
-
Page 13: Parts List
Parts List Form No. 1000289 TWLC2 TEM NO. DESCRIPTION SPX P/N BODY TWLC2-P01 PISTON TWLC2-P02 ROD, PISTON TWLC2-P03 GLAND TWLC2-P04 SHUTTLE TWLC2-P05 PIN, SHUTTLE TWLC2-P06 POST, MULTI-SWIVEL TWLC2-P07 BANJO, MULTI-SWIVEL TWLC2-P08 YOKE, MULTI-SWIVEL ADVANCE TWLC2-P09 YOKE, MULTI-SWIVEL RETRACT TWLC2-P10 SEAL KIT, BODY TWLC2-P11 SEAL KIT, MULTI-SWIVEL TWLC2-P12... - Page 14 Parts List Form No. 1000289 TWLC4...
- Page 15 Parts List Form No. 1000289 TWLC4 ITEM NO. DESCRIPTION SPX P/N BODY TWLC4-P01 PLATE, TOP TWLC4-P02 PISTON TWLC4-P03 ROD, PISTON TWLC4-P04 GLAND TWLC4-P05 SHUTTLE TWLC4-P06 PIN, SHUTTLE TWLC4-P07 POST, MULTI-SWIVEL TWLC2-P07 BANJO, MULTI-SWIVEL TWLC2-P08 YOKE, MULTI-SWIVEL ADVANCE TWLC2-P09 YOKE, MULTI-SWIVEL RETRACT TWLC2-P10 SEAL KIT, BODY TWLC4-P12...
- Page 16 Parts List Form No. 1000289 TWLC8 24 24 10 10 20 20 17 17 12 12 23 23 12 12 12 12 22 22 17 17 18 18 19 19 12 12 12 12 25 25 26 26 27 27 28 28 17 17 27 27...
- Page 17 Parts List Form No. 1000289 TWLC8 ITEM NO. DESCRIPTION SPX P/N BODY TWLC8-P01 PLATE, TOP TWLC8-P02 PISTON TWLC8-P03 ROD, PISTON TWLC8-P04 GLAND TWLC8-P05 SHUTTLE TWLC8-P06 PIN, SHUTTLE TWLC8-P07 POST, MULTI-SWIVEL TWLC8-P08 YOKE, MULTI-SWIVEL ADVANCE TWLC8-P09 YOKE, MULTI-SWIVEL RETRACT TWLC8-P10 SEAL KIT, BODY TWLC8-P11 SEAL KIT, MULTI-SWIVEL TWLC8-P12...
- Page 18 Parts List Form No. 1000289 TWLC15...
- Page 19 Parts List Form No. 1000289 TWLC15 ITEM NO. DESCRIPTION SPX P/N BODY TWLC15-P01 PLATE, TOP TWLC15-P02 PISTON TWLC15-P03 ROD, PISTON TWLC15-P04 GLAND TWLC15-P05 SHUTTLE TWLC15-P06 PIN, SHUTTLE TWLC15-P07 POST, MULTI-SWIVEL TWLC8-P08 YOKE, MULTI-SWIVEL ADVANCE TWLC8-P09 YOKE, MULTI-SWIVEL RETRACT TWLC8-P10 SEAL KIT, BODY TWLC15-P11 SEAL KIT, MULTI-SWIVEL TWLC8-P12...
- Page 20 Parts List Form No. 1000289 TWLC30...
- Page 21 Parts List Form No. 1000289 TWLC30 ITEM NO. DESCRIPTION SPX P/N BODY TWLC30-P01 PLATE, TOP TWLC30-P02 PISTON TWLC30-P03 ROD, PISTON TWLC30-P04 GLAND TWLC30-P05 SHUTTLE TWLC30-P06 PIN, SHUTTLE TWLC30-P07 POST, MULTI-SWIVEL TWLC8-P08 YOKE, MULTI-SWIVEL ADVANCE TWLC8-P09 YOKE, MULTI-SWIVEL RETRACT TWLC8-P10 SEAL KIT, BODY TWLC30-P11 SEAL KIT, MULTI-SWIVEL TWLC8-P12...
- Page 22 Parts List Form No. 1000289 TWLC2 Links ITEM NO. DESCRIPTION TWL2-032 TWL2-036 TWL2-041 TWL2-046 TWL2-050 TWL2-055 TWL2-060 S S L L I I D D E E R R 1 TWL2-032-P01 1 TWL2-032-P01 1 TWL2-032-P01 1 TWL2-032-P01 1 TWL2-032-P01 1 TWL2-032-P01 1 TWL2-032-P01 P P I I N N C C R R A A N N K K 1 TWL2-032-P02...
- Page 23 Parts List Form No. 1000289 TWLC4 Links ITEM NO.DESCRIPTION TWL4-041 TWL4-046 TWL4-050 TWL4-055 TWL4-060 TWL4-065 TWL4-070 TWL4-075 TWL4-080 S S L L I I D D E E R R 1 TWL4-041-P01 1 TWL4-041-P01 1 TWL4-041-P01 1 TWL4-041-P01 1 TWL4-041-P01 1 TWL4-041-P01 1 TWL4-041-P01 1 TWL4-041-P01...
- Page 24 Parts List Form No. 1000289 TWLC8 Links ITEM NO. QTY DESCRIPTION TWL8-060 TWL8-065 TWL8-070 TWL8-075 TWL8-080 TWL8-085 TWL8-090 TWL8-095 TWL8-100 S S L L I I D D E E R R 1 TWL8-060-P01 1 TWL8-060-P01 1 TWL8-060-P01 1 TWL8-060-P01 1 TWL8-060-P01 1 TWL8-060-P01 1 TWL8-060-P01 1 TWL8-060-P01 1 TWL8-060-P01 P P I I N N C C R R A A N N K K 1 TWL8-060-P02 1 TWL8-060-P02 1 TWL8-060-P02 1 TWL8-060-P02 1 TWL8-060-P02 1 TWL8-060-P02 1 TWL8-060-P02 1 TWL8-060-P02 1 TWL8-060-P02 S S P P R R I I N N G G L L E E A A F F...
- Page 25 Parts List Form No. 1000289 TWLC30 Links- ITEM NO. DESCRIPTION TWL30-080 TWL30-085 TWL30-090 TWL30-095 TWL30-100 TWL30-105 TWL30-110 TWL30-425 S S L L I I D D E E R R 1 TWL30-080-P01 1 TWL30-080-P01 1 TWL30-080-P01 1 TWL30-080-P01 1 TWL30-080-P01 1 TWL30-080-P01 1 TWL30-080-P01 1 TWL30-080-P01...
-
Page 26: Pump Pressure
Parts List Form No. 1000289 TWLC SERIES HYDRAULIC TORQUE WRENCH PRESSURE - TORQUE CONVERSION CHART PUMP PRESSURE TORQUE OUTPUT lbf.ft / Nm TWLC2 TWLC4 TWLC8 TWLC15 TWLC30 1200 1293 1782 2415 3456 4683 1400 1113 1508 2079 2817 4032 5463... - Page 27 SPX Fluid Power Albert Thijsstraat 12 6471 WX. Eygelshoven Netherlands Telephone: 31 (45) 5678877 Fax: 31 (45) 5678878 EC Declaration of Incorporation as defined by European Communities Directive 89/392/EEC, Annex II(B) MANUFACTURER’S NAME: 5885 11th Street Telephone: 815-874-5556 Rockford, Illinois 61109 Fax: 815-874-7853 MANUFACTURER’S ADDRESS: TYPE OF EQUIPMENT:...
- Page 28 WORLD HEADQUARTERS ASIA PACIFIC CUSTOMER EUROPEAN CUSTOMER THE AMERICAS CUSTOMER SERVICE CENTER SERVICE CENTER SERVICE CENTER 7 GUL CIRCLE ALBERT THIJSSRAAT 12 5885 11TH STREET SINGAPORE 629563, SINGAPORE 6471 WX EYGELSHOVEN ROCKFORD, ILLINOIS 61109 TEL: (65) 6265-3343 THE NETHERLANDS TEL: 1-815-874-5556 TEL: (31) 45 5678877 CUSTOMER SERVICE/ORDER ENTRY FAX: (31) 45 5678878...
