1. KDL-32R420A/421A/423A/424A

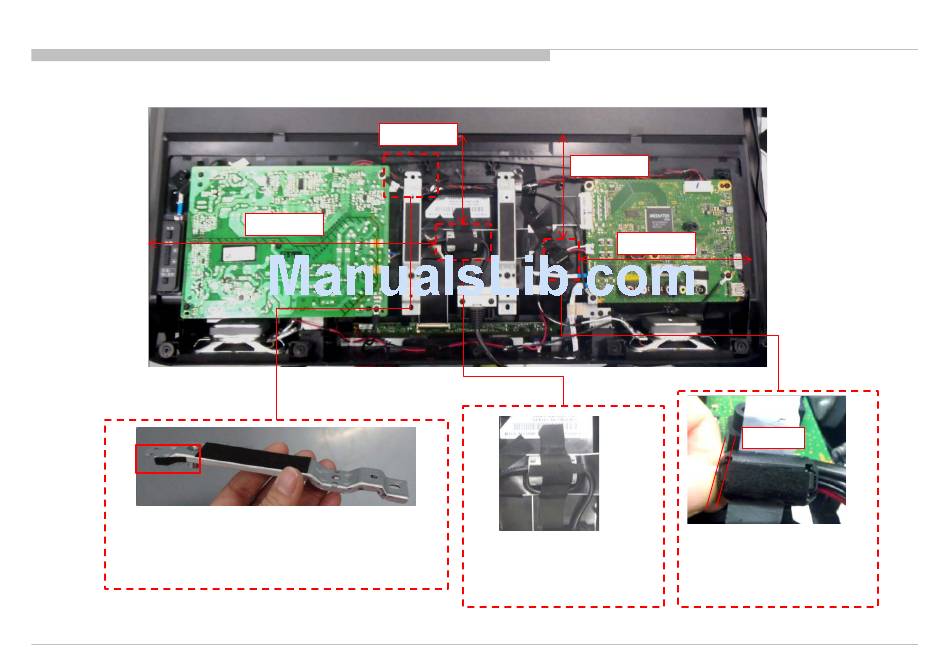

Paste 1 pcs tape on Vesa Bracket BTM picture red
mark area
Part Name: HEMELON (FANF)
Part Number: 4-466-473-01
KDL-32R420A/421A/423A/424A, 40R470A/471A/473A/474A, 46R470A/473A(AEP/UK)
70 mm ±4
285 mm ±4
80 mm ±4
260 mm ±4
NWF must apply cover the
CORE top side
Part Name: HEMELON (FANF)
Part Number: 4-466-473-71
APPENDIX-2
0~1 mm
NWF must apply under
the SPK core
Part Name: HEMELON (FANF)
Part Number: 4-466-473-61
66
