APPENDIX-2

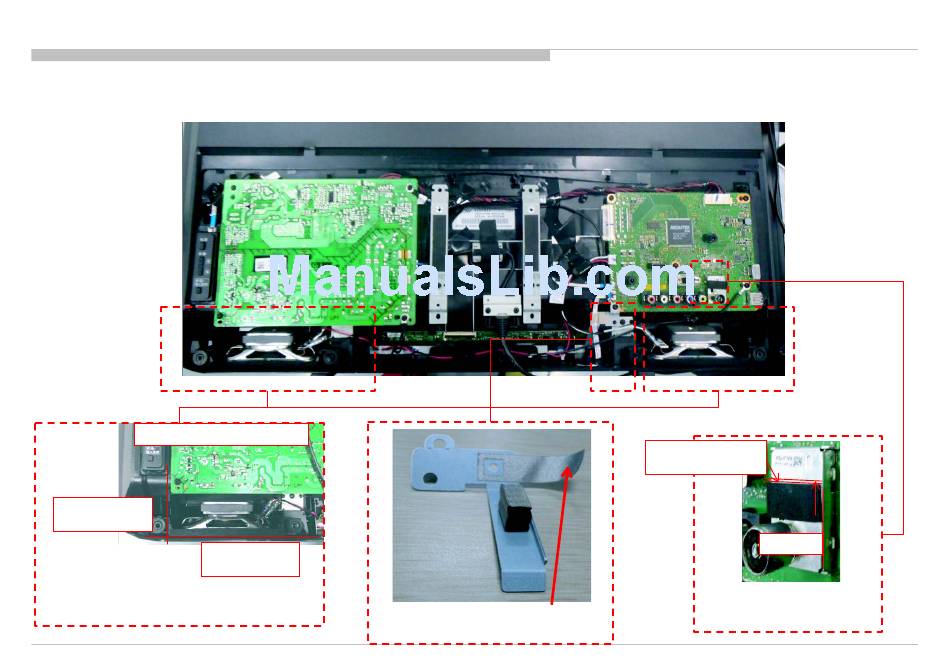

TAPE POSITION

1. KDL-32R420A/421A/423A/424A
Must cover the plastic cover area
0~2 mm
SPK baffle edge
Part Name: HIMELON (FANF)
Part Number: 4-466-473-41
KDL-32R420A/421A/423A/424A, 40R470A/471A/473A/474A, 46R470A/473A(AEP/UK)
0~2 mm
SPK edge
Part Name: TAPE GASKET (FANF)
Part Number: 4-468-429-01
Gap: Label & Sponge
1 mm or less
0~1 mm
Part Name: CUSHION (FANF)
Part Number: 4-468-430-01
