SEC 4. DIAGRAMS

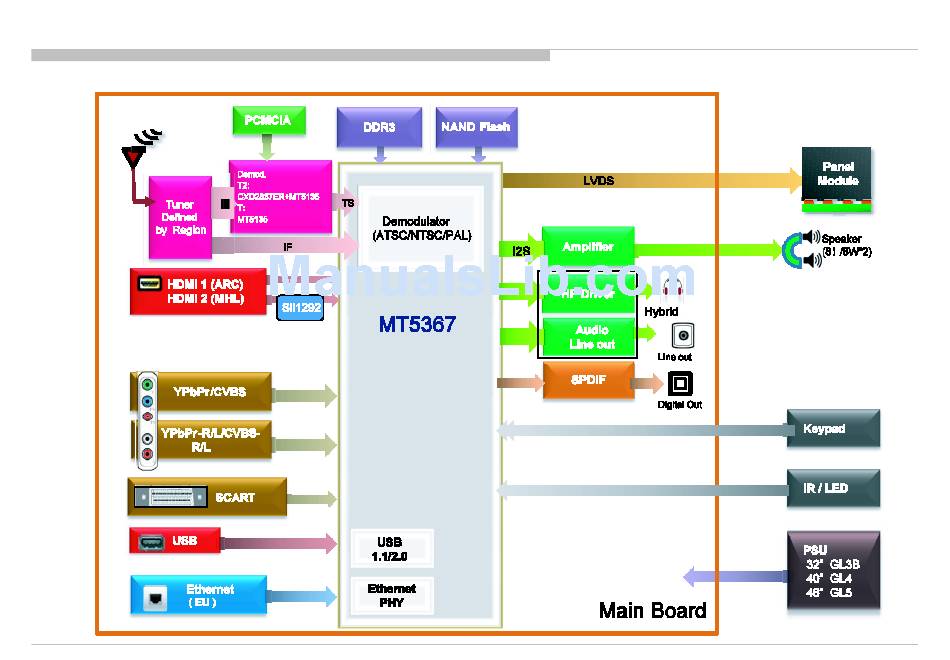

4-1. BLOCK DIAGRAM

29
KDL-32R420A/421A/423A/424A, 40R470A/471A/473A/474A, 46R470A/473A(AEP/UK)
