1-3. KDL-46R470A/473A

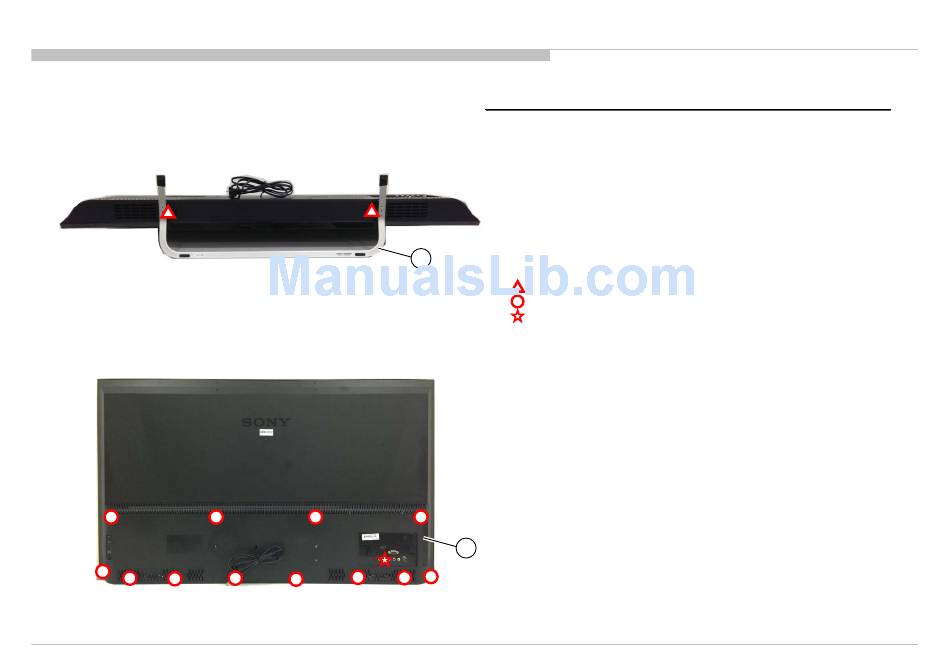

1-3-1. STAND SHAFT
1-3-2. COVER, UNDER
KDL-32R420A/421A/423A/424A, 40R470A/471A/473A/474A, 46R470A/473A(AEP/UK)
REF. No. PART No.
1 4-446-636-01
2 4-459-473-51
4-459-473-61
1
2-580-608-11
2-580-639-01
7-685-647-79
2
DISASSEMBLY AND PARTS LIST
DESCRIPTION MARK
STAND SHAFT (L2)
COVER, UNDER (46FANF) for KDL-46R473A(UK)
COVER, UNDER (46FANF) for KDL-46R470A/473A(AEP)
SCREW, +PSW M5X16
SCREW, +BVTP 4X12 TYPE2 IT-3
SCREW +BVTP 3X10 TYPE2 IT-3
