Gl3 Board, A Board, Speaker And Vesa Bracket - Sony KDL-32R420A Service Manual

1-1. KDL-32R420A/421A/423A/424A

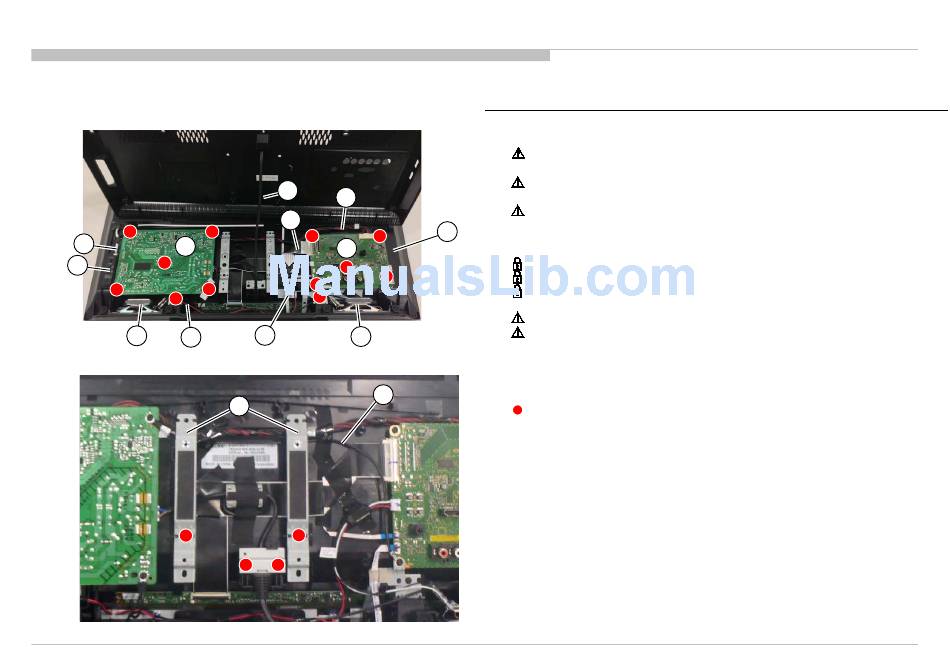

1-1-3. GL3 BOARD, A BOARD, SPEAKER AND VESA BRACKET

4
6
3
5
7
KDL-32R420A/421A/423A/424A, 40R470A/471A/473A/474A, 46R470A/473A(AEP/UK)
8
11
9
12
10
13
16
15
REF. No. PART No. DESCRIPTION
3 1-492-329-21 SWITCH UNIT
4 1-910-108-04 FFC CABLE 32 MB-KEY 6P
5 1-858-888-21 LOUD SPEAKER (R) 40X100MM
6 1-474-486-11 GL3(ID)-STATIC CONVERTER(TV)
7 1-910-107-98 CONNECTOR ASSY 32 MB-SP LR 4P
8 1-846-662-11 POWER-SUPPLY CORD
1-846-663-11 POWER-SUPPLY CORD
9 1-910-108-02 FFC CABLE 32 MB-TCON 30P
14
10 1-910-108-03 FFC CABLE 32 MB-IR 10P
11 1-910-107-97 CONNECTOR ASSY 32 MB-PSU 14P
12 1-895-375-11 MOUNTED PWB A
1-895-375-21 MOUNTED PWB A
1-895-375-31 MOUNTED PWB A
13 1-858-888-11 LOUD SPEAKER (L) 40X100MM
14 A-1939-532-A LCM ASSY (32FANFY MR) EU
A-1939-533-A LCM ASSY (32FANFY HL) EU
15 4-459-475-21 BRACKET, VESA (FANF)
16 1-910-107-99 GROUND CABLE 32 MB-PSU (M)
7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
DISASSEMBLY AND PARTS LIST
MARK
for KDL-32R420A/421A
/423A(AEP)/424A
for KDL-32R423A(UK)
for KDL-32R420A/421A
for KDL-32R423A(AEP)/424A
for KDL-32R423A(UK)
for KDL-32R420A/423A
for KDL-32R421A/424A
13
