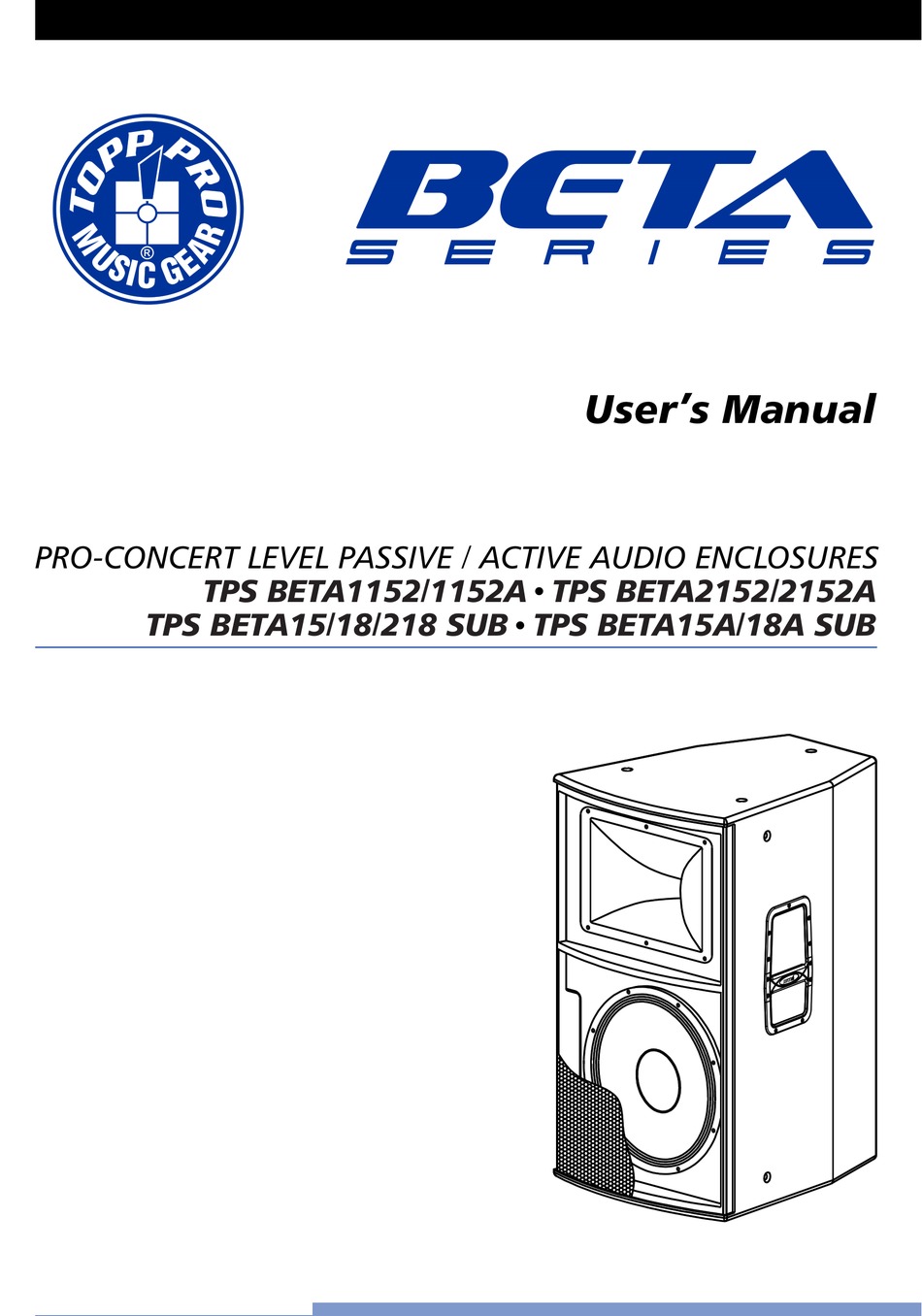

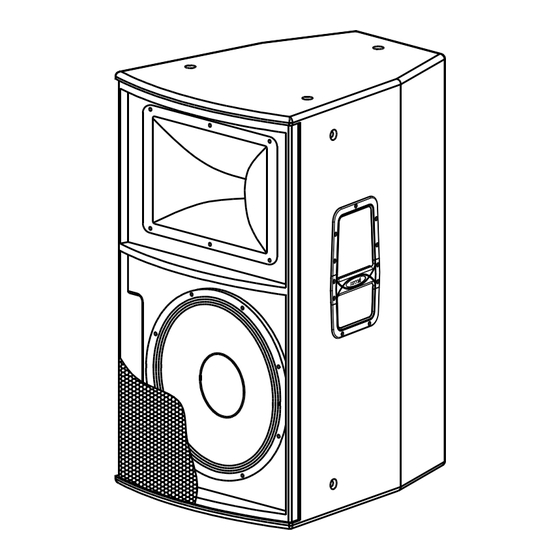

- Page 1 User’s Manual PRO-CONCERT LEVEL PASSIVE / ACTIVE AUDIO ENCLOSURES TPS BETA1152/1152A TPS BETA2152/2152A TPS BETA15/18/218 SUB TPS BETA15A/18A SUB...
- Page 2 Safety Related Symbols Protective Ground CAUTION Before turning the unit ON, make sure that it is connected to Ground. This is to prevent the risk of RISK OF ELECTRIC SHOCK electric shock. DO NOT OPEN Never cut internal or external Ground wires. Like wise, never remove Ground wiring from the Protective This symbol, wherever used, alerts you to the presence Ground Terminal.
-
Page 3: Table Of Contents
Table of Contents 1. PROLOGUE 2. INSTALLATION TIPS 3. USEFULL DATA 4. CONNECTING DIAGRAM For Passive Speaker Cabinet For Passive Subwoofer & Satellite Speakers For Active Speaker Cabinet For Active Subwoofer & Satellite Speakers 5. CONNECTING PLATE For Passive Series Speaker For Active Full-range Speaker For Active Subwoofer Speaker 6. -
Page 4: Prologue
Introduction Thank you for purchasing TOPP PRO MUSIC GEAR products BETA series speaker cabinet. The cabinets are all plywood construction with our DURAPRO paint finish. The components have been matched to offer the highest quality achievable. The 3" Compression Driver and woofer reinforcement provided an excellent performance. The BETA series speaker cabinets can be used for all type of applicatio nincluding but not limit to churches, conferences room, disco and by live performance groups. -
Page 5: Connecting Diagram
Connecting Diagram Make your initial connections with all the equipment powered off, and ensure that all the main volume controls are turned completely down. For Passive Full-range Speaker Cabinet 1) Connect one side of the speaker cable to the Output CH A / CH B ot Binding Post of your stereo power amplifier and the other side to the Input socket of your speaker cabinet. - Page 6 Connecting Diagram For Passive Satellite Matching with passive Subwoofer Speakers 1) Connect one side of the speaker cable to the Output CH A / CH B ot Binding Post of your stereo power amplifier and the other side to the Input socket of your subwoofer, do the same connection on your second power amplifier and the 2-way full-range passive speakers with a second speaker cable.
- Page 7 Connecting Diagram For Passive Subwoofer & 2-way full range Speakers TPS BETA2152 TPS BETA2152 TPS BETA218 SUB TPS BETA218 SUB Equalizer FIG.3 TOPP PRO MUSIC GEAR...
- Page 8 5) Use PFL function to get the proper input level for the mixer, and adjust the Main Mix Level control to manipulate the output level. 6) After using ,turn off your active speaker cabinets first, then the mixer. TPS BETA1152A TPS BETA1152A speaker cable...
- Page 9 5) Use PFL function to get the proper input level for the mixer, and adjust the Main Mix Level control to manipulate the output level. 6) After using ,turn off your active speaker cabinets first, then the mixer. TPS BETA1152A TPS BETA1152A TPS BETA15A- SUB TPS BETA15A- SUB FIG.5...
-
Page 10: Connecting Plate
Connecting Plate For Passive Full-range series Speaker (TPS BETA 1152 / 2152) With the mode switch (3) set to "Full Range" position: (1) INPUT: Receive the power coming from an external power amplifier (SPK +1/-1 connected; +2-2 not connected). (2) THRU: Direct LINK for connect in parallel a second speaker cabinet (SPK +1/-1 connected; +2-2 not connected). -
Page 11: For Active Subwoofer Speaker
(5) VOLUME main power amplifier control (6) Input AC power socket with main fuse (7) Bi-polar main power switch (8) Presets selector (MUSIC-FLAT-VOCAL) (9) AC INPUT voltage selector TPS BETA1152A CAUTION: REPLACE FUSE ONLY WITH SAME AND RATED TYPE! VOLUME 110V... -
Page 12: Wire Connections
Wire Connections For Passive Speaker Cabinets Please use only the power connectors to make connections with other signal source equipment for the passive speaker cabinets. The power connector has four terminals: 1+, 2-, 2+, 2-. For TPS BETA 1152 / 2152, with the “MODE SWITCH” on BI-AMP position, 1+ / 1- used to connect with the Low Frequency, 2+ / 2- used to connect with High Frequency. -
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS Model TPS BETA 1152 System type 2-Way Vented Box Crossover Modes Bi-amp / Full-range, externally switchable Crossover Frequency 1.8 kHz Power Rated LF/Full-range: 400W Continuous 800W Peak HF: 100W Continuous 200W Peak / LF/Full-range: 8 ohms Nominal Impedance LF/Full-range: 8 ohms / HF: 8 ohms Sensitivity (1W,1m) Passive: 99dB / LF: 99.5dB / HF: 108dB... - Page 14 TECHNICAL SPECIFICATIONS Model TPS BETA 2152 System type Quasi 3-Way Passive Vented Box Crossover Modes Bi-amp / Full-range, externally switchable Crossover Frequency 1.9 kHz Power Rated LF/Full-range: 800W Continuous 1600W Peak HF: 100W Continuous 200W Peak / LF/Passive: 4 ohms Nominal Impedance HF: 8 ohms Sensitivity (1W,1m)
- Page 15 TECHNICAL SPECIFICATIONS Model TPS BETA 15 SUBented Box System type Passive Bandpass Enclosure Continuous Power 400W Program Power 800W Impedance 8 ohms Low Frequency 15” Ø 402mm Premium Sub woofer - 3" Voice Coil Sensitivity (1W,1m) 98dB SPL ± Frequency Response 45Hz - 200Hz (-6dB) Crossover Type Acoustic Filter...
- Page 16 TECHNICAL SPECIFICATIONS Model TPS BETA 18 SUBented Box System type Passive Bandpass Enclosure Continuous Power 500W Program Power 1000W Impedance 8 ohms Low Frequency 18” Ø 457mm Premium Sub woofer Sensitivity (1W,1m) 98dB SPL ± Crossover Type Acoustic Filter Frequency Response 40Hz - 2160Hz (-6dB) Max SPL 126dB at 1 m...
- Page 17 TECHNICAL SPECIFICATIONS Model TPS BETA 218 SUBented Box System type Passive Bandpass Enclosure Continuous Power 1000W Program Power 2000W Speaker Sensitivity (1W.1m) 102dB SPL ± 3dB Max SPL: 135dB at 1 m Frequency Response 5Hz - 160Hz (-6dB) Crossover Type Acoustic Filter Impedance 4 Ohms...
-
Page 18: Block Diahgram
BLOCK DIAGRAM TOPP PRO MUSIC GEAR... - Page 19 BLOCK DIAGRAM TOPP PRO MUSIC GEAR...
-
Page 20: Guarantee
GUARANTEE Topp Pro guarantees the normal operation of the product against any defect of manufacture and / or vice of material, by the term of (12) months, counted as of the date of purchase on the part of the user, committing itself to repair or to change, to its election, without position some, any piece or component that will fail in normal conditions of use within the mentioned period. - Page 21 NOTES TOPP PRO MUSIC GEAR...
- Page 22 NF02894-1.2...
