Summary of Contents for Blankom IGS-700

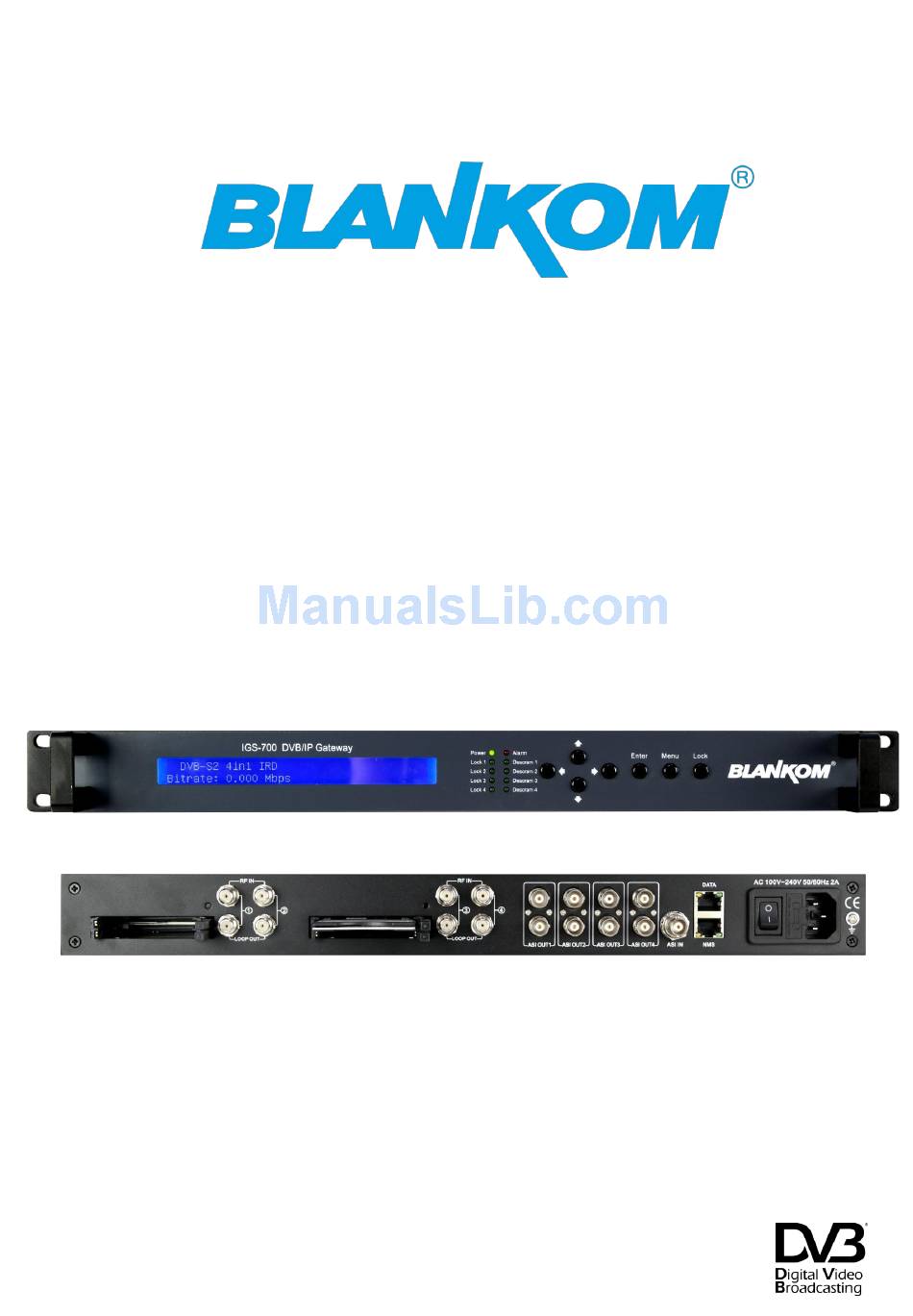

- Page 1 IGS-700 DVB-S2 Quad-Receiver IP-Streamer Datasheet & Instruction Manual V1.1...
-
Page 2: Table Of Contents
IGS-700 User Manual Table of Content Table of Content ............................2 Introduction: ..............................3 Features ............................... 4 Technical Data ............................. 4 Hardware ..............................5 Installation: ..............................5 Let's start with the Web-Interface: ......................6 IP-Streaming Port settings: .......................... 8 Input configuration ............................9 CI- Modules: .............................. -
Page 3: Introduction
IGS-700 User Manual Introduction: The BLANKOM IGS-700 is a 2x2 DVB S2 Receiver converting four Satellite transponder to IP streams as SPTS for IPTV applications and MPTS. Equipped with 4 CI Slots for CA Modules, 4 Transport streams (TS) can be decrypted which can be utilized from RF Input, ASI IN or even up to four IP-TS inputs –... -
Page 4: Features
IGS-700 User Manual Features 1 x ASI input 2 x DVB-Twin-frontends: DVB-S/S2, optional: DVB-T/C/T2, ISDB-Tb Service filtering and DVB-compliant multiplexing to 4x ASI / 4x MPTS 4x CI BISS decryption embedded IP-output-streaming MPTS/SPTS UDP/RTP/RTSP ... -
Page 5: Hardware
IGS-700 User Manual Hardware 2x DVB-S/S2 Twin Frontends other types as dual versions DVB-S2 Frontends upon request Modulation DVB-S/S2 EN 300 421, EN 302 307 QPSK, 8PSK, 16APSK (1 input only), 32APSK (1 input only) Number of inputs 2 x 2 Input impedance 75 Ω, F... -
Page 6: Let's Start With The Web-Interface
IGS-700 User Manual ASI-IN: Can be used to input another TS where you might use some services from and remux or stream as well as decrypt by an inserted CAM… or simply stream selected content. DATA and NMS Ports: DATA – port = GbEthernet, for streaming in and out. -
Page 7: Igs 700.Docx
IGS-700 User Manual Left frame is the menu-panel to select the different sub-menus. The Status page gives an overview: System information, Input status and output bitrates configured and used. You are seeing the numbering of Inputs and they are corresponding with the left Input-numbers: 1-4 = Tuner, 5=ASI IN, 6-9 = IP-Input streams. -
Page 8: Ip-Streaming Port Settings
IGS-700 User Manual IP-Streaming Port settings: … … Set your output stream destinations (multicast or unicast addresses and Port-No.) scroll down up to: Author: RRi Date: 05. Jun. 2017 - 8 - IGS 700.docx Version 1.1... -
Page 9: Input Configuration
IGS-700 User Manual For CBR usage, a fixed Bitrate can be chosen. Note: Calculate 10…15% overhead for stream – data peaks Like explained above, the IP-Range must be in a different Subnet than the NMS port. It automatically avoids that… already explained … Maybe we will change that "securism"... -
Page 10: Igs 700.Docx
IGS-700 User Manual Pretty easy and self explaining for the SAT-Tuners: 13/18/0 Volt setting, High-Band 22KHz support, and DiSEqC to chose from which SAT 1…8 the connected Multiswitch should operate. If using splitters we recommend to serve the Multiswitch with power / 22KHz just by one of the combined Input RF-ports!!! The other ones should be set to 0V and no 22KHz. -
Page 11: Ci- Modules
The CA module diversity of other manufactures is increasing permanently, the using of them might be possible but BLANKOM / IRENIS is not able to guarantee for faultless operating in all cases. Because there are so many good and bad CI modules, we are not able to test them all and do workarounds for special cases. -
Page 12: Biss Decryption Menu
IGS-700 User Manual BISS decryption menu: TS Configuration: Set the ASI outputs and MPTS bitrates for the ports: Self explaining isn't it? ASI is always CBR, so the TS need to be considered with at least a recommended overhead of 10% - 15% (null-packet insertion PID 8919 dec) to not disturb all TV/Radio Services in a stream if the peaks of the cumulated services would exceed the configured Megabit per second. -
Page 13: Spts Menu
IGS-700 User Manual SPTS Menu: The Input sources need to be parsed step by step to be able to select the appropriate services: Once the configured and selected Inputs are shown on the left, you need to select each Input TS in particular and execute "Parse program"... -
Page 14: Igs 700.Docx
IGS-700 User Manual Remark: NIT and EIT (EPG) will not be processed by this simple remultiplexing functions. Same for single PID-Filtering: not supported. There are some external tools for some models available -> Just ask please. Open the tree shows detailed information:... -
Page 15: System Settings
IGS-700 User Manual SYSTEM settings: Keyboard on Front panel can be locked by a password to avoid unauthorized access. The usual user-PW setting things… do not forget it otherwise you need to do factory reset… somehow tricky… Author: RRi Date: 05. Jun. 2017 - 15 - IGS 700.docx... -
Page 16: Setup By Using The Front Panel
IGS-700 User Manual Self explaining menu items – isn't it? Same for here: BTW: The unit gets its time information from your WEB-Browser automatically: SETUP by using the Front Panel: The LCD shows the Status and the Menu/Sub-menu entries which can be configured by the Keypad and the switches ENTER / MENU. - Page 17 IGS-700 User Manual Use the keypad to navigate Enter to select Sub-menu ENTER – Key 'enters' into the Sub -Menus Tuner Inputs MENU brings you back Enter forward set / change by enter / arrow keys Author: RRi Date: 05. Jun. 2017 - 17 - IGS 700.docx...
-
Page 18: Igs 700.Docx
IGS-700 User Manual CAM's BISS use keys and select by Enter select or arrow-keys until ENTER … Select Input and mode Author: RRi Date: 05. Jun. 2017 - 18 - IGS 700.docx Version 1.1... -
Page 19: Igs 700.Docx
IGS-700 User Manual … ENTER So it's almost self explaining and you will get familiar with the usage very soon. Author: RRi Date: 05. Jun. 2017 - 19 - IGS 700.docx Version 1.1... -
Page 20: Important Notes
Installation Notes All types of the IRENIS-BLANKOM family are 19“devices with 1 RU height designed for installation in 19” racks. In addition to the front panel screws an internal module support is required at the rack. Depending on the Frontend used and the operating adjustments, the RF-input port carries DC Voltage (13V /18V, max.
